Fujitsu Trio Split KL-Kanal Ductable 7+7+12 AOEG24KBCA3 ARXG07KLLAP ARXG07KLLAP ARXG12KLLAP Air Conditioner R-32
Fujitsu Trio Split Series KL-Channel Air Conditioner with Optional WiFi, 7000+7000+12000 Btu, Heat Pump with Low Energy Consumption, Inverter Technology Ideal for environments with one indoor unit up to 21 sq m + one indoor unit up to 21 sq m + one indoor unit up to 36 sq m
KL compact duct units
- Automatic temperature reset
- Automatic restart
- Save energy
- Weekly timer + setback timer
- Input/Output
- Automatic ventilation speed
- Automatic switching between cold and hot
- Condensate pump included as standard
- Filter status indicator
- Sleek design
The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.

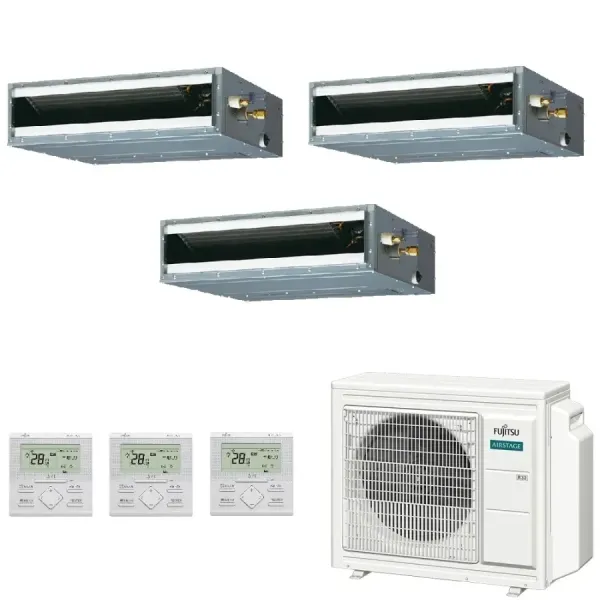

Kit consisting of the following elements:
Indoor unit ARXG07KLLAP 7000 Btu Indoor unit ARXG07KLLAP 7000 Btu Indoor unit ARXG12KLLAP 12000 Btu Outdoor unit AOEG24KBCA3 24000 Btu The ultimate solution for air conditioning your home: up to three rooms with many variations and solutions.KL compact duct units
- Automatic temperature reset
- Automatic restart
- Save energy
- Weekly timer + setback timer
- Input/Output
- Automatic ventilation speed
- Automatic switching between cold and hot
- Condensate pump included as standard
- Filter status indicator
- Sleek design
The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Available, delivery time 4-5 working days
Fujitsu Trio Split KL-Kanal Ductable 7+7+12 AOEG24KBCA3 ARXG07KLLAP ARXG07KLLAP ARXG12KLLAP Air Conditioner R-32
Fujitsu Trio Split Series KL-Channel Air Conditioner with Optional WiFi, 7000+7000+12000 Btu, Heat Pump with Low Energy Consumption, Inverter Technology
Kit consisting of the following elements:
Internal duct unit ARXG07KLLAP 7,000 BTU 2.0 kW Compact low-pressure pump of the KL series
Ideal for rooms of 17 to 22 square meters with an average ceiling height of approximately 2.7 meters.
Length: 700 mm - Height: 198 mm - Depth: 620 mm
Standard accessories: Filter.
Included accessories: Wired controller UTY-RLRY
Optional accessories: UTY-TFSXW1 or UTY-TFSXJ3 WLAN interface
Internal duct unit ARXG07KLLAP 7,000 BTU 2.0 kW Compact low-pressure pump of the KL series
Ideal for rooms of 17 to 22 square meters with an average ceiling height of approximately 2.7 meters.
Length: 700 mm - Height: 198 mm - Depth: 620 mm
Standard accessories: Filter.
Included accessories: Wired controller UTY-RLRY
Optional accessories: UTY-TFSXW1 or UTY-TFSXJ3 WLAN interface
Internal duct unit ARXG12KLLAP 12,000 BTU 3.5 kW Compact low-pressure pump of the KL series
Ideal for rooms of 27 to 35 square meters with an average ceiling height of approximately 2.7 meters.
Length: 700 mm - Height: 198 mm - Depth: 620 mm
Standard accessories: Filter.
Included accessories: Wired controller UTY-RLRY
Optional accessories: UTY-TFSXW1 or UTY-TFSXJ3 WLAN interface

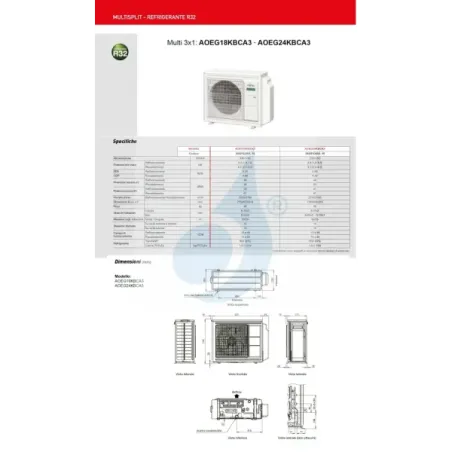

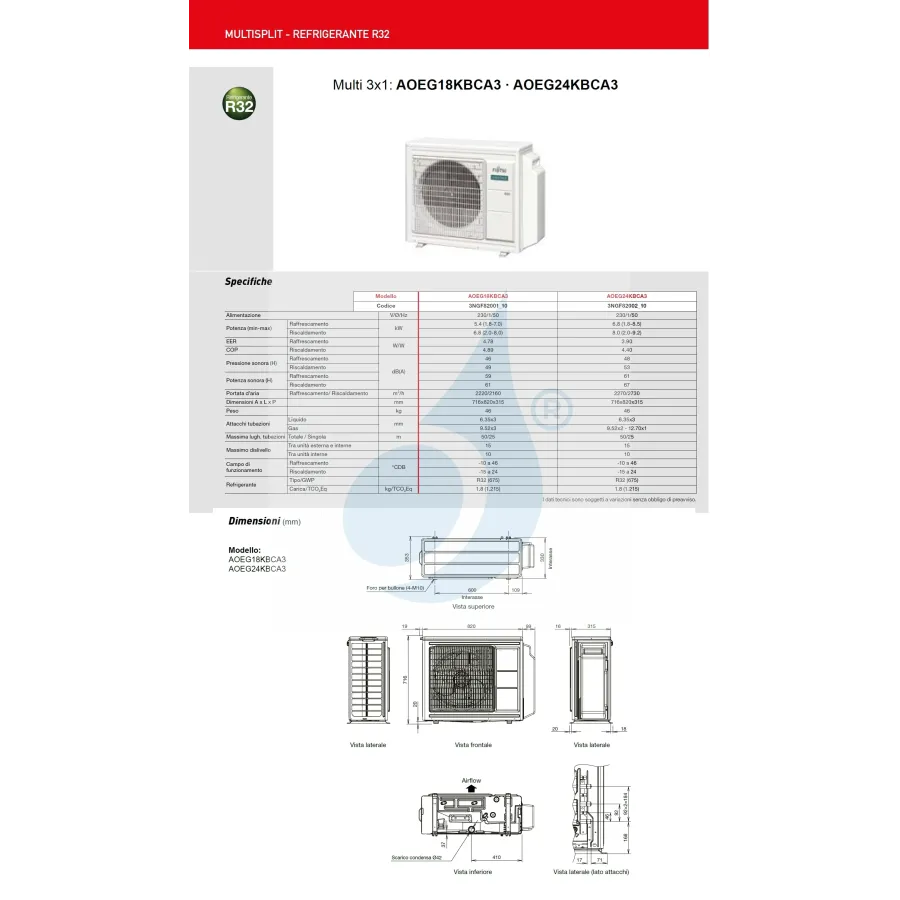

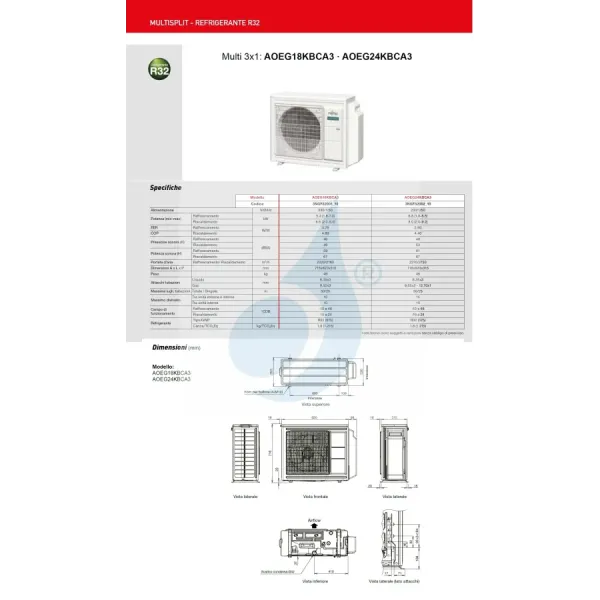

External Unit Multi Split AOEG24KBCA3 24,000 BTU 7.2 kW
Operation with refrigerant gas: R-32
Length: 820 mm; Height: 716 mm; Depth: 315 mm.
Minimum number of connectable indoor units: 2.
Maximum number of connectable indoor units: 3.

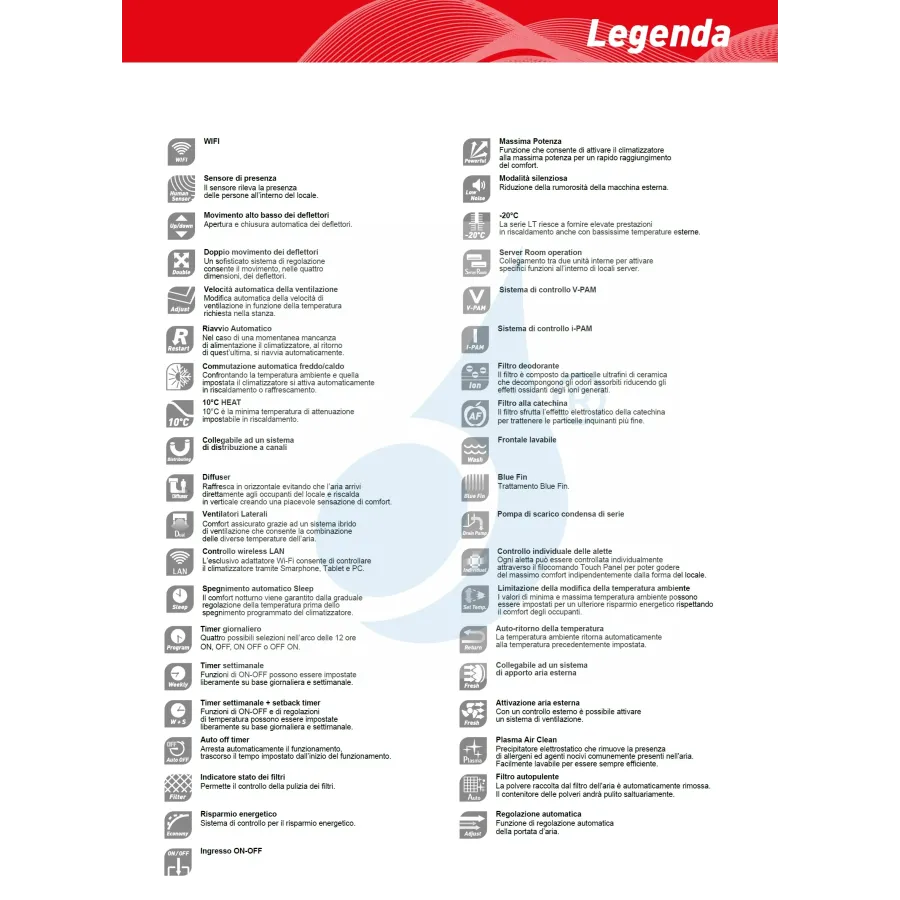

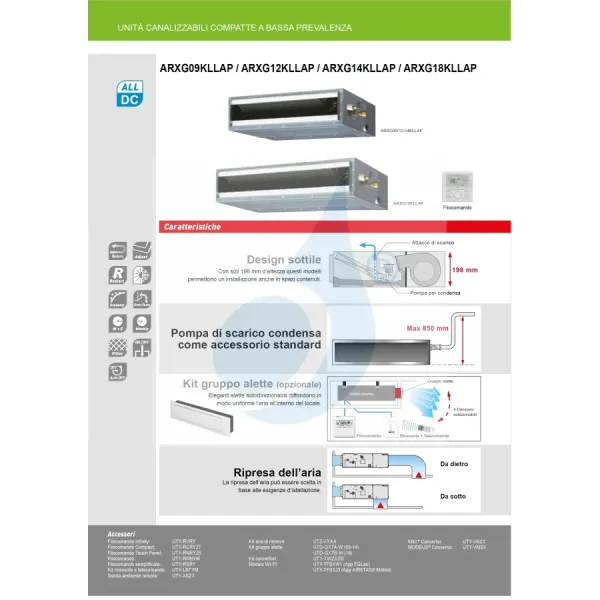

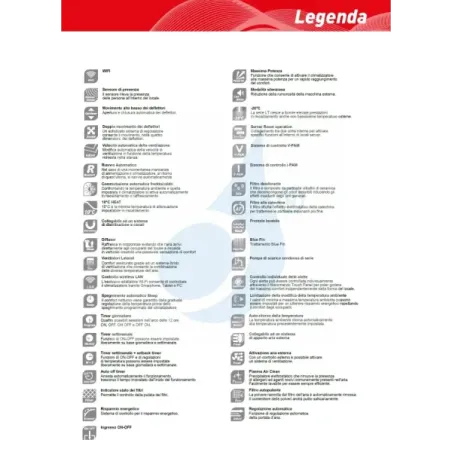

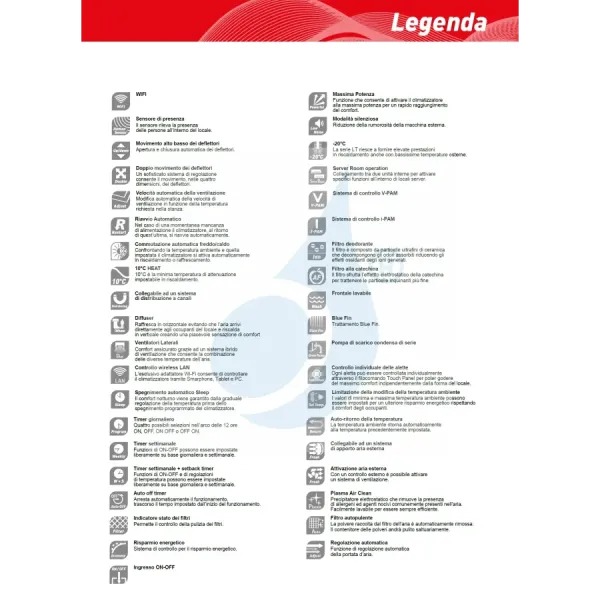

KL Compact Ducted Series
Automatic temperature feedbackBy activating the automatic temperature return function, the air conditioner, which was set to a different temperature for a certain period of time, will automatically restore the previous temperature.
Automatic restart
In the event of a temporary power outage, the air conditioner will automatically restart as soon as the power supply is restored.
Energy saving
In economy mode, the air conditioner reduces energy consumption, resulting in significant savings.
Weekly timer + setback timer
The on/off and temperature control functions can be freely set daily and weekly.
Input/Output
Automatic ventilation speed
Automatic adjustment of the ventilation speed to the desired room temperature.
Automatic cold/hot switching
The air conditioner automatically switches from heating to cooling (and vice versa), depending on the desired room temperature.
Condensate pump included as standard
Filter status display
Allows for checking the filter cleanliness.
Sleek design

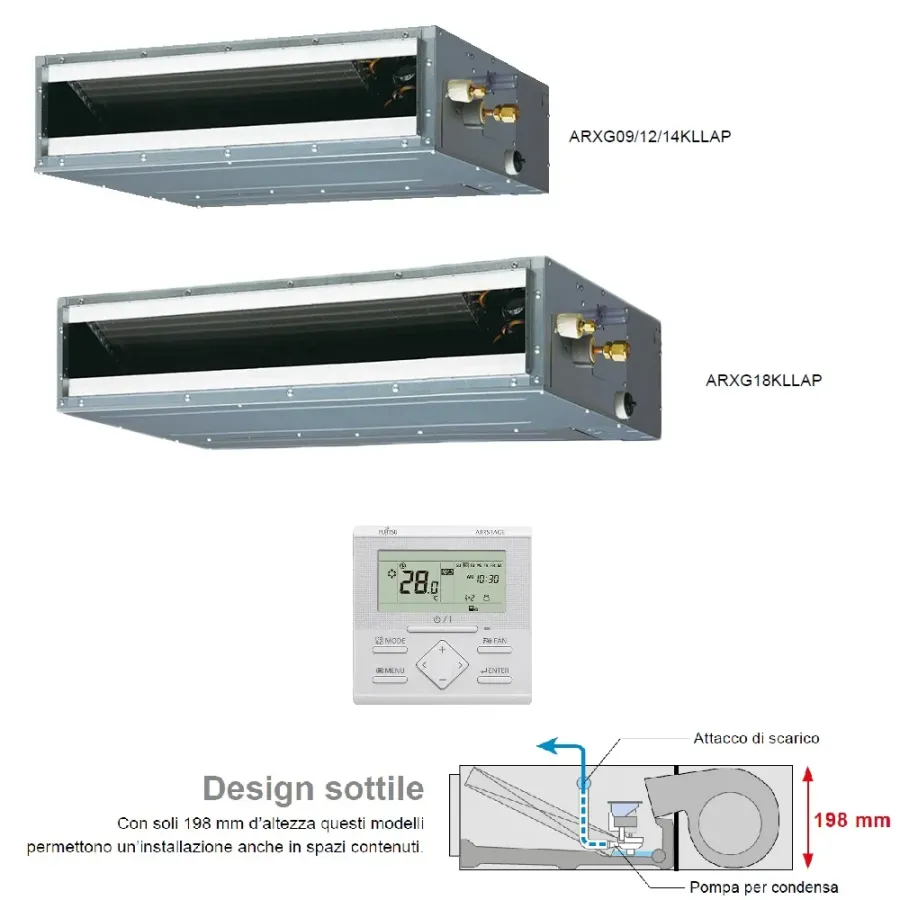

With a height of only 198 mm, these models allow installation even in small spaces.

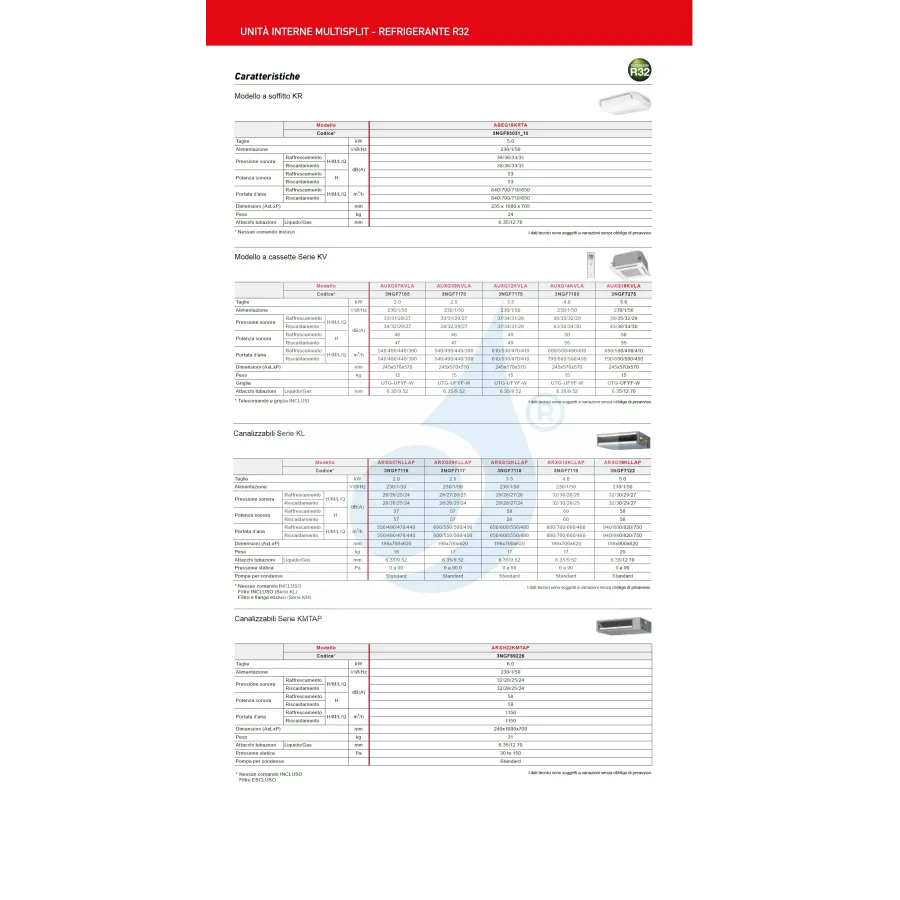

Technical data sheets
Download map of the ductable series KLLAP (IT)
- Rated power BTU
- BTU 7000+7000+12000
- series
- KL Compact
KL channel - Rated power kW
- 2.0+2.0+3.5
- Type of facility
- Channelable
Channel installation devices - Energy class cooling
- A+++
- Energy class heating
- A++
- Refrigerant gas
- R-32
- System type
- Trio Split
- Wi-Fi connection
- WiFi Optional
- Declaration of commitment
- 1
