Samsung Trio Split Cassette 1 Via WindFree 9+9+9 Btu AJ068TXJ3KG AJ026TN1DKG AJ026TN1DKG AJ026TN1DKG Air Conditioners R-32
Samsung Trio Split Series 1 Air Conditioner with WindFree WiFi (Optional) 9000+9000+9000 Btu Heating with Low Energy Heat Pump and Inverter Technology Ideal for environments with one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m The ultimate solution for air conditioning your home: up to three rooms with many variations and solutions.

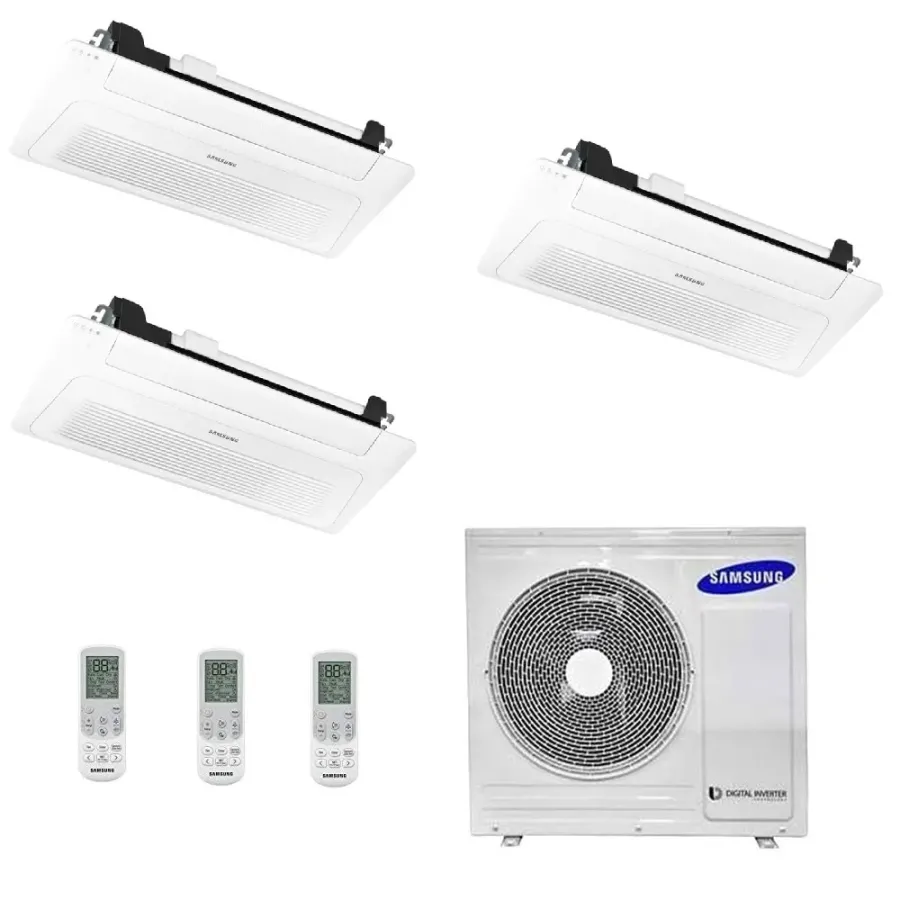

Kit consisting of the following elements:
Indoor unit AJ026TN1DKG/EU 9000 Btu Indoor unit AJ026TN1DKG/EU 9000 Btu Indoor unit AJ026TN1DKG/EU 9000 Btu Outdoor unit AJ068TXJ3KG/EU 24000 Btu The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.Technical data sheets
Download Technical Data Sheet Indoor Units (IT)
Download comparison of Samsung wall-mounted wall chargers (IT)
Out of stock, product available soon
Samsung Trio Split Cassette 1 Via WindFree 9+9+9 Btu AJ068TXJ3KG AJ026TN1DKG AJ026TN1DKG AJ026TN1DKG Air Conditioners R-32
Samsung Trio Split Series 1 Air Conditioner with WindFree WiFi (Optional) 9000+9000+9000 Btu Heating with Low Energy Heat Pump and Inverter Technology
Kit consisting of the following elements:
Cassette indoor unit AJ026TN1DKG/EU 9,000 BTU 2.5 kW
Ideal for rooms of 21 to 27 square meters with an average ceiling height of approximately 2.7 meters.
Length: 575 mm; Height: 250 mm; Depth: 575 mm.
Included accessories: White radiator grille PC1NWFMAN and infrared remote control AR-EH03E.
Optional accessory: MIM-H04EN Wi-Fi interface.
Cassette indoor unit AJ026TN1DKG/EU 9,000 BTU 2.5 kW
Ideal for rooms of 21 to 27 square meters with an average ceiling height of approximately 2.7 meters.
Length: 575 mm; Height: 250 mm; Depth: 575 mm.
Included accessories: White radiator grille PC1NWFMAN and infrared remote control AR-EH03E.
Optional accessory: MIM-H04EN Wi-Fi interface.
Cassette indoor unit AJ026TN1DKG/EU 9,000 BTU 2.5 kW
Ideal for rooms of 21 to 27 square meters with an average ceiling height of approximately 2.7 meters.
Length: 575 mm; Height: 250 mm; Depth: 575 mm.
Included accessories: White radiator grille PC1NWFMAN and infrared remote control AR-EH03E.
Optional accessory: MIM-H04EN Wi-Fi interface.

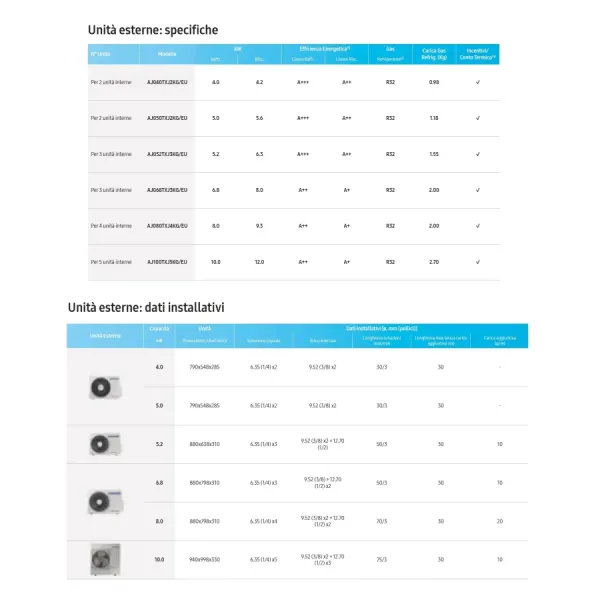

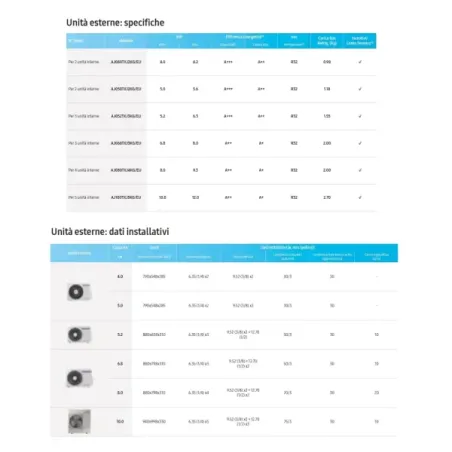

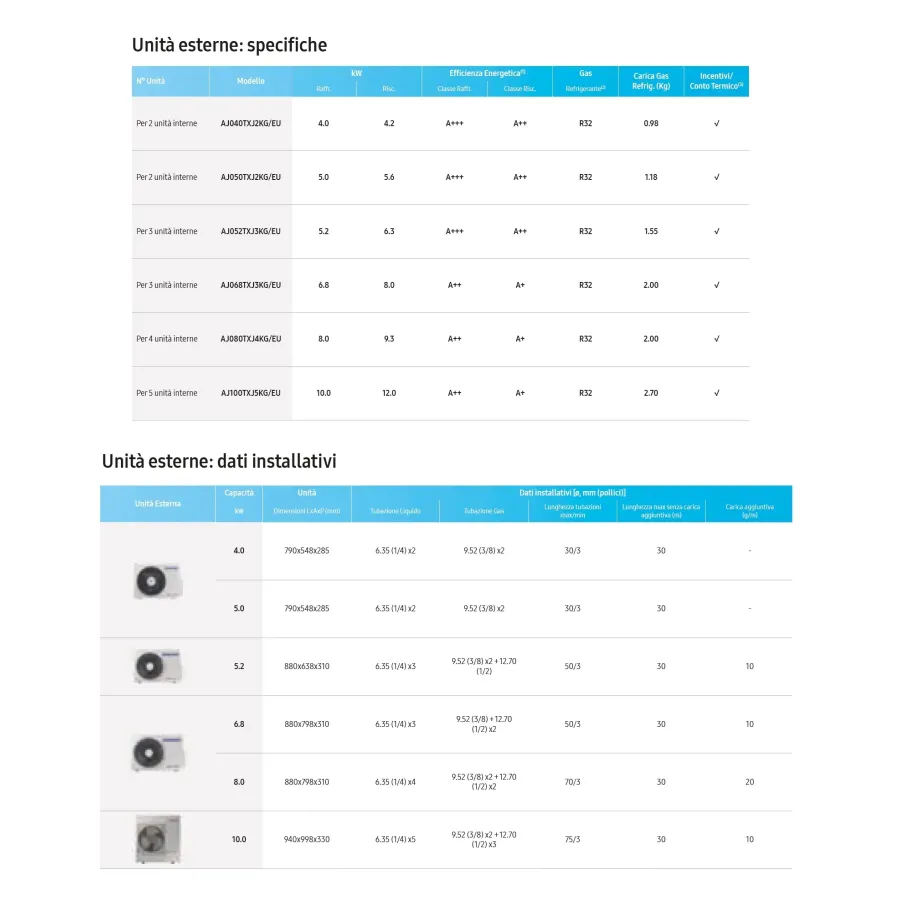

Multi-split outdoor unit AJ068TXJ3KG/EU 24,000 BTU 6.8 kW
Operation with refrigerant gas: R-32
Length: 880 mm; Height: 798 mm; Depth: 310 mm.
Minimum number of connectable indoor units: 2.
Maximum number of connectable indoor units: 3.

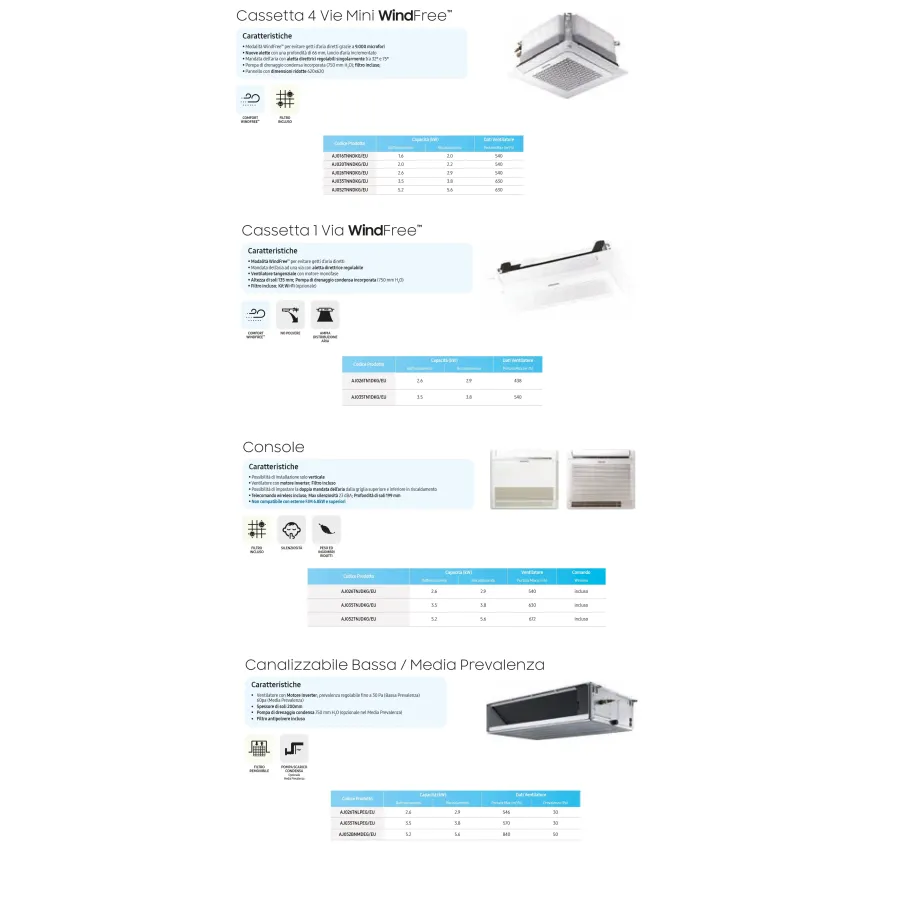

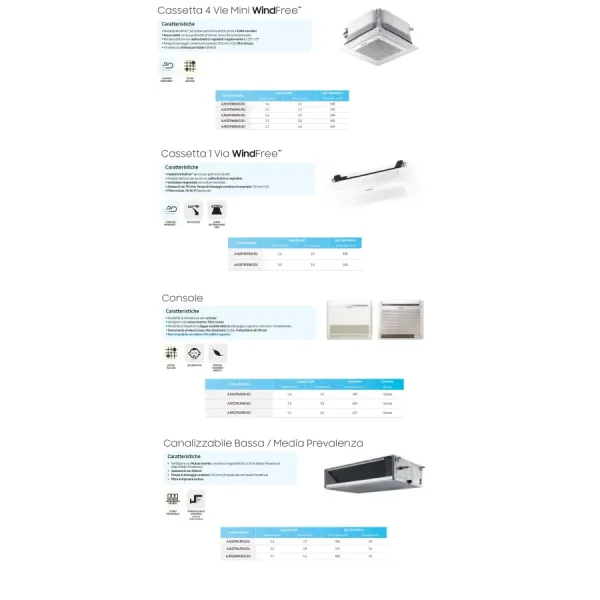

Indoor units cassette series 1 via Mini WindFree
- WindFree mode to avoid direct air jets- One-way air supply with adjustable guide vane
- Tangential fan with single-phase motor; height of only 135 mm
- Built-in condensate drain pump (750 mm H2O); filter included
- Communication using the NASA protocol; Wi-Fi kit (optional)
- Single-phase power supply 220 V 50 Hz; Inverter single-rotary outdoor unit compressor
Technical data sheets
Download Technical Data Sheet Indoor Units (IT)
Download comparison of Samsung wall-mounted wall chargers (IT)
- Rated power BTU
- BTU 9000+9000+9000
- series
- 1 Via WindFree
1 WindFree air outlet - Color
- White
- Rated power kW
- 2.5+2.5+2.5
2.6+2.6+2.6 - Type of facility
- Cassette player
cassette - Energy class cooling
- A++
- Energy class heating
- A+
- Refrigerant gas
- R-32
- System type
- Trio Split
- Wi-Fi connection
- WiFi Optional
- Declaration of commitment
- 1
