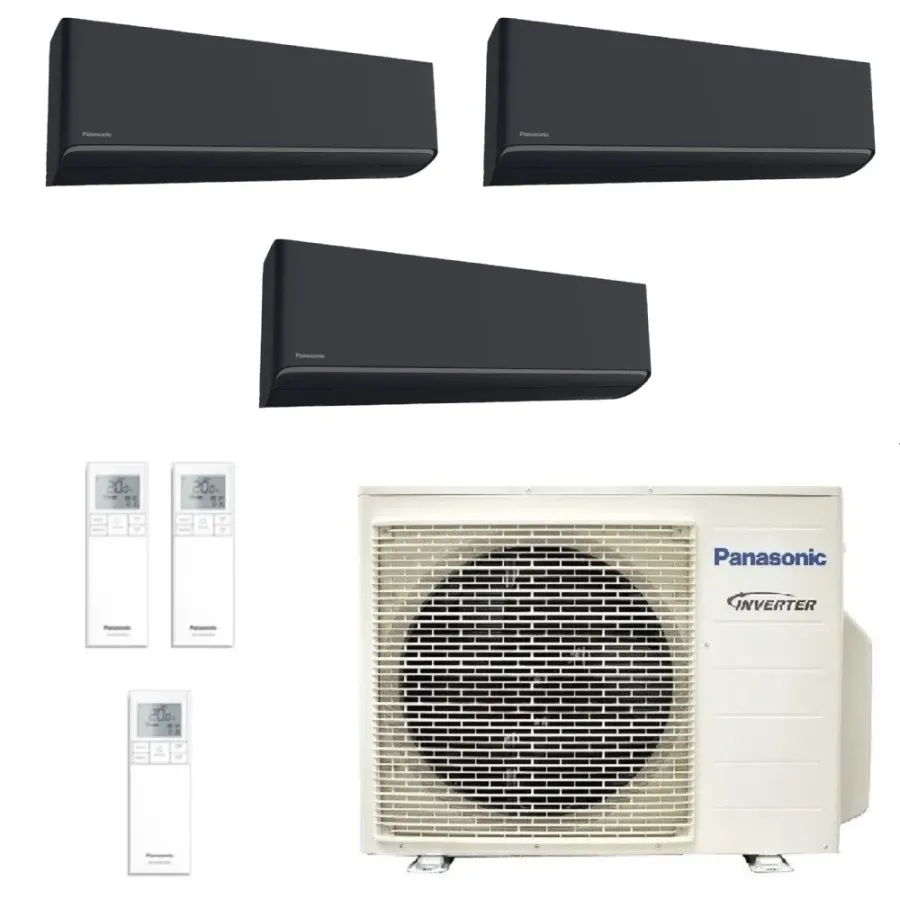

Panasonic Trio Split 2.0+2.0+2.5 kW CU-3Z68TBE CS-XZ20ZKEW-H CS-XZ20ZKEW-H CS-XZ25ZKEW-H Air Conditioners Etherea Graphite Gray

Panasonic Trio Split 2.0+2.0+2.5 kW CU-3Z68TBE CS-XZ20ZKEW-H CS-XZ20ZKEW-H CS-XZ25ZKEW-H Air Conditioners Etherea Graphite Gray WiFi

Panasonic Trio Split XZ-H Etherea WiFi 7000+7000+9000 Btu air conditioner with inverter high-efficiency heat pump, excellent low-noise climate control, reliable cold heating with dehumidifier.

An innovative design that blends seamlessly into the most modern environments in graphite grey.

- Environmentally friendly refrigerant R32

- Very high efficiency

- Maximum comfort with Econavi sensors

- Nanoe Air Purification System Version 3

-To control the direction of the airflow

- Mild dry cooling function that prevents a rapid drop in ambient humidity

- Very quiet operation! Sound pressure level of only 19 dB(A) (devices Z/XZ20, Z/XZ25, Z/XZ35)

- Stronger flow to reach the set temperature quickly

- WLAN control via integrated smartphone

The offer is structured as follows:
CS-XZ20ZKEW 7,000 BTU Silver Color 2.0 kW
Ideal for environments of 15 to 21 sq m with an average height of approximately 2.7 meters.
Width: 870 mm, Height: 295 mm, Depth: 229 mm.
Standard accessories: remote control and integrated Wi-Fi card.
CS-XZ20ZKEW 7,000 BTU Silver Color 2.0 kW
Ideal for environments of 15 to 21 sq m with an average height of approximately 2.7 meters.
Width: 870 mm, Height: 295 mm, Depth: 229 mm.
Standard accessories: remote control and integrated Wi-Fi card.
CS-XZ25ZKEW 9,000 BTU Silver Color 2.5 kW
Ideal for environments of 21 to 27 square meters with an average height of approximately 2.7 meters.
Width: 870 mm, Height: 295 mm, Depth: 229 mm.
Standard accessories: remote control and integrated Wi-Fi card.
CU-3Z68TBE 24,000 BTU 6.8 kW
Operation with refrigerant gas: R-32
Width: 875 mm, Height: 795 mm, Depth: 320 mm.
Minimum number of connectable indoor units: 2.
Maximum number of connectable indoor units: 3.

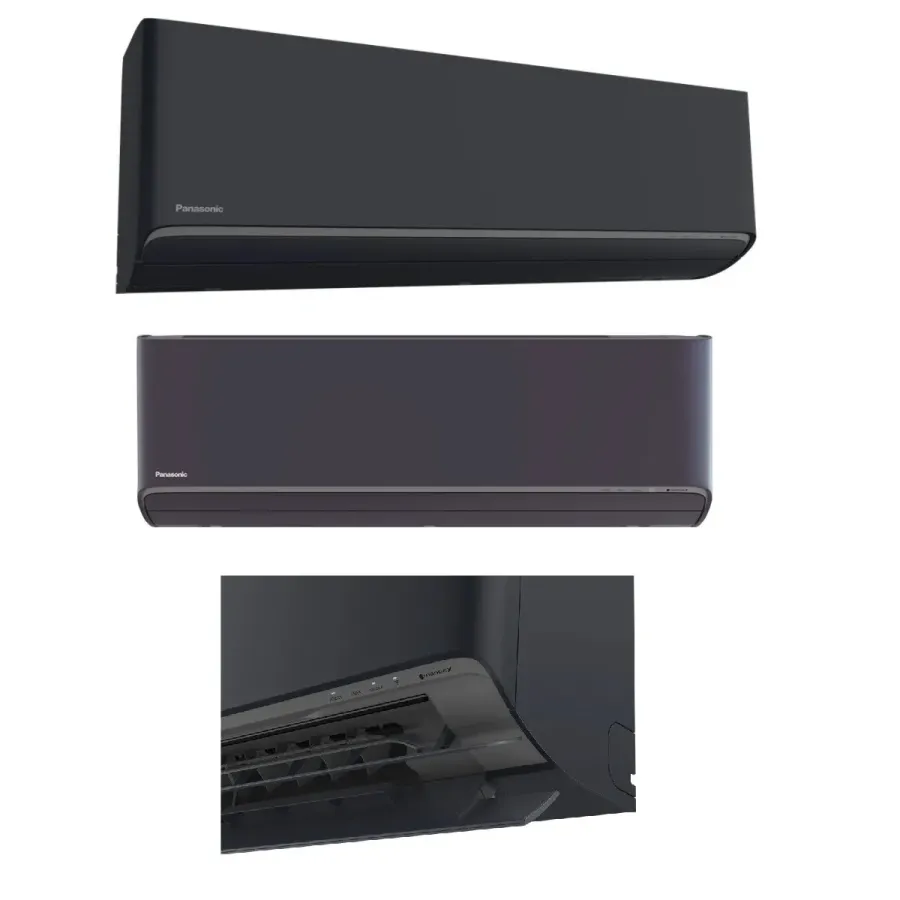

Etherea Graphite XZ-H series indoor units

The Etherea indoor unit is an innovative product with outstanding performance.
The Etherea series features a linear and elegant design, outstanding technical performance, and many innovations that have made it possible to achieve unprecedented performance in the field of residential air conditioning.

Clean air

The Etherea series introduces a new Nanoe X filtration and purification system that uses nanotechnology to remove and neutralize 99% of airborne or sticky contaminants such as bacteria, viruses, and mold. Ideal for those living near busy areas, production facilities, or simply for anyone who cares about the quality of the air they breathe!
Furthermore, there is the Mild Dry Cooling function, which prevents the ambient humidity from dropping too quickly.

Design

The Etherea indoor units, with their linear and elegant lines, are available in 3 unique colors: matte white, silver and the new graphite grey.
This line was designed to adapt to modern interiors, all living spaces, commercial activities, offices and even hotels.
It also comes with an innovative new "Sky" remote control that fits perfectly in the hand and is backlit.

comfort

The XZ Etherea Graphite series air conditioners offer exceptional comfort thanks to their quiet operation at just 19 dB and the Aerowings function. The optimized airflow direction prevents unwanted movement within the room, thus avoiding bothersome neck stiffness.
It offers a range of special functions such as self-diagnosis, automatic restart, 24-hour weektime program, silent function, night operating program and rapid cooling.
Thanks to its excellent energy efficiency, energy consumption is significantly reduced.
With the exclusive integrated and included Wi-Fi technology, you can manage the main functions of your air conditioner even when you are not at home by using the Panasonic Comfort Cloud app, which can be installed on your smartphone, tablet, or PC (Wi-Fi network required to connect the unit to the internet).
The new remote control allows quick access to important functions and features a sliding cover that offers more options and keeps the buttons free from dirt and stains.
Controlling the settings has become simple and intuitive. With a width of 58.9 mm and a length of 164.7 mm, the Sky Remote fits comfortably in the hand.
The display is backlit and can easily be used at night.

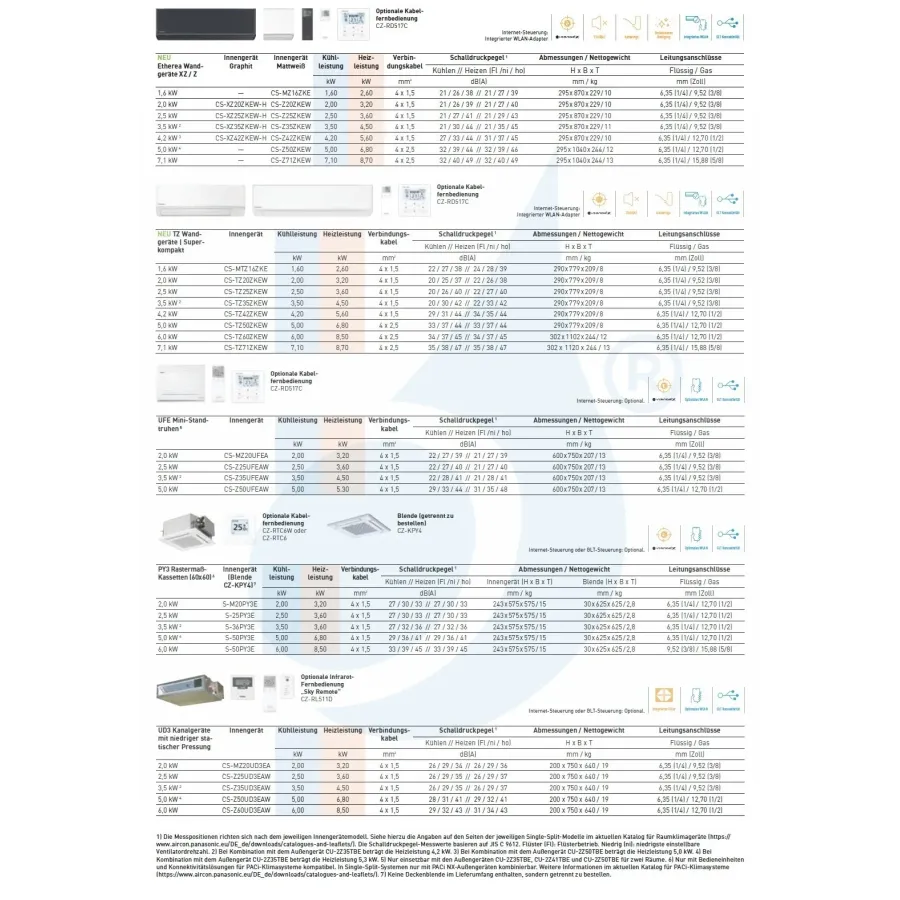

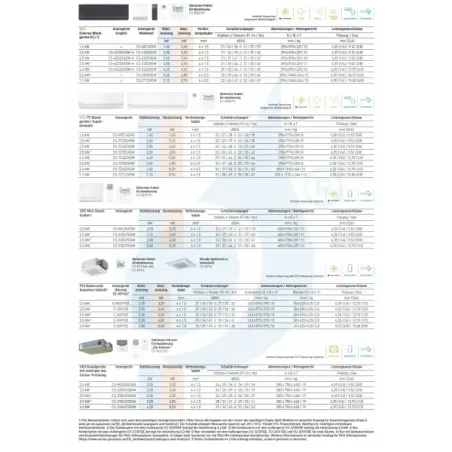

Datasheet
