Mitsubishi Trio Split 7000+7000+7000 Btu MXZ-3F68VF4 MSZ-AY20VGKP MSZ-AY20VGKP MSZ-AY20VGKP Air Conditioners Standard White

Mitsubishi Trio Split 7000+7000+7000 Btu MXZ-3F68VF4 MSZ-AY20VGKP MSZ-AY20VGKP MSZ-AY20VGKP Air Conditioners Standard White

Mitsubishi Trio Split Series Standard WiFi Air Conditioners 7000+7000+7000 Btu

An excellent solution for comfort in all rooms of your home or office.

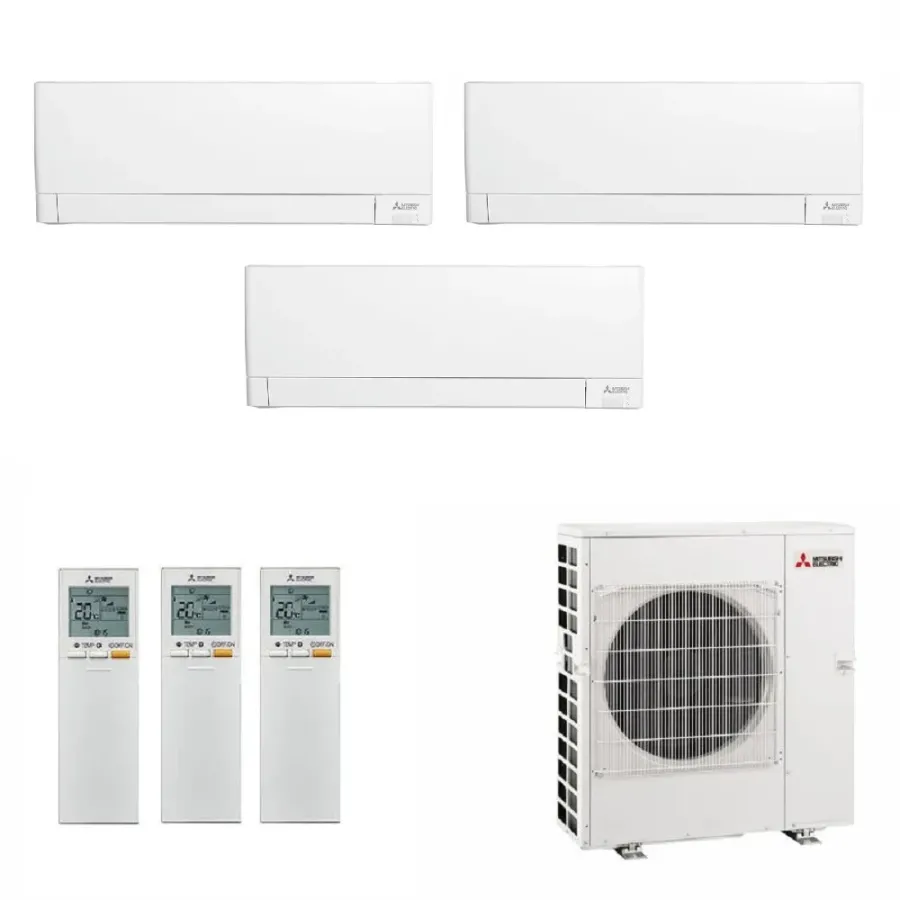

Kit consisting of the following elements:
Indoor unit MSZ-AY20VGKP 7,000 BTU 2.0 kW
Ideal for rooms of 17 to 22 m² with an average height of approximately 2.7 meters.
Length: 760 mm - Height: 250 mm - Depth: 199 mm
Standard features: remote control and integrated WiFi card.
Indoor unit MSZ-AY20VGKP 7,000 BTU 2.0 kW
Ideal for rooms of 17 to 22 m² with an average height of approximately 2.7 meters.
Length: 760 mm - Height: 250 mm - Depth: 199 mm
Standard features: remote control and integrated WiFi card.
Indoor unit MSZ-AY20VGKP 7,000 BTU 2.0 kW
Ideal for rooms of 17 to 22 m² with an average height of approximately 2.7 meters.
Length: 760 mm - Height: 250 mm - Depth: 199 mm
Standard features: remote control and integrated WiFi card.

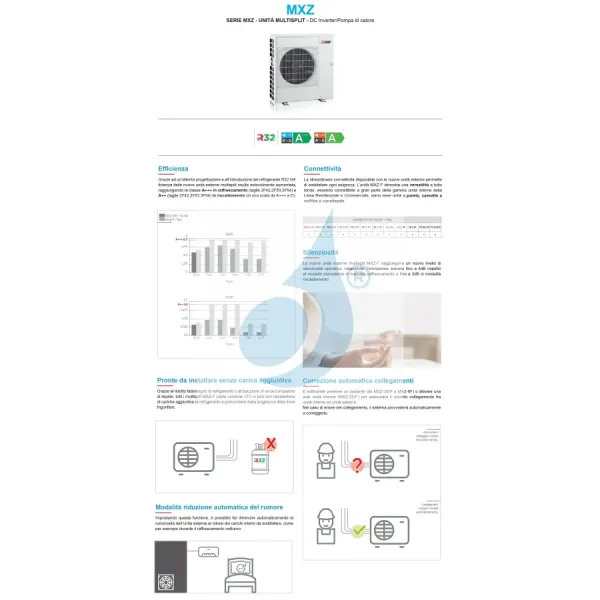

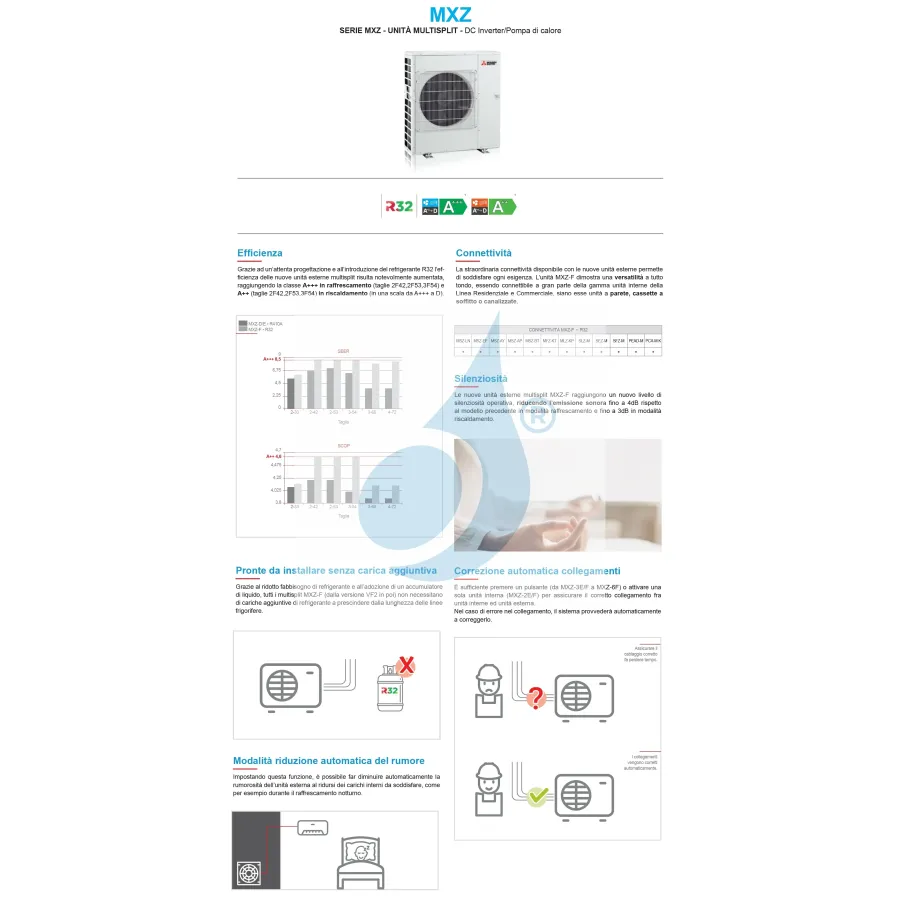

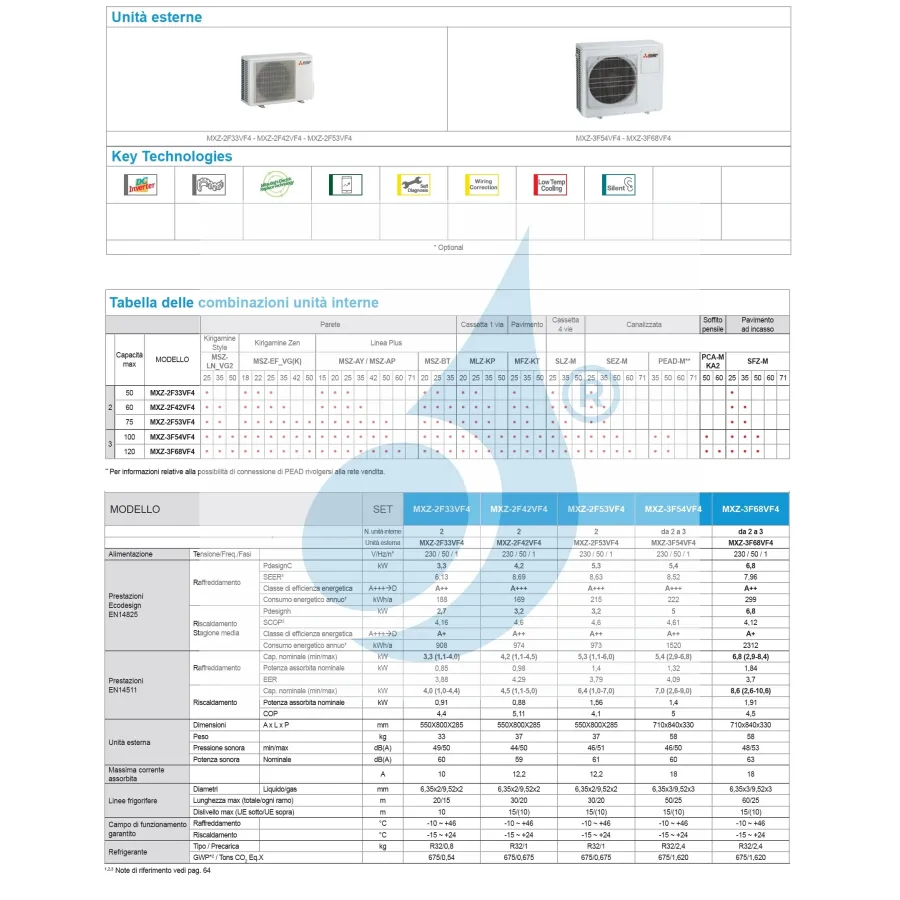

MXZ-3F68VF4 24,000 BTU 6.8 kW
Operation with refrigerant gas: R-32
Length: 840 mm - Height: 710 mm - Depth: 330 mm.
Minimum number of connectable indoor units: 2.
Maximum number of connectable indoor units: 3.

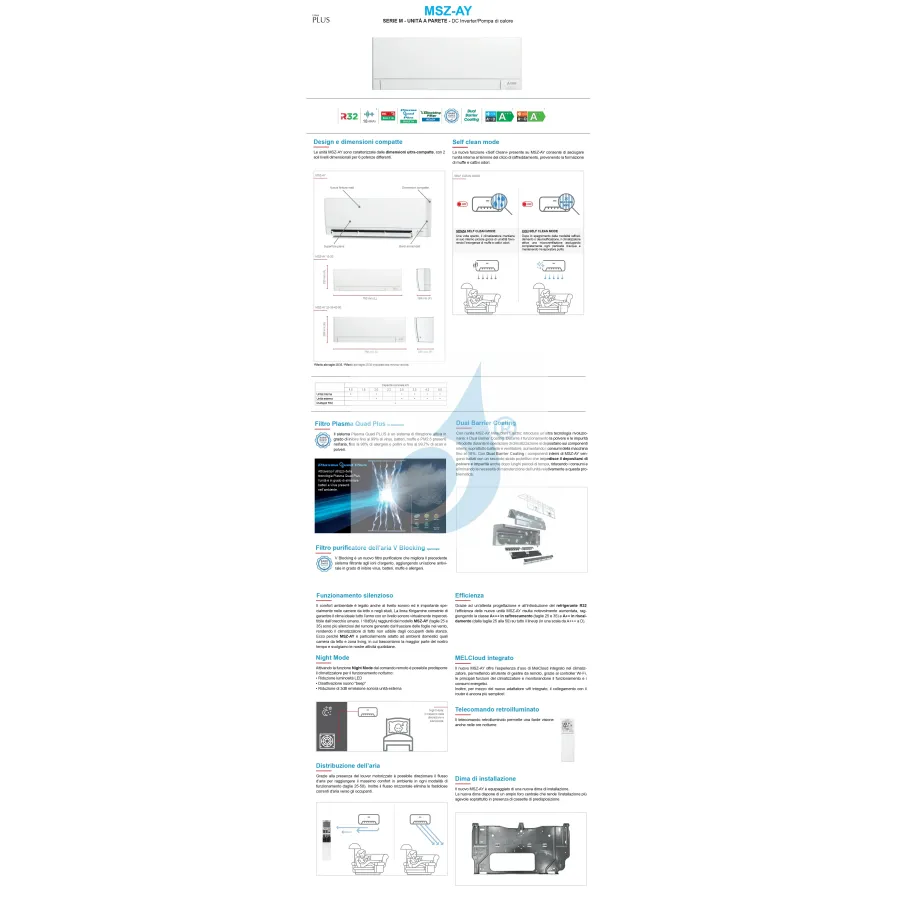

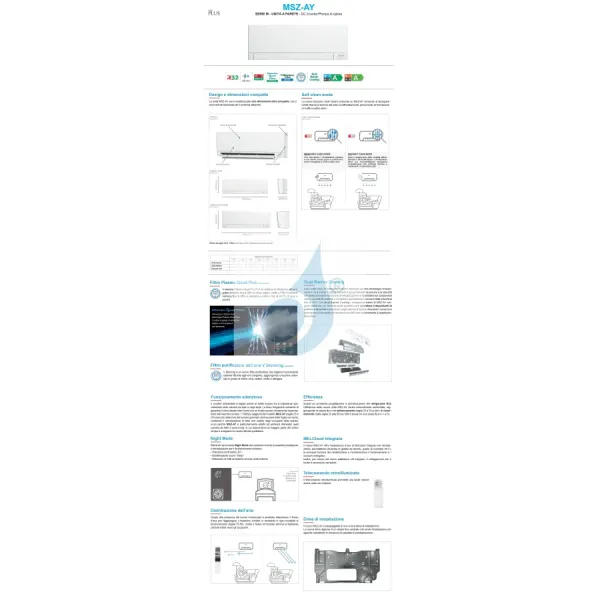

Indoor units of the standard wall-mounted units MSZ-AY 2023

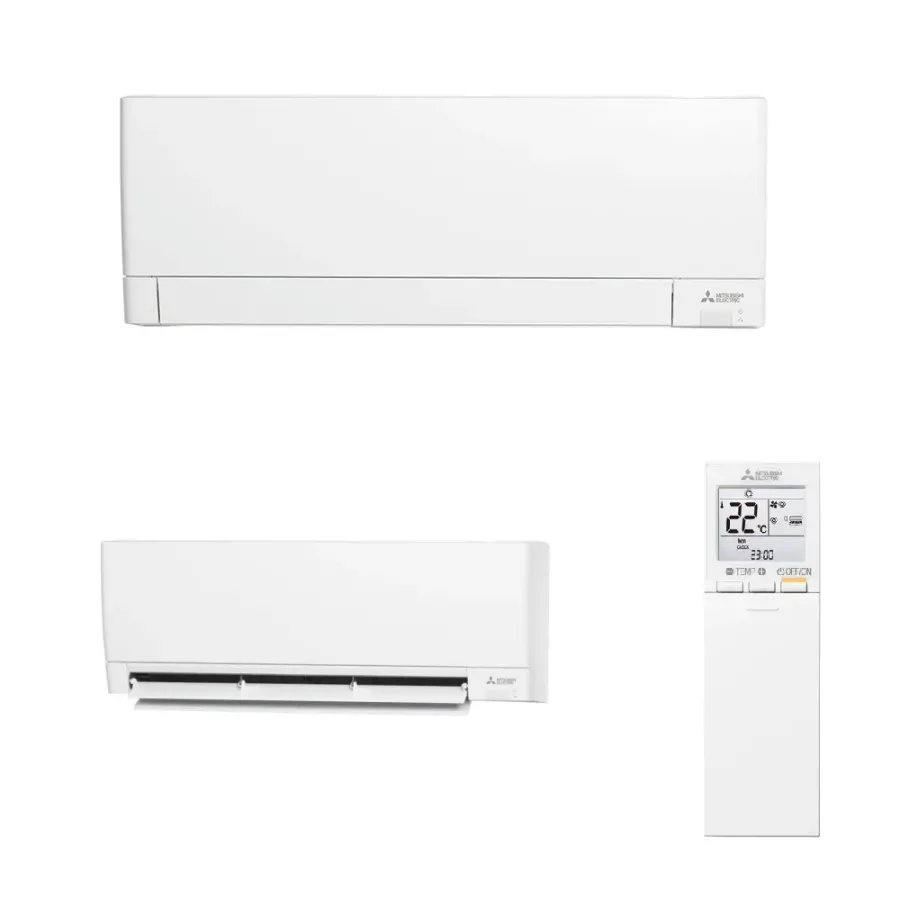

The new MSZ-AY wall unit has a high-quality, matte white finish. Its rounded edges and compact dimensions allow it to blend discreetly into any room.
With a sound pressure level starting at 18dB(A), the device is particularly quiet.
In night mode, operating tones are muted, the operating light is dimmed, and the outdoor unit operates 3 dB(A) quieter.
The MSZ-AY wall unit comes standard with a V-blocking filter.

Compact design

In the lower power outputs, the wall-mounted unit, with its compact dimensions of only 798 mm x 299 mm x 245 mm, allows for an inconspicuous and discreet installation in even the smallest room.

Horizontal air outlet

Ensures very comfortable air distribution, especially in cooling mode.

Night mode

The new night mode comfort function automatically reduces the sound pressure of the outdoor unit by -3dB(A).
Additionally, the LED on the indoor unit is dimmed and the remote control mutes the other beeping sound during operation.

Integrated V-blocking filter

The V-Blocking filter with antiviral effect inhibits 99% of adhering viruses and other pollutants such as bacteria, mold and allergens.
The two-layer filter with non-woven fabric and electrostatic coating can effectively capture and remove small particles from the room air.

MELCloud WiFi adapter

With the Wi-Fi device, you can remotely manage your air conditioner via the MEL-CLOUD app, which can be installed on a smartphone, tablet or PC.
These are the main functions of your air conditioner, even when you are not at home (a Wi-Fi connection is required for the connection to the internet unit).
It can also be used with Alexa voice control.
The new model supports the energy consumption monitoring function thanks to the MELCloud remote control system.

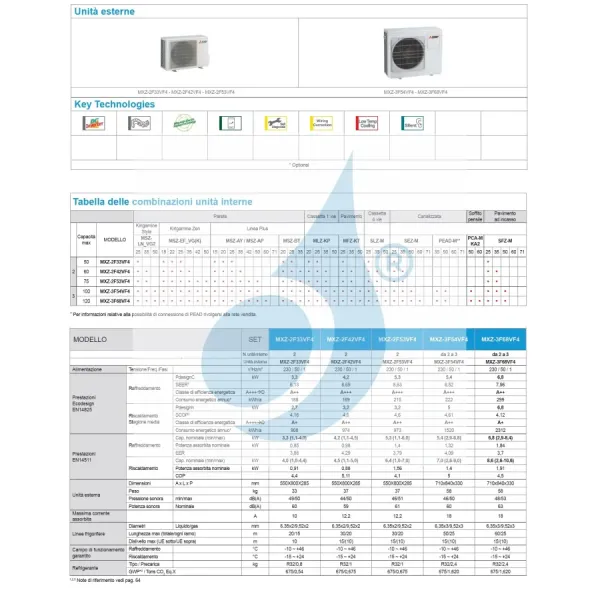

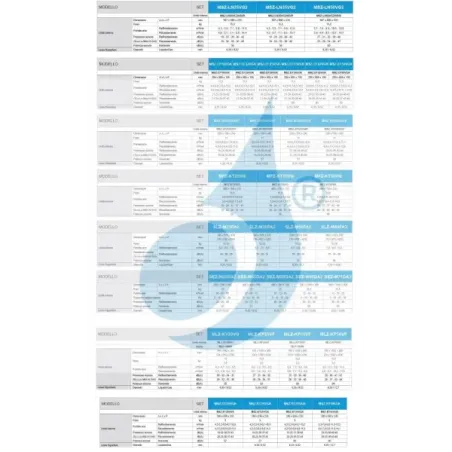

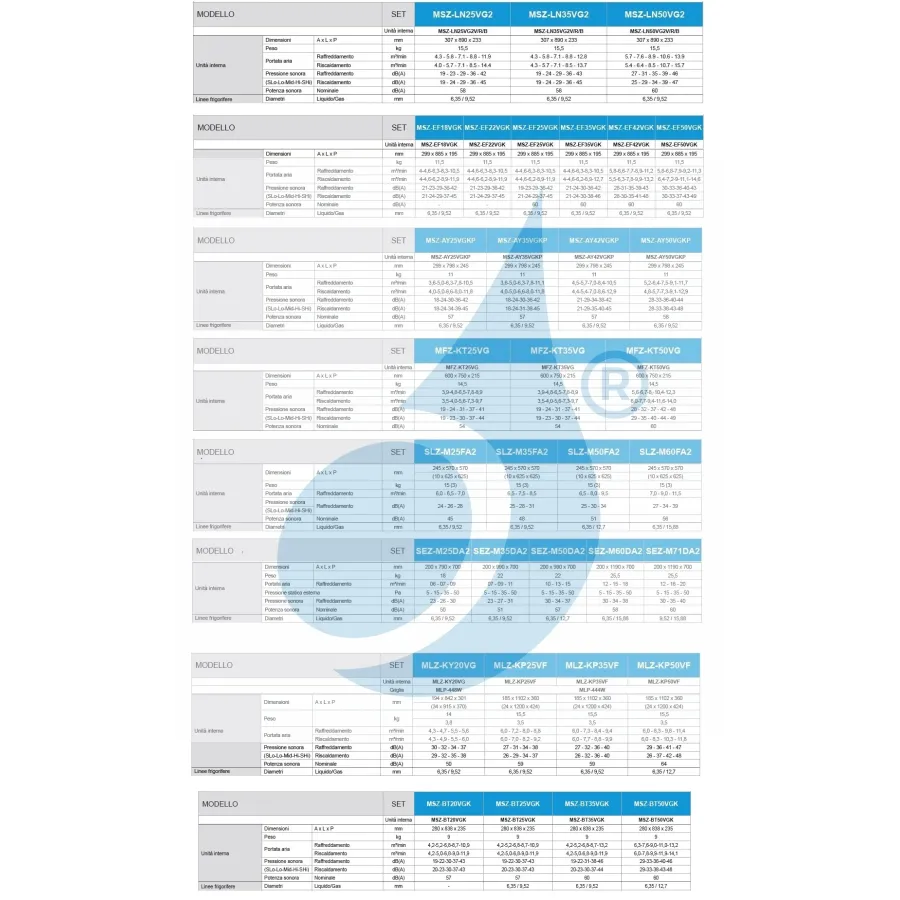

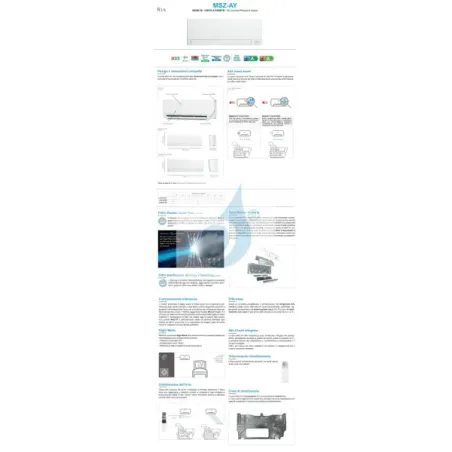

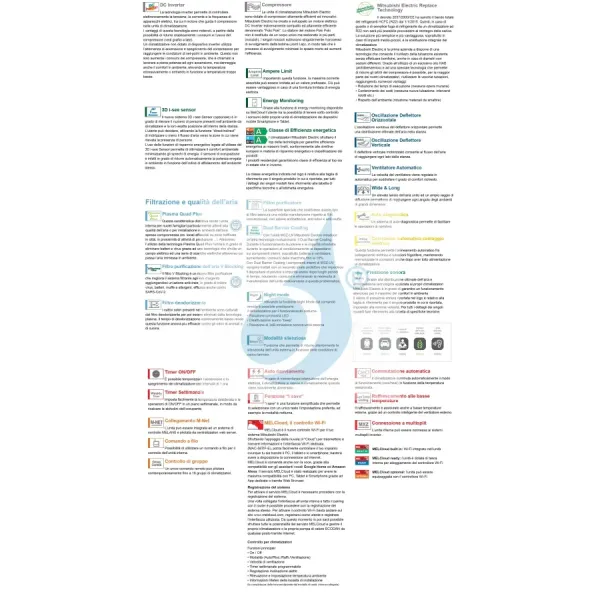

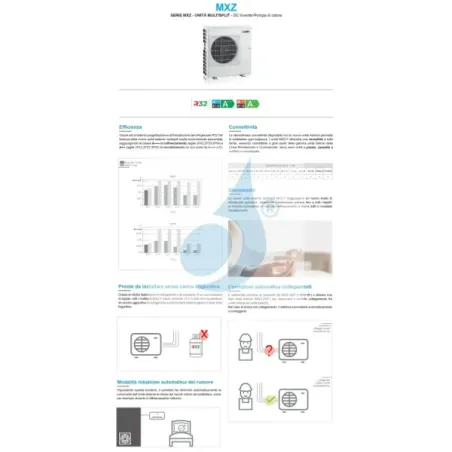

Technical data sheets

Download wall map of the MSZ-AY Plus series

Download wall map of the MSZ-AY Plus series

Download Technical Data Sheet Multi Split Plus Series MSZ-AY Wall
