Samsung Mono Split Cassette 4 Vie WindFree 47600 Btu 220v AC140RN4DKG/EU AC140RXADKG/EU Air Conditioners White R-32

Samsung Mono Split Cassette 4 Vie WindFree 47600 Btu 220v AC140RN4DKG/EU AC140RXADKG/EU Air Conditioners White R-32

Samsung Mono Split Series 4 Vie WindFree WiFi Optional 47600 Btu Heat Pump with Low Energy Consumption Inverter Technology

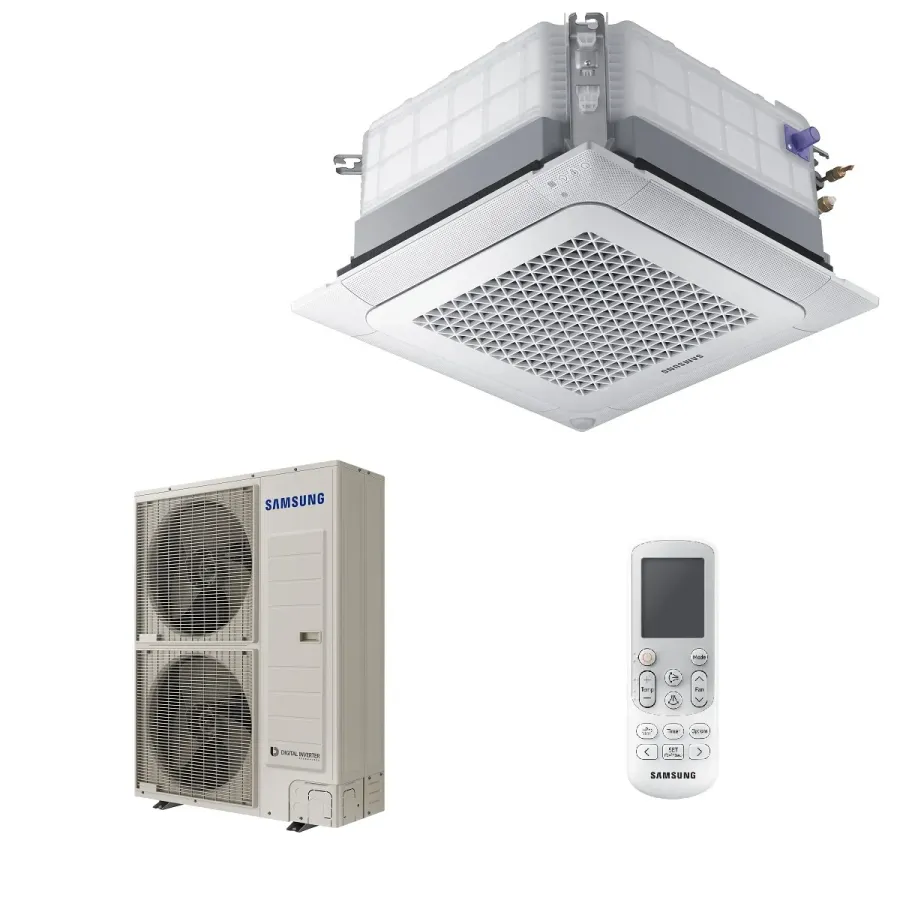

Kit consisting of the following elements:
Cassette indoor unit AC140RN4DKG/EU 47,600 BTU 14.0 kW
Indicative for environments up to 140 sq m. We recommend expert technical advice.
Length: 840 mm; Height: 204 mm; Depth: 840 mm.
Included accessories: White PC4NUFMAN grill and AR-EH03E infrared remote control.
Optional accessory: MIM-H04EN Wi-Fi interface.
External unit AC140RXADKG/EU 47,600 BTU 14.0 kW
Operation with refrigerant gas: R-32
Length: 940 mm; Height: 1210 mm; Depth: 330 mm.

Indoor units of the WindFree 4-way cassette series

- WindFree mode to prevent direct air jets thanks to 15,700 micro-holes; comfort guaranteed thanks to humidity sensor.
- New louvers with a depth of 81 mm, increased air throw distance; fan with inverter motor
- Airflow with individually adjustable guide vanes between 34° and 68°; turbo mode available
- Pre-cut for external air intake and supply to secondary channels; Built-in condensate drain pump (750 mm H2O)
- Communication using the NASA protocol; controllable via app on smartphone and tablet
- Single-phase power supply 220 V 50 Hz or three-phase power supply 400 V 50 Hz; Inverter twin rotary outdoor unit compressor

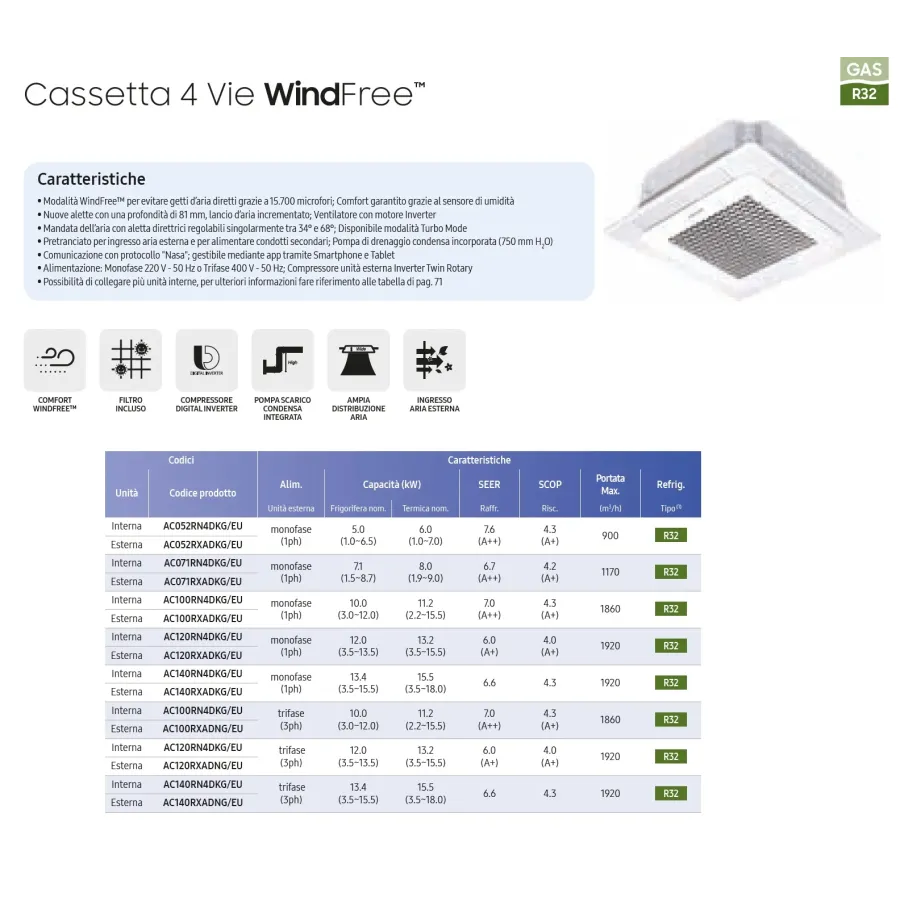

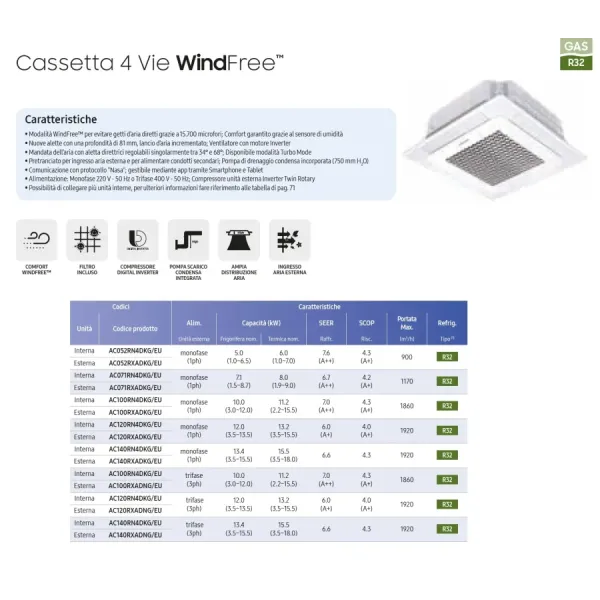

Technical data sheets

Download Technical Data Sheet Mono Split Cassette 4 Way Windfree (IT)
