Samsung Mono Split Channel High Prevalence 68000 Btu 380v AC200KNHPKH/EU AC200KXAPNH/EU T Air Conditioners R-410A
Samsung Mono Split Series Air Conditioners, High Prevalence, WiFi Optional, 68000 BTU, Heat Pump with Low Energy Consumption, Inverter Technology Ideal for environments with an indoor unit up to 204 sq m An excellent solution for comfort in all areas of your home or office.
Three phases 380v The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Kit consisting of the following elements:
Indoor unit AC200KNHPKH/EU 68000 Btu Outdoor unit AC200KXAPNH/EU T 68000 BtuThree phases 380v The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Technical data sheets

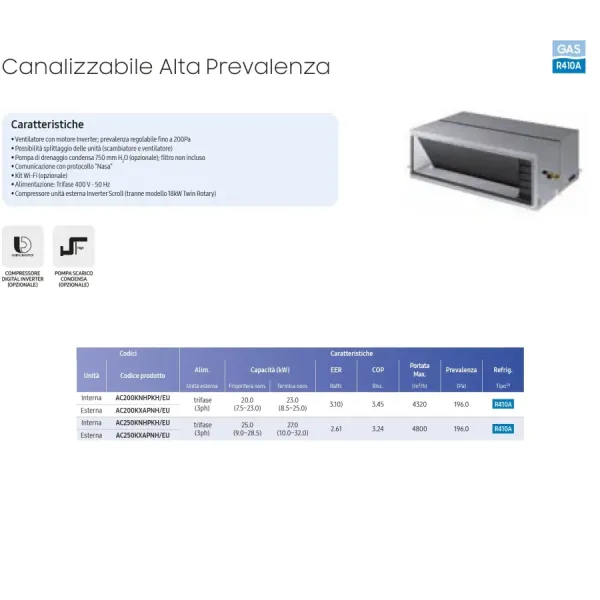

Download Technical Data Sheet Mono Split Ducted High Head (IT)
Nicht auf Lager

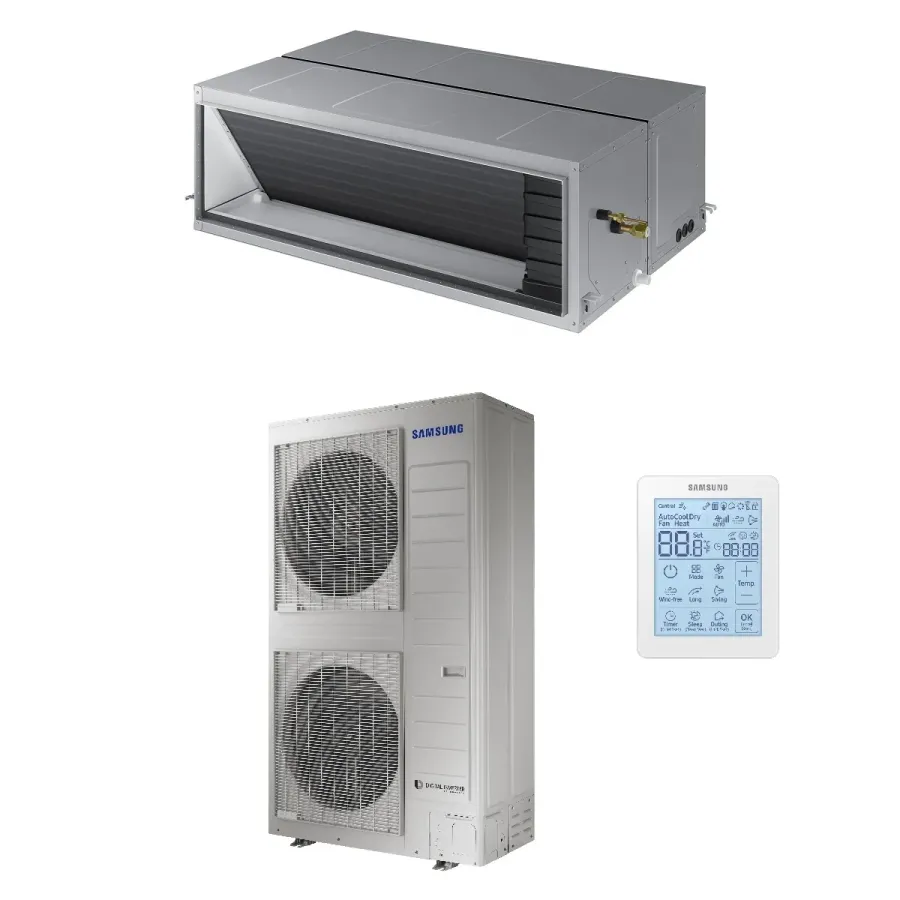

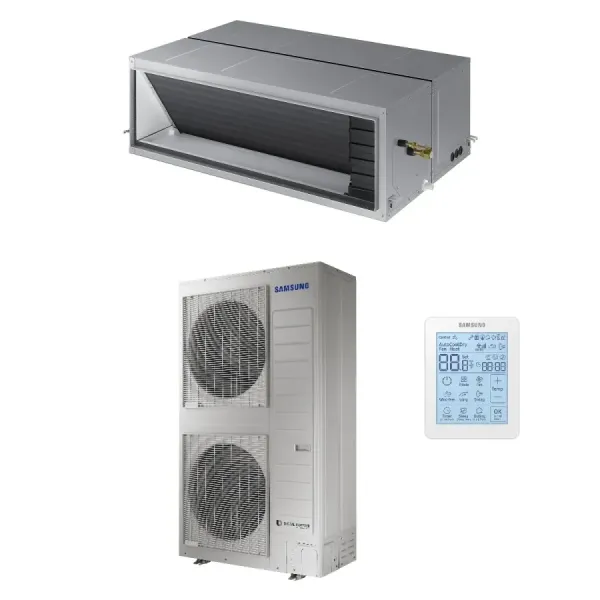

Samsung Mono Split Channel High Prevalence 68000 Btu 380v AC200KNHPKH/EU AC200KXAPNH/EU T Air Conditioners R-410A
Samsung Mono Split Series Air Conditioners, High Prevalence, WiFi Optional, 68000 BTU, Heat Pump with Low Energy Consumption, Inverter Technology
Kit consisting of the following elements:
Internal duct unit AC200KNHPKH/EU 68,000 BTU 20.0 kW
Indicative for environments up to 200 sq m. We recommend expert technical advice.
Length: 1350 mm; Height: 450 mm; Depth: 910 mm.
Included accessories: MWR-SH11N Touch Wired Control.
Optional accessory: MIM-H04EN Wi-Fi interface.
External Unit AC200KXAPNH/EU Trifase 68,000 BTU 20.0 kW
Operation with refrigerant gas: R-32
Length: 940 mm; Height: 1630 mm; Depth: 460 mm.
High-pressure duct indoor units
- Fan with inverter motor; adjustable prevalence up to 200Pa- Possibility of splitting the units (heat exchanger and fan)
- Condensate drain pump 750 mm H2O (optional); filter included
- Communication using the "NASA" protocol
- Wi-Fi kit (optional)
- Power supply: Three-phase 400 V - 50 Hz
- Inverter scroll outdoor unit compressor (except 18 kW Twin Rotary)

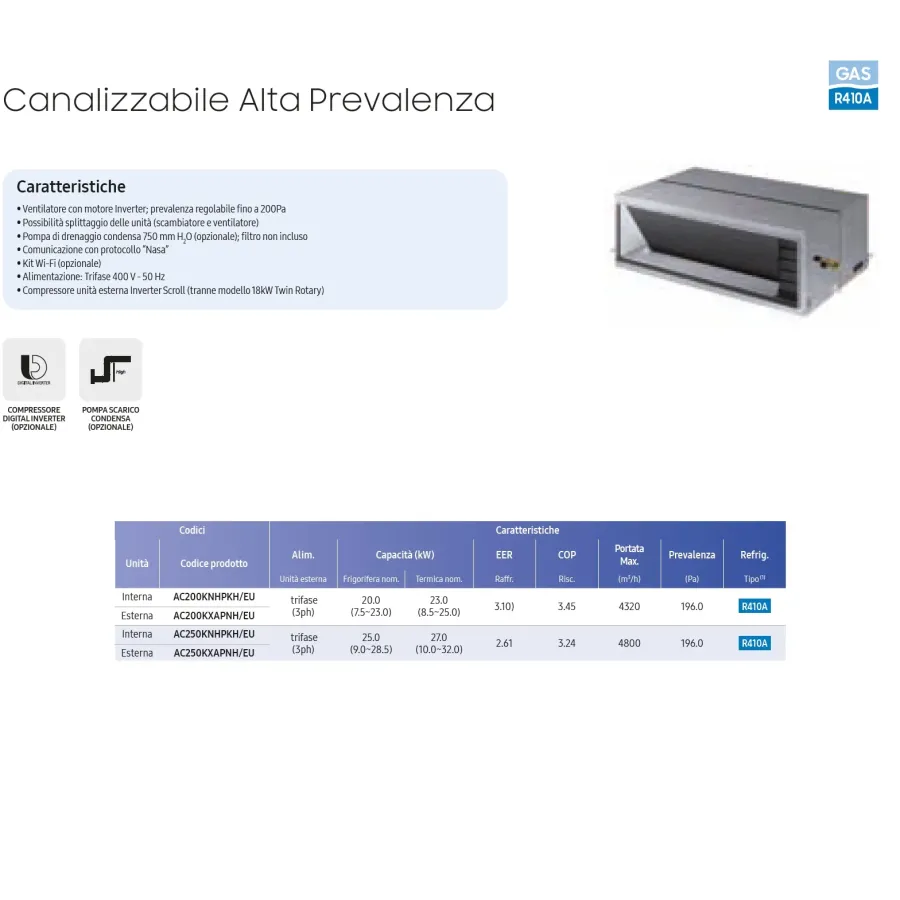

Technical data sheets
Download Technical Data Sheet Mono Split Ducted High Head (IT)
- Rated power BTU
- 68000
BTU 68000 - series
- High prevalence
- Rated power kW
- 20.0
- Type of facility
- channel
- Refrigerant gas
- R-410A
- System type
- Mono Split
- Wi-Fi connection
- WiFi Optional
- Declaration of commitment
- 1
- Manufacturer
- Samsung
- Installation site
- Mono Split
AC200KNHPKH+AC200KXAPNH T
