Samsung Mono Split Channel Medium Prevalence 47600 Btu 380v AC140RNMDKG/EU AC140RXADNG/EU-T Air Conditioners R-32
Samsung Mono Split Series Air Conditioners, Medium Prevalence, WiFi Optional, 47600 BTU, Heat Pump with Low Energy Consumption, Inverter Technology Ideal for environments with an indoor unit up to 143 sq m An excellent solution for comfort in all areas of your home or office.
Three phases 380v The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Kit consisting of the following elements:
Indoor unit AC140RNMDKG/EU 47600 Btu Outdoor unit AC140RXADNG/EU-T 47600 BtuThree phases 380v The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.

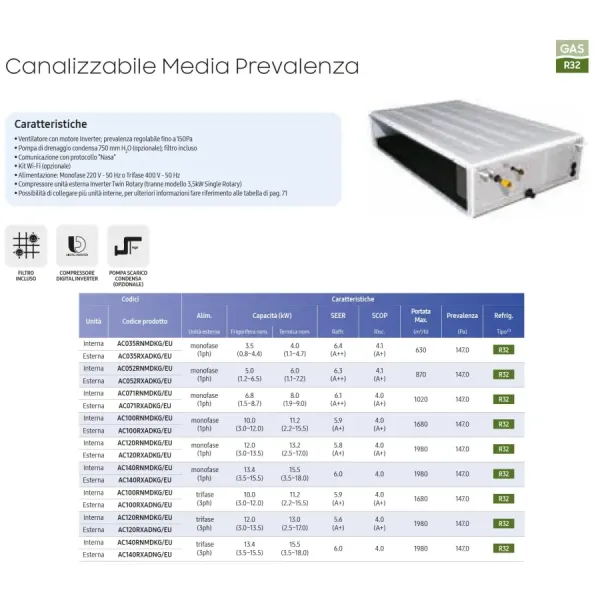

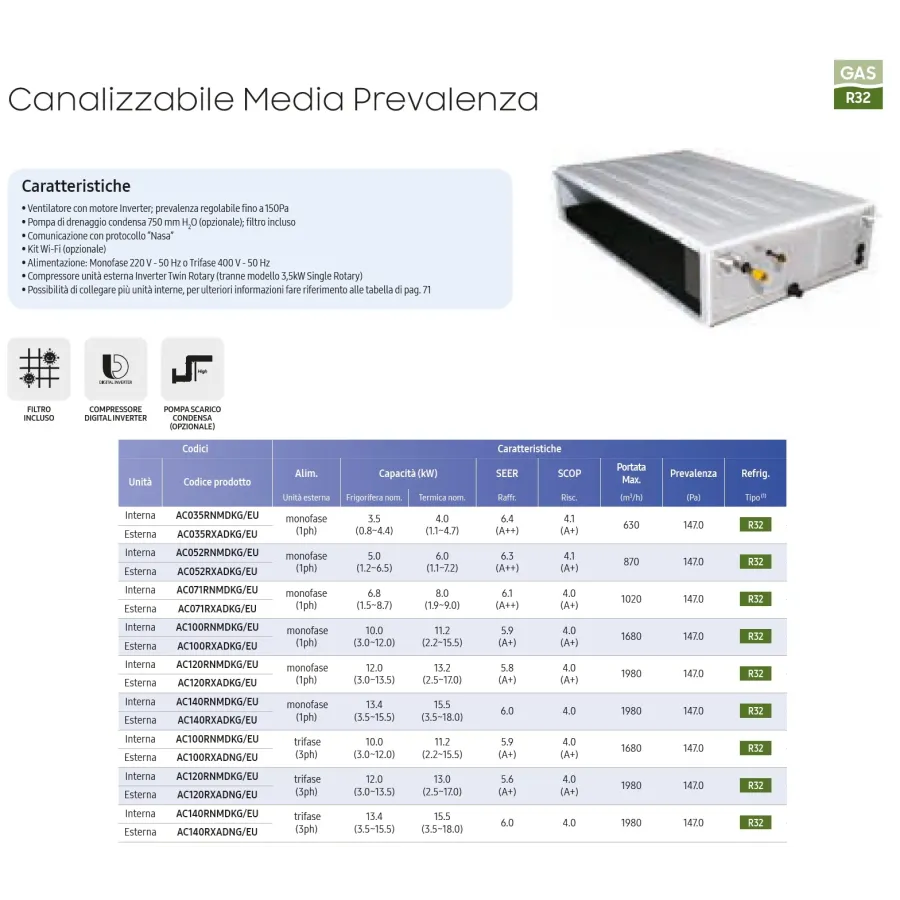

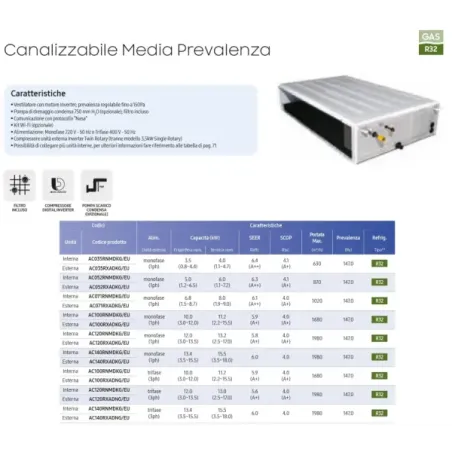

Technical data sheets
Download Technical Data Sheet Mono Split Ducted Medium Head (IT)
Out of stock, product available soon

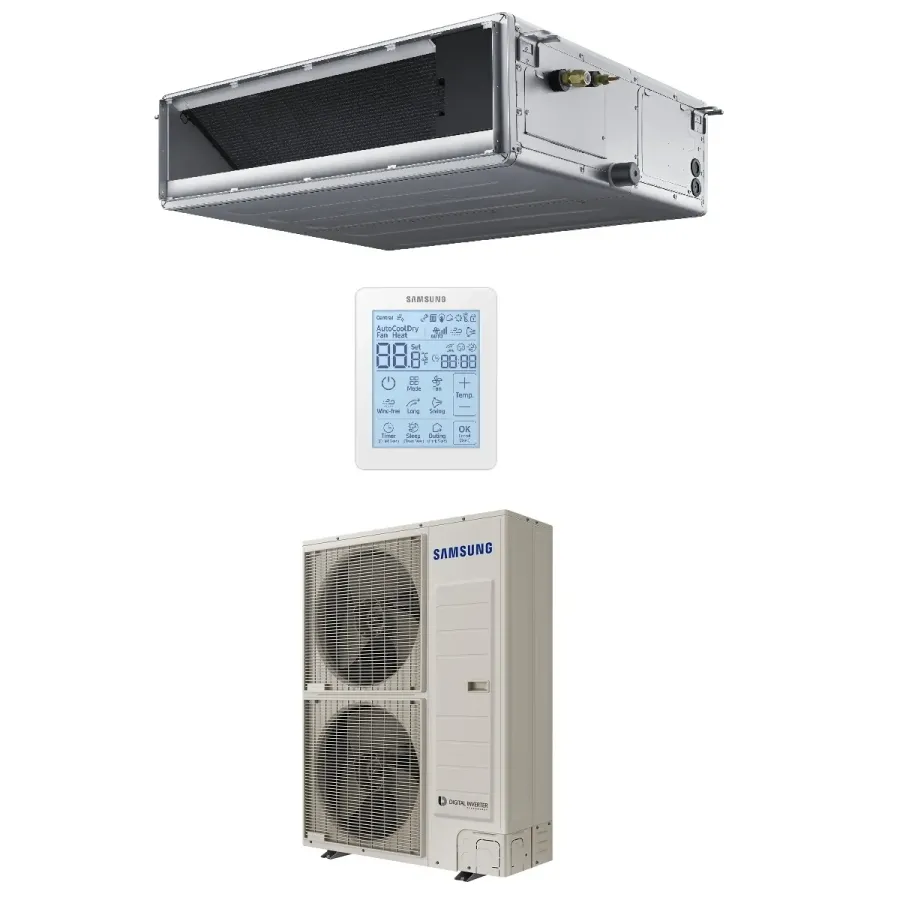

Samsung Mono Split Channel Medium Prevalence 47600 Btu 380v AC140RNMDKG/EU AC140RXADNG/EU-T Air Conditioners R-32
Samsung Mono Split Series Air Conditioners, Medium Prevalence, WiFi Optional, 47600 BTU, Heat Pump with Low Energy Consumption, Inverter Technology
Kit consisting of the following elements:
Internal duct unit AC140RNMDKG/EU 48,000 BTU 14.0 kW
Indicative for environments up to 140 sq m. We recommend expert technical advice.
Length: 1300 mm; Height: 300 mm; Depth: 700 mm.
Included accessories: MWR-SH11N Touch Wired Control.
Optional accessory: MIM-H04EN Wi-Fi interface.
External Unit AC140RXADKG/EU Trifase 47,600 BTU 14.0 kW
Operation with refrigerant gas: R-32
Length: 940 mm; Height: 1210 mm; Depth: 330 mm.
Indoor units with medium delivery head and ducting
- Fan with inverter motor; adjustable prevalence up to 150Pa- Condensate drain pump 750 mm H2O (optional); filter included
- Communication using the "NASA" protocol
- Wi-Fi kit (optional)
- Power supply: Single-phase 220 V - 50 Hz or three-phase 400 V - 50 Hz
- Inverter Twin Rotary outdoor unit compressor (except 3.5 kW Single Rotary)
Technical data sheets
Download Technical Data Sheet Mono Split Ducted Medium Head (IT)
- Rated power BTU
- 47000
BTU 47600 - series
- Medium prevalence
- Rated power kW
- 14.0
- Type of facility
- channel
- Refrigerant gas
- R-32
- System type
- Mono Split
- Wi-Fi connection
- WiFi Optional
- Declaration of commitment
- 1
- Manufacturer
- Samsung
- Installation site
- Mono Split
AC140RNMDKG+AC140RXADNG-T
