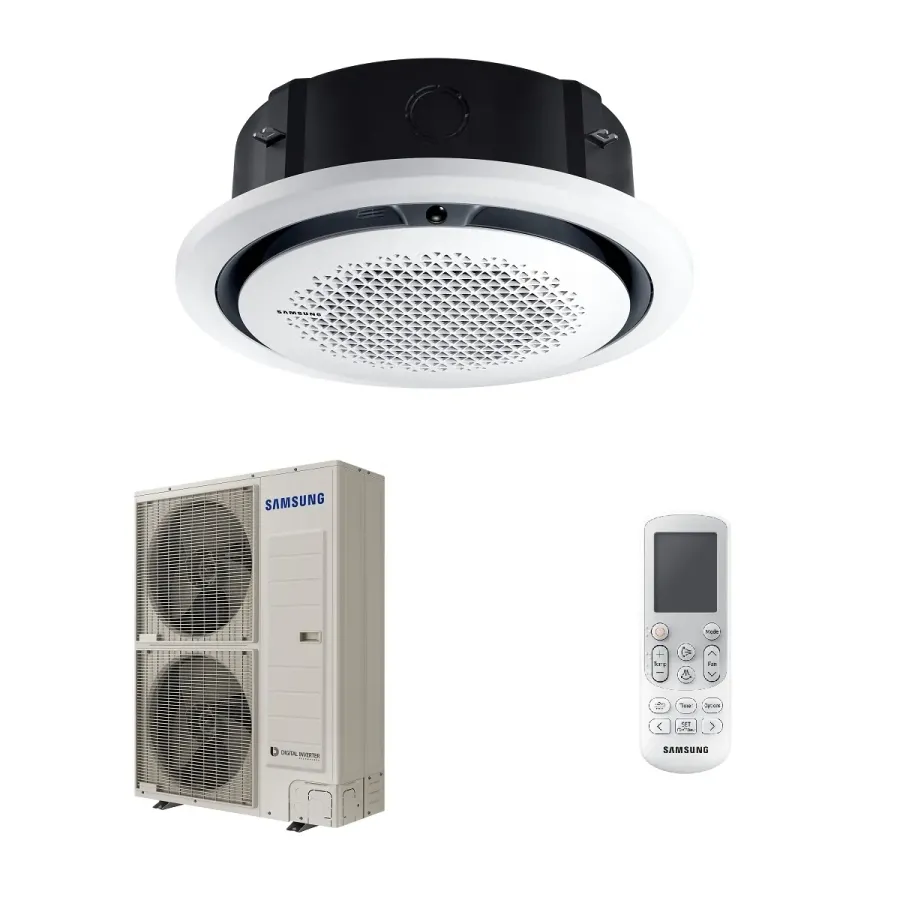

Samsung Mono Split Cassette 360 40800 Btu 220v AC120RN4PKG/EU AC120RXADKG/EU Air Conditioner Round Plate White R-32
Samsung Mono Split Series Cassette Air Conditioner 360 WiFi Optional 40800 BTU Heat Pump with Low Energy Consumption Inverter Technology Ideal for environments with an indoor unit up to 122 sq m An excellent solution for comfort in all areas of your home or office.
Single phase 220v The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Kit consisting of the following elements:
Indoor unit AC120RN4PKG/EU 40800 Btu Outdoor unit AC120RXADKG/EU 40800 BtuSingle phase 220v The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Technical data sheets
Out of stock, product available soon
Samsung Mono Split Cassette 360 40800 Btu 220v AC120RN4PKG/EU AC120RXADKG/EU Air Conditioner Round Plate White R-32
Samsung Mono Split Series Cassette Air Conditioner 360 WiFi Optional 40800 BTU Heat Pump with Low Energy Consumption Inverter Technology
Kit consisting of the following elements:
Cassette indoor unit 360 AC120RN4PKG/EU 40,700 BTU 12.0 kW
Indicative for environments up to 120 sq m. We recommend expert technical advice.
Dimensions:
Round grill: PC4NUNMAN (White) - PC4NBNMAN (Black)
Length: 947 mm, Height: 281 mm, Depth: 947 mm.
Square grid: PC4NUDMAN (White) - PC4NBDMAN (Black)
Length: 1050 mm; Height: 281 mm; Depth: 1050 mm.
Included accessories: Infrared remote control AR-EH03E.
Optional accessory: MIM-H04EN Wi-Fi interface.
External unit AC120RXADKG/EU 40,800 BTU 12.0 kW
Operation with refrigerant gas: R-32
Length: 940 mm; Height: 998 mm; Depth: 330 mm.

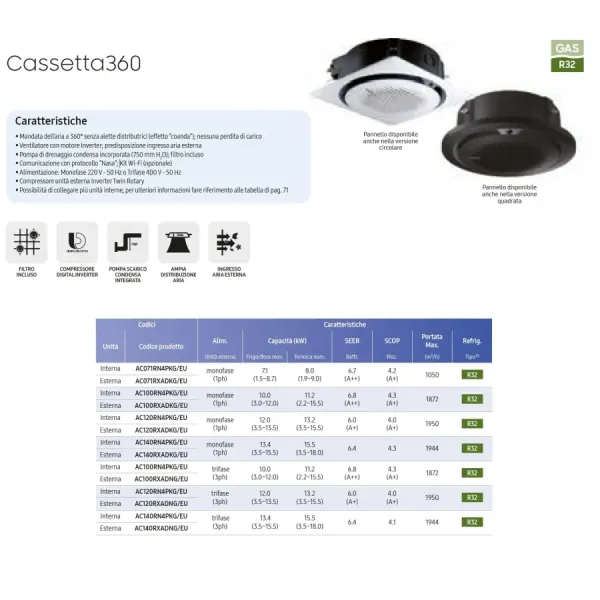

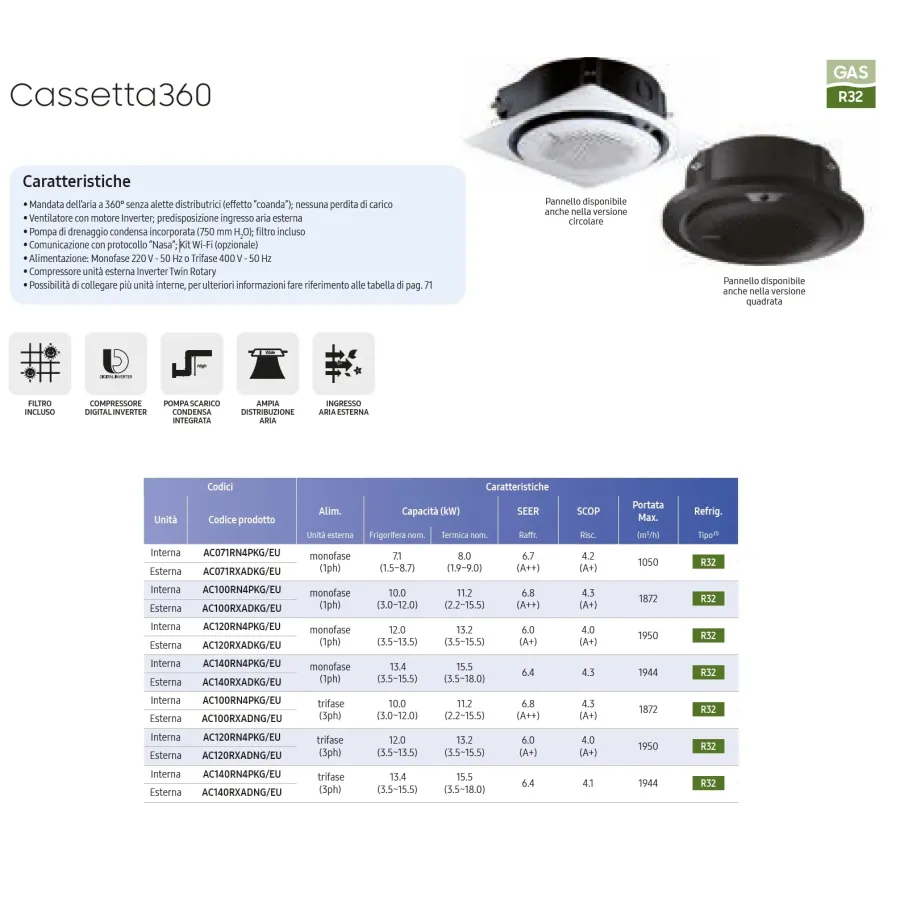

Cassette indoor units of the 360 series ??
- 360° airflow without distribution ribs (Coanda effect); no pressure drop- Fan with inverter motor; external air intake
- Built-in condensate drain pump (750 mm H2O); filter included
- Communication using the NASA protocol; controllable via app on smartphone and tablet
- Wi-Fi kit (optional)
- Single-phase power supply 220 V 50 Hz or three-phase power supply 400 V 50 Hz; Inverter twin rotary outdoor unit compressor
Technical data sheets
- Rated power BTU
- 41000
BTU 40800 - series
- Cassette 360
- Color
- White
- Rated power kW
- 12.0
- Type of facility
- Cassette player
cassette - Refrigerant gas
- R-32
- System type
- Mono Split
- Wi-Fi connection
- WiFi Optional
- Declaration of commitment
- 1
- Manufacturer
- Samsung
- Installation site
- Mono Split
CB-AC120RN4PKG+AC120RXADKG
