Samsung Mono Split Cassette 360 24000 Btu 220v AC071RN4PKG/EU AC071RXADKG/EU Air Conditioner Round Plate Black R-32
Samsung Mono Split Series Cassette Air Conditioner 360 WiFi Optional 24000 Btu Heat Pump with Low Energy Consumption Inverter Technology Ideal for environments with one indoor unit up to 72 sq m. An excellent solution for comfort in all areas of your home or office.
Single phase 220v The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Kit consisting of the following elements:
Indoor unit AC071RN4PKG/EU 24000 Btu Outdoor unit AC071RXADKG/EU 24000 BtuSingle phase 220v The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Technical data sheets
Out of stock, product available soon

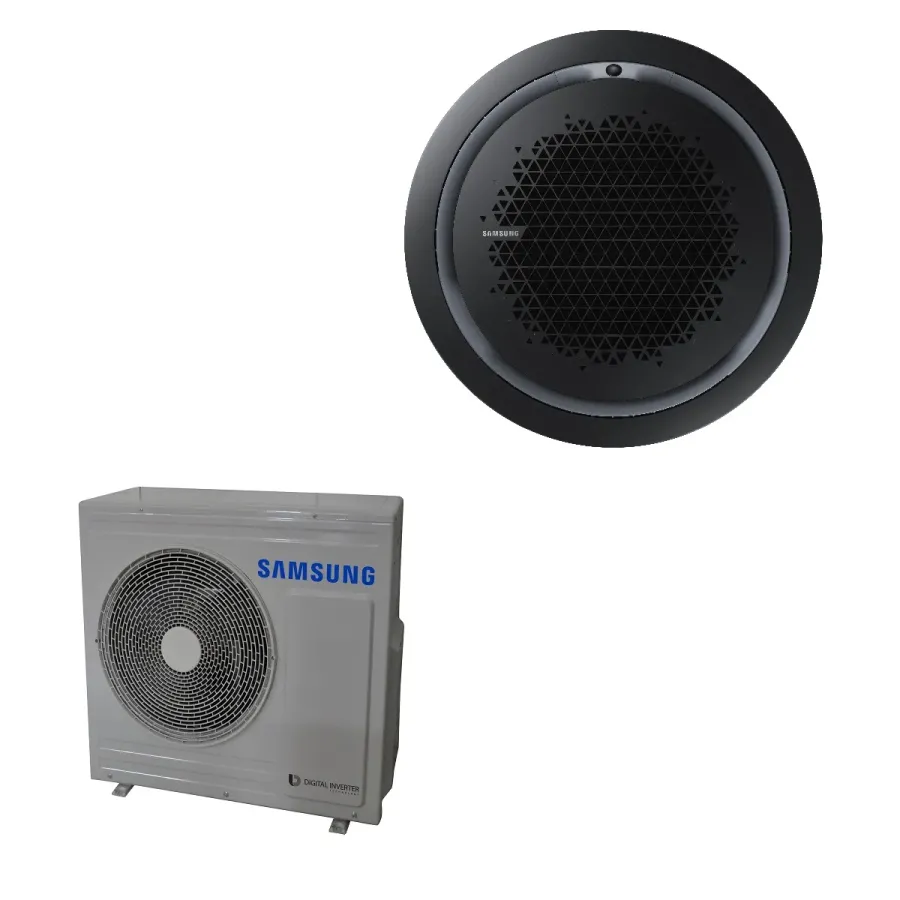

Samsung Mono Split Cassette 360 24000 Btu 220v AC071RN4PKG/EU AC071RXADKG/EU Air Conditioner Round Plate Black R-32
Samsung Mono Split Series Cassette Air Conditioner 360 WiFi Optional 24000 Btu Heat Pump with Low Energy Consumption Inverter Technology
Kit consisting of the following elements:
Cassette indoor unit 360 AC071RN4PKG/EU 24,000 BTU 7.1 kW
Ideal for rooms of 63 to 72 square meters with an average ceiling height of approximately 2.7 meters.
Dimensions:
Round grill: PC4NUNMAN (White) - PC4NBNMAN (Black)
Length: 947 mm, Height: 281 mm, Depth: 947 mm.
Square grid: PC4NUDMAN (White) - PC4NBDMAN (Black)
Length: 1050 mm; Height: 281 mm; Depth: 1050 mm.
Included accessories: Infrared remote control AR-EH03E.
Optional accessory: MIM-H04EN Wi-Fi interface.
External unit AC071RXADKG/EU 24,000 BTU 7.1 kW
Operation with refrigerant gas: R-32
Length: 880 mm; Height: 798 mm; Depth: 310 mm.

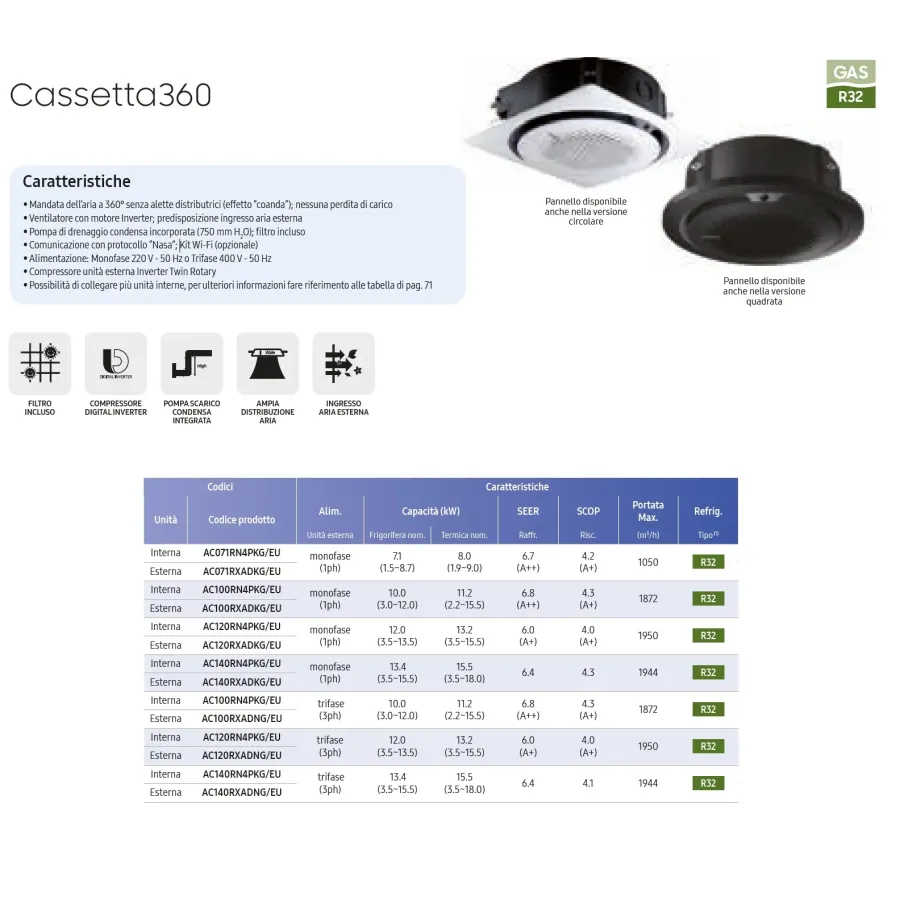

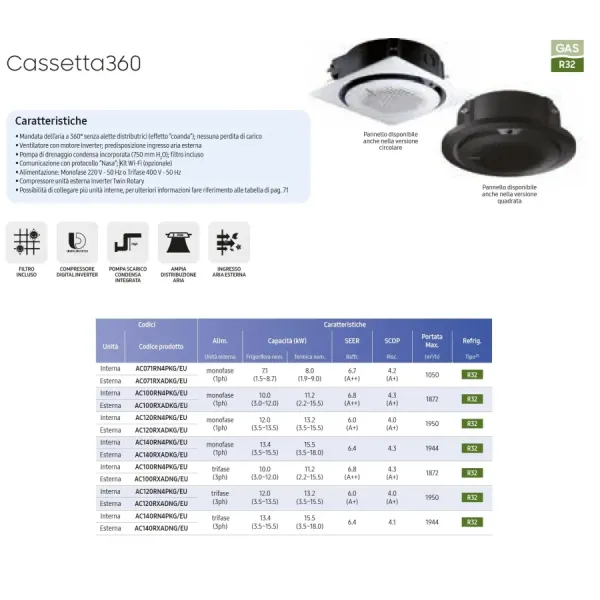

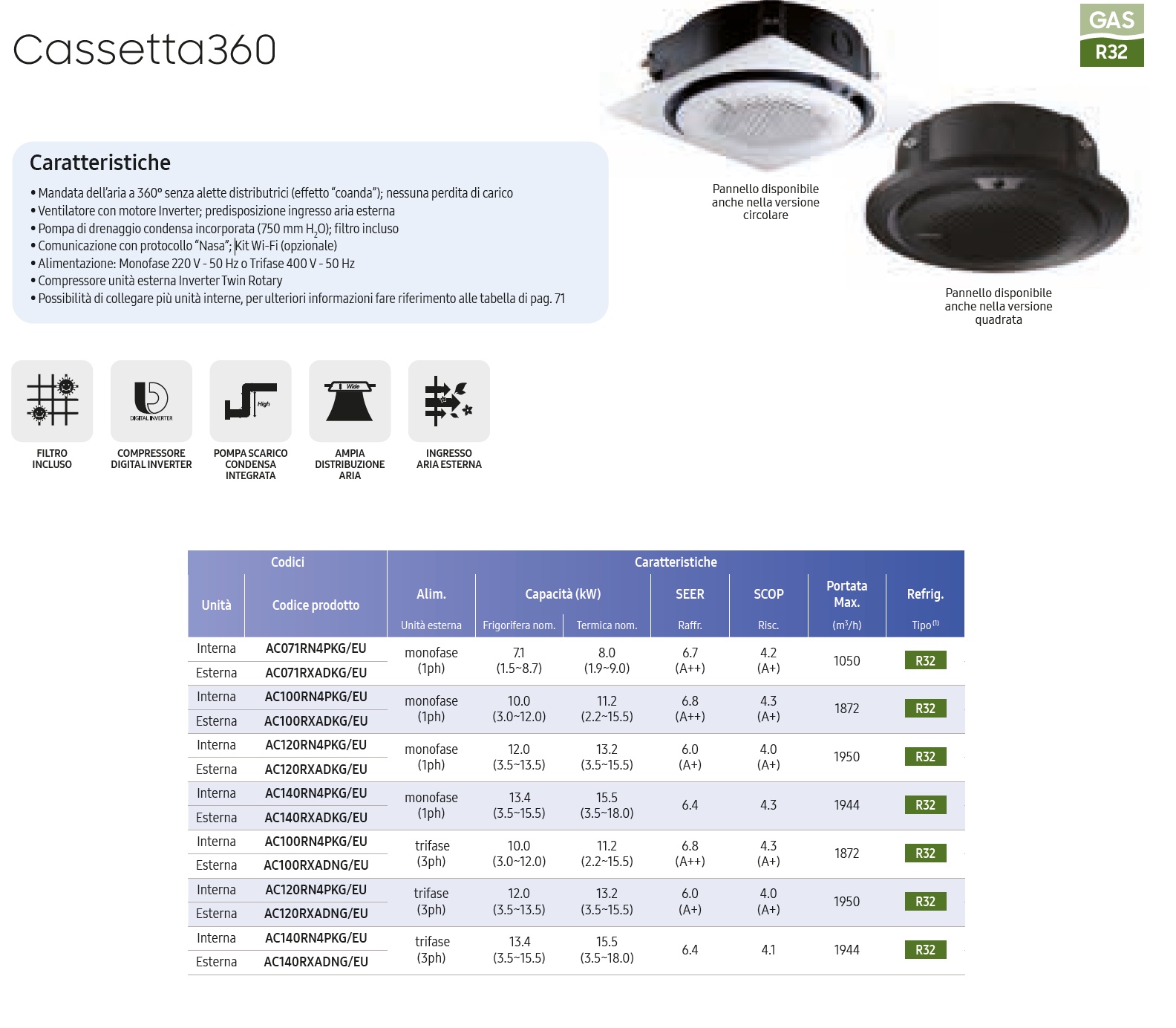

Cassette indoor units of the 360 series ??
- 360° airflow without distribution ribs (Coanda effect); no pressure drop- Fan with inverter motor; external air intake
- Built-in condensate drain pump (750 mm H2O); filter included
- Communication using the NASA protocol; controllable via app on smartphone and tablet
- Wi-Fi kit (optional)
- Single-phase power supply 220 V 50 Hz or three-phase power supply 400 V 50 Hz; Inverter twin rotary outdoor unit compressor
Technical data sheets
- Rated power BTU
- 24000
BTU 24000 - series
- Cassette 360
- Color
- Black
- Rated power kW
- 7.0
7.1 - Type of facility
- Cassette player
cassette - Energy class cooling
- A++
- Energy class heating
- A+
- Refrigerant gas
- R-32
- System type
- Mono Split
- Wi-Fi connection
- WiFi Optional
- Declaration of commitment
- 1
- Manufacturer
- Samsung
- Installation site
- Mono Split
CN-AC071RN4PKG+AC071RXADKG
