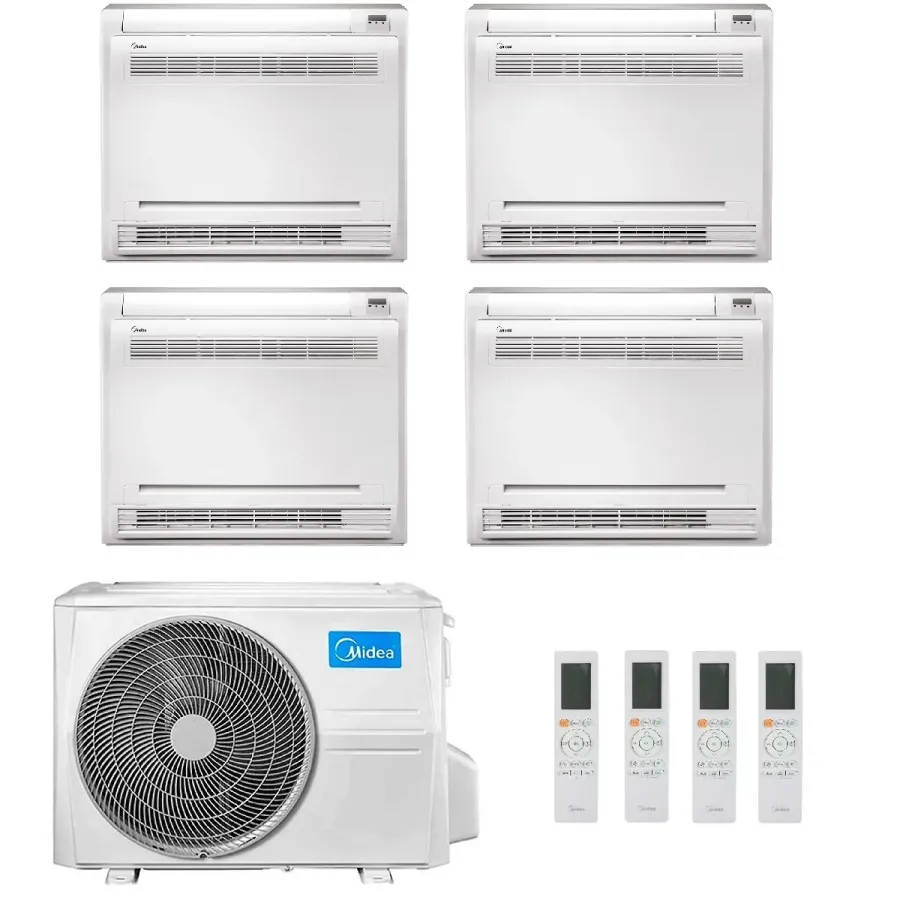

Midea Quadri Split 9+9+9+12 Btu floor-standing unit M4O-36FN8-Q with 3 units MFA2U-09HRFNX(GA) + MFA2U-12HRFNX(GA) R-32
Midea Quadri Split Series Console 9000+9000+9000+12000 Btu air conditioner with heating, highly efficient heat pump with low energy consumption, and dehumidifier Recommended for environments: one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 36 sq m
- Shared power 2.5 - 3.5 - 5.0 kW
- ON-OFF contact
- Double tangential fan
- Double air intake slot
- Alphanumeric front display
- Optional Smart Kit (Kit code SK105)
The BTU ratings and square meter capacities are provided to simplify and facilitate the reading of the technical data. For further details, please contact our customer service.
Kit consisting of the following elements:
Indoor unit MFA2U-09HRFNX(GA) 9000 Btu Indoor unit MFA2U-09HRFNX(GA) 9000 Btu Indoor unit MFA2U-09HRFNX(GA) 9000 Btu Indoor unit MFA2U-12HRFNX(GA) 12000 Btu Outdoor unit M4O-36FN8-Q 36000 Btu The most comprehensive solution for air conditioning your home: up to four independent rooms with many variations and solutions.Floor console series
- Shared power 2.5 - 3.5 - 5.0 kW
- ON-OFF contact
- Double tangential fan
- Double air intake slot
- Alphanumeric front display
- Optional Smart Kit (Kit code SK105)
The BTU ratings and square meter capacities are provided to simplify and facilitate the reading of the technical data. For further details, please contact our customer service.
Out of stock, product available soon
Midea Quadri Split 9+9+9+12 Btu floor-standing unit M4O-36FN8-Q with 3 units MFA2U-09HRFNX(GA) + MFA2U-12HRFNX(GA) R-32
Midea Quadri Split Series Console air conditioner, BTU heating unit with highly efficient, low-energy heat pump and dehumidifier
Kit consisting of the following elements:

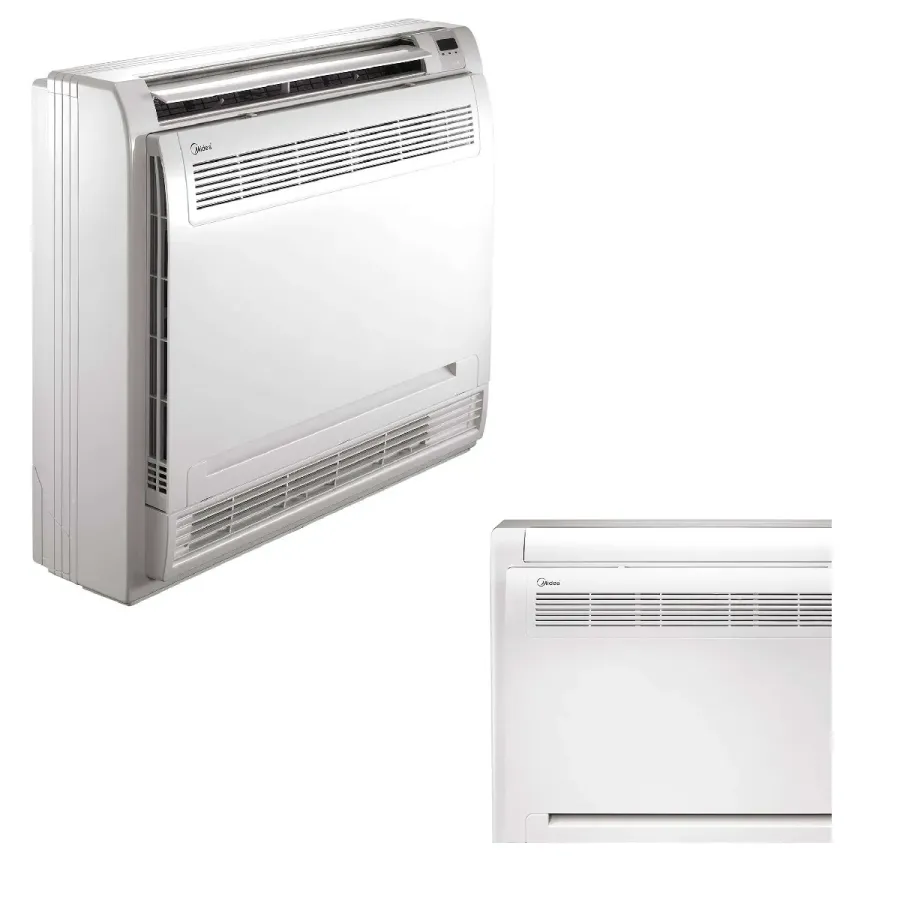

MFA2U-09HRFNX(GA) 9,000 BTU 2.5 kW Floor Console Series
Ideal for environments of 22 to 27 square meters with an average height of approximately 2.7 meters.
Width: 794 mm, Height: 621 mm, Depth: 200 mm.
Standard accessories: Remote control.
Optional accessory: WLAN interface code SK-105.
MFA2U-09HRFNX(GA) 9,000 BTU 2.5 kW Floor Console Series
Ideal for environments of 22 to 27 square meters with an average height of approximately 2.7 meters.
Width: 794 mm, Height: 621 mm, Depth: 200 mm.
Standard accessories: Remote control.
Optional accessory: WLAN interface code SK-105.
MFA2U-09HRFNX(GA) 9,000 BTU 2.5 kW Floor Console Series
Ideal for environments of 22 to 27 square meters with an average height of approximately 2.7 meters.
Width: 794 mm, Height: 621 mm, Depth: 200 mm.
Standard accessories: Remote control.
Optional accessory: WLAN interface code SK-105.
MFA2U-12HRFNX(GA) 12,000 BTU 3.5 kW Floor Console Series
Ideal for environments of 27 to 35 square meters with an average height of approximately 2.7 meters.
Width: 794 mm, Height: 621 mm, Depth: 200 mm.
Standard accessories: Remote control.
Optional accessory: WLAN interface code SK-105.
M4O-36FN8-Q 36,000 BTU 10.5 kW
Operation with refrigerant gas: R-32
Width: 946 mm, Height: 810 mm, Depth: 410 mm.
Minimum number of internal units that can be connected: 2.
Maximum number of connectable indoor units: 4.
Floor console series
Shared power 2.5 - 3.5 - 5.0 kW
Dual air intake slot

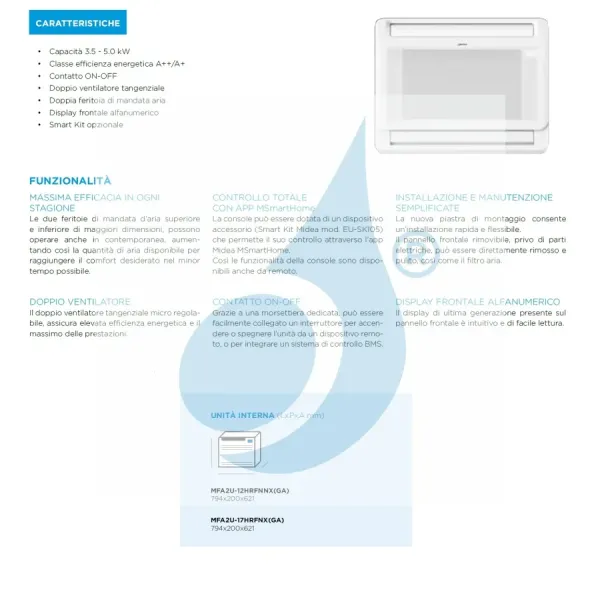

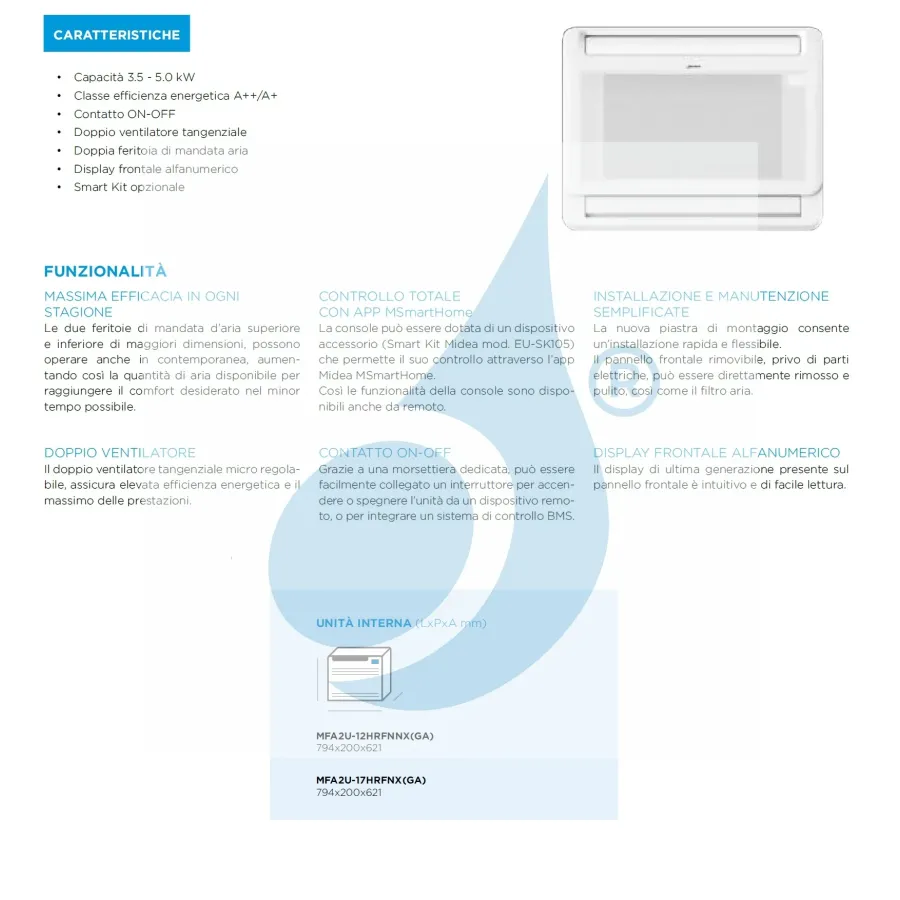

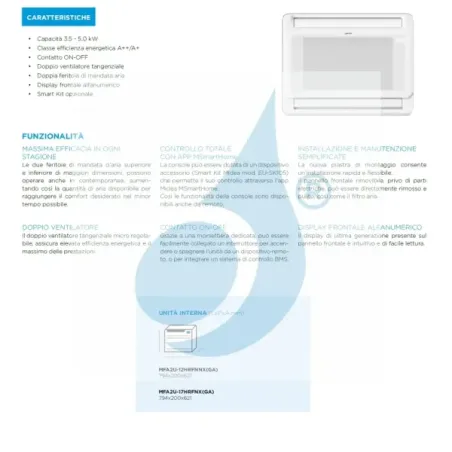

MAXIMUM EFFICIENCY IN EVERY SEASON
The two larger upper and lower air outlet slots can also be operated simultaneously, thus increasing the available air volume to achieve the desired comfort in the shortest possible time.
COMPLETE CONTROL WITH THE MSmartHome APP
The console can be equipped with an accessory device (Midea Smart Kit Mod. EU-SK105) that enables control via the Midea MSmartHome app. This makes the console functions available remotely.
SIMPLIFIED INSTALLATION AND MAINTENANCE
The new mounting plate allows for quick and flexible installation. The removable front panel, free of electrical components, can be easily removed and cleaned, as can the air filter.
DOUBLE FAN
The double micro-adjustable tangential fan ensures high energy efficiency and maximum performance.
ON-OFF CONTACT
Thanks to a special terminal block, a switch can easily be connected to turn the device on or off via a remote device or to integrate a BMS control system.
ALPHANUMERIC FRONT DISPLAY
The latest generation display on the front panel is intuitive and easy to read.

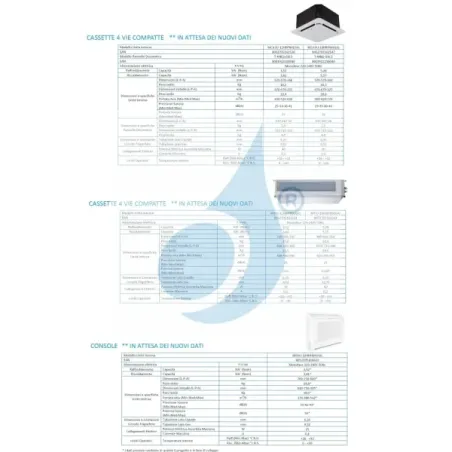

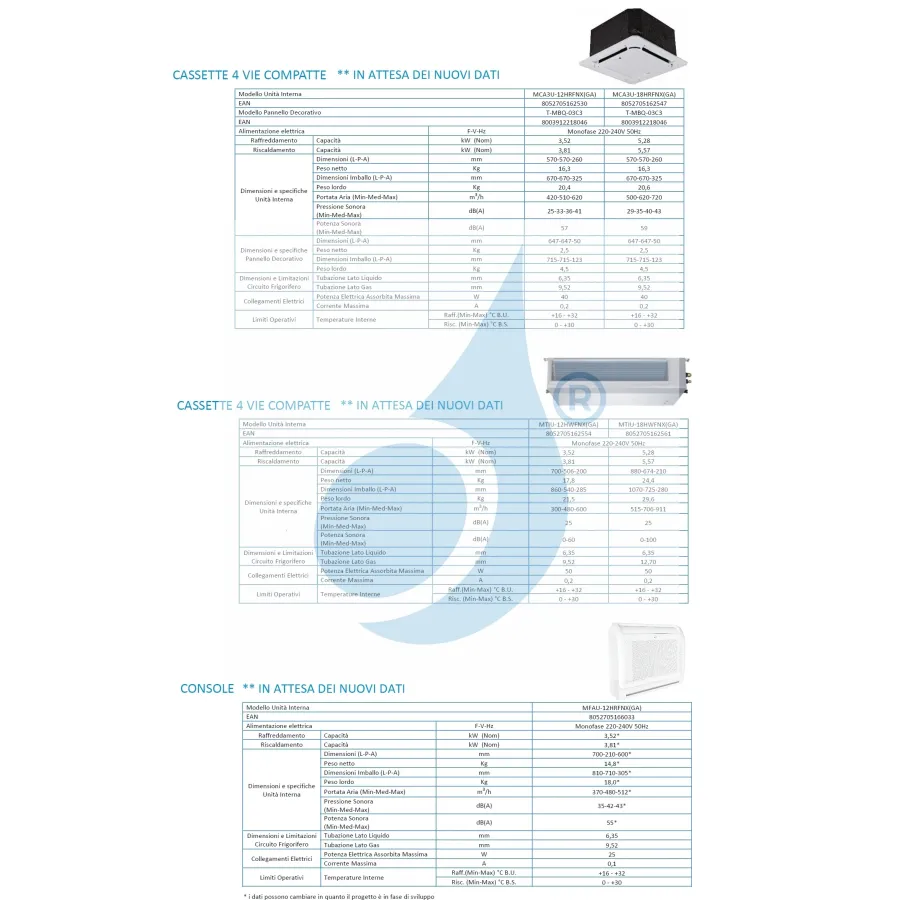

Datasheet
Click on the image to enlarge the datasheet.
Click on the image to enlarge the datasheet.
Click on the image to enlarge the datasheet.
- Rated power BTU
- BTU 9000+9000+9000+12000
- series
- Console
- Color
- White
- Rated power kW
- 2.5+2.5+2.5+3.5
- Type of facility
- floor
- Energy class cooling
- A++
- Energy class heating
- A+
- Refrigerant gas
- R-32
- System type
- Quadri Split
- Declaration of commitment
- 1
Console 9+9+9+12+M4O-36FN8-Q
