Samsung Quadri Split Series Windfree Avant S2 WiFi 7000+7000+9000+18000 Btu air conditioner with low-energy heat pump and inverter technology

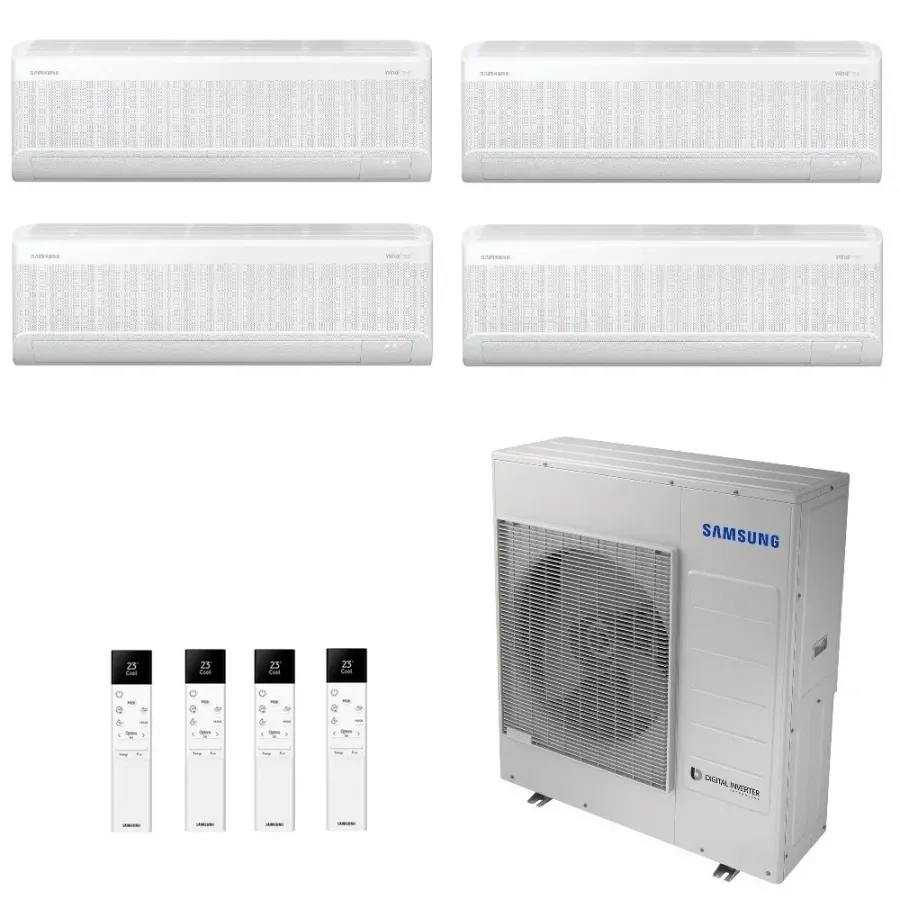

Kit consisting of the following elements:
Indoor unit wall-mounted Windfree Avant S2 AR70F07C1AWNEU 7,000 BTU 2.0 kW color white
Ideal for rooms of 18 to 22 square meters with an average ceiling height of approximately 2.7 meters.
Length: 889 mm; Height: 299 mm; Depth: 215 mm.
Standard accessories: SolarCell remote control and Wi-Fi card.
Indoor unit wall-mounted Windfree Avant S2 AR70F07C1AWNEU 7,000 BTU 2.0 kW color white
Ideal for rooms of 18 to 22 square meters with an average ceiling height of approximately 2.7 meters.
Length: 889 mm; Height: 299 mm; Depth: 215 mm.
Standard accessories: SolarCell remote control and Wi-Fi card.
Indoor unit wall-mounted Windfree Avant S2 AR70F09C1AWNEU 9,000 BTU 2.5 kW color white
Ideal for rooms of 22 to 27 square meters with an average ceiling height of approximately 2.7 meters.
Length: 889 mm; Height: 299 mm; Depth: 215 mm.
Standard accessories: SolarCell remote control and Wi-Fi card.
Indoor unit wall-mounted Windfree Avant S2 AR70F18C1AWNEU 18,000 BTU 5.0 kW color white
Ideal for rooms of 42 to 55 square meters with an average ceiling height of approximately 2.7 meters.
Length: 1055 mm; Height: 299 mm; Depth: 215 mm.
Standard accessories: SolarCell remote control and Wi-Fi card.

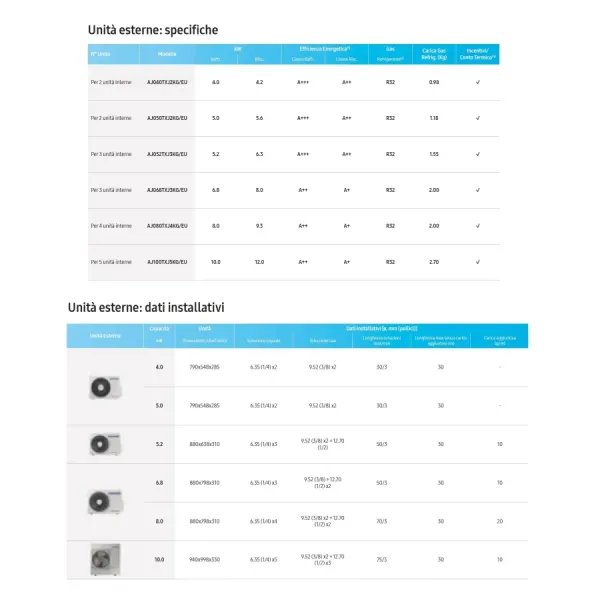

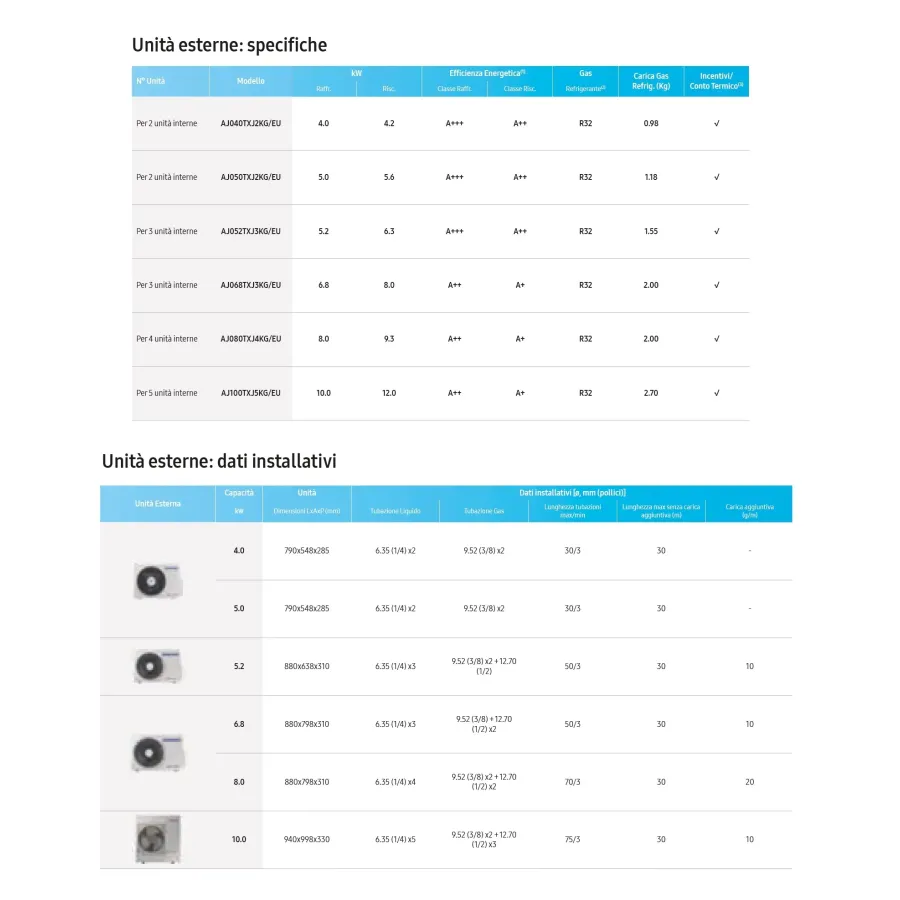

Multi-split outdoor unit AJ080TXJ4KG/EU 28,000 BTU 8.0 kW
Operation with refrigerant gas: R-32
Length: 880 mm; Height: 798 mm; Depth: 310 mm.
Minimum number of connectable indoor units: 2.
Maximum number of connected indoor units: 4.

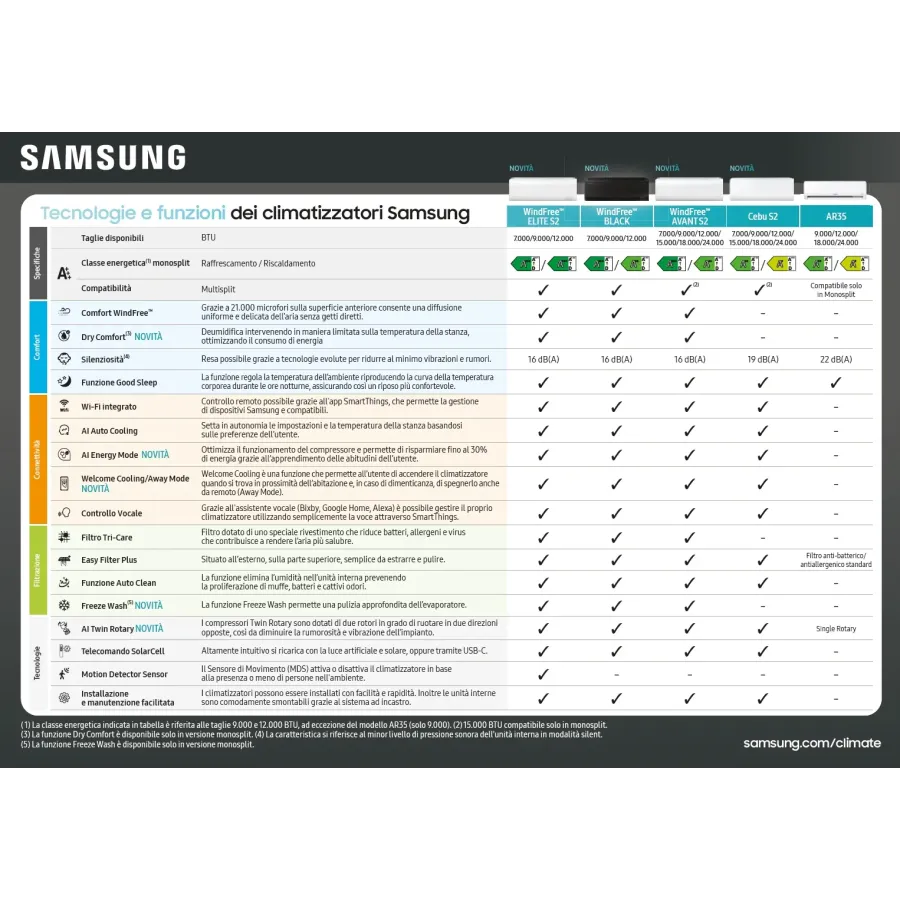

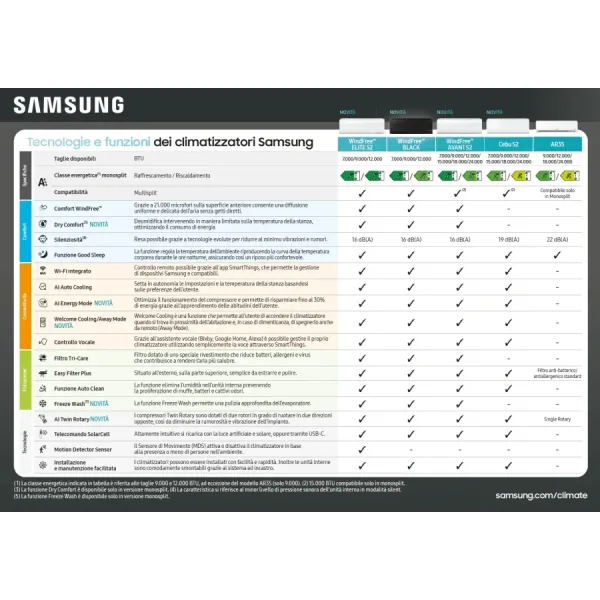

Wall-mounted indoor units WindFree AVANT S2 series

- Multi-split compatibility
- Comfort WindFree: Thanks to 21,000 micro holes on the front, it allows for even and gentle air distribution without direct air jets.
- Dry Comfort - Dehumidifies by limiting changes to the room temperature, thus optimizing energy consumption
- Low noise - Enabled by advanced technologies to reduce vibrations and noise to a minimum: 16 dB(A)
- Good Sleep function: This function regulates the room temperature by mimicking the body temperature curve during the night hours, thus ensuring a more comfortable rest.
- Integrated Wi-Fi - Remote control possible thanks to the SmartThings app, which allows management of Samsung and compatible devices.
- AI Auto Cooling automatically sets the room settings and temperature based on user preferences.
- AI Energy Mode: Optimizes compressor operation and saves up to 30% energy by learning the user's habits.
- Voice control Thanks to the voice assistant (Bixby, Google Home, Alexa) you can easily control your air conditioner via voice using SmartThings.
- Tri-Care filter: Filter with a special coating that reduces bacteria, allergens and viruses, thus contributing to healthier air.
- Easy Filter Plus is located on the outside at the top and can be easily removed and cleaned.
- Auto-Clean function: This function eliminates moisture in the indoor unit, thus preventing the spread of mold, bacteria and bad odors.
- Freeze Wash The Freeze Wash function allows for a thorough cleaning of the evaporator.
- Refrigerant R32: R32 gas, a less environmentally harmful refrigerant than previous generations.
- AI Twin Rotary - Twin Rotary compressors are equipped with two rotors that can rotate in two opposite directions, reducing noise and vibration of the system.
- Automatic horizontal/vertical airflow regulation - Simply press the corresponding button and the special louvers will distribute the airflow evenly and quickly in the desired direction.
- Easy installation and maintenance: Air conditioners can be installed quickly and easily. Furthermore, the indoor units can be easily disassembled thanks to the locking system.
- SolarCell remote control: Very intuitive, it is charged with artificial and sunlight or via USB-C.

Technical data sheets

Download Technical Data Sheet Interior Wall Elements (IT)

Download comparison of Samsung wall-mounted wall chargers (IT)

Download datasheet for multi-split outdoor units (IT)
