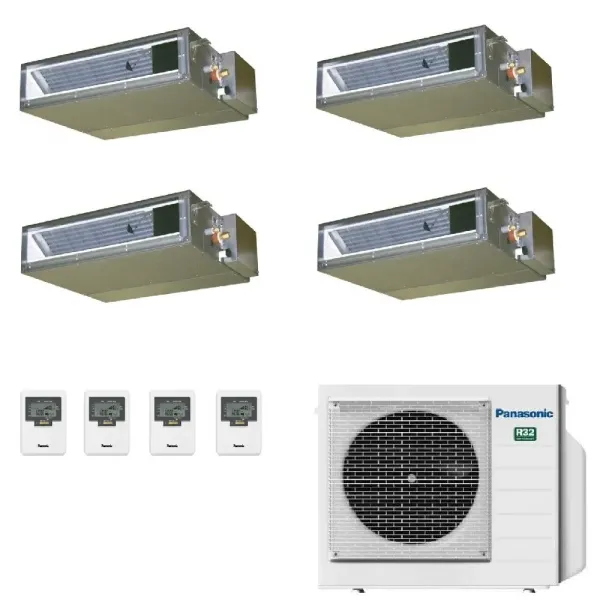

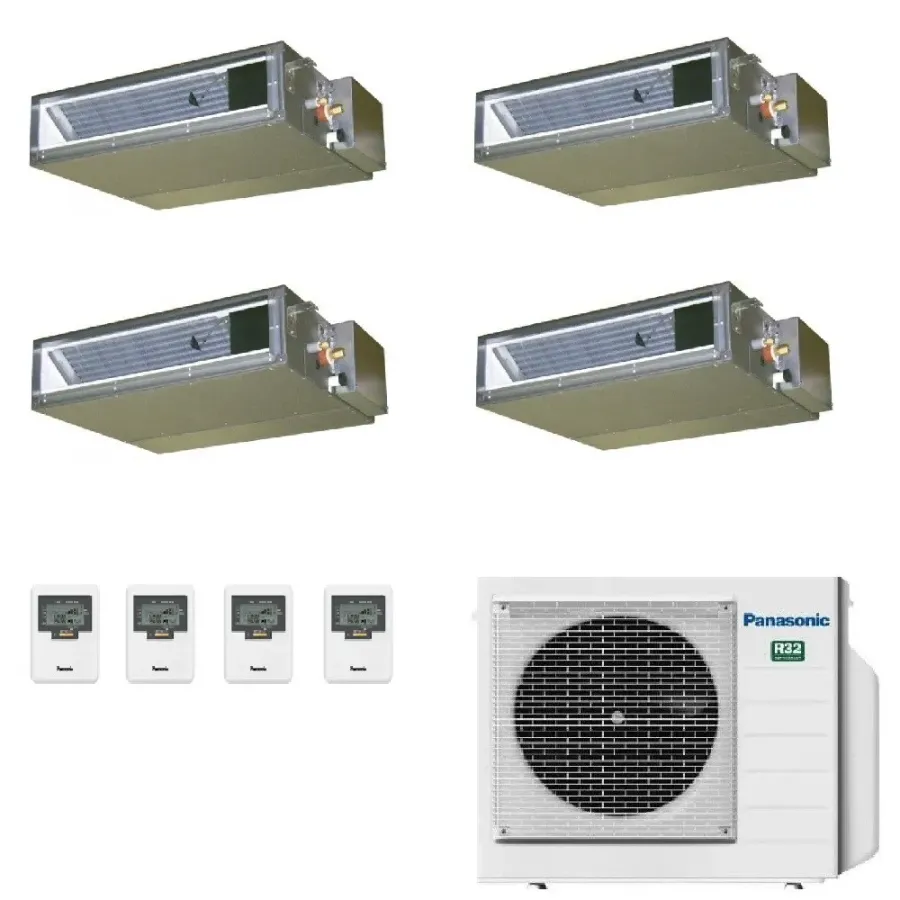

Panasonic Quadri Ducted 2.5+2.5+2.5+5.0 kW CU-4Z80TBE CS-Z25UD3EAW CS-Z25UD3EAW CS-Z25UD3EAW CS-Z50UD3EAW air conditioners
Panasonic Quadri Split air conditioners 9000 9000 9000 18000 Btu CS-Z25UD3EAW +CS-Z25UD3EAW +CS-Z50UD3EAW + CU-4Z80TBE Drain pump included, wired remote control included Low prevalence WiFi Optional heat pump, WiFi compatible, voice control Energy rating CU-4Z80TBE A+++
Kit consisting of the following elements: Indoor unit CS-Z25UD3EAW 9000 Btu Indoor unit CS-Z25UD3EAW 9000 Btu Indoor unit CS-Z25UD3EAW 9000 Btu Indoor unit CS-Z50UD3EAW 18000 Btu Outdoor unit CU-4Z80TBE 28000 Btu Recommended for environments: one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 54 sq m The most comprehensive solution for air conditioning your home: Up to four independent rooms with many variations and solutions.
- Eco mode
- Extremely compact indoor units
- Weekly programming timer
- Super quiet technology
- Drainage pump included in delivery
- Down to -10°C in cooling mode
- Down to -15°C in heating mode
The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Kit consisting of the following elements: Indoor unit CS-Z25UD3EAW 9000 Btu Indoor unit CS-Z25UD3EAW 9000 Btu Indoor unit CS-Z25UD3EAW 9000 Btu Indoor unit CS-Z50UD3EAW 18000 Btu Outdoor unit CU-4Z80TBE 28000 Btu Recommended for environments: one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 54 sq m The most comprehensive solution for air conditioning your home: Up to four independent rooms with many variations and solutions.
Low prevalence series
- Air filter- Eco mode
- Extremely compact indoor units
- Weekly programming timer
- Super quiet technology
- Drainage pump included in delivery
- Down to -10°C in cooling mode
- Down to -15°C in heating mode
The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Available, delivery time 4-5 working days
Panasonic Quadri Ducted 2.5+2.5+2.5+5.0 kW CU-4Z80TBE CS-Z25UD3EAW CS-Z25UD3EAW CS-Z25UD3EAW CS-Z50UD3EAW air conditioners
Panasonic Quadri Split Low Prevalence Air Conditioner with Optional WiFi, 9000+9000+9000+18000 Btu Heat Pump, WiFi Compatible with Voice Control, Drain Pump Included, Wired Control Included
The offer is structured as follows:

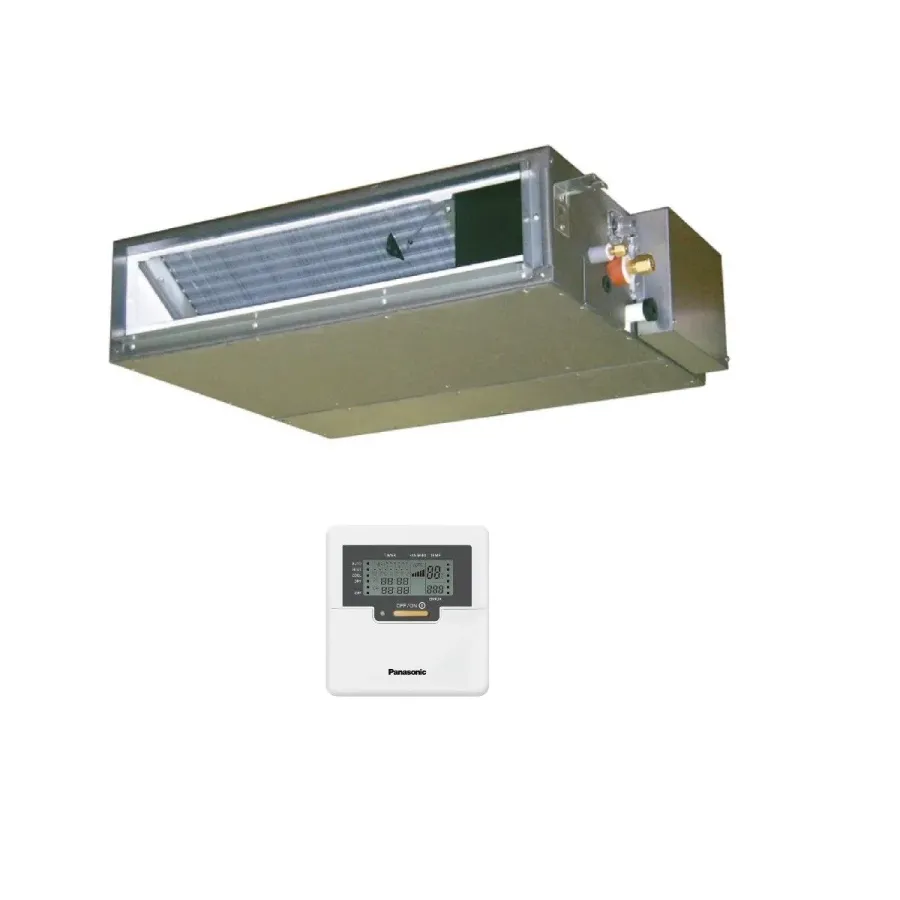

CS-Z25UD3EAW 9,000 BTU 2.5 kW
Ideal for environments of 21 to 27 square meters with an average height of approximately 2.7 meters.
Width: 750 mm; Height: 200 mm; Depth: 640 mm.
Standard accessories: Cable control included.
Optional accessory: Wifi interface CZ-TACG1.
CS-Z25UD3EAW 9,000 BTU 2.5 kW
Ideal for environments of 21 to 27 square meters with an average height of approximately 2.7 meters.
Width: 750 mm; Height: 200 mm; Depth: 640 mm.
Standard accessories: Cable control included.
Optional accessory: Wifi interface CZ-TACG1.
CS-Z25UD3EAW 9,000 BTU 2.5 kW
Ideal for environments of 21 to 27 square meters with an average height of approximately 2.7 meters.
Width: 750 mm; Height: 200 mm; Depth: 640 mm.
Standard accessories: Cable control included.
Optional accessory: Wifi interface CZ-TACG1.
CS-Z50UD3EAW 18,000 BTU 5.0 kW
Ideal for environments of 45 to 54 square meters with an average height of approximately 2.7 meters.
Width: 750 mm; Height: 200 mm; Depth: 640 mm.
Standard accessories: Cable control included.
Optional accessory: Wifi interface CZ-TACG1.
CU-4Z80TBE 28,000 BTU 8.0 kW
Operation with refrigerant gas: R-32
Width: 940 mm; Height: 999 mm; Depth: 340 mm.
Minimum number of connectable indoor units: 2.
Maximum number of connected indoor units: 4.
Panasonic indoor units with low prevalence
Specifically designed for offices, shops and restaurants
Designed for installation in homes, offices, shops, and restaurants. This ducted unit is ideal for small spaces requiring air conditioning, high comfort, and efficiency.New channel models can be connected to KNX, Modbus, and EnOcean interfaces for easy integration into BMS systems. The interfaces use dry contacts (ON/OFF, fault signal) to simplify integration.
Technical details
- Environmentally friendly refrigerant R32- The multiplexed units can be used via KNX, EnOcean and Modbus
can be controlled - Eco mode for energy savings of 20%
- Compact indoor units (height only 200 mm)
- Weekly programming timer with the ability to program 42 events per week
- Simplified control mode for error detection
- Drain pump included

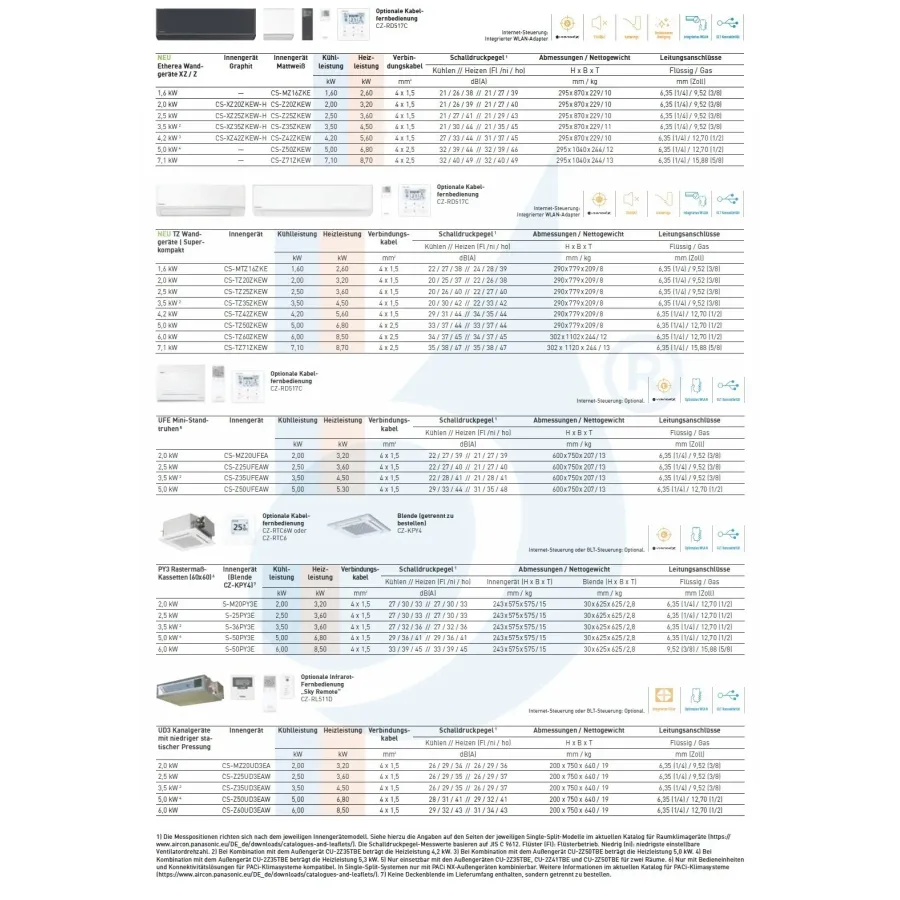

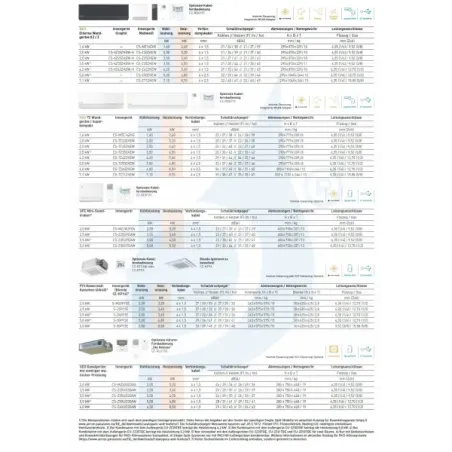

Datasheet
Click on the image to enlarge the datasheet.
Click on the image to enlarge the datasheet.
Click on the image to enlarge the datasheet.
- Rated power BTU
- BTU 9000+9000+9000+18000
- series
- Low prevalence
- Rated power kW
- 2.5+2.5+2.5+5.0
- Type of facility
- Channel installation devices
- Energy class cooling
- A+++
- Energy class heating
- A+
- Refrigerant gas
- R-32
- System type
- Quadri Split
- Wi-Fi connection
- WiFi Optional
- Declaration of commitment
- 1
- BEG EM
- Yes
