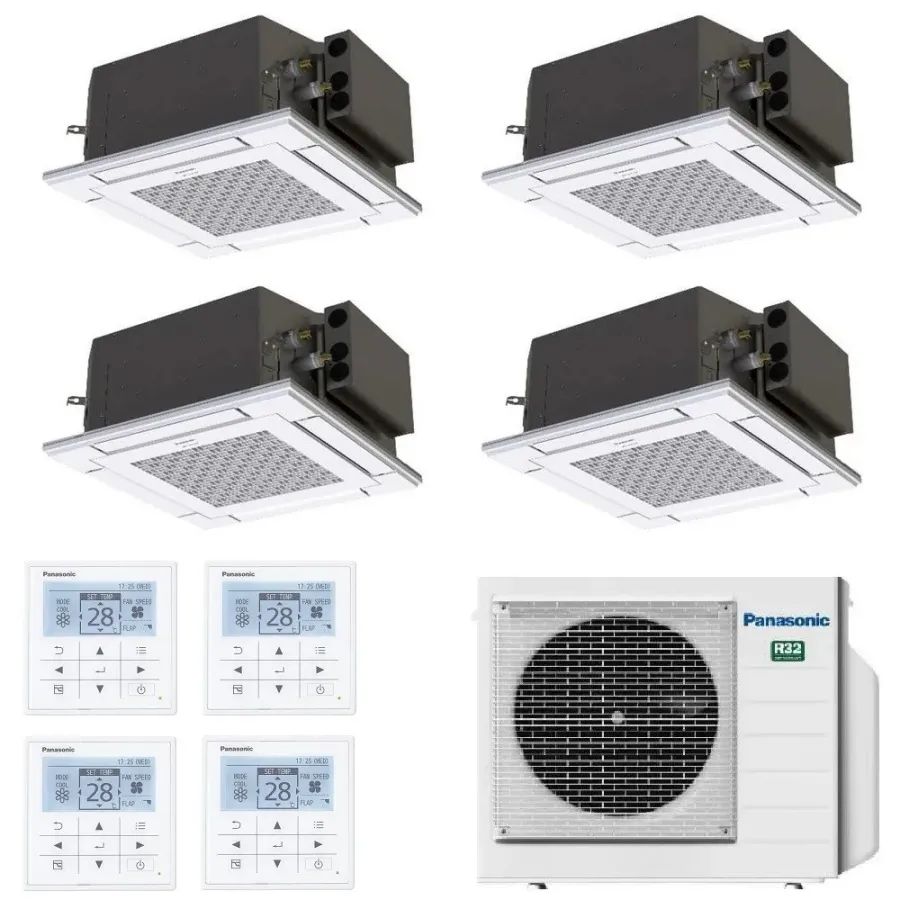

Panasonic Quadri Cassette Unit 2.5+2.5+2.5+5.0 kW CU-4Z80TBE S-25PY3E S-25PY3E S-25PY3E S-50PY3E Air Conditioners 60 x 60 4-way
Panasonic Quadri Split 9000 air conditioner, 18000 Btu (S-25PY3E + S-25PY3E + S-50PY3E + CU-4Z80TBE). Includes drain pump, 60 x 60 mm fresh air intake duct, 4-way WiFi. Optional heat pump, WiFi compatible with voice control. Energy rating CU-4Z80TBE: A+++
Kit consisting of the following elements: Indoor unit S-25PY3E 9000 Btu Indoor unit S-25PY3E 9000 Btu Indoor unit S-25PY3E 9000 Btu Indoor unit S-50PY3E 18000 Btu Outdoor unit CU-4Z80TBE 28000 Btu Recommended for environments: one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 54 sq m The most comprehensive solution for air conditioning your home: Up to four independent rooms with many variations and solutions.
- Individual control of the flaps
- Be silent
The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Kit consisting of the following elements: Indoor unit S-25PY3E 9000 Btu Indoor unit S-25PY3E 9000 Btu Indoor unit S-25PY3E 9000 Btu Indoor unit S-50PY3E 18000 Btu Outdoor unit CU-4Z80TBE 28000 Btu Recommended for environments: one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 54 sq m The most comprehensive solution for air conditioning your home: Up to four independent rooms with many variations and solutions.
4-way 60x60 cassette series
- nanoe X technology- Individual control of the flaps
- Be silent
The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Available, delivery time 4-5 working days
Panasonic Quadri Cassette Unit 2.5+2.5+2.5+5.0 kW CU-4Z80TBE S-25PY3E S-25PY3E S-25PY3E S-50PY3E Air Conditioners 60 x 60 4-way
Panasonic Quadri Split 60 x 60 4-way air conditioner with optional WiFi, 9000+9000+9000+18000 BTU heat pump, WiFi, compatible with voice control, drain pump included, fresh air intake duct
The offer is structured as follows:
S-25PY3E 9,000 BTU 2.5 kW
Ideal for environments of 21 to 27 square meters with an average height of approximately 2.7 meters.
Width: 575 mm, Height: 243 mm, Depth: 575 mm.
Standard accessories: Wired controller CZ-RTC5B, white grille CZ-CAPWFC1.
Optional accessory: Wifi interface CZ-CAPWFC1.
S-25PY3E 9,000 BTU 2.5 kW
Ideal for environments of 21 to 27 square meters with an average height of approximately 2.7 meters.
Width: 575 mm, Height: 243 mm, Depth: 575 mm.
Standard accessories: Wired controller CZ-RTC5B, white grille CZ-CAPWFC1.
Optional accessory: Wifi interface CZ-CAPWFC1.
S-25PY3E 9,000 BTU 2.5 kW
Ideal for environments of 21 to 27 square meters with an average height of approximately 2.7 meters.
Width: 575 mm, Height: 243 mm, Depth: 575 mm.
Standard accessories: Wired controller CZ-RTC5B, white grille CZ-CAPWFC1.
Optional accessory: Wifi interface CZ-CAPWFC1.
S-50PY3E 18,000 BTU 5.0 kW
Ideal for environments of 45 to 54 square meters with an average height of approximately 2.7 meters.
Width: 575 mm, Height: 243 mm, Depth: 575 mm.
Standard accessories: Wired controller CZ-RTC5B, white grille CZ-CAPWFC1.
Optional accessory: Wifi interface CZ-CAPWFC1.
CU-4Z80TBE 28,000 BTU 8.0 kW
Operation with refrigerant gas: R-32
Width: 940 mm; Height: 999 mm; Depth: 340 mm.
Minimum number of connectable indoor units: 2.
Maximum number of connected indoor units: 4.

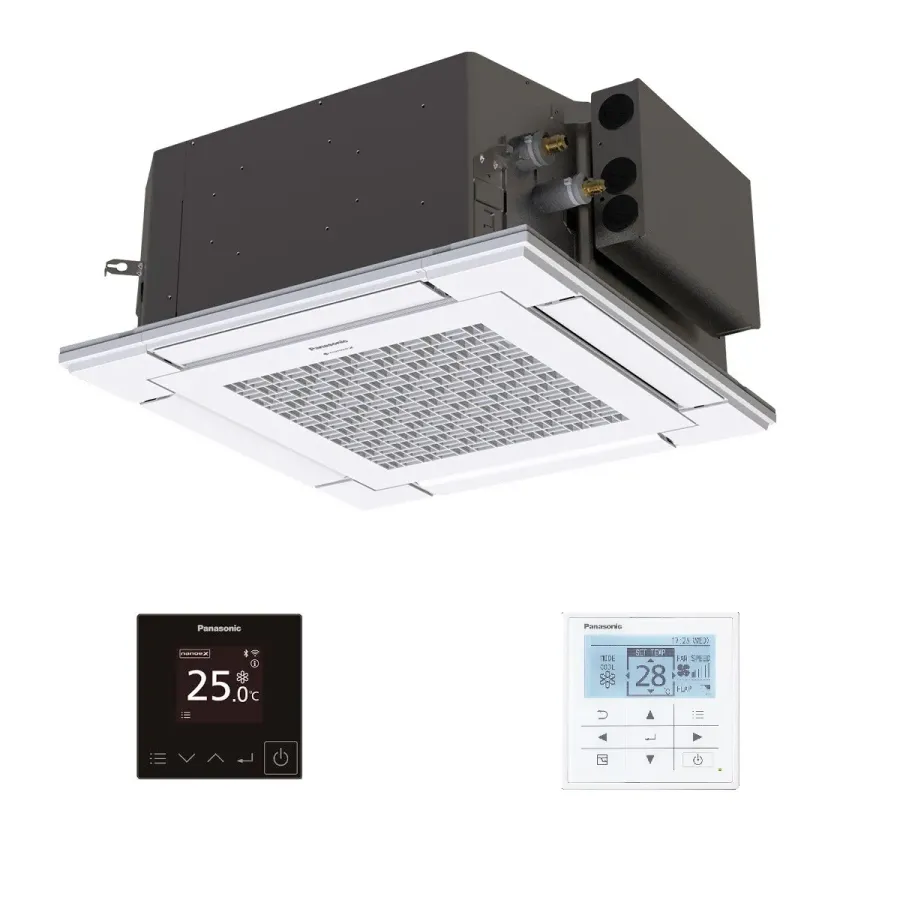

Panasonic 60 x 60 4-way cassette indoor units
Specifically designed for offices, shops and restaurants, it fits perfectly into suspended ceilings with an opening of 60x60 or 70x70.
Compact cassette with high efficiency even at low temperatures. The box can be connected to KNX, Modbus and EnOcean interfaces for easy integration into BMS systems.The interfaces use clean contacts (ON/OFF, error signal) for easy integration. Install the Panasonic cassette model that's right for your business and save all year round!
Technical details
- Environmentally friendly refrigerant R32- The boxes can be used via KNX, EnOcean and Modbus
be controlled - Designed to be easily installed in suspended ceilings with 60x60
To be installed in the opening - Maximum length of connecting lines: 30 m
- Maximum height difference: 20 m
- Compact outdoor units, easy to install
- High-pressure selector for high ceilings (> 2.7 m)
- Drainage pump included (max. height difference 750 mm)
- Channel for introducing fresh air

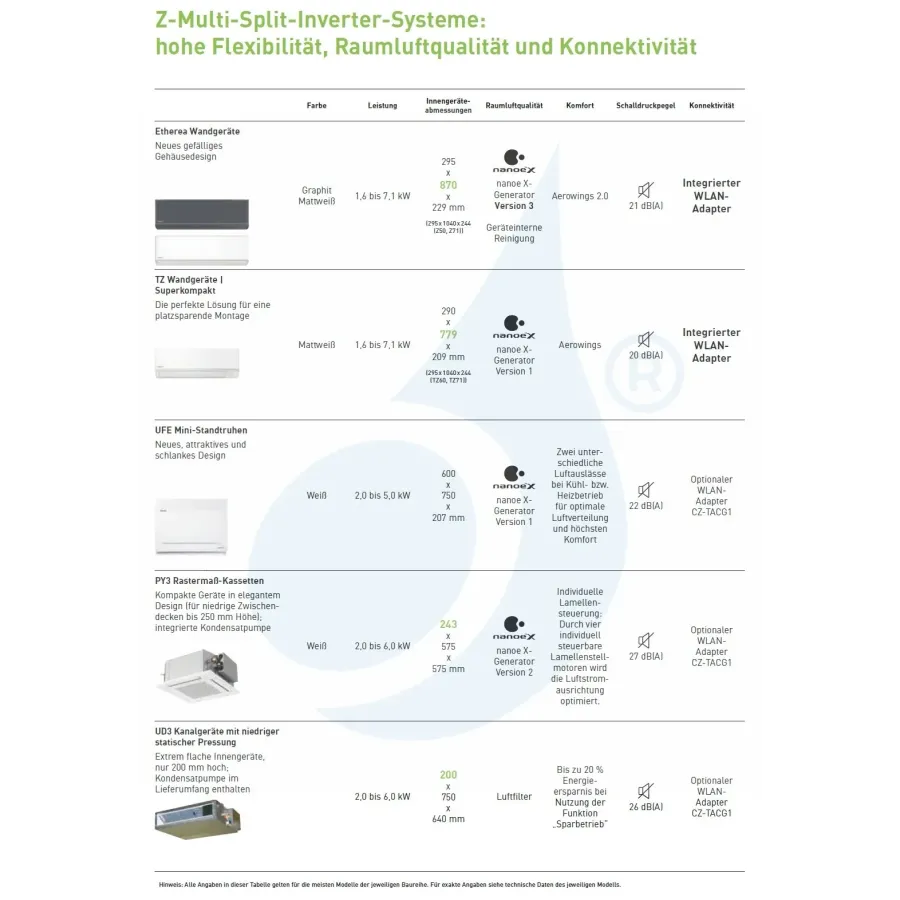

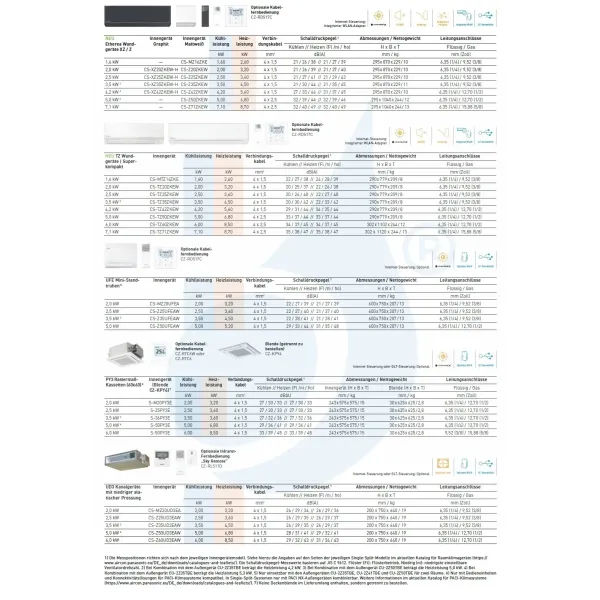

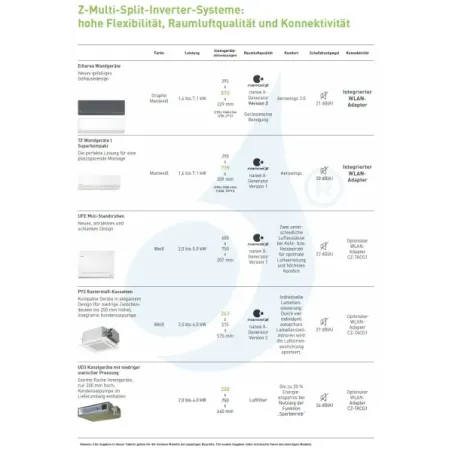

Datasheet
Click on the image to enlarge the datasheet.
Click on the image to enlarge the datasheet.
Click on the image to enlarge the datasheet.
- Rated power BTU
- BTU 9000+9000+9000+18000
- series
- 60 x 60 4-way
- Color
- White
- Rated power kW
- 2.5+2.5+2.5+5.0
- Type of facility
- Cassette player
- Energy class cooling
- A+++
- Energy class heating
- A+
- Refrigerant gas
- R-32
- System type
- Quadri Split
- Wi-Fi connection
- WiFi Optional
- Declaration of commitment
- 1
- BEG EM
- Yes
Z-UB-9+9+9+18+CU-4Z80TBE
