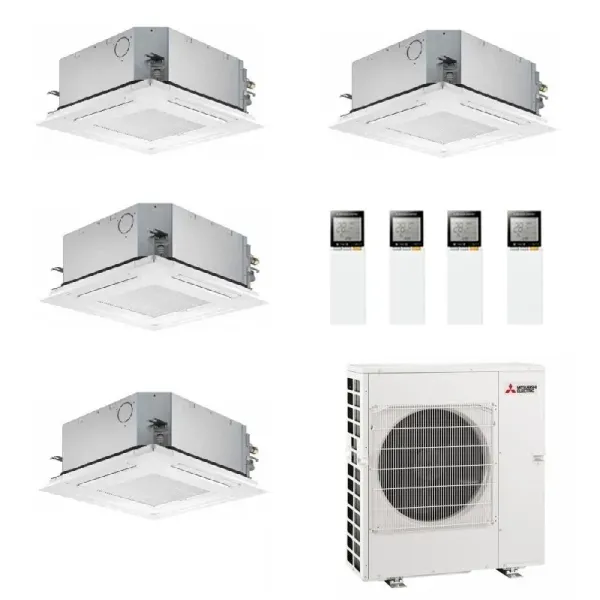

Mitsubishi Quadri Split 9+9+9+9 MXZ-4F72VF4 SLZ-M25FA2 SLZ-M25FA2 SLZ-M25FA2 SLZ-M25FA2 air conditioning cassette unit
Mitsubishi Quadri Split SLZ-M Series Air Conditioners with Optional WiFi, 9000+9000+9000+9000 Btu Indoor Unit for Mitsubishi Air Conditioners, Mono Split and Multi Split Configurations with Heating and Cooling Modes. The SLZ-M series ceiling cassettes are a smart air conditioning solution for suspended ceilings with Euro grid dimensions. Meeting high demands for individual comfort and ambitious energy-saving goals, the SLZ-M 4-way ceiling cassettes offer enhanced intelligence. Ideal for environments with one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m The most comprehensive solution for air conditioning your home: Up to four independent rooms with many variations and solutions.
Indoor units of the SLZ-M series
- Optimized energy efficiency and reduced sound pressure
- Modern and elegant design
- Pleasant air circulation
- 3D i-see Sensor
- Compact and easy installation
- Energy-saving occupancy rate
- Energy-saving empty space
- Refrigerant R32 with low global warming potential
Indoor units of the SLZ-M series
- Optimized energy efficiency and reduced sound pressure
- Modern and elegant design
- Pleasant air circulation
- 3D i-see Sensor
- Compact and easy installation
- Energy-saving occupancy rate
- Energy-saving empty space
- Refrigerant R32 with low global warming potential

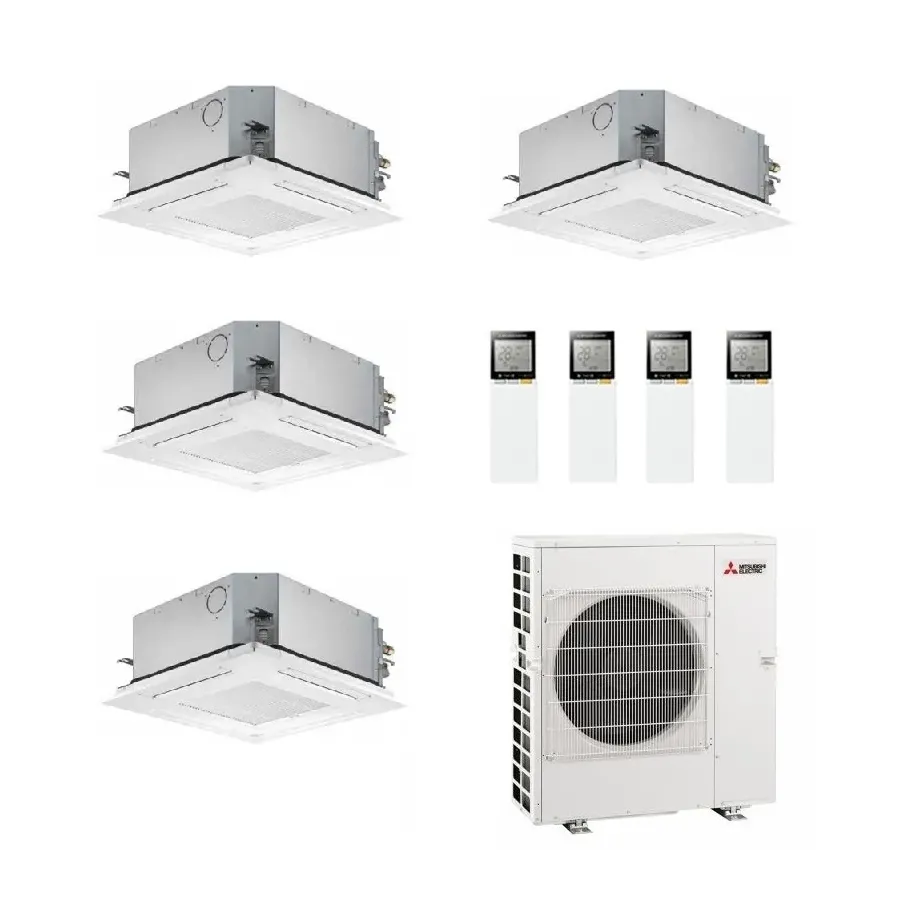

Kit consisting of the following elements:
Indoor unit SLZ-M25FA2 9000 Btu Indoor unit SLZ-M25FA2 9000 Btu Indoor unit SLZ-M25FA2 9000 Btu Indoor unit SLZ-M25FA2 15000 Btu Outdoor unit MXZ-4F72VF4 24000 Btu The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Available, delivery time 4-5 working days
Mitsubishi Quadri Split 9+9+9+9 MXZ-4F72VF4 SLZ-M25FA2 SLZ-M25FA2 SLZ-M25FA2 SLZ-M25FA2 air conditioning cassette unit

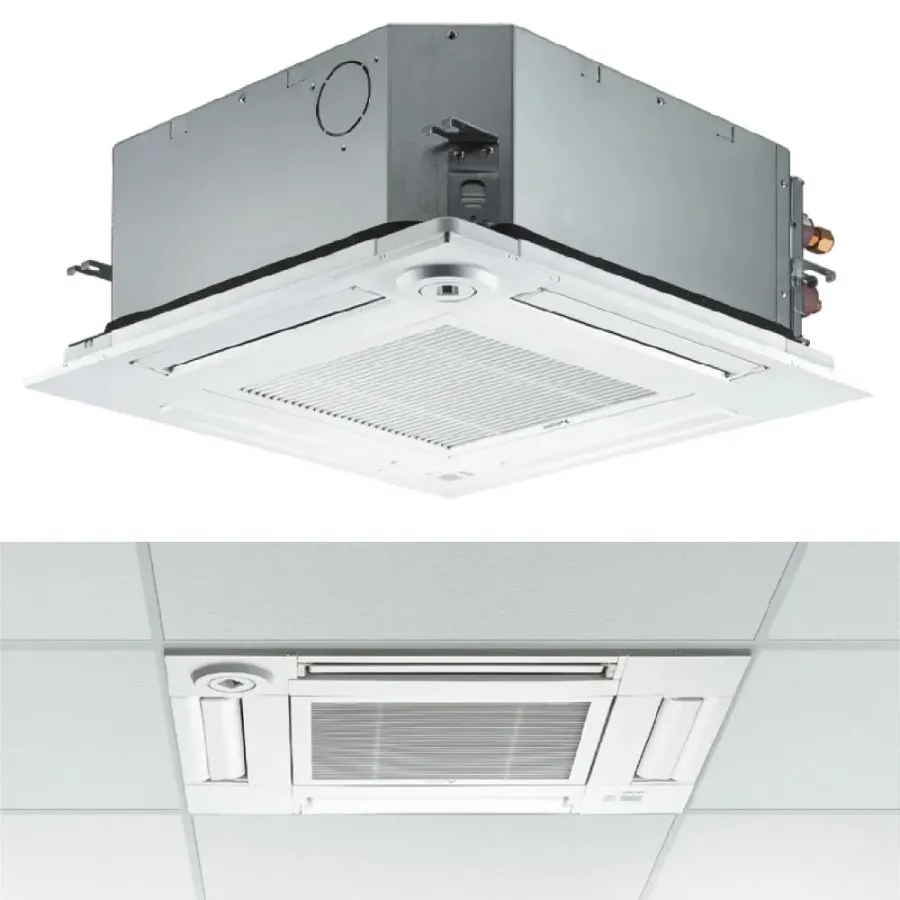

Mitsubishi Quadri Split SLZ-M Series Air Conditioners with Optional WiFi, 9000+9000+9000+9000 Btu Indoor Unit for Mitsubishi Air Conditioners, Mono Split and Multi Split Configurations with Heating and Cooling Modes. The SLZ-M series ceiling cassettes are a smart air conditioning solution for suspended ceilings with Euro grid dimensions. Meeting high demands for individual comfort and ambitious energy-saving goals, the SLZ-M 4-way ceiling cassettes offer enhanced intelligence.
Kit consisting of the following elements:
SLZ-M25FA2 9,000 BTU 2.5 kW
Ideal for rooms of 21 to 27 square meters with an average ceiling height of approximately 2.7 meters.
Length: 570 mm - Height: 245 mm - Depth: 570 mm
Standard accessories: White radiator grille and infrared remote control.
Optional accessory: Wi-Fi interface.
SLZ-M25FA2 9,000 BTU 2.5 kW
Ideal for rooms of 21 to 27 square meters with an average ceiling height of approximately 2.7 meters.
Length: 570 mm - Height: 245 mm - Depth: 570 mm
Standard accessories: White radiator grille and infrared remote control.
Optional accessory: Wi-Fi interface.
SLZ-M25FA2 9,000 BTU 2.5 kW
Ideal for rooms of 21 to 27 square meters with an average ceiling height of approximately 2.7 meters.
Length: 570 mm - Height: 245 mm - Depth: 570 mm
Standard accessories: White radiator grille and infrared remote control.
Optional accessory: Wi-Fi interface.
SLZ-M25FA2 9,000 BTU 2.5 kW
Ideal for rooms of 21 to 27 square meters with an average ceiling height of approximately 2.7 meters.
Length: 570 mm - Height: 245 mm - Depth: 570 mm
Standard accessories: White radiator grille and infrared remote control.
Optional accessory: Wi-Fi interface.
MXZ-4F72VF4 24,000 BTU 7.2 kW
Operation with refrigerant gas: R-32
Length: 840 mm - Height: 710 mm - Depth: 330 mm.
Minimum number of connectable indoor units: 2.
Maximum number of connected indoor units: 4.
Indoor units of the SLZ-M series
Efficiency and Innovation
Particular attention was paid to seasonal energy efficiency, which was increased by about 10% compared to the previous model and achieved class A++ in cooling.Thanks to the use of the new "3D turbo fan", the devices offer significantly improved noise levels compared to the previous model SLZ-KA.
design
The 4-way boxes of the SLZ series, designed for installation in 60 x 60 suspended ceilings, are the ideal solution for offices or commercial facilities.The use of straight lines gives the units a modern design dominated by linear shapes, making them a perfect fit for any type of interior.
comfort
The introduction of the new fan and the design of the casing and louvers make it possible to direct the airflow horizontally, turn it completely towards the ceiling and avoid any kind of draft, thus ensuring a high level of comfort.air exchange
For optimal air exchange in environments with difficult air circulation or for improved passenger comfort, the SLZ-M unit guarantees the possibility of introducing outside air.Compact and simplified installation
With a height of 245 mm from the suspended ceiling, a feature that makes it the most compact on the market, the unit can be easily installed thanks to special hooks for temporary mounting of the panel and the 850 mm head of the condensate drain pump.Technical data sheets
Download SLZ-M series card 4-way cassette
Download SLZ-M series card 4-way cassette
Download Technical Data Sheet Multi Split Series SLZ-M 4-Way Cassette
- Rated power BTU
- BTU 9000+9000+9000+9000
- series
- SLZ-M
- Color
- White
- Rated power kW
- 2.5+2.5+2.5+2.5
- Type of facility
- Cassette player
- Energy class cooling
- A+++
- Energy class heating
- A+
- Refrigerant gas
- R-32
- System type
- Quadri Split
- Wi-Fi connection
- WiFi Optional
- Declaration of commitment
- 1
