Midea Penta Split 9+9+9+9+9 Btu duct installation devices M5OE-42HFN8-Q with 5 units MTI-09HWFNX(GA) air conditioning systems R-
Midea Penta Split Series air conditioner, 9+9+9+9+9 Btu capacity, with heating, highly efficient heat pump, low energy consumption, and dehumidifier. Recommended for environments with one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m
- Shared power 2.5 - 3.5 - 5.3 kW
- Condensate drain pump
- IR control included in the scope of delivery
- Wired controller included
- Linear adjustment of fan speed
- G2 filter
- Reversible air intake
- Adjusting the fan curve
- Optional Smart Kit (Kit code WF-60B1-C)
- ON/OFF contact / Alarm contact / Fan contact
The BTU ratings and square meter capacities are provided to simplify and facilitate the reading of the technical data. For further details, please contact our customer service.
Kit consisting of the following elements:
Indoor unit MTI-09HWFNX(GA) 9000 Btu Indoor unit MTI-09HWFNX(GA) 9000 Btu Indoor unit MTI-09HWFNX(GA) 9000 Btu Indoor unit MTI-09HWFNX(GA) 9000 Btu Indoor unit MTI-09HWFNX(GA) 9000 Btu Outdoor unit M5OE-42HFN8-Q 42000 Btu The most comprehensive solution for air conditioning your home: up to five independent rooms with many variations and solutions.Ductable series
- Shared power 2.5 - 3.5 - 5.3 kW
- Condensate drain pump
- IR control included in the scope of delivery
- Wired controller included
- Linear adjustment of fan speed
- G2 filter
- Reversible air intake
- Adjusting the fan curve
- Optional Smart Kit (Kit code WF-60B1-C)
- ON/OFF contact / Alarm contact / Fan contact
The BTU ratings and square meter capacities are provided to simplify and facilitate the reading of the technical data. For further details, please contact our customer service.
Out of stock, product available soon

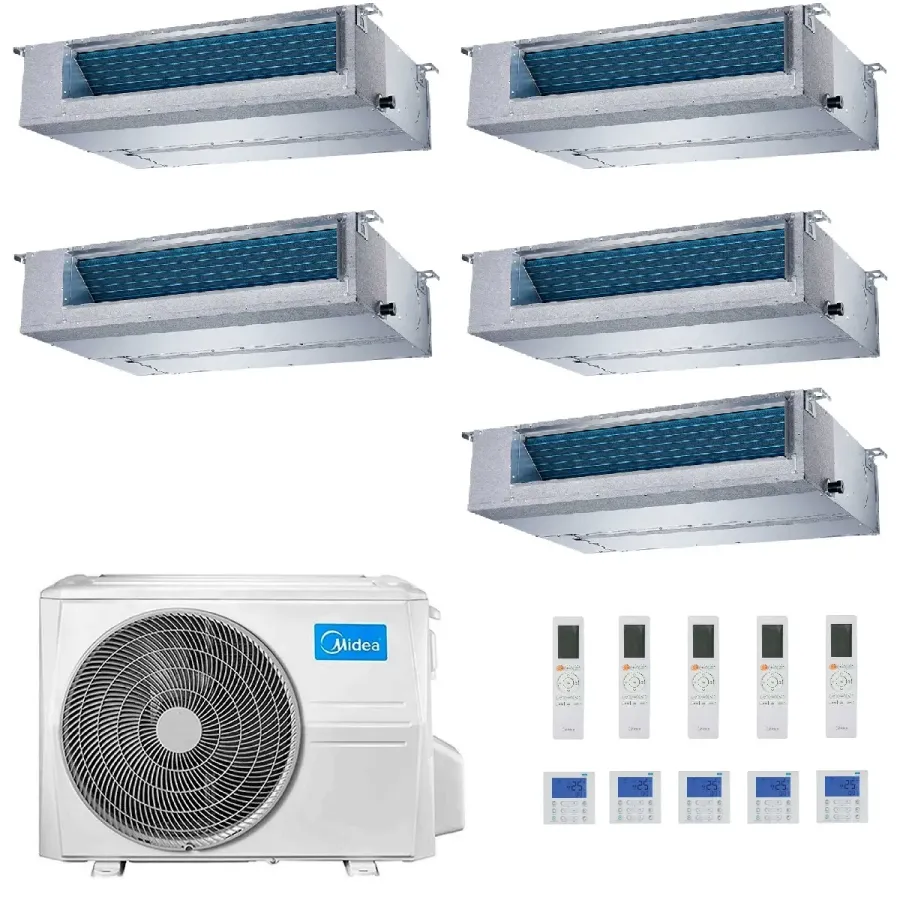

Midea Penta Split 9+9+9+9+9 Btu duct installation devices M5OE-42HFN8-Q with 5 units MTI-09HWFNX(GA) air conditioning systems R-32 A++ A+
Midea Penta Split Series air conditioner, ducted, BTU heating with highly efficient heat pump with low energy consumption, dehumidifier
Kit consisting of the following elements:

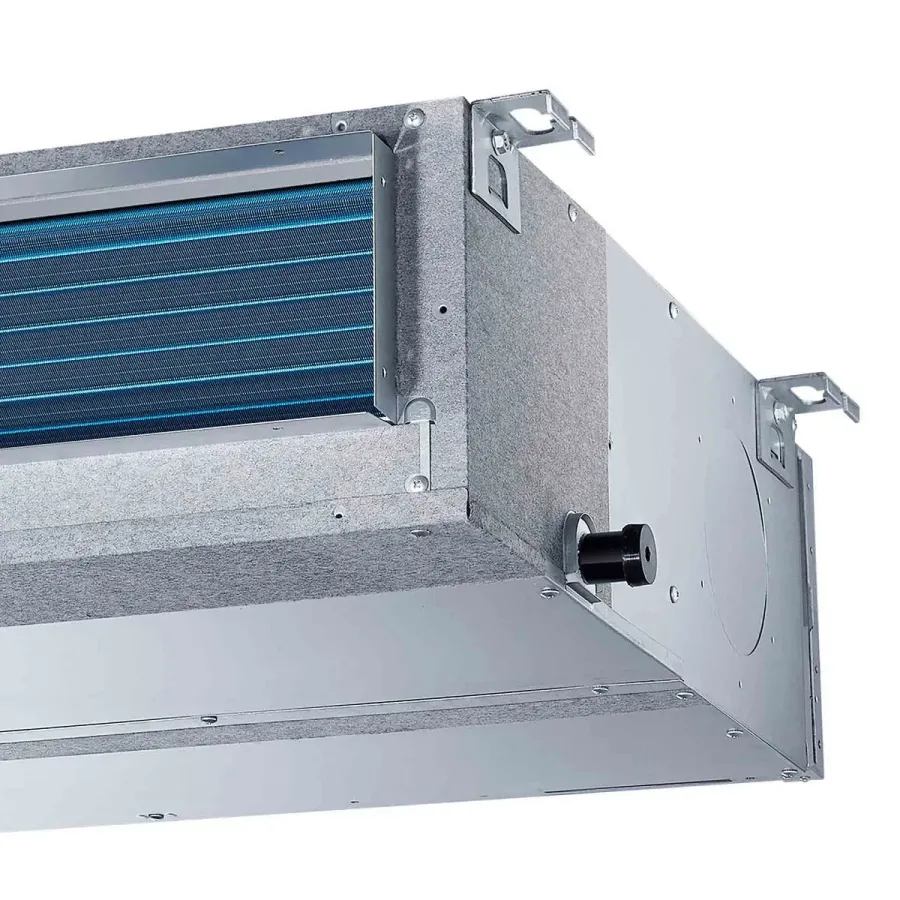

MTI-09HWFNX(GA) 9,000 BTU 2.5 kW Series Ducted
Ideal for environments of 22 to 27 square meters with an average height of approximately 2.7 meters.
Width: 794 mm, Height: 621 mm, Depth: 200 mm.
Standard accessories: Infrared remote control and wired control.
Optional accessory: WLAN interface code WF-60B1-C.
MTI-09HWFNX(GA) 9,000 BTU 2.5 kW Series Ducted
Ideal for environments of 22 to 27 square meters with an average height of approximately 2.7 meters.
Width: 794 mm, Height: 621 mm, Depth: 200 mm.
Standard accessories: Infrared remote control and wired control.
Optional accessory: WLAN interface code WF-60B1-C.
MTI-09HWFNX(GA) 9,000 BTU 2.5 kW Series Ducted
Ideal for environments of 22 to 27 square meters with an average height of approximately 2.7 meters.
Width: 794 mm, Height: 621 mm, Depth: 200 mm.
Standard accessories: Infrared remote control and wired control.
Optional accessory: WLAN interface code WF-60B1-C.
MTI-09HWFNX(GA) 9,000 BTU 2.5 kW Series Ducted
Ideal for environments of 22 to 27 square meters with an average height of approximately 2.7 meters.
Width: 794 mm, Height: 621 mm, Depth: 200 mm.
Standard accessories: Infrared remote control and wired control.
Optional accessory: WLAN interface code WF-60B1-C.
MTI-09HWFNX(GA) 9,000 BTU 2.5 kW Series Ducted
Ideal for environments of 22 to 27 square meters with an average height of approximately 2.7 meters.
Width: 794 mm, Height: 621 mm, Depth: 200 mm.
Standard accessories: Infrared remote control and wired control.
Optional accessory: WLAN interface code WF-60B1-C.
M5OE-42HFN8-Q 42,000 BTU 12.0 kW
Operation with refrigerant gas: R-32
Width: 946 mm, Height: 810 mm, Depth: 410 mm.
Minimum number of internal units that can be connected: 2.
Maximum number of connectable indoor units: 5.

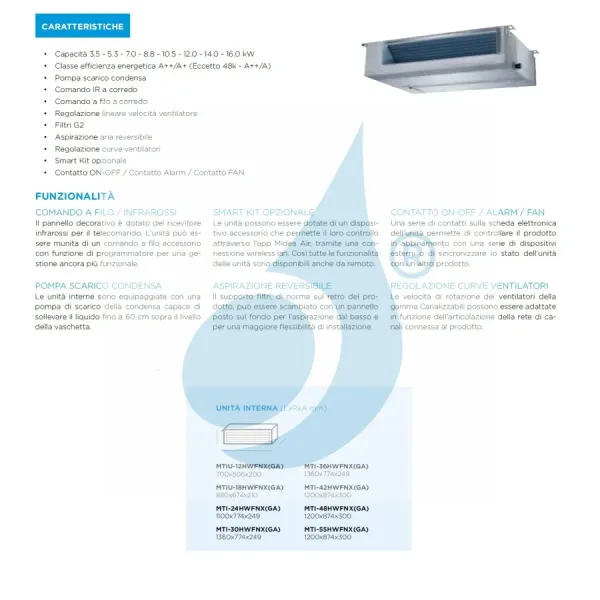

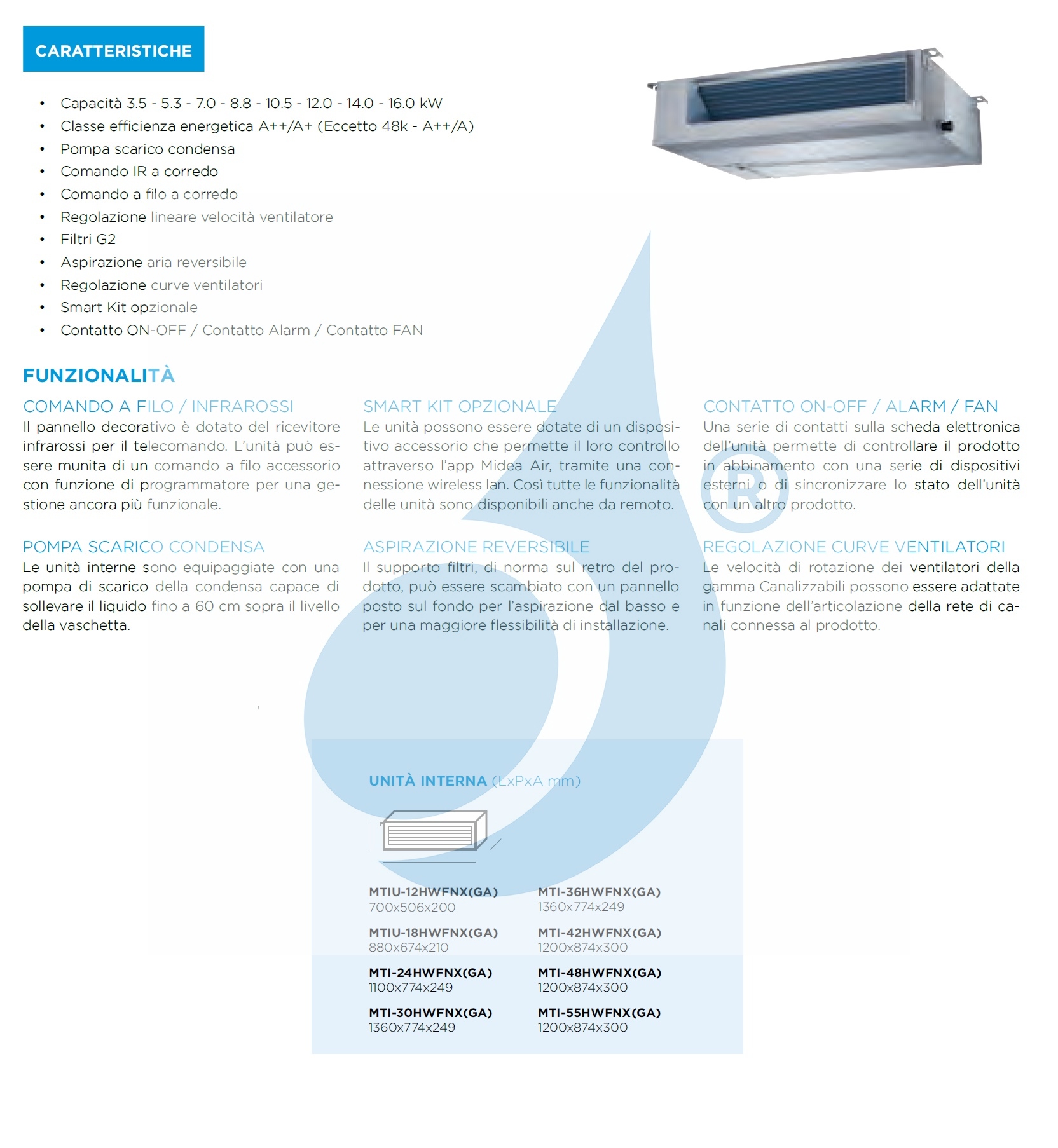

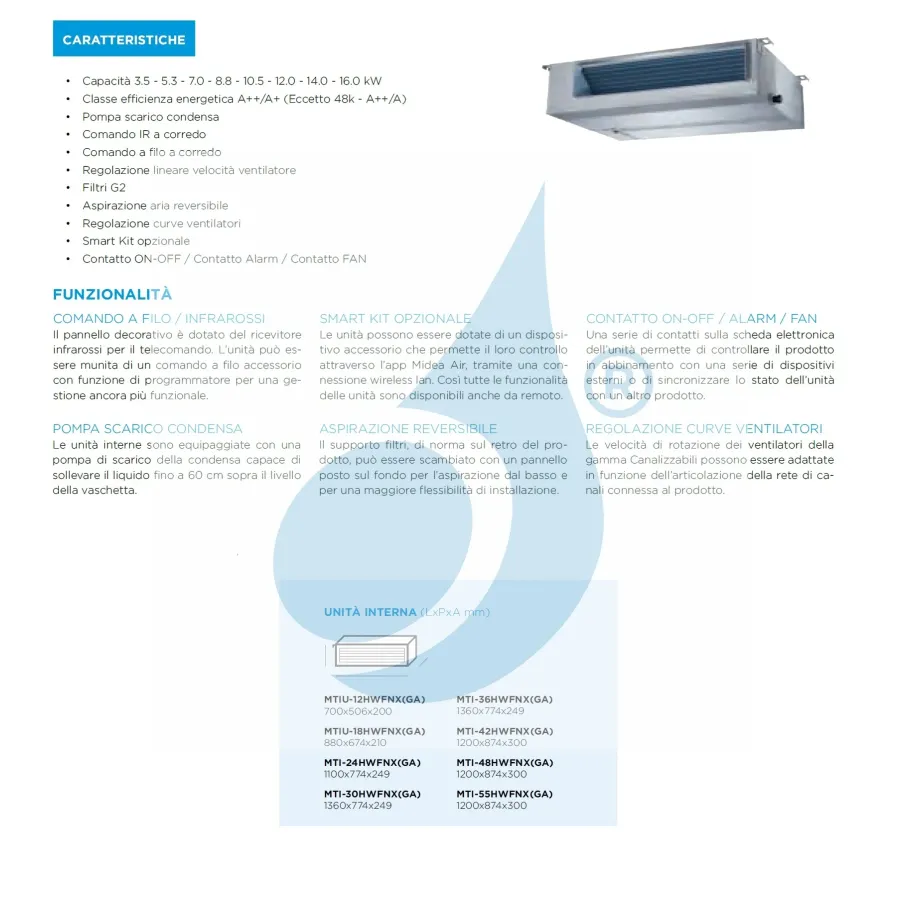

Ductable series
Shared power 2.5 - 3.5 - 5.3 kW
Linear fan speed adjustment
G2 filter
WIRE CONTROL / INFRARED
The decorative panel is equipped with an infrared receiver for remote control. For even more advanced control options, the unit can be equipped with an additional wired remote control with programmable functionality. OPTIONAL SMART KIT (Kit code WF-60B1-C)
The devices can be equipped with an additional unit that enables control via the Midea Air app using a Wi-Fi connection. This makes all device functions available remotely. ON/OFF / ALARM / FAN CONTACT
A series of contacts on the device's circuit board allow you to control the product in combination with various external devices or to synchronize the device's status with another product. CONDENSATE DRAIN PUMP
The indoor units are equipped with a condensate drain pump that can lift the liquid up to 60 cm above the level of the tray. REVERSIBLE SUCTION
The filter holder, normally located on the back of the product, can be replaced with a plate mounted on the underside to allow for bottom extraction and greater installation flexibility. FAN CURVE ADJUSTMENT
The speeds of the fans in the duct area can be adjusted depending on the structure of the duct network connected to the product.

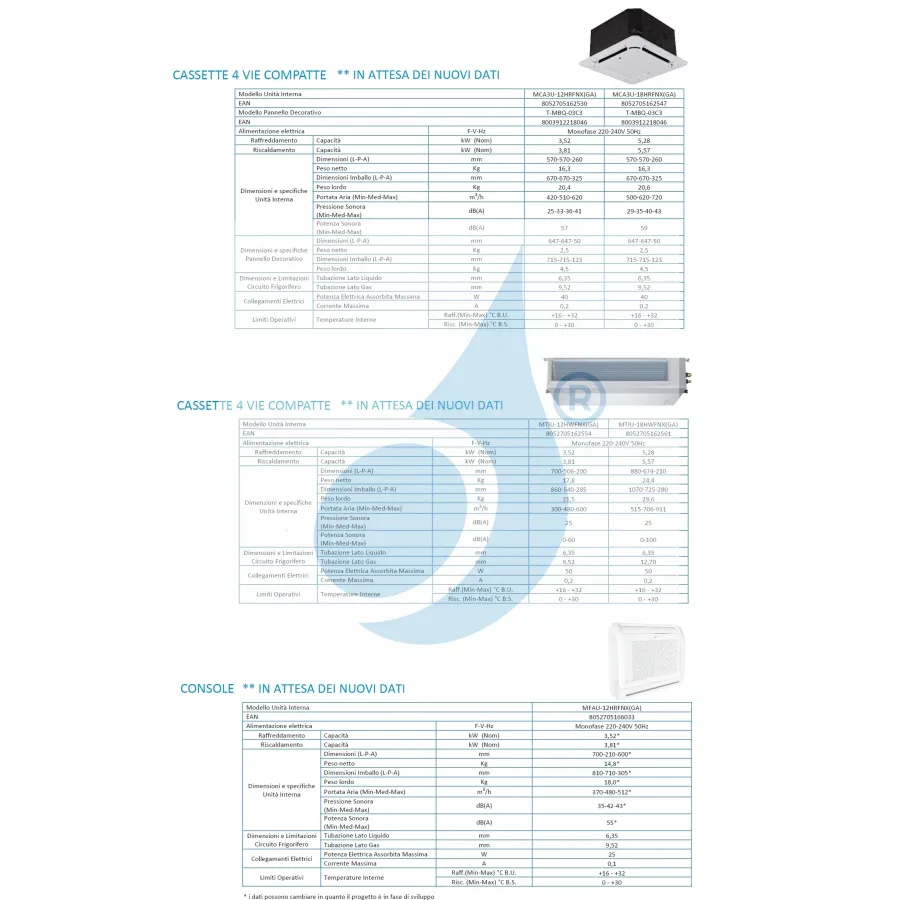

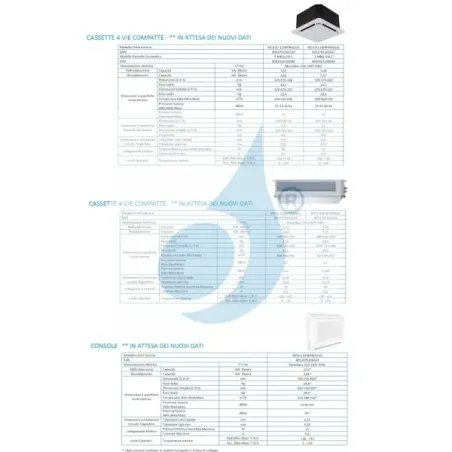

Datasheet
Click on the image to enlarge the datasheet.
Click on the image to enlarge the datasheet.
Click on the image to enlarge the datasheet.
- Rated power BTU
- BTU 9+9+9+9+9
- series
- channel
- Rated power kW
- 2.5+2.5+2.5+2.5+2.5
- Type of facility
- Channel installation devices
- Energy class cooling
- A++
- Energy class heating
- A+
- Refrigerant gas
- R-32
- System type
- Penta Split
- Declaration of commitment
- 1
Kanal 9+9+9+9+9+M5OE-42HFN8-Q
