Midea Penta Split 9+9+9+9+12 Btu cassette unit M5OE-42HFN8-Q with 4 unitsà MCA3I-09HRFNX(GA) + MCA3I-09HRFNX(GA) air conditioner
Midea Penta Split Series 4-way air conditioner 60x60 9+9+9+9+12 Btu heating with highly efficient heat pump with low energy consumption, dehumidifier Recommended for environments with one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 36 sq m
- Shared power 3.5 - 5.3 kW
- Condensate drain pump
- IR control included and optional wired control
- Optional Smart Kit (Kit code WF-60B1-C)
- Linear adjustment of fan speed
- ON/OFF contact / Alarm contact / Fan contact
- Display with IR receiver integrated into the decorative panel
- External air intake
- Air supply line
The BTU ratings and square meter capacities are provided to simplify and facilitate the reading of the technical data. For further details, please contact our customer service.

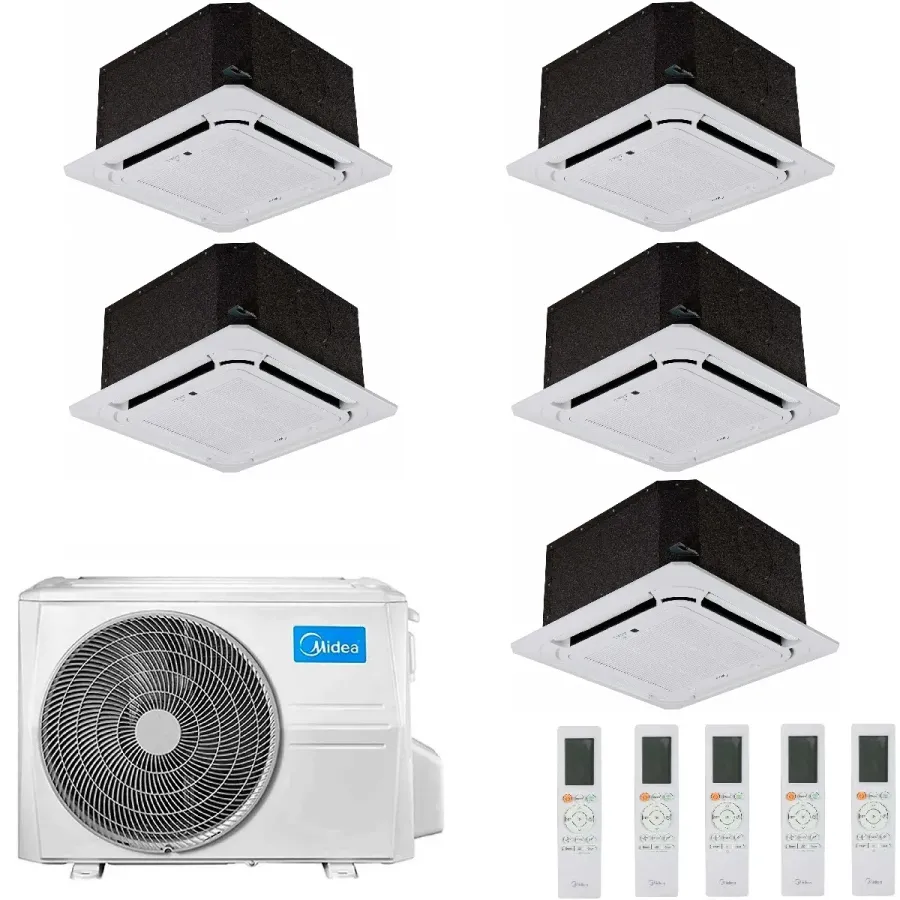

Kit consisting of the following elements:
Indoor unit MCA3I-09HRFNX(GA) 9000 Btu Indoor unit MCA3I-09HRFNX(GA) 9000 Btu Indoor unit MCA3I-09HRFNX(GA) 9000 Btu Indoor unit MCA3I-09HRFNX(GA) 9000 Btu Indoor unit MCA3U-12HRFNX(GA) 12000 Btu Outdoor unit M5OE-42HFN8-Q 42000 Btu The most comprehensive solution for air conditioning your home: up to five independent rooms with many variations and solutions.4-speed compact cassette series
- Shared power 3.5 - 5.3 kW
- Condensate drain pump
- IR control included and optional wired control
- Optional Smart Kit (Kit code WF-60B1-C)
- Linear adjustment of fan speed
- ON/OFF contact / Alarm contact / Fan contact
- Display with IR receiver integrated into the decorative panel
- External air intake
- Air supply line
The BTU ratings and square meter capacities are provided to simplify and facilitate the reading of the technical data. For further details, please contact our customer service.
Out of stock, product available soon
Midea Penta Split 9+9+9+9+12 Btu cassette unit M5OE-42HFN8-Q with 4 unitsà MCA3I-09HRFNX(GA) + MCA3I-09HRFNX(GA) air conditioners
Midea Penta Split Series 4-way air conditioner 60x60 Btu heating with highly efficient heat pump with low energy consumption, dehumidifier
Kit consisting of the following elements:

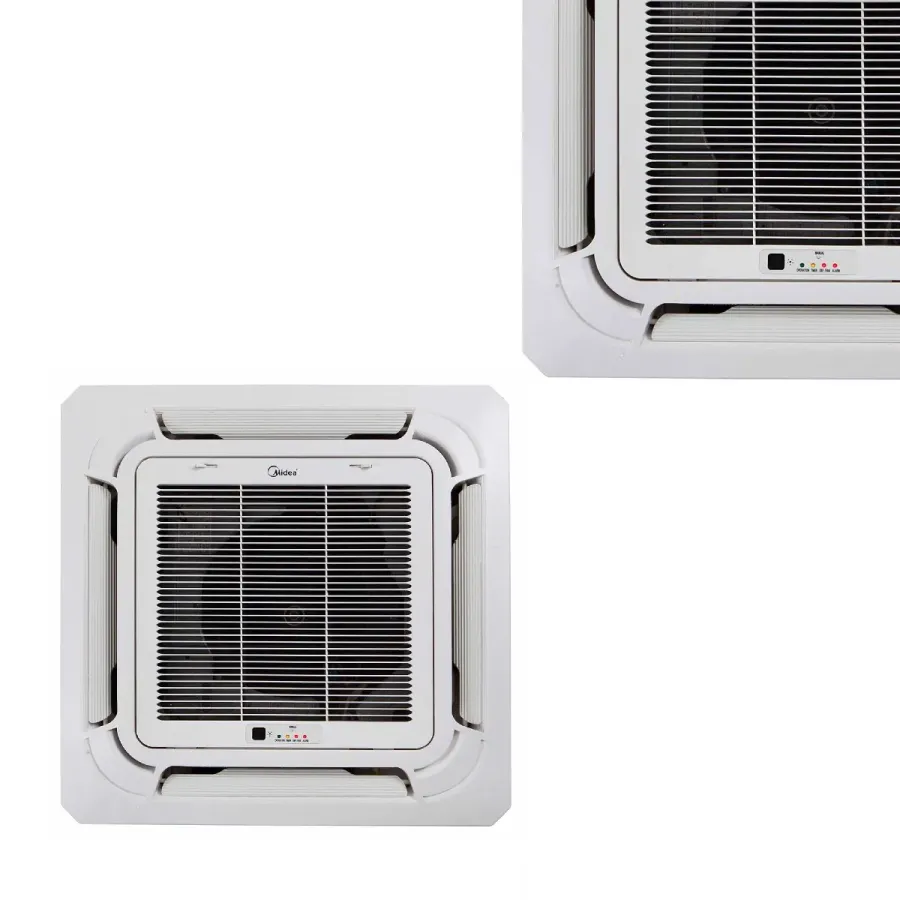

MCA3I-09HRFNX(GA) 9,000 BTU 2.5 kW Series Compact 4-Way Cassette
Ideal for environments of 22 to 27 square meters with an average height of approximately 2.7 meters.
Split: Width: 570 mm, Height: 260 mm, Depth: 570 mm.
Grill: Width: 647 mm, Height: 647 mm, Depth: 50 mm.
Standard accessories: Infrared remote control, T-MBQ-03C3 grill.
Optional accessory: WLAN interface code WF-60B1-C.
MCA3I-09HRFNX(GA) 9,000 BTU 2.5 kW Series Compact 4-Way Cassette
Ideal for environments of 22 to 27 square meters with an average height of approximately 2.7 meters.
Split: Width: mm. 570 Height: mm. 260 - Depth: mm. 570.
Grill: Width: 647 mm, Height: 647 mm, Depth: 50 mm.
Standard accessories: Infrared remote control, T-MBQ-03C3 grill.
Optional accessory: WLAN interface code WF-60B1-C.
MCA3I-09HRFNX(GA) 9,000 BTU 2.5 kW Series Compact 4-Way Cassette
Ideal for environments of 22 to 27 square meters with an average height of approximately 2.7 meters.
Split: Width: mm. 570 Height: mm. 260 - Depth: mm. 570.
Grill: Width: 647 mm, Height: 647 mm, Depth: 50 mm.
Standard accessories: Infrared remote control, T-MBQ-03C3 grill.
Optional accessory: WLAN interface code WF-60B1-C.
MCA3I-09HRFNX(GA) 9,000 BTU 2.5 kW Series Compact 4-Way Cassette
Ideal for environments of 22 to 27 square meters with an average height of approximately 2.7 meters.
Split: Width: mm. 570 Height: mm. 260 - Depth: mm. 570.
Grill: Width: 647 mm, Height: 647 mm, Depth: 50 mm.
Standard accessories: Infrared remote control, T-MBQ-03C3 grill.
Optional accessory: WLAN interface code WF-60B1-C.
MCA3U-12HRFNX(GA) 12,000 BTU 3.5 kW Series Compact 4-Way Cassette
Ideal for environments of 27 to 35 square meters with an average height of approximately 2.7 meters.
Split: Width: mm. 570 Height: mm. 260 - Depth: mm. 570.
Grill: Width: 647 mm, Height: 647 mm, Depth: 50 mm.
Standard accessories: Infrared remote control, T-MBQ-03C3 grill.
Optional accessory: WLAN interface code WF-60B1-C.
M5OE-42HFN8-Q 42,000 BTU 12.0 kW
Operation with refrigerant gas: R-32
Width: 946 mm, Height: 810 mm, Depth: 410 mm.
Minimum number of internal units that can be connected: 2.
Maximum number of connectable indoor units: 5.

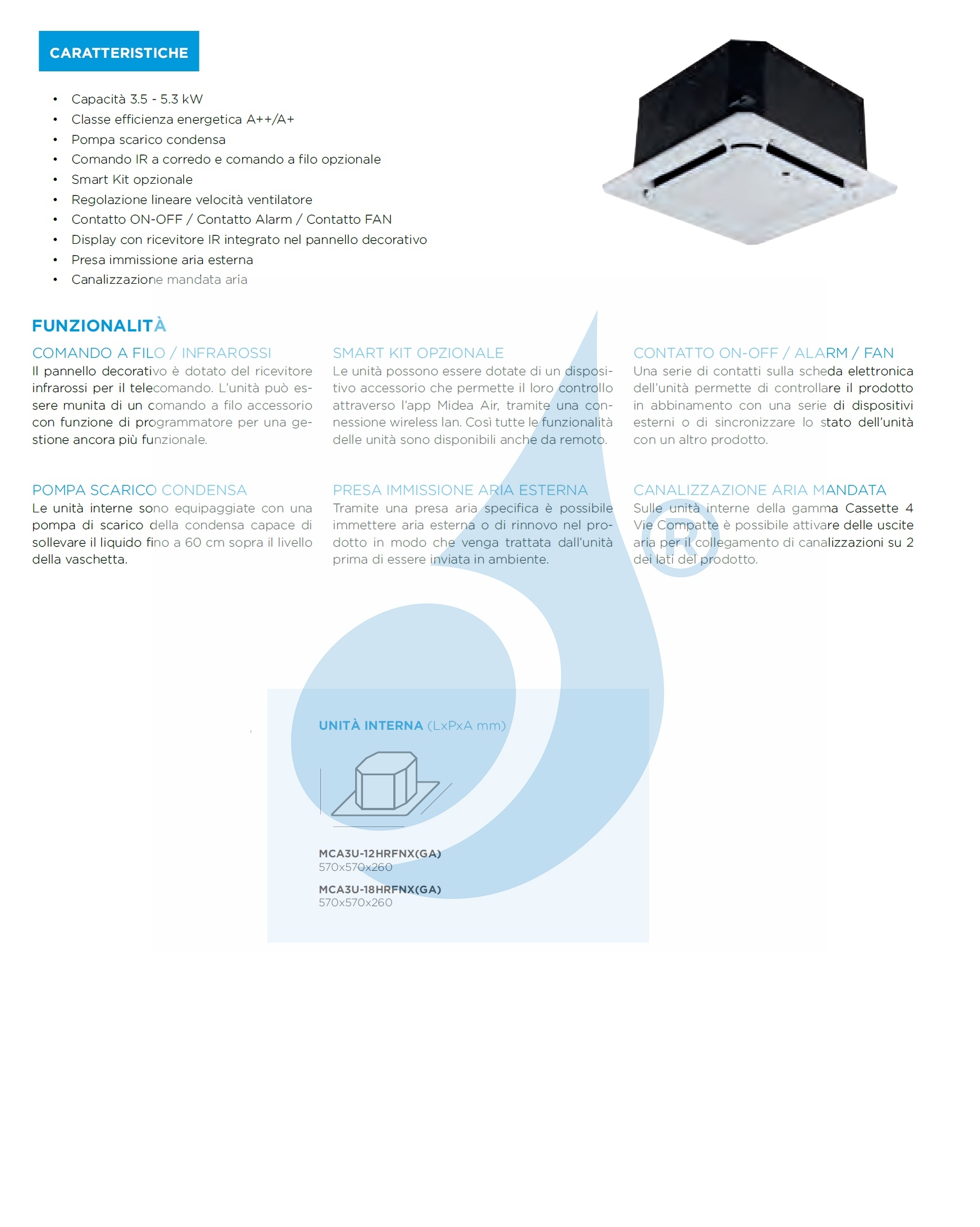

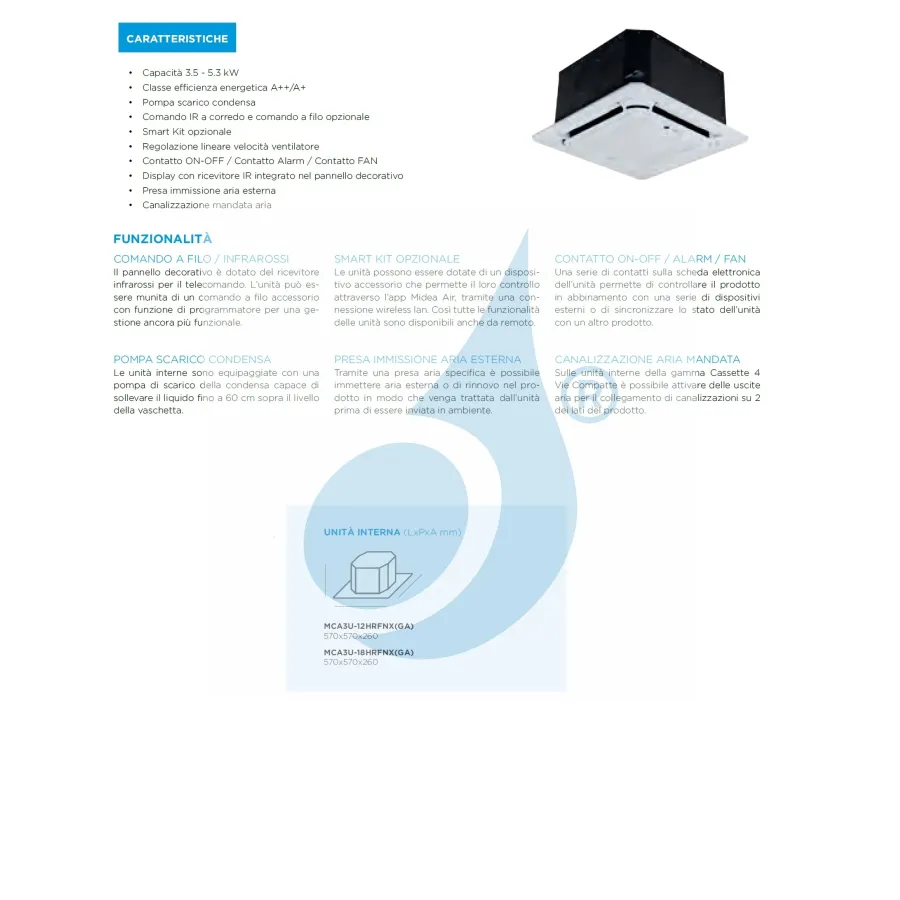

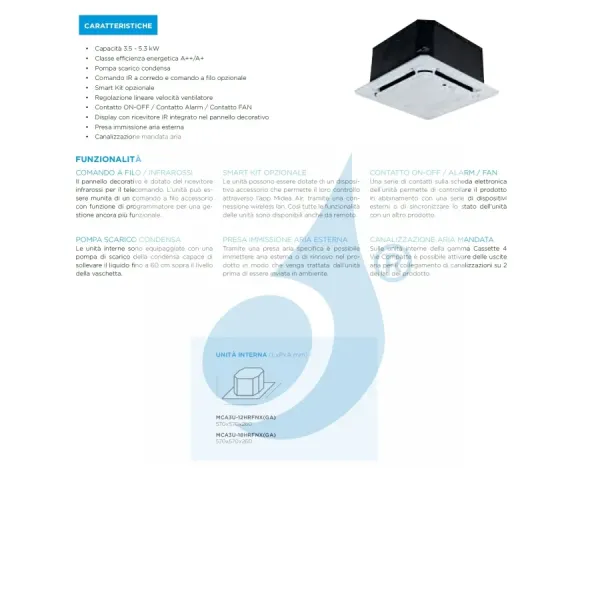

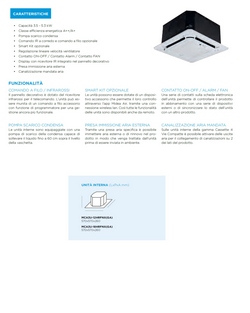

4-speed compact cassette series
Split power 3.5 - 5.3 kW
Linear fan speed adjustment
ON/OFF contact / Alarm contact / Fan contact
Display with IR receiver integrated into the decorative panel
WIRE CONTROL / INFRARED
The decorative panel is equipped with an infrared receiver for remote control. For even more advanced control, the device can be fitted with an additional wired remote control with programmable functionality.
OPTIONAL SMART KIT (Kit code WF-60B1-C)
The devices can be equipped with an additional device that enables control via the Midea Air app using a Wi-Fi connection. This makes all device functions available remotely.
ON/OFF / ALARM / FAN CONTACT
A series of contacts on the device's electronic circuit board allow you to control the product in combination with a range of external devices or to synchronize the device's status with another product.
CONDENSATE DRAINAGE PUMP
The indoor units are equipped with a condensate drain pump that can lift the liquid up to 60 cm above the level of the tray.
Fresh air intake
A special air inlet makes it possible to introduce outside or fresh air into the product so that it is treated by the device before being released into the environment.
AIR TRAFFIC CHANNEL
With the indoor units of the 4 Way Compact Cassette series, it is possible to activate air outlets for connecting ducts on two sides of the product.

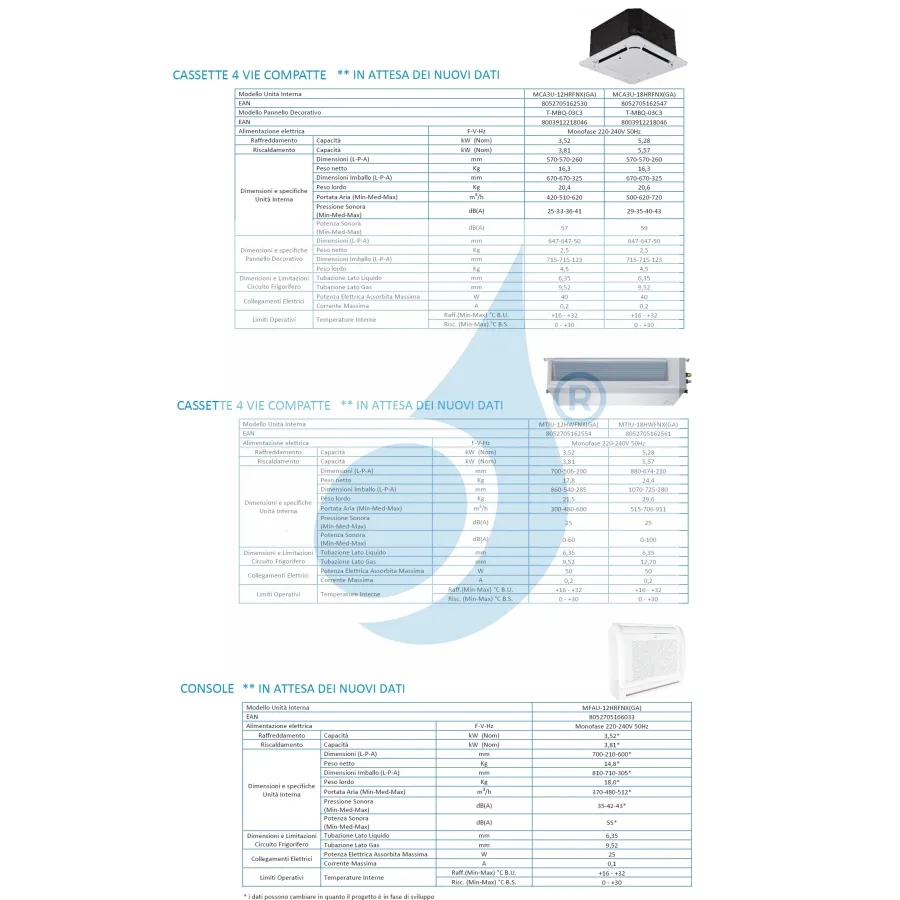

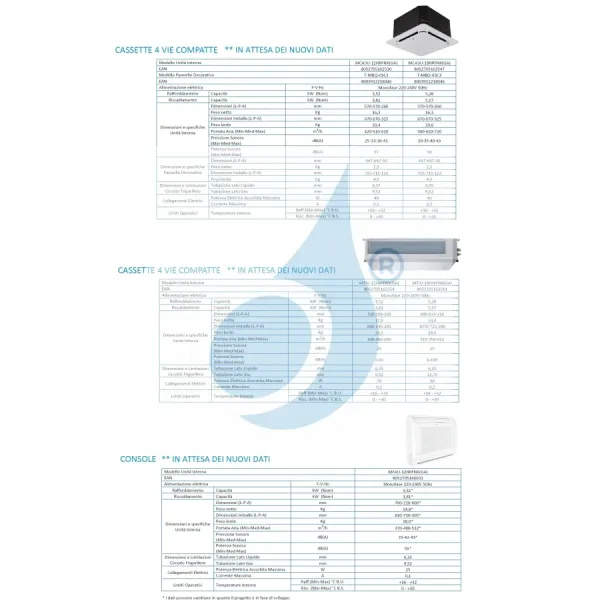

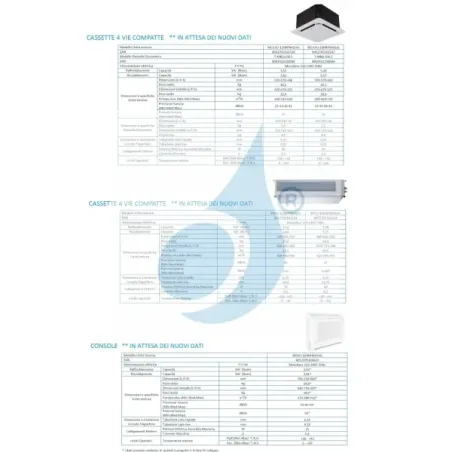

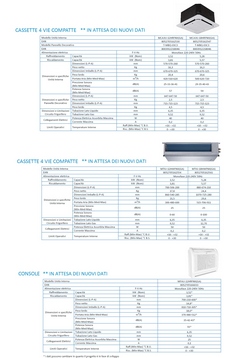

Datasheet
Click on the image to enlarge the datasheet.
Click on the image to enlarge the datasheet.
Click on the image to enlarge the datasheet.
- Rated power BTU
- BTU 9+9+9+9+12
- series
- 4-way 60x60
- Color
- White
- Rated power kW
- 2.5+2.5+2.5+2.5+3.5
- Type of facility
- Cassette player
- Energy class cooling
- A++
- Energy class heating
- A+
- Refrigerant gas
- R-32
- System type
- Penta Split
- Declaration of commitment
- 1
