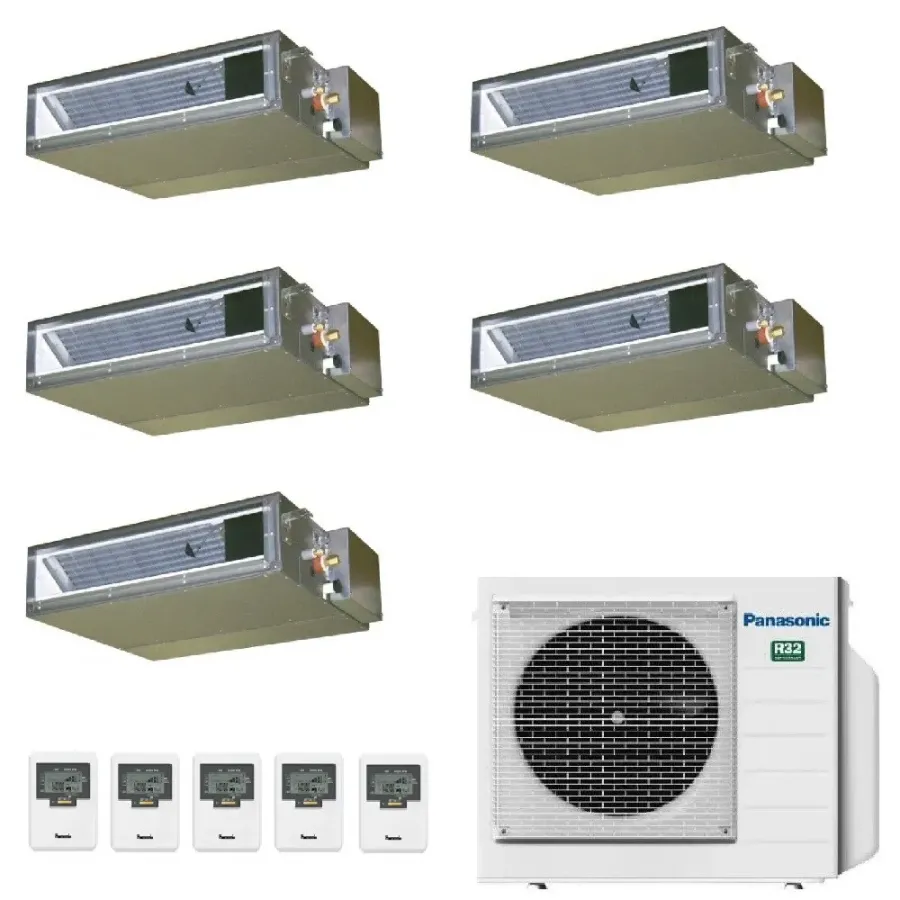

Panasonic Penta Split ducted units 2.5+2.5+2.5+2.5+2.5 kW CU-5Z90TBE 4 x CS-Z25UD3EAW + CS-Z25UD3EAW air conditioners R-32
Panasonic Penta Split air conditioners 9 Btu CS-Z25UD3EAW + CS-Z25UD3EAW + CS-Z25UD3EAW + CS-Z25UD3EAW + CS-Z25UD3EAW + CU-5Z90TBE Drain pump included, wired remote control included Low prevalence WiFi Optional heat pump, WiFi compatible, voice control Energy rating CU-5Z90TBE A+++
Kit consisting of the following elements: Indoor unit CS-Z25UD3EAW 9000 Btu Indoor unit CS-Z25UD3EAW 9000 Btu Indoor unit CS-Z25UD3EAW 9000 Btu Indoor unit CS-Z25UD3EAW 9000 Btu Indoor unit CS-Z25UD3EAW 9000 Btu Outdoor unit CU-5Z90TBE 30000 Btu Recommended for environments with one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m The complete solution for air conditioning five rooms with maximum comfort and energy efficiency.
- Eco mode
- Extremely compact indoor units
- Weekly programming timer
- Super quiet technology
- Drainage pump included in delivery
- Down to -10°C in cooling mode
- Down to -15°C in heating mode
The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Kit consisting of the following elements: Indoor unit CS-Z25UD3EAW 9000 Btu Indoor unit CS-Z25UD3EAW 9000 Btu Indoor unit CS-Z25UD3EAW 9000 Btu Indoor unit CS-Z25UD3EAW 9000 Btu Indoor unit CS-Z25UD3EAW 9000 Btu Outdoor unit CU-5Z90TBE 30000 Btu Recommended for environments with one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m The complete solution for air conditioning five rooms with maximum comfort and energy efficiency.
Low prevalence series
- Air filter- Eco mode
- Extremely compact indoor units
- Weekly programming timer
- Super quiet technology
- Drainage pump included in delivery
- Down to -10°C in cooling mode
- Down to -15°C in heating mode
The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Available, delivery time 4-5 working days
Panasonic Penta Split ducted units 2.5+2.5+2.5+2.5+2.5 kW CU-5Z90TBE 4 x CS-Z25UD3EAW + CS-Z25UD3EAW air conditioners R-32
Panasonic Penta Split Low Prevalence Air Conditioner with Optional WiFi, 9+9+9+9+9 Btu heat pump, WiFi compatible, voice control compatible, drain pump included, wired remote control included
The offer is structured as follows:

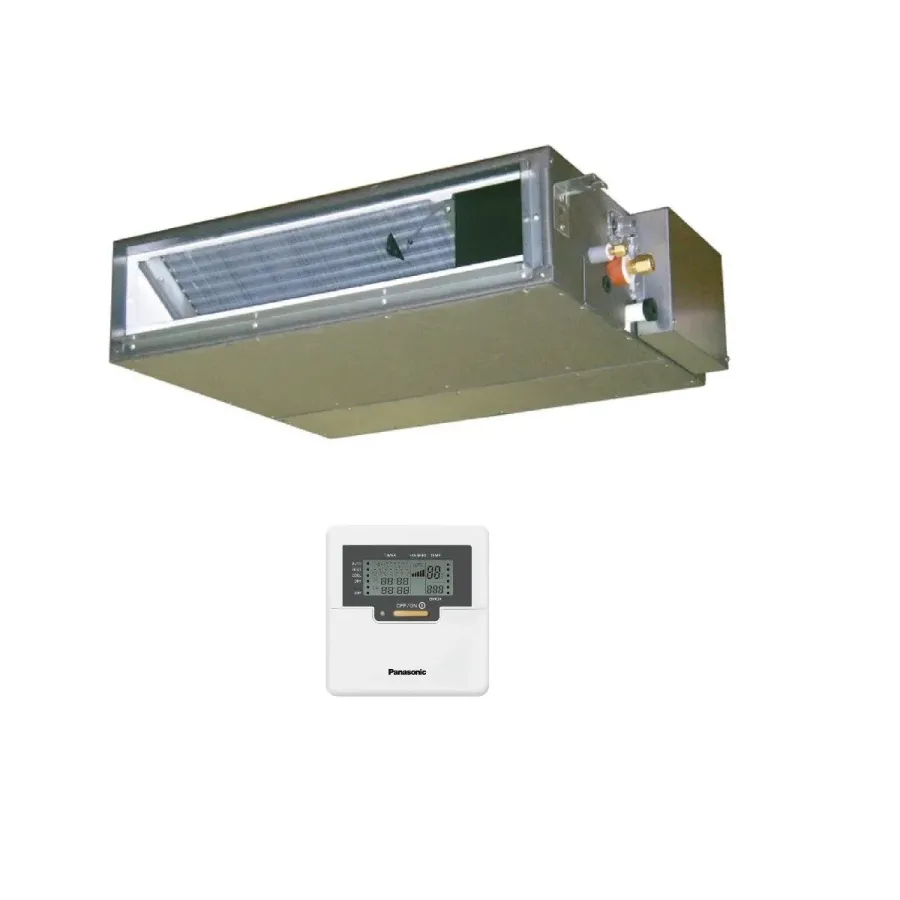

CS-Z25UD3EAW 9,000 BTU 2.5 kW
Ideal for environments of 21 to 27 square meters with an average height of approximately 2.7 meters.
Width: 750 mm; Height: 200 mm; Depth: 640 mm.
Standard accessories: Cable control included.
Optional accessory: Wifi interface CZ-TACG1.
CS-Z25UD3EAW 9,000 BTU 2.5 kW
Ideal for environments of 21 to 27 square meters with an average height of approximately 2.7 meters.
Width: 750 mm; Height: 200 mm; Depth: 640 mm.
Standard accessories: Cable control included.
Optional accessory: Wifi interface CZ-TACG1.
CS-Z25UD3EAW 9,000 BTU 2.5 kW
Ideal for environments of 21 to 27 square meters with an average height of approximately 2.7 meters.
Width: 750 mm; Height: 200 mm; Depth: 640 mm.
Standard accessories: Cable control included.
Optional accessory: Wifi interface CZ-TACG1.
CS-Z25UD3EAW 9,000 BTU 2.5 kW
Ideal for environments of 21 to 27 square meters with an average height of approximately 2.7 meters.
Width: 750 mm; Height: 200 mm; Depth: 640 mm.
Standard accessories: Cable control included.
Optional accessory: Wifi interface CZ-TACG1.
CS-Z25UD3EAW 9,000 BTU 2.5 kW
Ideal for environments of 21 to 27 square meters with an average height of approximately 2.7 meters.
Width: 750 mm; Height: 200 mm; Depth: 640 mm.
Standard accessories: Cable control included.
Optional accessory: Wifi interface CZ-TACG1.
CU-5Z90TBE 30,000 BTU 9.0 kW
Operation with refrigerant gas: R-32
Width: 940 mm; Height: 999 mm; Depth: 340 mm.
Minimum number of connectable indoor units: 2.
Maximum number of connectable indoor units: 5.
Panasonic indoor units with low prevalence
Specifically designed for offices, shops and restaurants
Designed for installation in homes, offices, shops, and restaurants. This ducted unit is ideal for small spaces requiring air conditioning, high comfort, and efficiency.New channel models can be connected to KNX, Modbus, and EnOcean interfaces for easy integration into BMS systems. The interfaces use dry contacts (ON/OFF, fault signal) to simplify integration.
Technical details
- Environmentally friendly refrigerant R32- The multiplexed units can be used via KNX, EnOcean and Modbus
can be controlled - Eco mode for energy savings of 20%
- Compact indoor units (height only 200 mm)
- Weekly programming timer with the ability to program 42 events per week
- Simplified control mode for error detection
- Drain pump included

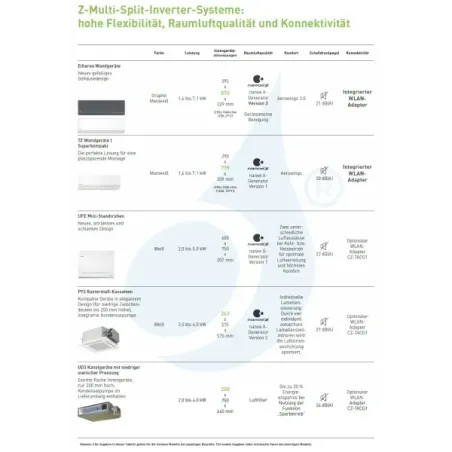

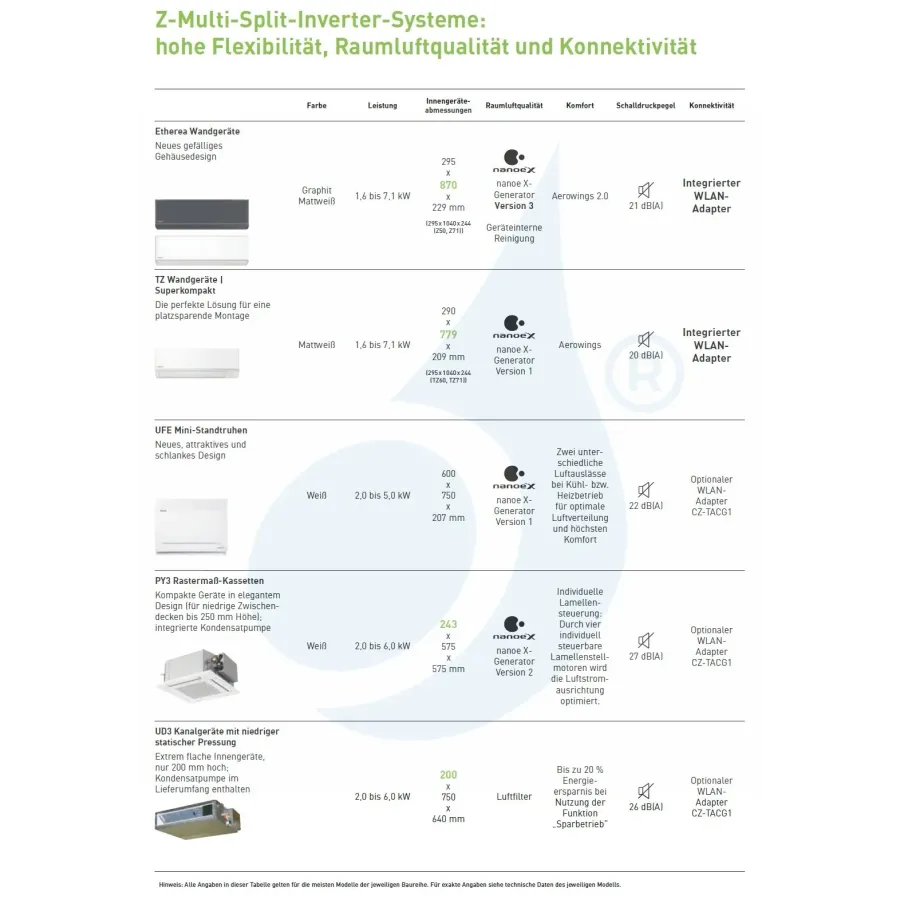

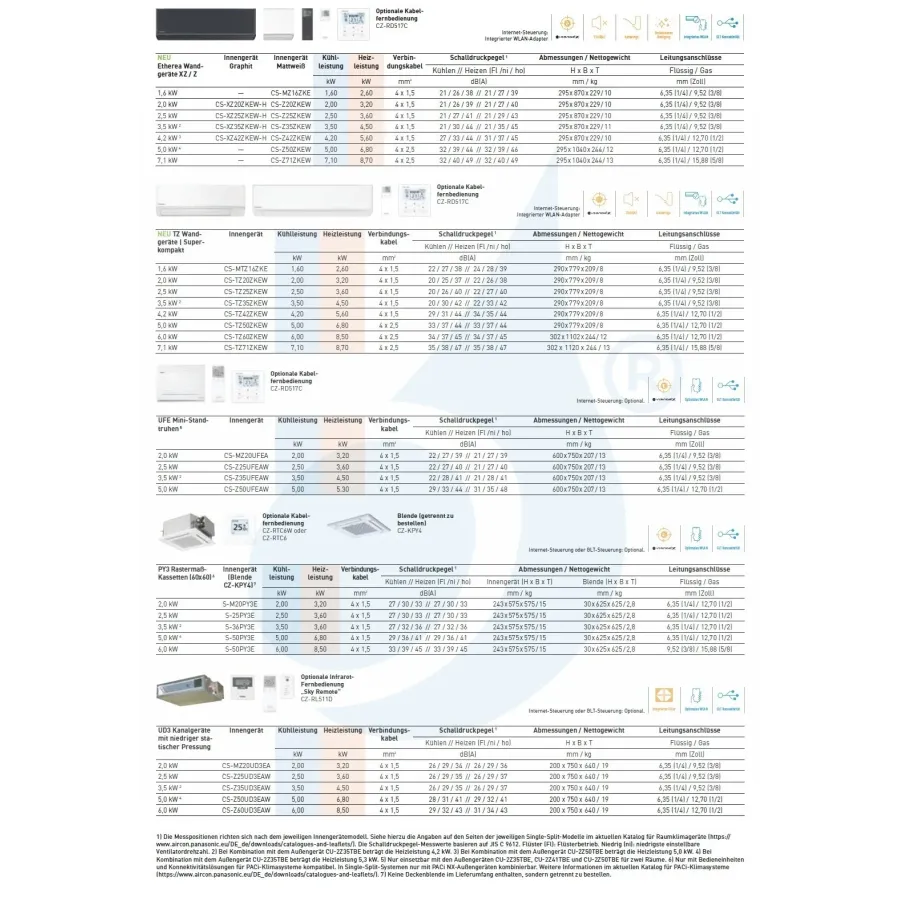

Datasheet
Click on the image to enlarge the datasheet.
Click on the image to enlarge the datasheet.
Click on the image to enlarge the datasheet.
- Rated power BTU
- BTU 9+9+9+9+9
- series
- Low prevalence
- Rated power kW
- 2.5+2.5+2.5+2.5+2.5
- Type of facility
- Channel installation devices
- Energy class cooling
- A+++
- Energy class heating
- A+
- Refrigerant gas
- R-32
- System type
- Penta Split
- Wi-Fi connection
- WiFi Optional
- Declaration of commitment
- 1
- BEG EM
- Yes
Z-UB-9+9+9+9+9+CU-5Z90TBE
