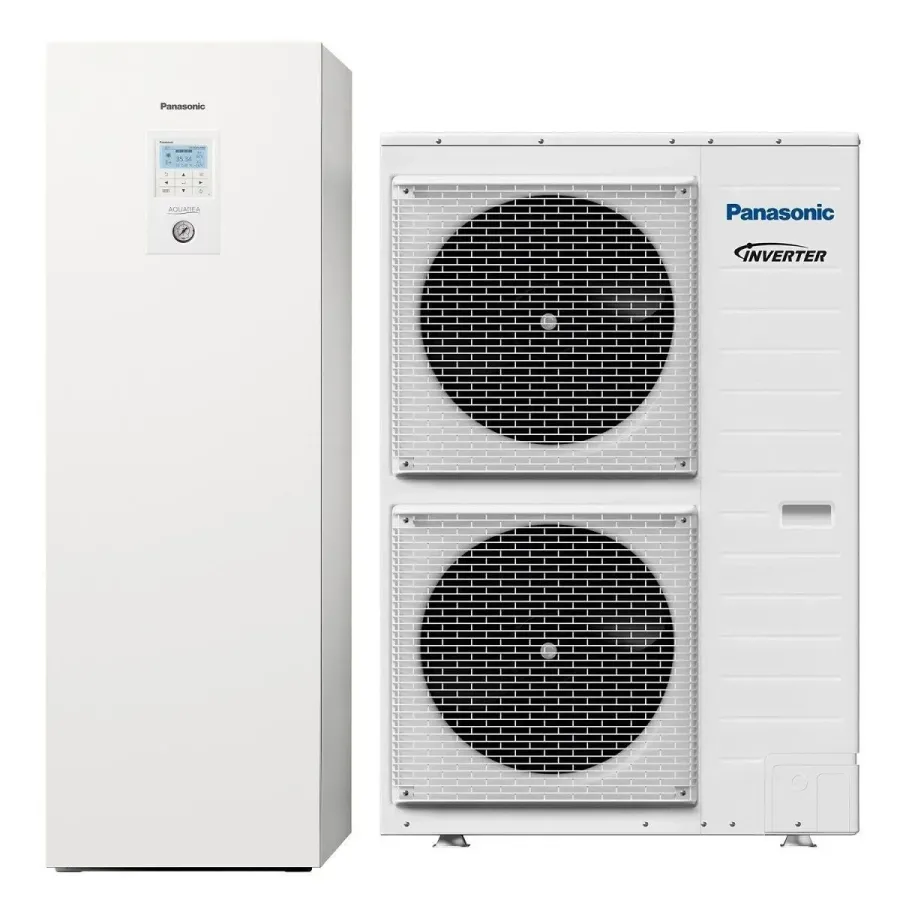

Panasonic Aquarea T-CAP heat pump KIT-AXC09HE5 9 kW 220 V R410-a Combi hydromodule Generation H single phase

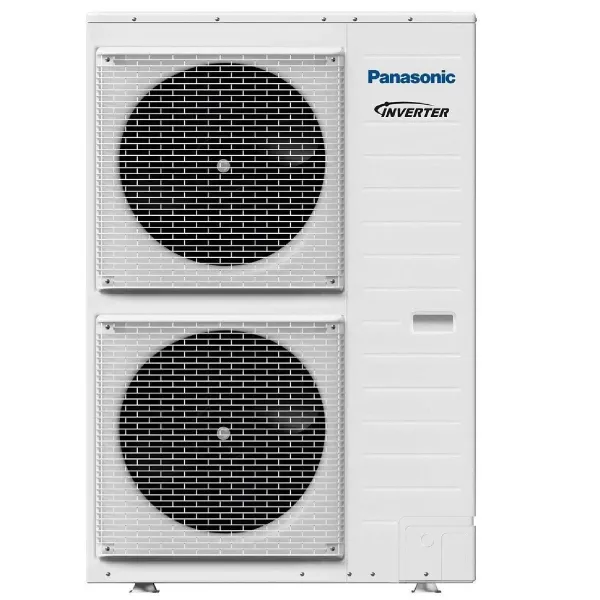

Air/water heat pump combination hydromodule WH-ADC0916H9E5 + WH-UX09HE5, rated output 9 kW, Panasonic Aquarea T-CAP AXC

The Aquarea T-CAP series is ideal for installation in new and old buildings, as it can maintain its rated power even at extreme outdoor temperatures.

- Inverter technology

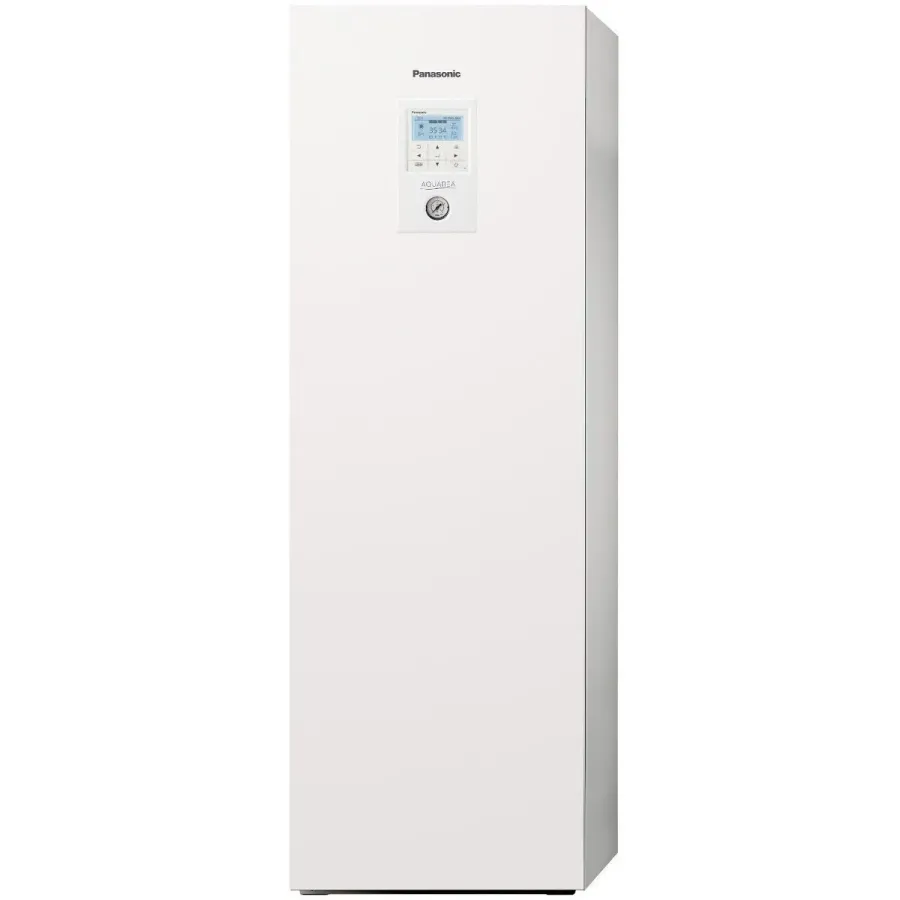

- Newly designed, high-performance hydro module for heating and domestic hot water
- Space saving (H x W x D): 1800 x 598 x 717 mm
- Stainless steel 200-liter hot water storage tank
- New heating controller with graphic touch display
- Connection of two heating circuits via optional additional board for extended system functions (smart grid inputs, PV integration, 0-10 V power control)
- Integrated vortex flow meter for dynamic adjustment of the flow rate of the Panasonic high-efficiency pump
- Integrated safety valve for domestic water
- Integrated mudguard
- Electrical connections on the front
- High energy efficiency even at outside temperatures down to -28 °C
- Easy installation thanks to hydraulic piping on the underside

The installation of electrical appliances may only be carried out by a licensed specialist company.
The installation of devices (SPLIT DEVICES) that require connection to a refrigerant line may only be carried out by a qualified professional with a refrigerant handling certificate in accordance with the German Chemicals and Climate Protection Ordinance (ChemKlimaSchutzV)!
Technical specifications are subject to change. Product images are for illustrative purposes only and may differ from the delivered product; no liability is accepted for any display errors or incorrect information provided by the manufacturer.
