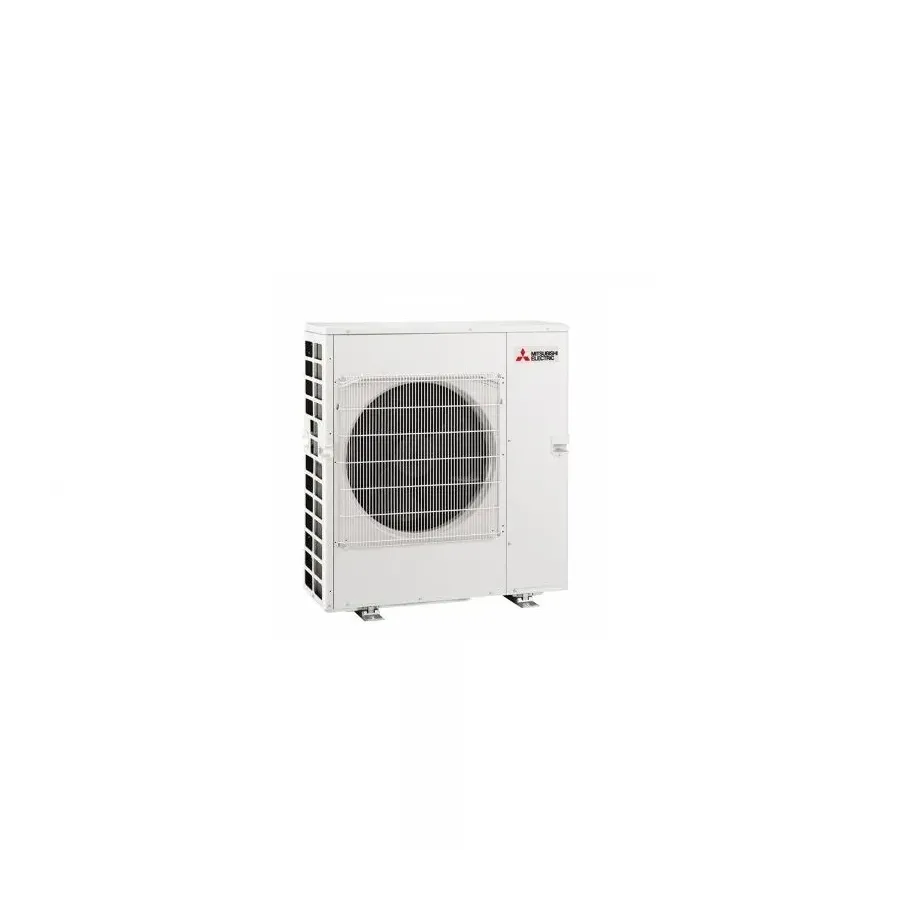

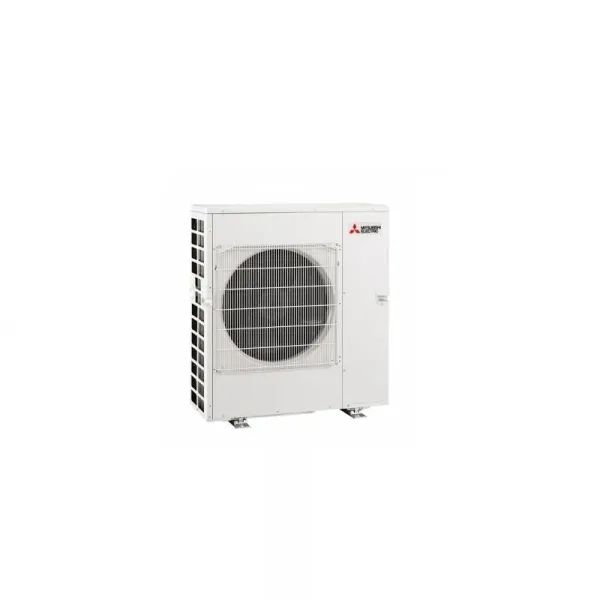

Mitsubishi outdoor unit air conditioner 5.4 kW MXZ-3F54VF4 gas R-32

Mitsubishi outdoor unit air conditioner 5.4 MXZ-3F54VF4 gas R-32

Mitsubishi MXZ-F-VF 0 Series 18000 Btu High-efficiency Multi-Split Air Conditioner Outdoor Unit. Features inverter technology and a heat pump. The motor cannot operate without the Mitsubishi indoor units. A minimum of two indoor units must be connected to activate the system.

Kit consisting of the following elements:
MXZ-2F33VF3 12,000 BTU 3.3 kW
Operation with refrigerant gas: R-32
Length: 800 mm - Height: 550 mm - Depth: 285 mm
Minimum number of connectable indoor units: 2.
Maximum number of connected indoor units: 2.

External MXZ-F-VF units

The MXZ-F-VF outdoor units represent the pinnacle of Mitsubishi Multi Split technology.
During 2020, the VF models will be replaced by the VF2 and VF3 models, which will retain their features and improve compatibility with future models.

Auto Fix Links

Simply press a button (MXZ-3E / F to MXZ-6D) or activate an indoor unit (MXZ-2E / F) to ensure a proper connection between indoor and outdoor units.
In case of a connection error, the system corrects it automatically.

Efficiency

Thanks to careful design and the introduction of the refrigerant R32, the efficiency of the new multisplit outdoor units is significantly increased and achieves class A+++ for cooling (sizes 2F42, 2F53, 3F54) and A++ (sizes 2F42, 2F53, 3F54) in heating.

Connectivity

The exceptional connectivity of the new outdoor units makes it possible to meet all requirements. The MXZ-F unit is versatile and can be connected to most indoor units in the residential and commercial lines, regardless of whether they are wall-mounted, ceiling-mounted, or ducted.

Technical data sheets

Download External Motor Board Multi Split MXZ-F R32
