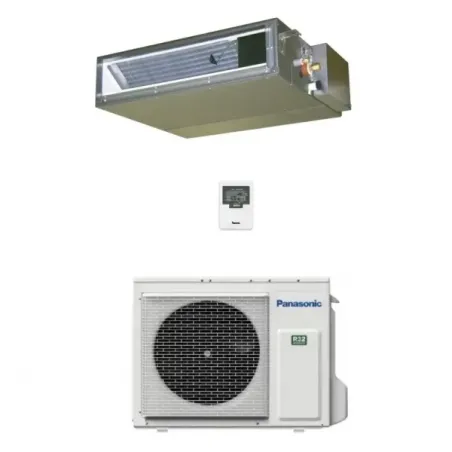

Panasonic 3.5 kW Mono Split CS-Z35UD3EAW CU-Z35UBEA Air Conditioners Ducted Units Low Prevalence 12000 Btu R-32
Panasonic Mono Split air conditioners 12000 Btu CS-Z35UD3EAW + CU-Z35UBEA, drain pump included, wired remote control included, low prevalence WiFi optional, heat pump, WiFi compatible, voice control compatible, energy rating CU-Z35UBEA A++
Kit consisting of the following elements: Indoor unit CS-Z35UD3EAW 12000 Btu Outdoor unit CU-Z35UBEA 12000 Btu Recommended for environments with an indoor unit up to 36 sq m. An excellent solution for comfort in all areas of your home or office.
- Eco mode
- Extremely compact indoor units
- Weekly programming timer
- Super quiet technology
- Drainage pump included in delivery
- Down to -10°C in cooling mode
- Down to -15°C in heating mode
The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Kit consisting of the following elements: Indoor unit CS-Z35UD3EAW 12000 Btu Outdoor unit CU-Z35UBEA 12000 Btu Recommended for environments with an indoor unit up to 36 sq m. An excellent solution for comfort in all areas of your home or office.
Low prevalence series
- Air filter- Eco mode
- Extremely compact indoor units
- Weekly programming timer
- Super quiet technology
- Drainage pump included in delivery
- Down to -10°C in cooling mode
- Down to -15°C in heating mode
The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Available, delivery time 4-5 working days
Panasonic 3.5 kW Mono Split CS-Z35UD3EAW CU-Z35UBEA Air Conditioners Ducted Units Low Prevalence 12000 Btu R-32
Panasonic Mono Split Air Conditioner, Low Prevalence, WiFi Optional, 12000 Btu Heat Pump, WiFi Compatible, Voice Control Compatible, Drain Pump Included, Wired Control Included
The offer is structured as follows:

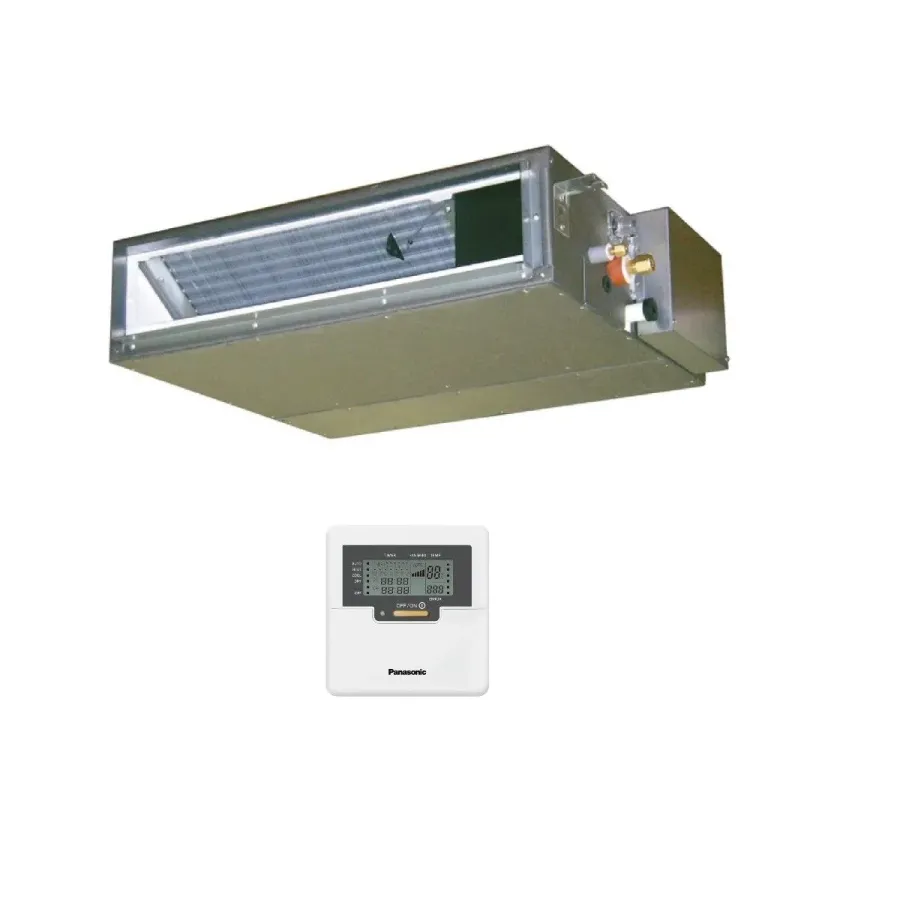

CS-CS-Z35UD3EAW 12,000 BTU 3.5 kW
Ideal for environments of 27 to 36 sq m with an average height of approximately 2.7 meters.
Width: 750 mm; Height: 200 mm; Depth: 640 mm.
Standard accessories: Cable control included.
Optional accessory: Wifi interface CZ-TACG1.
CU-Z35UBEA 12,000 BTU 3.5 kW
Operation with refrigerant gas: R-32
Width: 824 mm, Height: 619 mm, Depth: 299 mm
Panasonic indoor units with low prevalence
Specifically designed for offices, shops and restaurants
Designed for installation in homes, offices, shops, and restaurants. This ducted unit is ideal for small spaces requiring air conditioning, high comfort, and efficiency.New channel models can be connected to KNX, Modbus, and EnOcean interfaces for easy integration into BMS systems. The interfaces use dry contacts (ON/OFF, fault signal) to simplify integration.
Technical details
- Environmentally friendly refrigerant R32- The multiplexed units can be used via KNX, EnOcean and Modbus
can be controlled - Eco mode for energy savings of 20%
- Compact indoor units (height only 200 mm)
- Weekly programming timer with the ability to program 42 events per week
- Simplified control mode for error detection
- Drain pump included

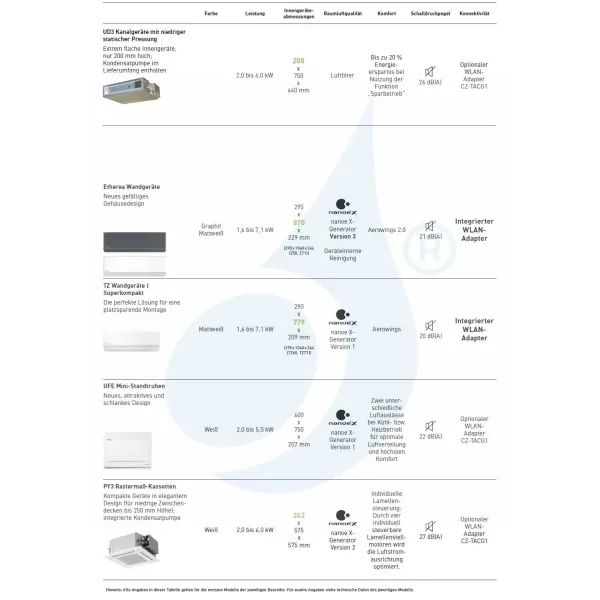

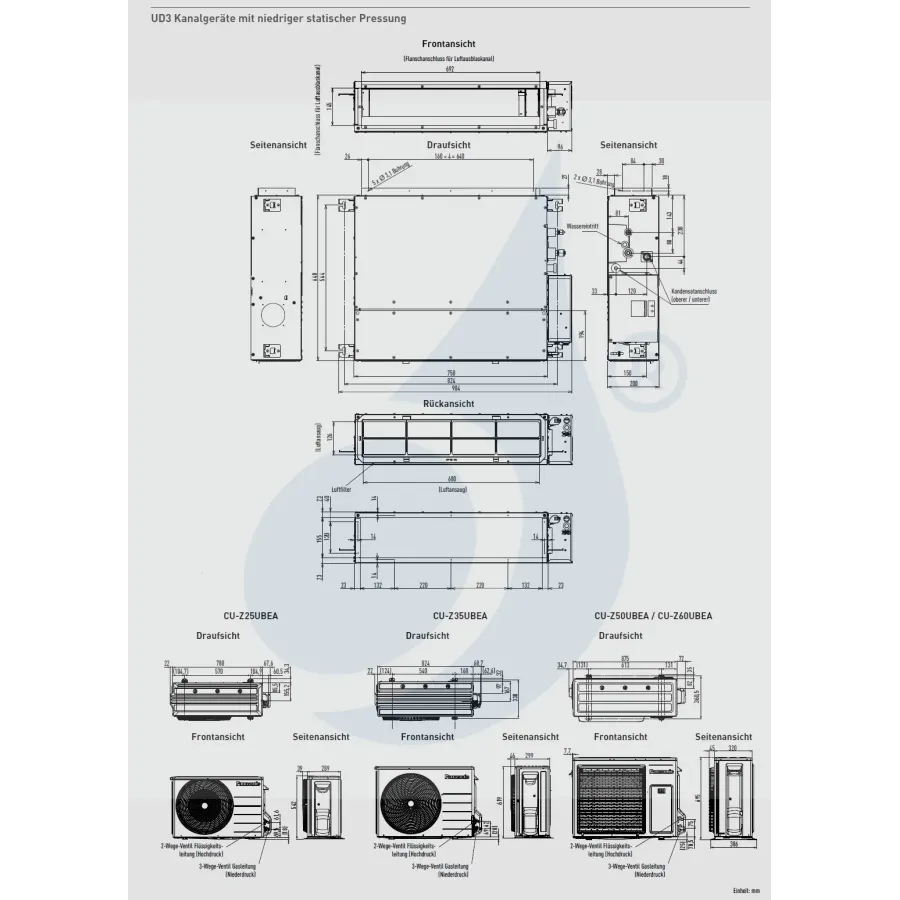

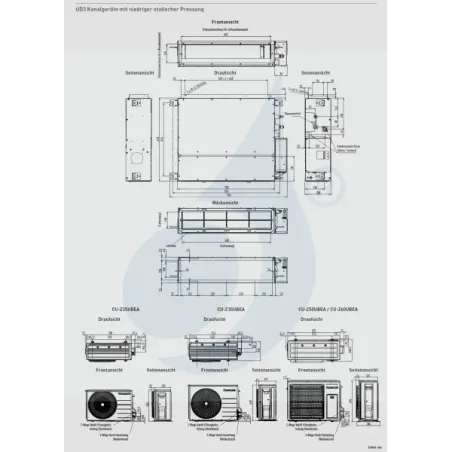

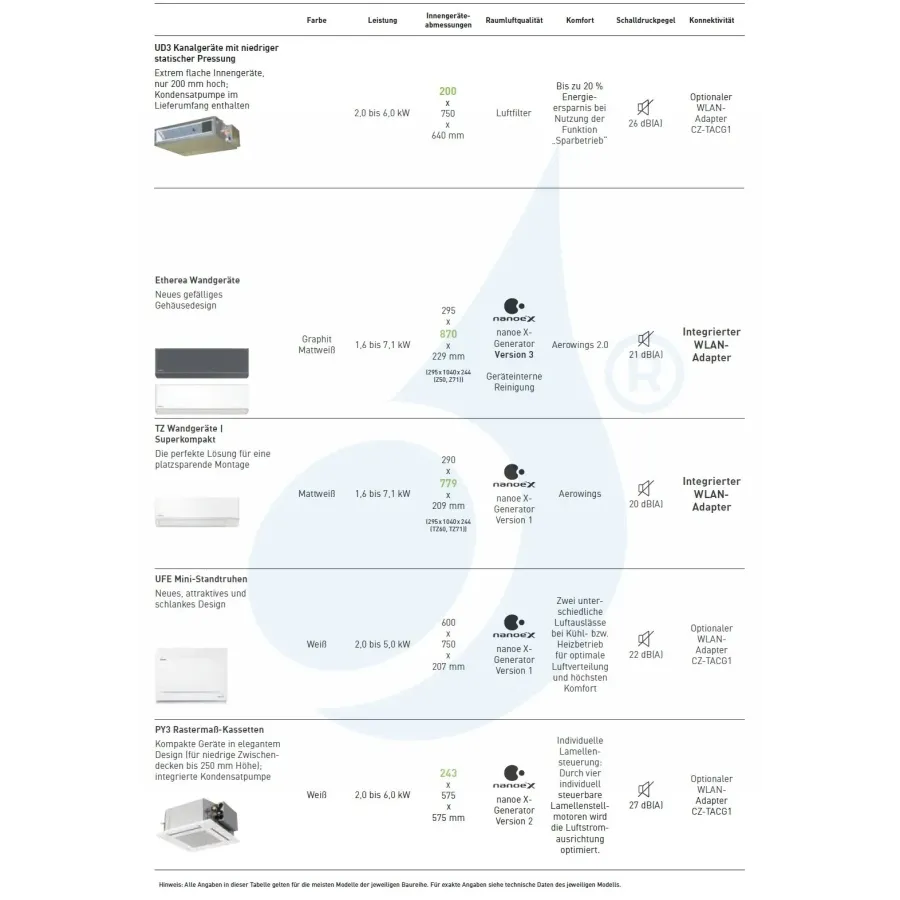

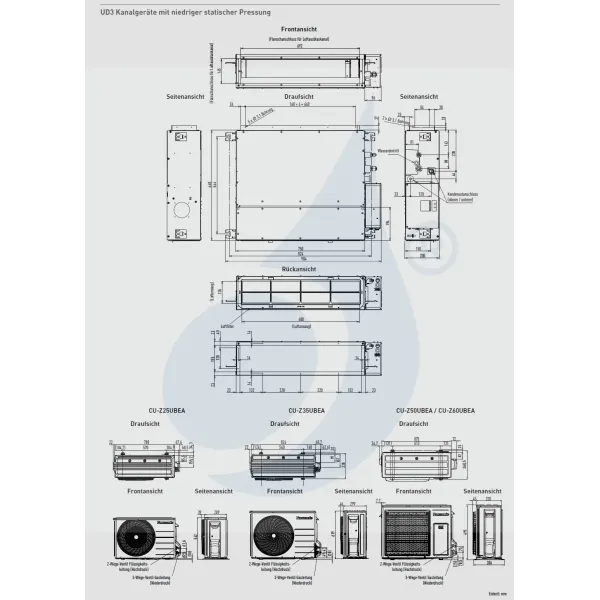

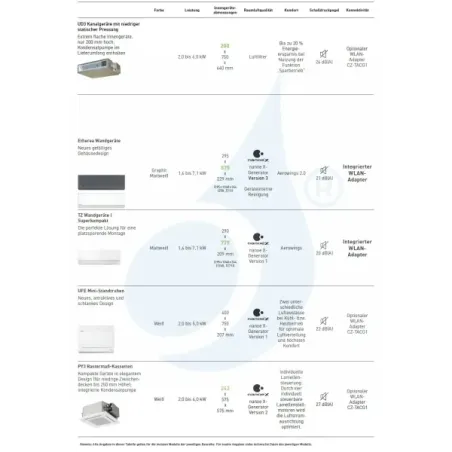

Datasheet
Click on the image to enlarge the datasheet.
Click on the image to enlarge the datasheet.
Click on the image to enlarge the datasheet.
- Rated power BTU
- BTU 12000
- series
- Low prevalence
- Rated power kW
- 3.5
- Type of facility
- Channel installation devices
- Energy class cooling
- A++
- Energy class heating
- A++
- Refrigerant gas
- R-32
- System type
- Mono Split
- Wi-Fi connection
- WiFi Optional
- Declaration of commitment
- 1
- BEG EM
- Yes
CS-Z35UD3EAW+CU-Z35UBEA
