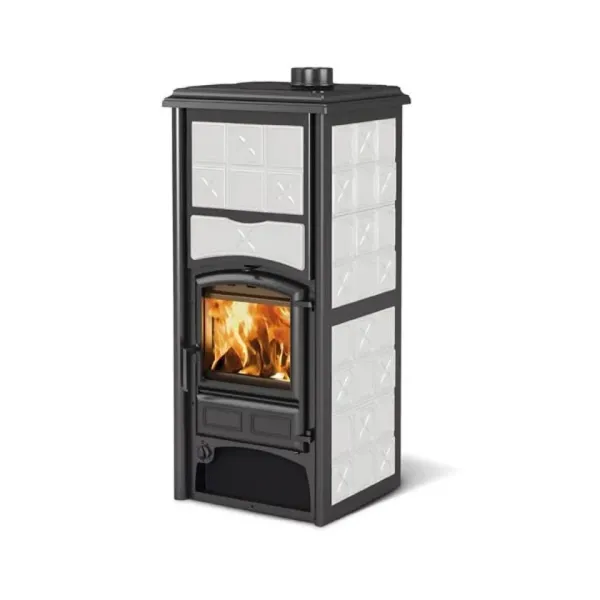

Loriet S DSA wood-fired thermal oven, 16.8 kW output, 7117405
Loriet S DSA wood-fired thermal oven, 16.8 kW output, 7117405

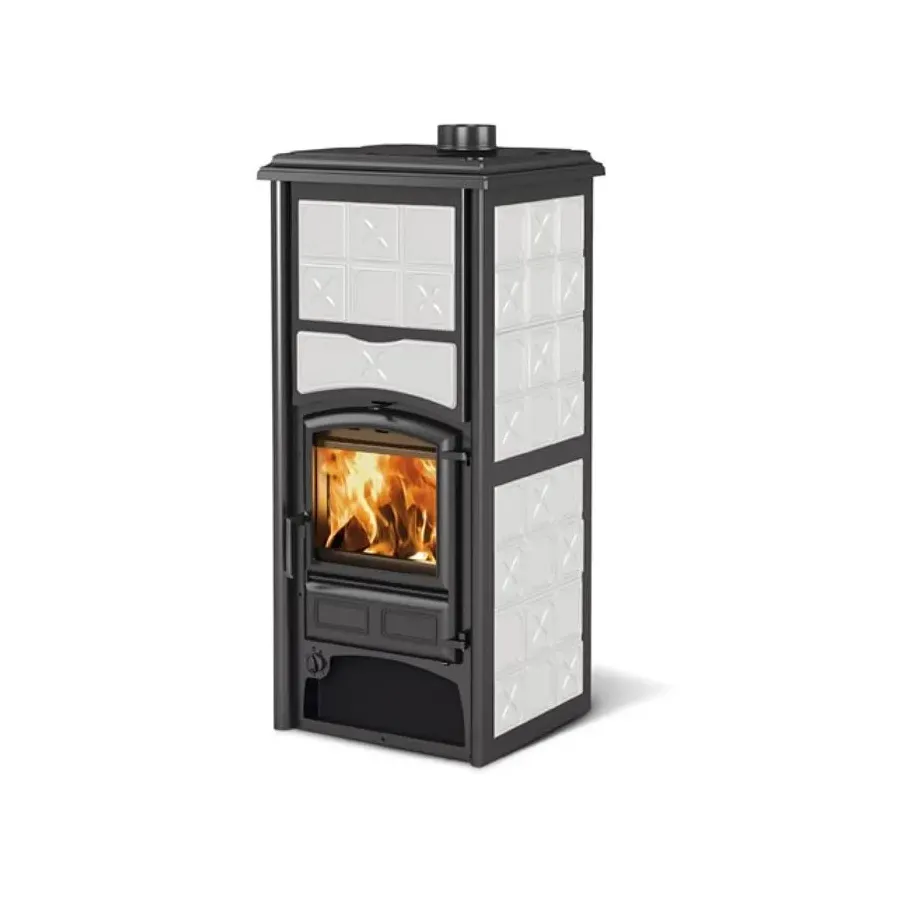

La Nordica Loriet S DSA, 16.8 kW output, ceramic, white, wood-fired thermal oven, 7117405

- Nominal heat output: 16.8 kW-N
- Nominal sanitary output: 10.5 kW-H2O
- Efficiency: 88.0%
- Hourly consumption: 4.3 kg/h
- Heating capacity in m3: 481
- Dimensions (LxHxD): 570x1258x567 mm
- Net weight: 203 kg
- Diameter of the smoke vent (Ø): 130 mm Supervisor
- Fire opening dimensions (LxH): 325x223 mm
- Dimensions of firebox (LxHxD): 330x300x345 mm
- Maximum wood length: 25 cm
- Operating pressure: 3 bar
- Energy efficiency label: A+
- Environmental certification DM186: 4 points

The data reported on this website was extrapolated from the official websites of Extraflame and La Nordica; changes may be made by the parent company without prior notice. We invite you to view the updated technical specifications on the official website.
€2,958.50
Tax included | Spedizione Inclusa

Delivery in 30 days

La Nordica Loriet S DSA, 16.8 kW output, ceramic, white, wood-fired thermal oven, 7117405


Product type: Wood-fired thermal oven
Manufacturer name: La Nordica
Oven typology: 0
Series: Loriet S DSA
Color: White
Coating type: ceramic
Rated power: 16.8 kW
Product code: 7117405

Characteristics:
- Chimney made of steel / cast iron
- Door and headboard made of enamelled cast iron
- Removable ash drawer
- Adjustable primary and secondary air for improved combustion management
- Afterburner system for low emissions
- Ceramic glass
- Preparation for DSA safety device (DSA valve optional)
- Possibility of drawing in air from outside and introducing it directly into the furnace registers

Product features

cast iron doors
The doors of the products, made from high-quality cast iron, remain unchanged over time and guarantee a constant seal.
Glass cleaning system
It is a system that effectively prevents the formation of deposits on the glass of the fire door by means of a specially preheated air path.
Afterburner
The combustion system developed by La Nordica-Extraflame enables afterburning thanks to a secondary/tertiary air system, which can drastically reduce emissions.
Direct outside air intake (BBC)
Air intake system that draws in fresh air from outside for combustion and introduces it directly into the combustion air registers of the device.
Automatic safety device
It is a safety device for the sudden reduction of water temperature in accordance with applicable regulations.
DSA valve optional.

The data reported on this website was extrapolated from the official websites of Extraflame and La Nordica; changes may be made by the parent company without prior notice. We invite you to view the updated technical specifications on the official website.

Download product sheet

series
Loriet S DSA
Coating type
ceramics
Color
White
Rated power kW
16.8
Product type
Wood-fired thermal oven
