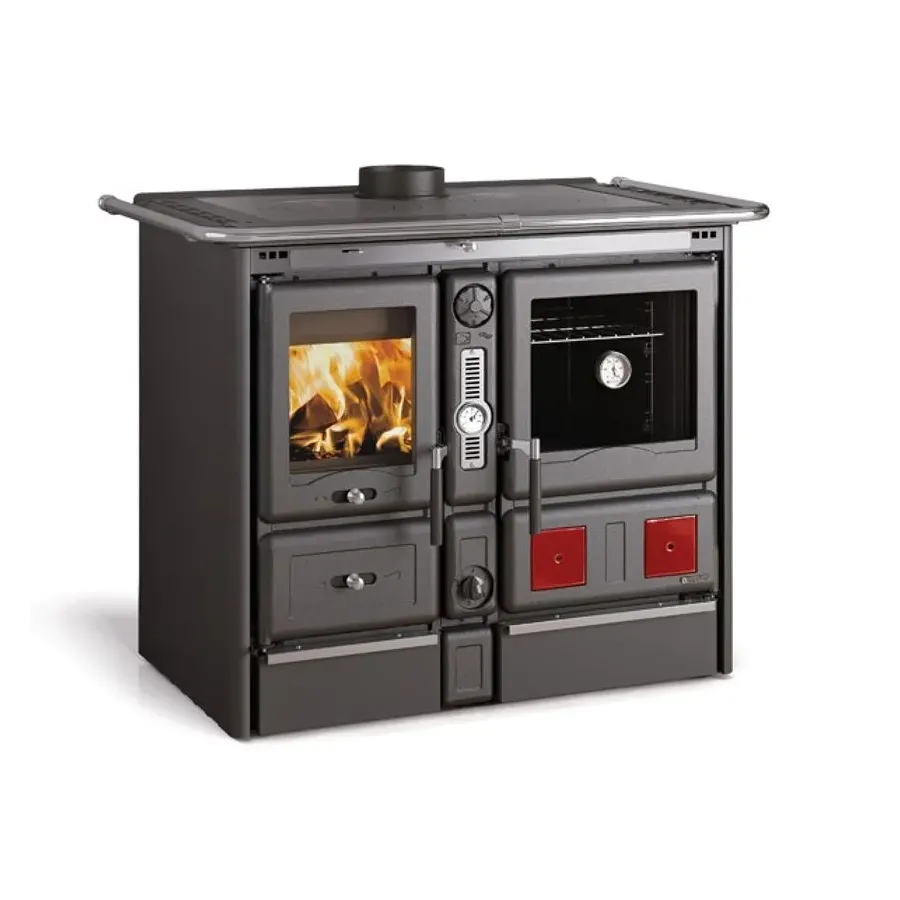

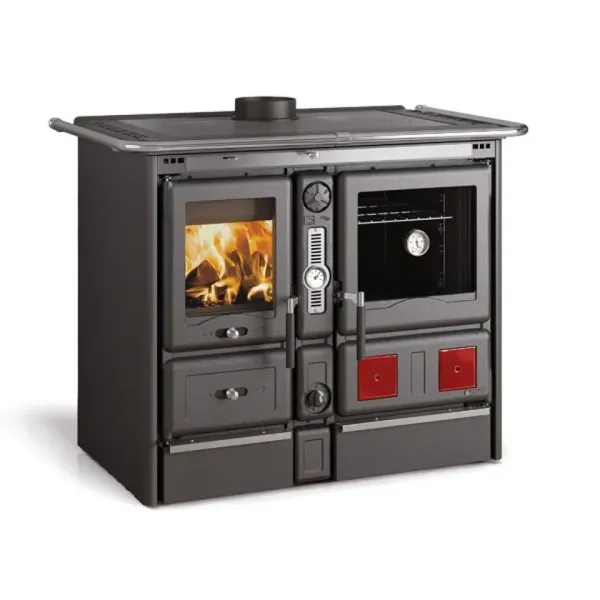

La Nordica Termorosa XXL DSA 4.0, 16.8 kW output, steel, anthracite, wood-fired thermal oven, 7017585
- Nominal heat output: 16.8 kW-N
- Nominal sanitary output: 10.3 kW-H2O
- Efficiency: 87.5%
- Hourly consumption: 4.5 kg/h
- Heating capacity in m3: 481
- Dimensions (LxHxD): 1075x861x696 mm
- Net weight: 286 kg
- Diameter of the smoke vent (Ø): 160 mm Rear - Superior
- Fire opening dimensions (LxH): 230x200 mm
- Dimensions of firebox (LxHxD): 250x419x400 mm
- Maximum wood length: 30 cm
- Operating pressure: 3 bar
- Energy efficiency label: A+
- Environmental certification DM186: 4 points
The data reported on this website was extrapolated from the official websites of Extraflame and La Nordica; changes may be made by the parent company without prior notice. We invite you to view the updated technical specifications on the official website.
- Nominal sanitary output: 10.3 kW-H2O
- Efficiency: 87.5%
- Hourly consumption: 4.5 kg/h
- Heating capacity in m3: 481
- Dimensions (LxHxD): 1075x861x696 mm
- Net weight: 286 kg
- Diameter of the smoke vent (Ø): 160 mm Rear - Superior
- Fire opening dimensions (LxH): 230x200 mm
- Dimensions of firebox (LxHxD): 250x419x400 mm
- Maximum wood length: 30 cm
- Operating pressure: 3 bar
- Energy efficiency label: A+
- Environmental certification DM186: 4 points
The data reported on this website was extrapolated from the official websites of Extraflame and La Nordica; changes may be made by the parent company without prior notice. We invite you to view the updated technical specifications on the official website.
Delivery in 30 days
La Nordica Termorosa XXL DSA 4.0, 16.8 kW output, steel, anthracite, wood-fired thermal oven, 7017585
Manufacturer name: La Nordica
Oven typology: 0
Series: Termorosa XXL DSA 4.0
Color: Anthracite
Coating type: steel
Rated power: 16.8 kW
Product code: 7017585
Characteristics:
- Chimney made of steel and cast iron
- Doors, front and frame made of enamelled cast iron
- Plate and rims made of polished cast iron
- Removable ash drawer
- Adjustable primary and secondary air for improved combustion management
- Afterburner system for low emissions
- Ceramic glass
- wooden drawer
- Preparation for DSA safety device (DSA valve optional)
- Smoke vent at the top center or rear
- Enamelled oven pan (1 piece) and chrome-plated oven rack (1 piece) as standard
- Product certified according to EN 13240
Product features
cast iron doorsThe doors of the products, made from high-quality cast iron, remain unchanged over time and guarantee a constant seal.
Glass cleaning system
It is a system that effectively prevents the formation of deposits on the glass of the fire door by means of a specially preheated air path.
Afterburner
The combustion system developed by La Nordica-Extraflame enables afterburning thanks to a secondary/tertiary air system, which can drastically reduce emissions.
Direct outside air intake (BBC)
Air intake system that draws in fresh air from outside for combustion and introduces it directly into the combustion air registers of the device.
Automatic safety device
It is a safety device for the sudden reduction of water temperature in accordance with applicable regulations.
DSA valve optional.
The data reported on this website was extrapolated from the official websites of Extraflame and La Nordica; changes may be made by the parent company without prior notice. We invite you to view the updated technical specifications on the official website.
- series
- Termorosa XXL DSA 4.0
- Coating type
- Steel
- Color
- anthracite
- Rated power kW
- 16.8
- Product type
- Wood-fired thermal oven
Nord-Extra-7017585
