Wood-fired thermal oven Norma S Idro DSA, output 19.5 kW, 7117178
Wood-fired thermal oven Norma S Idro DSA, output 19.5 kW, 7117178

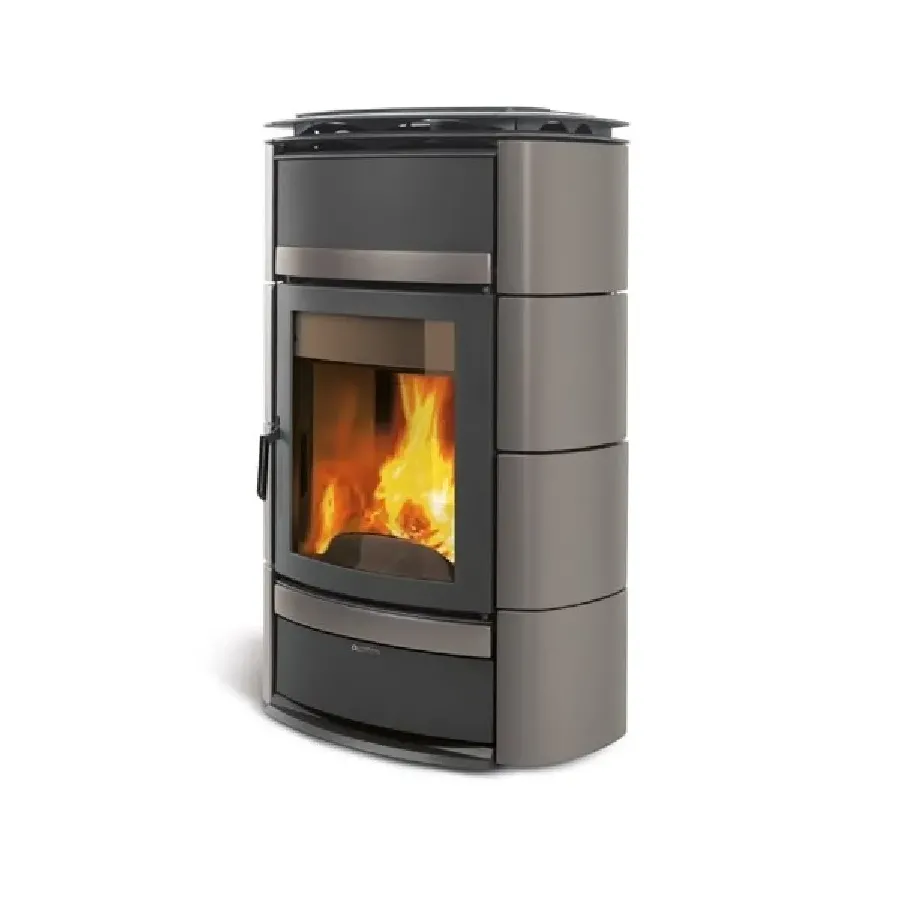

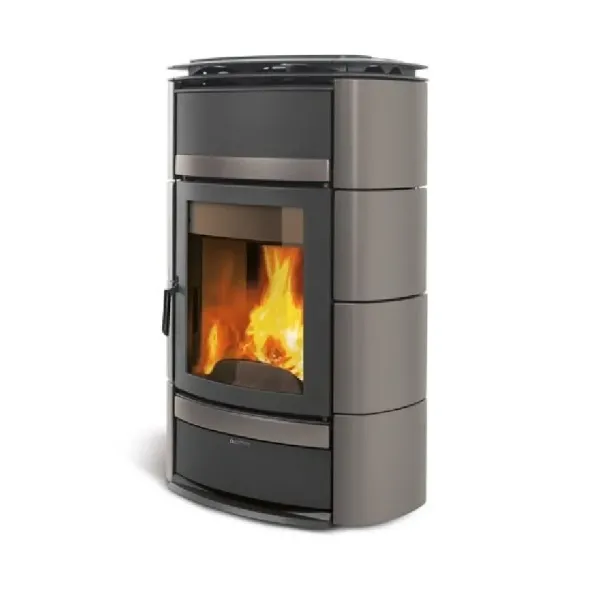

La Nordica Norma S Idro DSA, 19.5 kW output, majolica grey, wood-fired thermal oven 7117178

- Nominal heat output: 19.5 kW-N
- Nominal sanitary output: 14.9 kW-H2O
- Efficiency: 78.6%
- Hourly consumption: 5.8 kg/h
- Heating capacity in m3: 559
- Dimensions (LxHxD): 720x1242x575 mm
- Net weight: 249 kg
- Diameter of the smoke vent (Ø): 160 mm Supervisor
- Fire opening dimensions (LxH): 424x350 mm
- Dimensions of firebox (LxHxD): 424x450x320 mm
- Maximum wood length: 28 cm
- Operating pressure: 2.5 bar
- Energy efficiency label: A
- Environmental certification DM186: 4 points

The data reported on this website was extrapolated from the official websites of Extraflame and La Nordica; changes may be made by the parent company without prior notice. We invite you to view the updated technical specifications on the official website.
€3,731.17
Tax included | Spedizione Inclusa

Delivery in 30 days

La Nordica Norma S Idro DSA, 19.5 kW output, majolica grey, wood-fired thermal oven 7117178


Product type: Wood-fired thermal oven
Manufacturer name: La Nordica
Oven typology: 0
Series: Norma S Idro DSA
Color: Gray
Coating type: majolica
Rated power: 19.5 kW
Product code: 7117178

Characteristics:
- Cast iron chimney
- Door made of enamelled cast iron
Note: Enameled cast iron, when used correctly, has a virtually unlimited lifespan and requires minimal maintenance.
- Removable ash drawer
- Adjustable primary and secondary air for improved combustion management
- Afterburner system for low emissions
- curved ceramic glass
- Preparation for DSA safety device (DSA valve optional)
- Wide view of the fire
- Handcrafted majolica cladding

Product features

cast iron doors
The doors of the products, made from high-quality cast iron, remain unchanged over time and guarantee a constant seal.
Glass cleaning system
It is a system that effectively prevents the formation of deposits on the glass of the fire door by means of a specially preheated air path.
Afterburner
The combustion system developed by La Nordica-Extraflame enables afterburning thanks to a secondary/tertiary air system, which can drastically reduce emissions.
Direct outside air intake (BBC)
Air intake system that draws in fresh air from outside for combustion and introduces it directly into the combustion air registers of the device.
Automatic safety device
It is a safety device for the sudden reduction of water temperature in accordance with applicable regulations.
DSA valve optional.

The data reported on this website was extrapolated from the official websites of Extraflame and La Nordica; changes may be made by the parent company without prior notice. We invite you to view the updated technical specifications on the official website.
