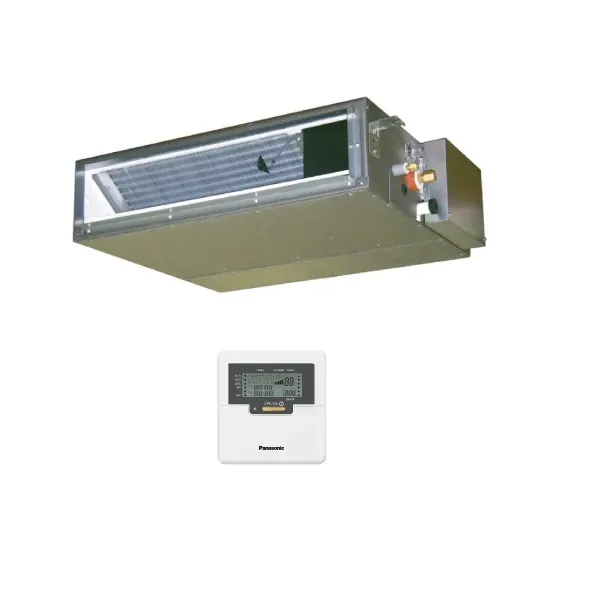

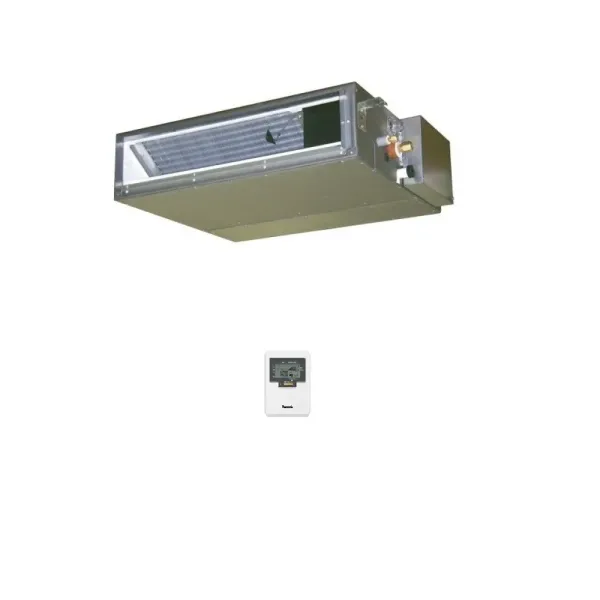

Panasonic 6.1 kW Indoor Unit CS-Z60UD3EAW Air Conditioner Ducted Unit Low Prevalence 21000 Btu WiFi Optional R-32

Panasonic 6.1 kW Indoor Unit CS-Z60UD3EAW Air Conditioner Ducted Unit Low Prevalence 21000 Btu WiFi Optional R-32

Panasonic air conditioner, indoor unit, low prevalence, WiFi optional, 21000 Btu heat pump, WiFi compatible, voice control compatible, drain pump included, fresh air intake duct

The offer is structured as follows:
CS-Z60UD3EAW 21,000 BTU 6.0 kW
Ideal for environments of 54 to 63 sq m with an average height of approximately 2.7 meters.
Width: 750 mm; Height: 200 mm; Depth: 640 mm.
Standard accessories: Cable control included.
Optional accessory: Wifi interface CZ-TACG1.

Panasonic indoor units with low prevalence

Specifically designed for offices, shops and restaurants

Designed for installation in homes, offices, shops, and restaurants. This ducted unit is ideal for small spaces requiring air conditioning, high comfort, and efficiency.
New channel models can be connected to KNX, Modbus, and EnOcean interfaces for easy integration into BMS systems. The interfaces use dry contacts (ON/OFF, fault signal) to simplify integration.

Technical details

- Environmentally friendly refrigerant R32
- The multiplexed units can be used via KNX, EnOcean and Modbus
can be controlled - Eco mode for energy savings of 20%
- Compact indoor units (height only 200 mm)
- Weekly programming timer with the ability to program 42 events per week
- Simplified control mode for error detection
- Drain pump included

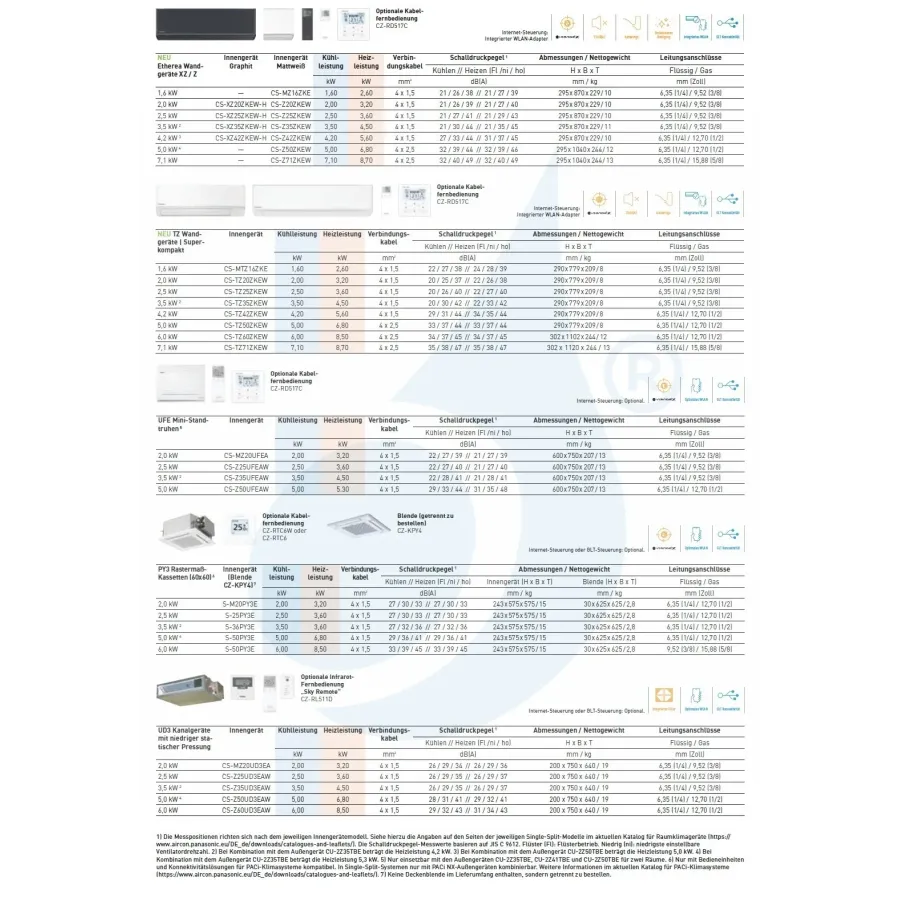

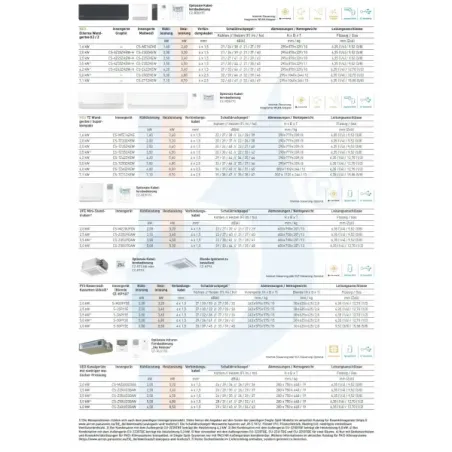

Datasheet
