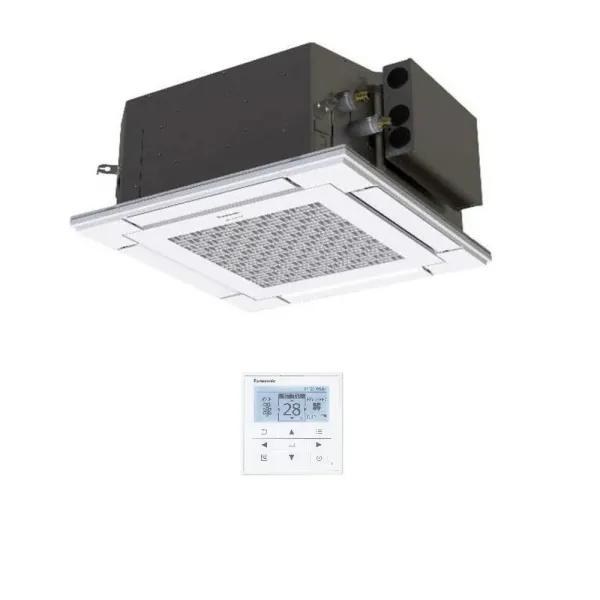

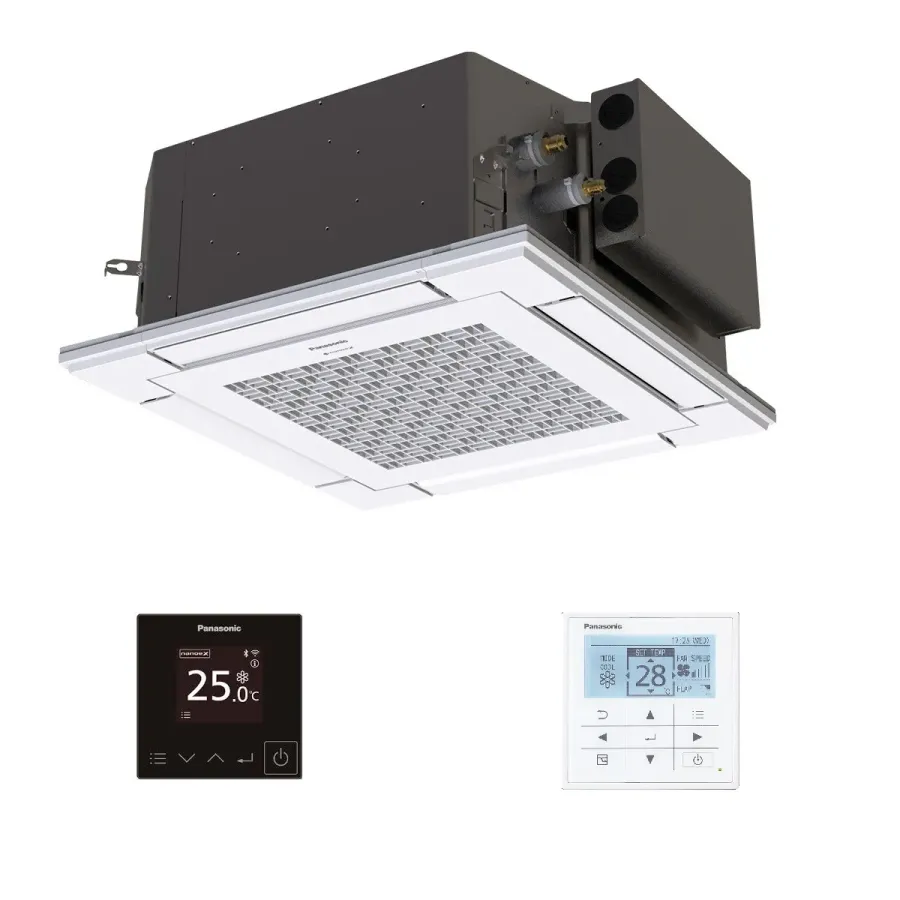

Panasonic 3.5 kW Indoor Unit S-36PY3E Air Conditioner Cassette Unit 60 x 60 4-way Control Wire 12000 Btu WiFi Optional R-32

Panasonic 3.5 kW Indoor Unit S-36PY3E Air Conditioner Cassette Unit 60 x 60 4-way Control Wire 12000 Btu WiFi Optional R-32

Panasonic air conditioner indoor unit 60 x 60 4-way WiFi optional 12000 Btu heat pump, WiFi, compatible with voice control, drain pump included, fresh air intake duct

The offer is structured as follows:
S-36PY3E 12,000 BTU 3.5 kW
Ideal for environments of 27 to 36 sq m with an average height of approximately 2.7 meters.
Width: 575 mm, Height: 243 mm, Depth: 575 mm.
Standard accessories: Wired controller CZ-RTC5B, white grille CZ-CAPWFC1.
Optional accessory: Wifi interface CZ-CAPWFC1.

Panasonic 60 x 60 4-way cassette indoor units

Specifically designed for offices, shops and restaurants, it fits perfectly into suspended ceilings with an opening of 60x60 or 70x70.

Compact cassette with high efficiency even at low temperatures. The box can be connected to KNX, Modbus and EnOcean interfaces for easy integration into BMS systems.
The interfaces use clean contacts (ON/OFF, error signal) for easy integration. Install the Panasonic cassette model that's right for your business and save all year round!

Technical details

- Environmentally friendly refrigerant R32
- The boxes can be used via KNX, EnOcean and Modbus
be controlled - Designed to be easily installed in suspended ceilings with 60x60
To be installed in the opening - Maximum length of connecting lines: 30 m
- Maximum height difference: 20 m
- Compact outdoor units, easy to install
- High-pressure selector for high ceilings (> 2.7 m)
- Drainage pump included (max. height difference 750 mm)
- Channel for introducing fresh air

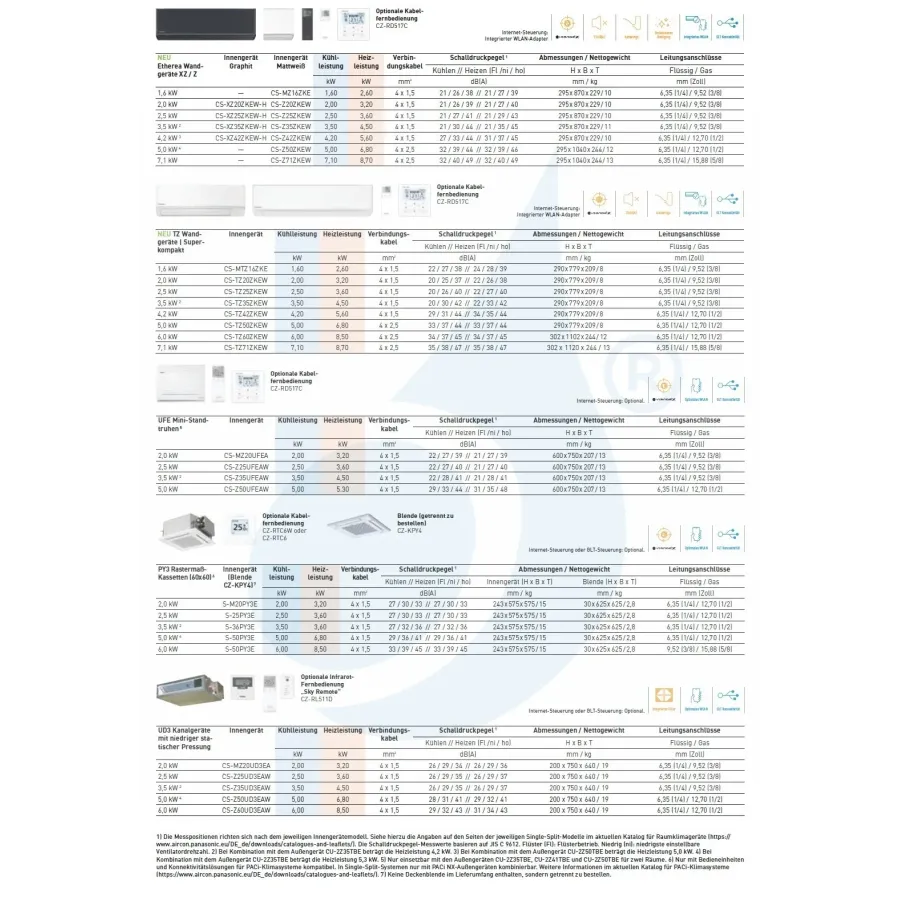

Datasheet
