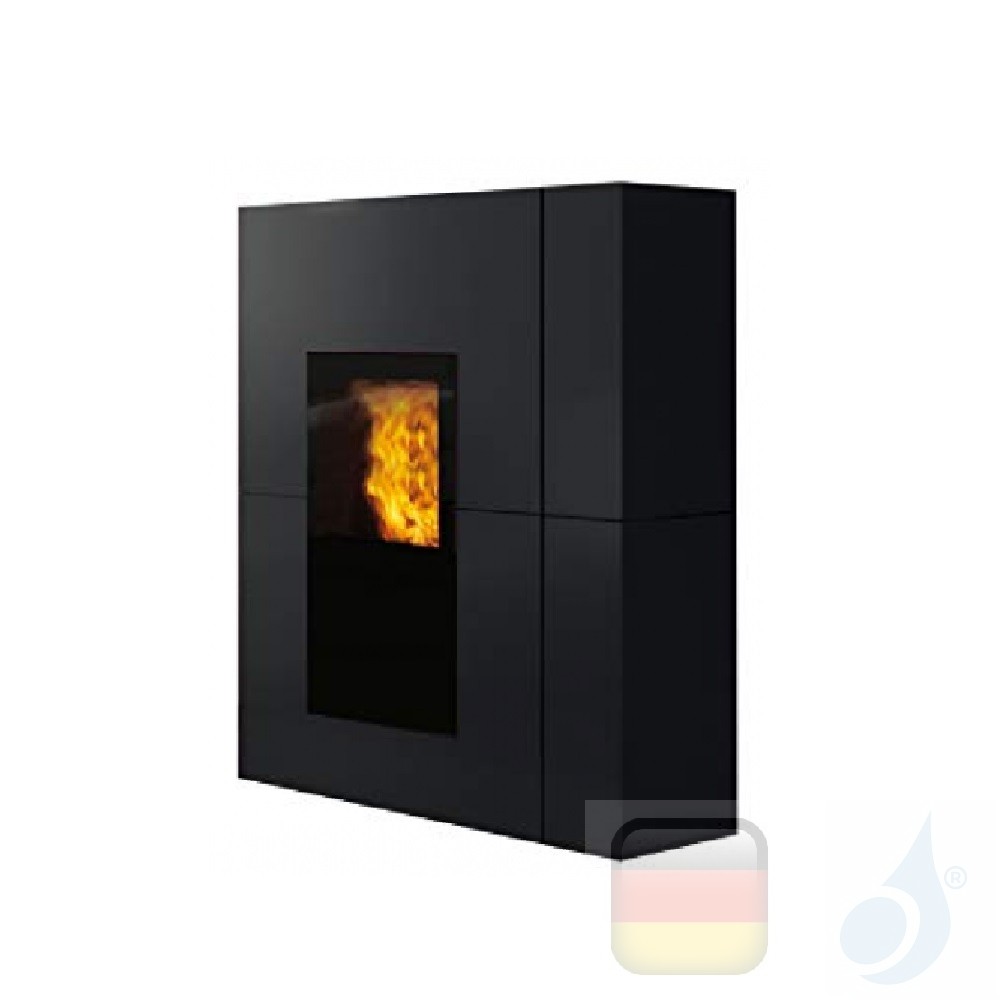

Edilkamin Hydro Pellet Stove Blade H 18 18.7 kW Switchable Hot Air Fan Black Coating Type Steel A++

Edilkamin Hydro Pellet Stove Blade H 18 18.7 kW Switchable Hot Air Fan Black Coating Type Steel A++

STEEL / CERAMIC
- Steel stove
- Ceramic glow plug
- Smoke vent Ø 8 cm:
Upper material, female (standard for all versions)
rear, male, ceramic version (optional)
rear and left side, male, steel version (optional)
- closed expansion vessel
- Pellet reserve lamp: Indicates that the product has approximately half an hour of autonomy remaining from the time it appears on the display.
- daily / weekly programming
- Show at top
- upper hot air ventilation (can be deactivated)

Pellet stoves
Pellet stove, firebox made of steel.
Smoke outlet Ø 8 cm at the top.
Switchable warm air blower (modulatable and deactivatable).
Control panel.
Closed expansion vessel included.
System diagrams configurable from the control panel with terminal strip for external probes
Pellet level sensor

Steel:
Bordeaux
black
matte white
bronze-colored

OPTION
Wi-Fi Kit
GSM module to easily switch the oven on and off via mobile phone.

BLADE H is also available in the EKleaner version
Overview control panel: For controlling and monitoring all operating phases of the furnace and for setting the parameters
Time programming: Programs the automatic switching on and off at the desired times.
Leonardo systems: Systems that automatically regulate pellet combustion. They constantly measure the key combustion parameters, which are influenced by: - characteristics of the flue (bends, length, shape, diameter) - environmental conditions (wind, air pressure, high-altitude installation) - pellet properties (wood type, density, moisture content) and intervene accordingly to ensure optimal operation and fuel savings.
Fire Control: Automatically changes the combustion to avoid fuel waste.
Automatic cleaning of the combustion chamber: for many hours of continuous operation. Does not replace normal cleaning to be carried out when the furnace is cold (see technical data sheet).
Climate Comfort: An extension of the automatic operation that ensures the oven switches off when the desired temperature is reached and switches back on when the temperature drops. (Only to be used in small, well-insulated rooms, as the function would otherwise be constantly activated.)
The hot air ventilation can be deactivated .
Auto check: Performed when the oven is cold. This function allows any potential problems to be detected immediately.

TECHNICAL DATA:

Blade H 18
Width 104 cm
Depth 39 cm
Height 120.5 cm
Net power output kW 4.9/18.7
Power output delivered to water: kW 3.8/16.3
Efficiency % 93.3
Fuel consumption kg/h 1.1/4.2
Contents of storage container: 30 kg
Continuous operation h 7/27
Water content l 20
Exhaust pipe diameter cm 8
Ø Air supply duct cm 5
Total weight kg 258
Heatable volume (m³): 485
