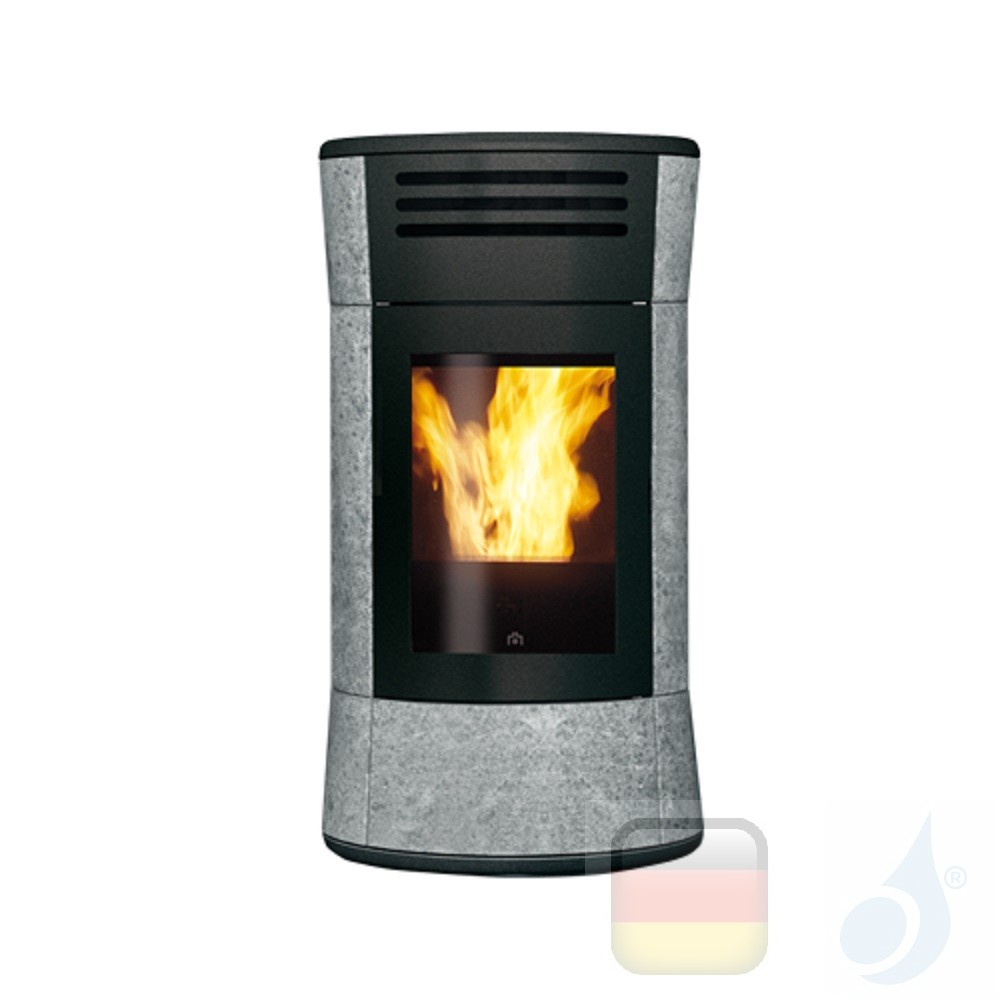

Edilkamin Hydro Pellet Stove Cherie Up H 16.2 kW Switchable Hot Air Fan Stone Coating Type Natural Stone A+

Edilkamin Hydro Pellet Stove Cherie Up H 16.2 kW Switchable Hot Air Fan Stone Coating Type Natural Stone A+

STEEL / SOAPSTONE
- Stove made of cast iron and steel
- Ceramic glow plug
- rear smoke vent Ø 8 cm, male
- Door with round glass
- Built-in hydraulic kit with closed expansion tank, modular circulator and pressure relief valve
- Touchscreen display at the top
- daily / weekly programming
- Front hot air ventilation (can be deactivated)
- Remote control with display

Pellet stoves
Pellet stove, firebox made of cast iron and steel.
Smoke outlet Ø 8 cm at the rear.
Integrated hydraulic kit with enclosed
Expansion vessel, circulation pump and pressure relief valve.
Switchable warm air blower (modulatable and deactivatable).
Control panel.
Radio control with display

- Natural stone

OPTION
- Wi-Fi Kit
- GSM module to easily switch the oven on and off via mobile phone.
, Overview control panel: For controlling and monitoring all operating phases of the furnace and for setting the parameters
Time programming: Programs the automatic switching on and off at the desired times.
Leonardo systems: Systems that automatically regulate pellet combustion. They constantly measure the key combustion parameters, which are influenced by: - characteristics of the flue (bends, length, shape, diameter) - environmental conditions (wind, air pressure, high-altitude installation) - pellet properties (wood type, density, moisture content) and intervene accordingly to ensure optimal operation and fuel savings.
Fire Control: Automatically changes the combustion to avoid fuel waste.
Automatic cleaning of the combustion chamber: for many hours of continuous operation. Does not replace normal cleaning to be carried out when the furnace is cold (see technical data sheet).
Climate Comfort: An extension of the automatic operation that ensures the oven switches off when the desired temperature is reached and switches back on when the temperature drops. (Only to be used in small, well-insulated rooms, as the function would otherwise be constantly activated.)
The hot air ventilation can be deactivated .
Auto check: Performed when the oven is cold. This function allows any potential problems to be detected immediately.

TECHNICAL DATA:

Width 62 cm
Depth 57 cm
Height 115 cm
Net power output kW 4.8/16.2
Power output delivered to water: kW 3/11.8
Efficiency % 91.6
Fuel consumption kg/h 1/3.7
Contents of storage container: 29 kg
Continuous operation h 8/29
Water content l 12
Exhaust pipe diameter cm 8
Ø Air supply duct cm 4
Total weight kg 265
Heated volume (m³): 420
