Fujitsu air conditioner indoor unit compact-KV AUXG22KVLA cassette unit 22000 Btu 6.0 kW R-32

Fujitsu air conditioner indoor unit compact-KV AUXG22KVLA cassette unit 22000 Btu 6.0 kW R-32

Fujitsu Compact-KV Series Indoor Air Conditioner, WiFi Optional, 22000 Btu. Internal unit only; an external motor is required for operation.

Kit consisting of the following elements:

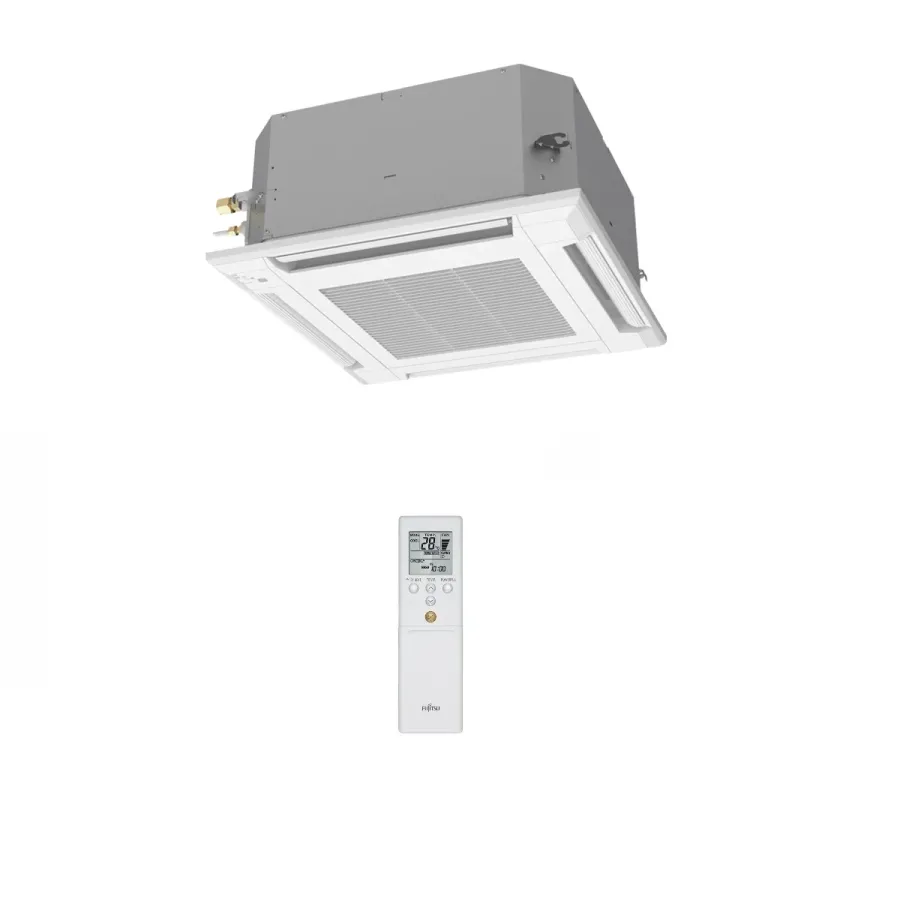

Internal cassette unit AUXG22KVLA 22,000 BTU 6.0 kW Compact KV series
Ideal for rooms of 54 to 60 square meters with an average ceiling height of approximately 2.7 meters.
Dimensions: Length: 570 mm, Height: 245 mm, Depth: 570 mm.
Grid dimensions: Length: 620 mm, Height: 620 mm, Depth: 49 mm.
Standard accessories: Remote control.
Included accessories: Grill UTG-UFYF-W.
Optional accessories: UTY-TFSXW1 or UTY-TFSXJ3 WLAN interface

KV Compact Series

Up-and-down movement of the deflectors
- Automatic opening and closing of the deflectors.
Condensate pump included as standard
Automatic switching between cold and heating
- The air conditioner automatically switches from heating to cooling (and vice versa), depending on the desired room temperature.
Save energy
- In economy mode, the air conditioner reduces energy consumption, resulting in significant savings.
Daily timer
- Four options over 12 hours: ON, OFF, ON OFF or OFF ON.
Automatic ventilation speed
- Automatic adjustment of the ventilation speed to the desired room temperature.
Automatic restart
- In the event of a temporary power outage, the air conditioner will automatically restart as soon as the power supply is restored.
Heating to 10°C
The 10°C temperature maintenance mode prevents the temperature in unused rooms from dropping too low.
Automatic sleep shutdown
Nighttime comfort is ensured by gradually adjusting the temperature before switching off the air conditioning.
Filter status display
Allows for checking the filter cleanliness.

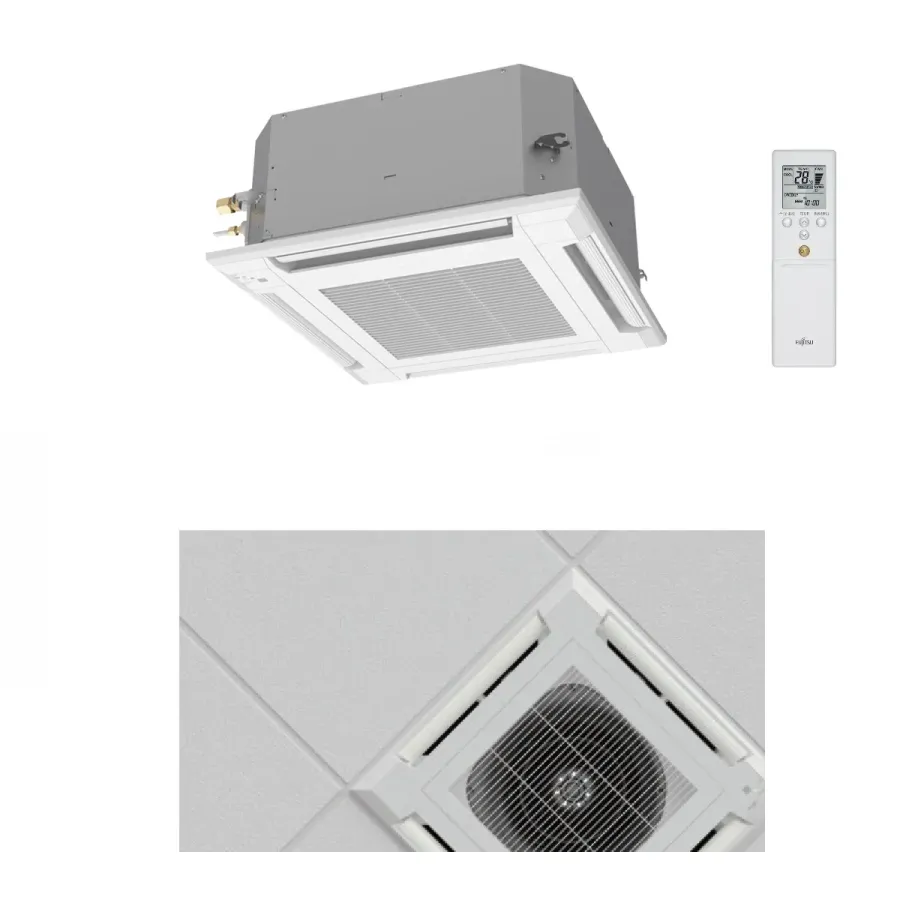

Compact and elegant panel design
The panel's compact and elegant design is a perfect fit for modular suspended ceilings. The dimensions of the 620 x 620 mm grid conceal the presence of the installed device in the room.

90x90 Eco KR Circular Flow Cassette Unit Series

The external motor in this series is less efficient than that of the KR Circular Flow cassette unit version.
Up-and-down movement of the air guide vanes
- Automatic opening and closing of the air deflectors.
Automatic restart
- In the event of a temporary power outage, the air conditioner will automatically restart as soon as the power supply is restored.
Can be connected to a duct distribution system
Energy saving
- In economy mode, the air conditioner reduces energy consumption, resulting in significant savings.
Limiting room temperature fluctuations
- The minimum and maximum room temperature values can be adjusted for further energy savings without affecting the comfort of the residents.
Automatic temperature return
The room temperature will automatically be reset to the previously set temperature.
Weekly timer
The on/off functions can be freely set daily and weekly.
Input/Output
Automatic ventilation speed
Automatic adjustment of the ventilation speed to the desired room temperature.
Automatic switching between cold and hot
The air conditioner automatically switches from heating to cooling (and vice versa), depending on the desired room temperature.
Connection to an external air supply system is possible.
Blue Fin
Blue Fin treatment (Mono Split outdoor units only). (30/36/45/54 only)
Individual control of the louvers
Each slat of the devices can be individually controlled via the wired touch panel control, thus ensuring maximum comfort, regardless of the room shape.
Condensate pump included as standard
Filter status display
Allows for checking the filter cleanliness.
Automatic shut-off
Automatically stops operation after the set time has elapsed since the start of operation.

Technical data sheets

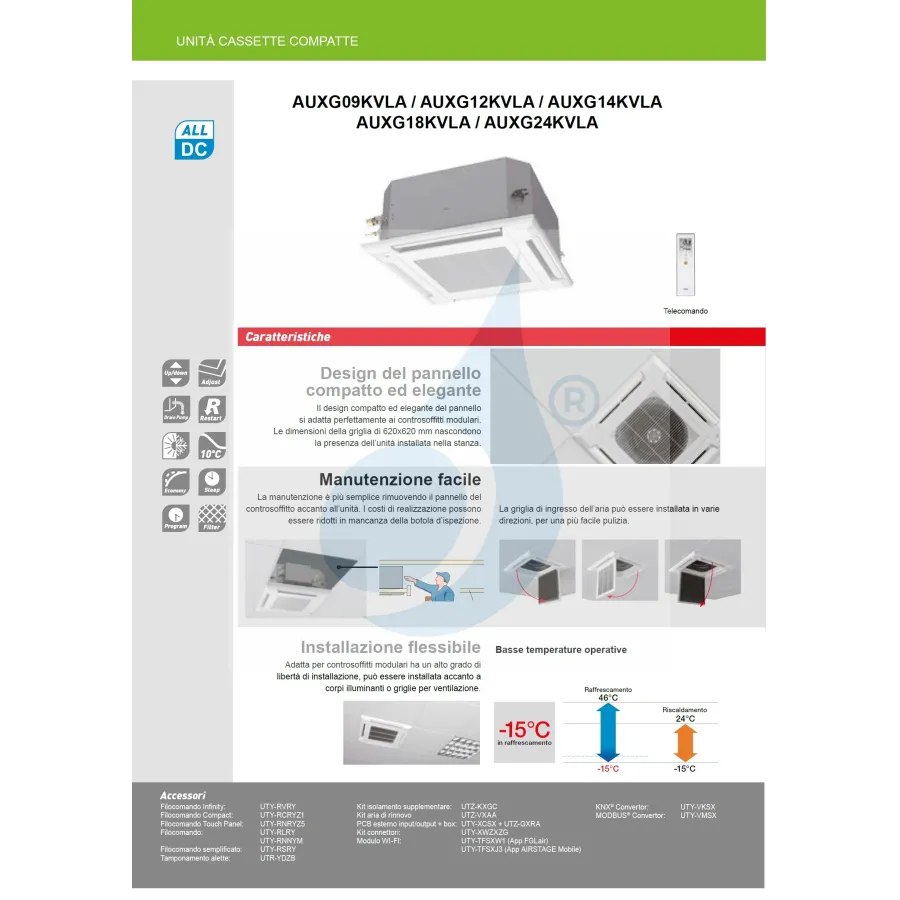

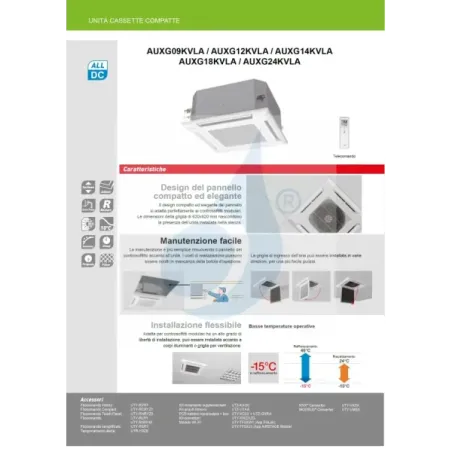

Download map of the Compact Cassette Series KV 60x60 (IT)

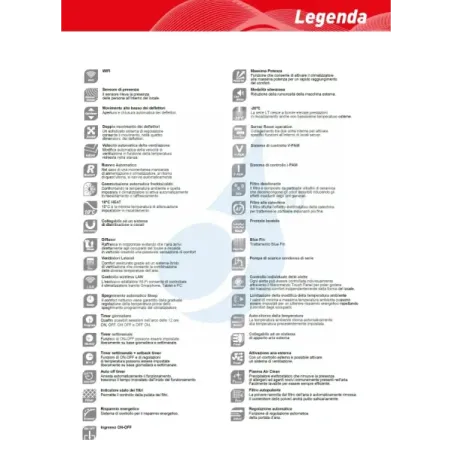

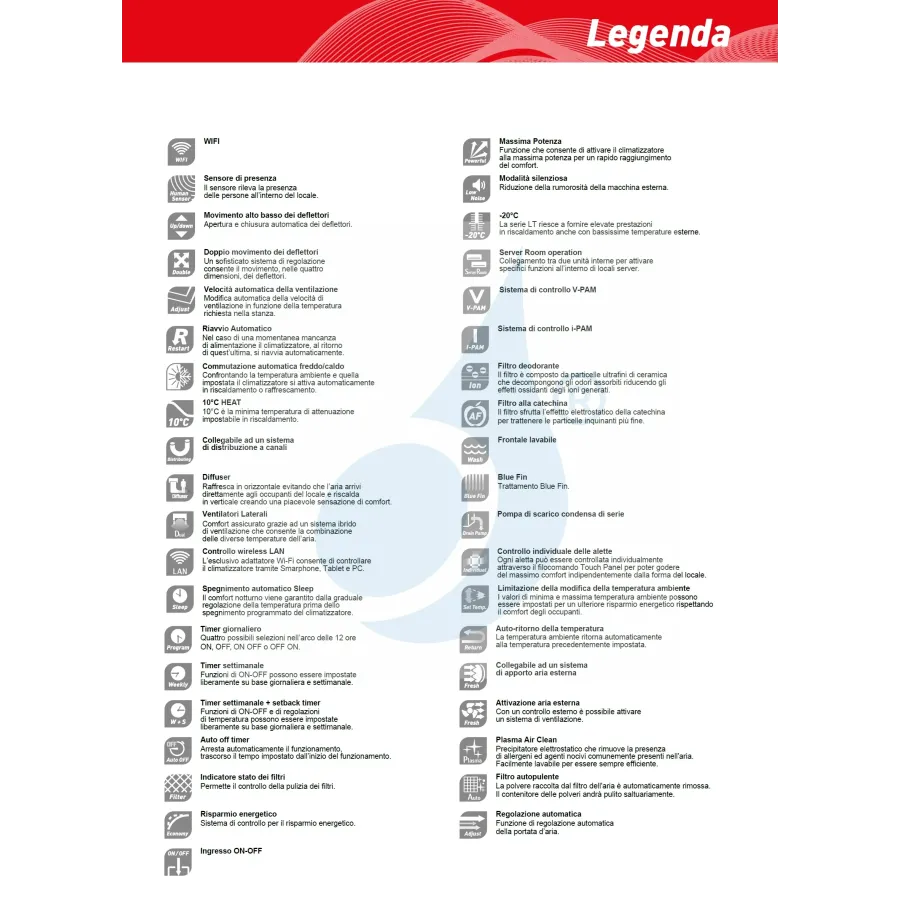

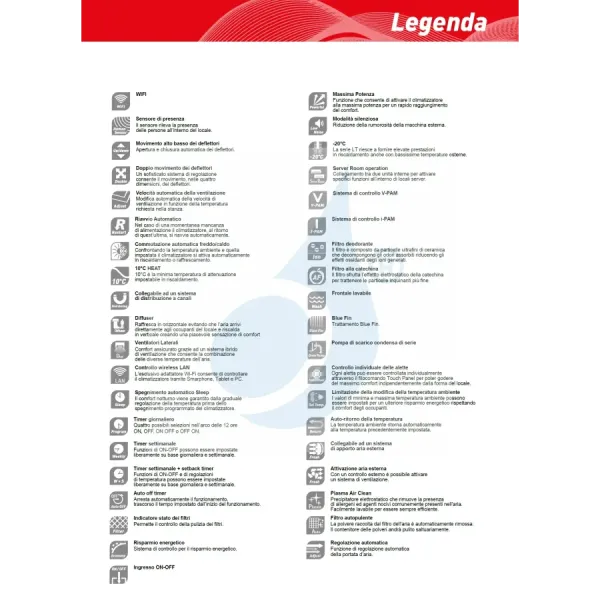

Download Legend Fujitsu Airstage Symbols (IT)
