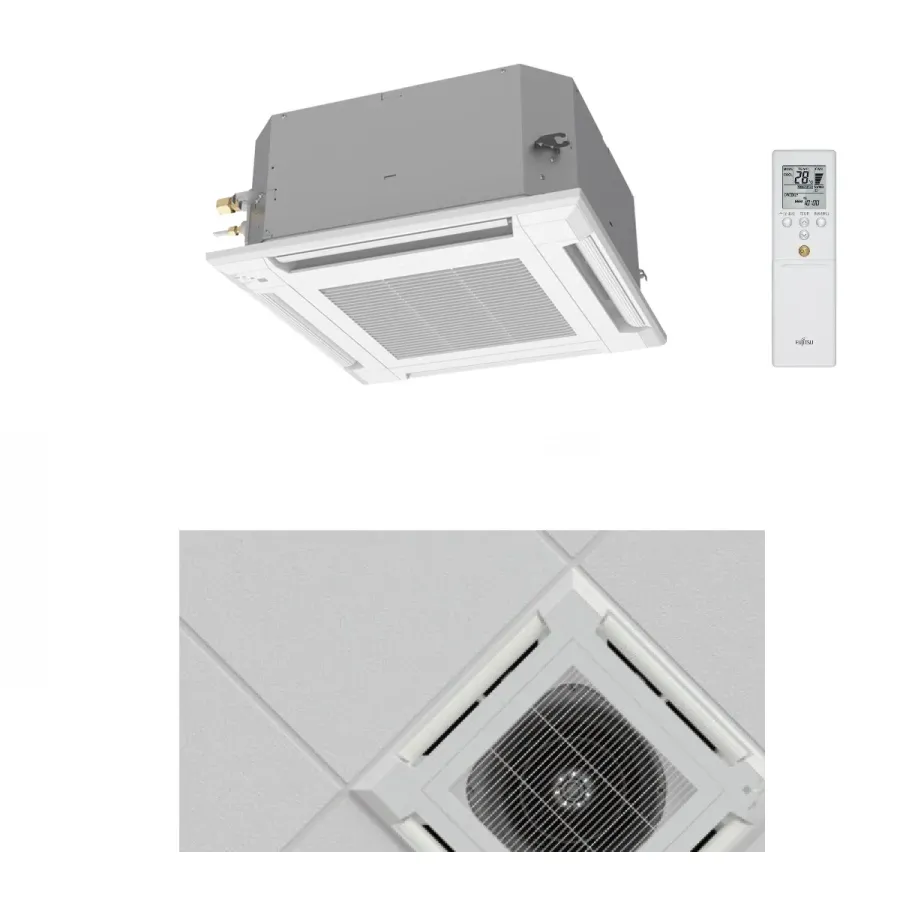

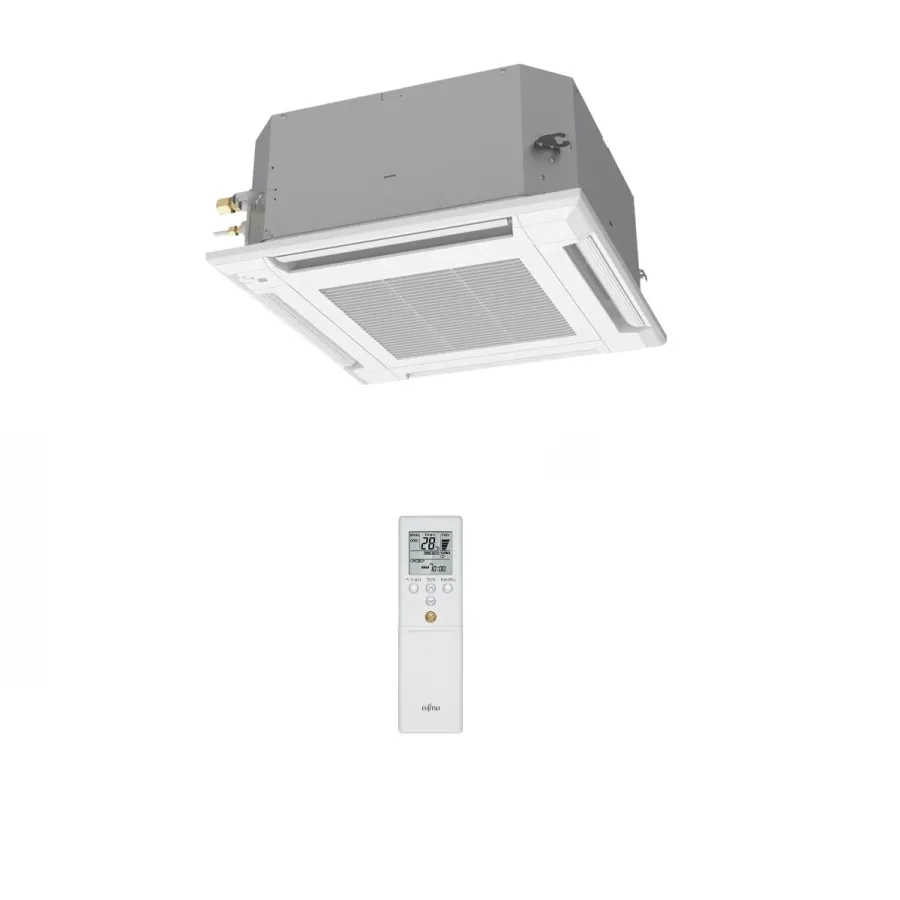

Fujitsu air conditioner indoor unit compact-KV AUXG14KVLA cassette unit 14000 Btu 4.2 kW R-32

Fujitsu air conditioner indoor unit compact-KV AUXG14KVLA cassette unit 14000 Btu 4.2 kW R-32

Fujitsu Compact-KV Series Indoor Air Conditioner, WiFi Optional, 14000 Btu. Internal unit only; an external motor is required for operation.

Kit consisting of the following elements:
Internal cassette unit AUXG14KVLA 14,000 BTU 4.2 kW Compact KV series
Ideal for rooms of 35 to 42 square meters with an average ceiling height of approximately 2.7 meters.
Dimensions: Length: 570 mm, Height: 245 mm, Depth: 570 mm.
Grid dimensions: Length: 620 mm, Height: 620 mm, Depth: 49 mm.
Standard accessories: Remote control.
Included accessories: Grill UTG-UFYF-W.
Optional accessories: UTY-TFSXW1 or UTY-TFSXJ3 WLAN interface

KV Compact Series

Up-and-down movement of the deflectors
- Automatic opening and closing of the deflectors.
Condensate pump included as standard
Automatic switching between cold and heating
- The air conditioner automatically switches from heating to cooling (and vice versa), depending on the desired room temperature.
Save energy
- In economy mode, the air conditioner reduces energy consumption, resulting in significant savings.
Daily timer
- Four options over 12 hours: ON, OFF, ON OFF or OFF ON.
Automatic ventilation speed
- Automatic adjustment of the ventilation speed to the desired room temperature.
Automatic restart
- In the event of a temporary power outage, the air conditioner will automatically restart as soon as the power supply is restored.
Heating to 10°C
The 10°C temperature maintenance mode prevents the temperature in unused rooms from dropping too low.
Automatic sleep shutdown
Nighttime comfort is ensured by gradually adjusting the temperature before switching off the air conditioning.
Filter status display
Allows for checking the filter cleanliness.
Compact and elegant panel design
The panel's compact and elegant design is a perfect fit for modular suspended ceilings. The dimensions of the 620 x 620 mm grid conceal the presence of the installed device in the room.

Eco KV Compact Series

The external motor in this series is less efficient than that of the Cassette KV Compact version.
Up-and-down movement of the deflectors
- Automatic opening and closing of the deflectors.
Condensate pump included as standard
Automatic cold/hot switching
- The air conditioner automatically switches from heating to cooling (and vice versa), depending on the desired room temperature.
Save energy
- In economy mode, the air conditioner reduces energy consumption, resulting in significant savings.
Daily timer
- Four options over 12 hours: ON, OFF, ON OFF or OFF ON.
Automatic ventilation speed
- Automatic adjustment of the ventilation speed according to the desired room temperature.
Automatic restart
In the event of a temporary power outage, the air conditioner will automatically restart as soon as the power supply is restored.
Heating to 10°C
The 10°C temperature maintenance mode prevents the temperature in unused rooms from dropping too low.
Automatic sleep shutdown
Nighttime comfort is ensured by gradually adjusting the temperature before the planned shutdown of the air conditioning system.
Filter status display
Allows for checking the filter cleanliness.
Compact and elegant panel design
The panel's compact and elegant design integrates perfectly into modular suspended ceilings. The 620 x 620 mm grid dimensions conceal the presence of the installed device in the room.

Technical data sheets

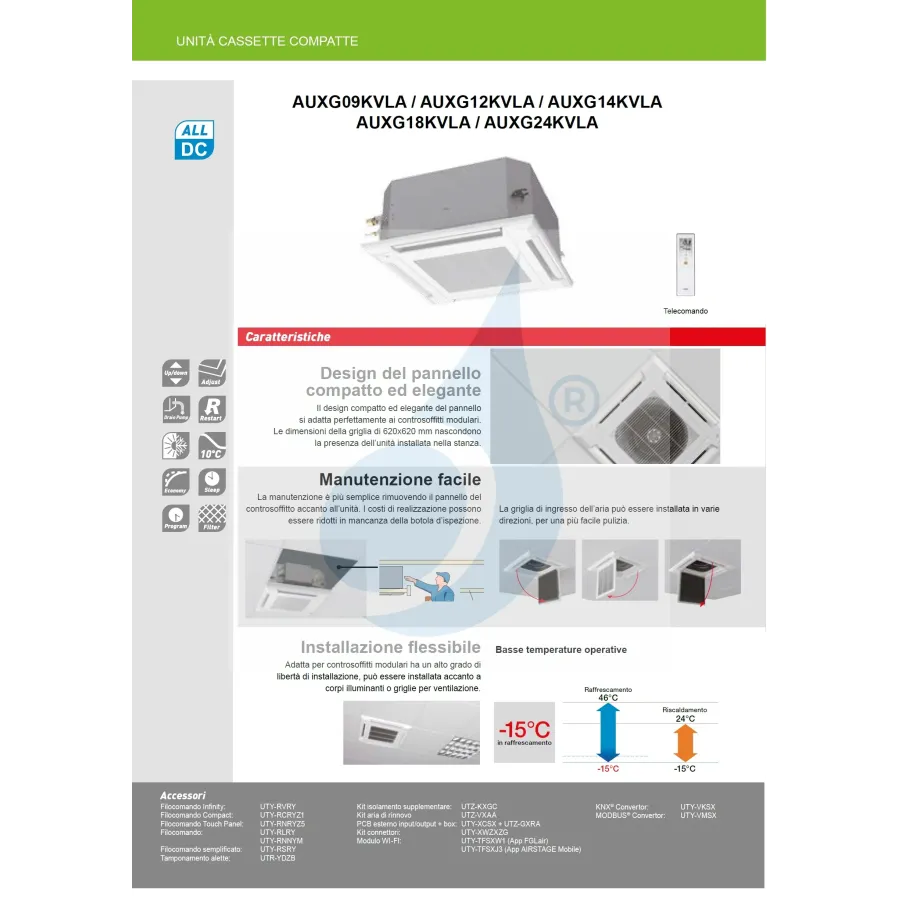

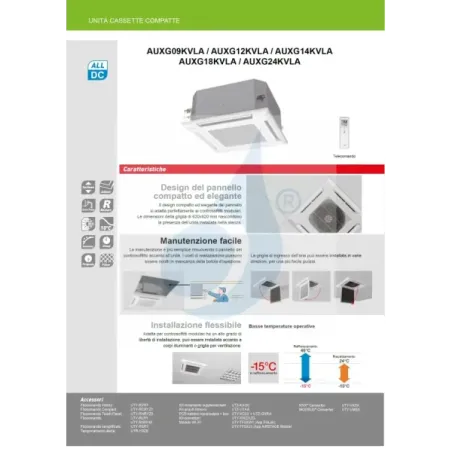

Download map of the Compact Cassette Series KV 60x60 (IT)

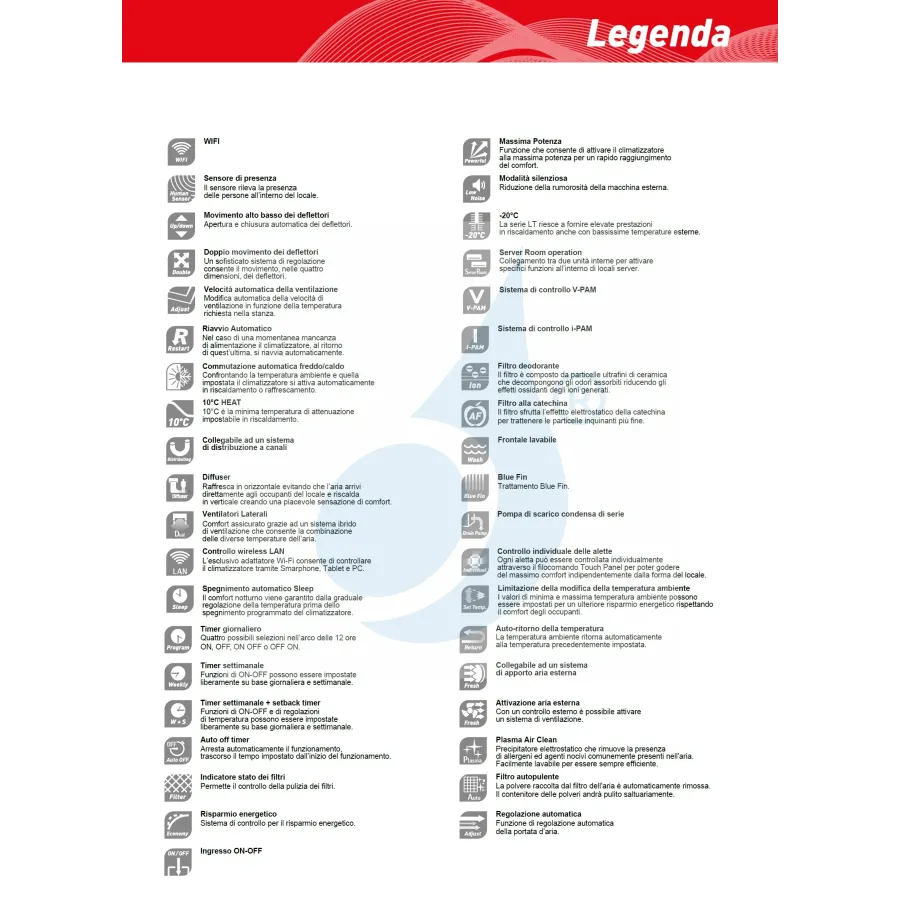

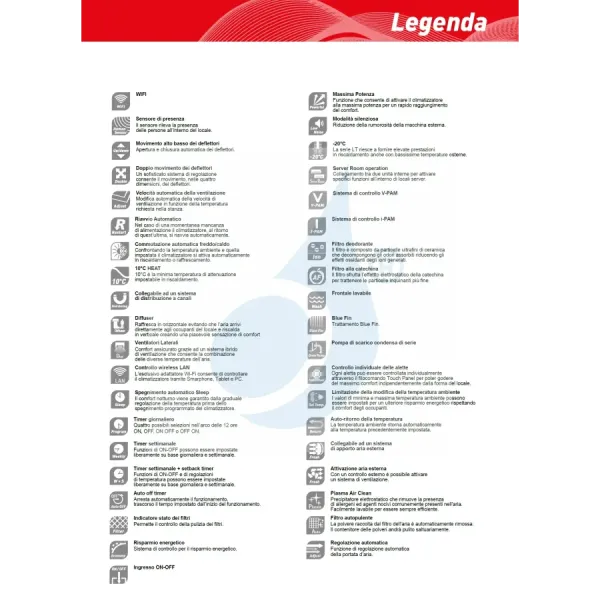

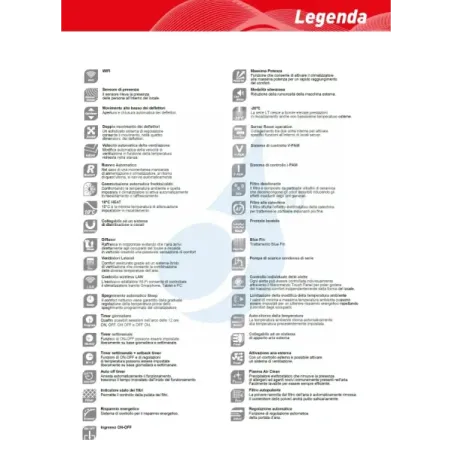

Download Legend Fujitsu Airstage Symbols (IT)
