Fujitsu air conditioner indoor unit compact-KV AUXG12KVLA cassette unit 12000 Btu 3.5 kW R-32

Fujitsu air conditioner indoor unit compact-KV AUXG12KVLA cassette unit 12000 Btu 3.5 kW R-32

Fujitsu air conditioner indoor unit series Compact-KV WiFi Optional 12000 Btu Internal unit only, an external motor is required for operation

Kit consisting of the following elements:

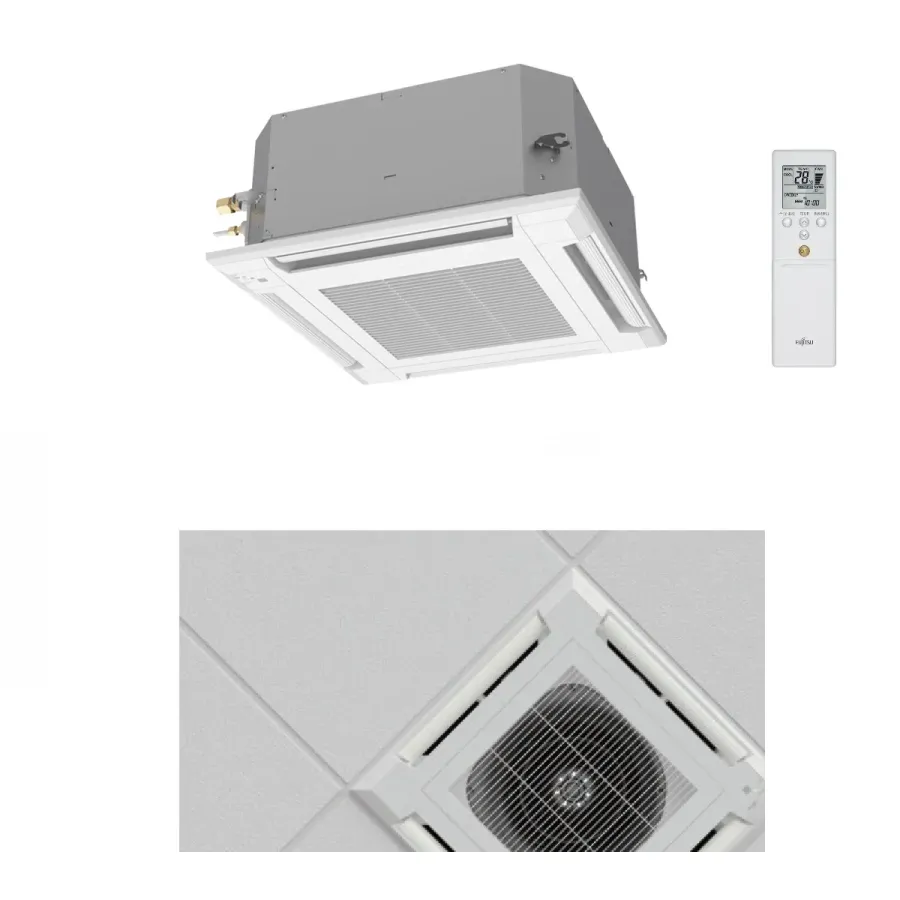

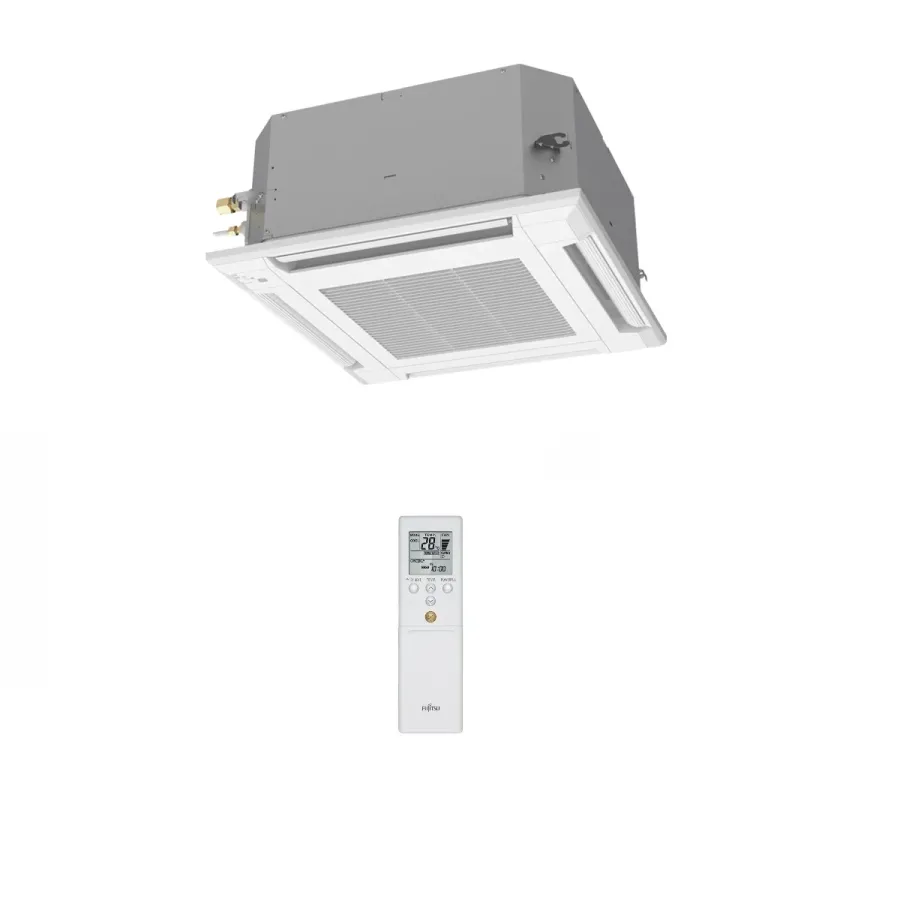

Internal cassette unit AUXG12KVLA 12,000 BTU 3.5 kW Compact KV series
Ideal for rooms of 27 to 35 square meters with an average ceiling height of approximately 2.7 meters.
Dimensions: Length: 570 mm, Height: 245 mm, Depth: 570 mm.
Grid dimensions: Length: 620 mm, Height: 620 mm, Depth: 49 mm.
Standard accessories: Remote control.
Included accessories: Grill UTG-UFYF-W.
Optional accessories: UTY-TFSXW1 or UTY-TFSXJ3 WLAN interface

KV Compact Series

Up-and-down movement of the deflectors
- Automatic opening and closing of the deflectors.
Condensate pump included as standard
Automatic switching between cold and heating
- The air conditioner automatically switches from heating to cooling (and vice versa), depending on the desired room temperature.
Save energy
- In economy mode, the air conditioner reduces energy consumption, resulting in significant savings.
Daily timer
- Four options over 12 hours: ON, OFF, ON OFF or OFF ON.
Automatic ventilation speed
- Automatic adjustment of the ventilation speed to the desired room temperature.
Automatic restart
- In the event of a temporary power outage, the air conditioner will automatically restart as soon as the power supply is restored.
Heating to 10°C
The 10°C temperature maintenance mode prevents the temperature in unused rooms from dropping too low.
Automatic sleep shutdown
Nighttime comfort is ensured by gradually adjusting the temperature before switching off the air conditioning.
Filter status display
Allows for checking the filter cleanliness.
Compact and elegant panel design
The panel's compact and elegant design is a perfect fit for modular suspended ceilings. The dimensions of the 620 x 620 mm grid conceal the presence of the installed device in the room.

KH High Pressure Channel Series

Automatic ventilation speed
Automatic adjustment of the ventilation speed to the desired room temperature.
Automatic switching between heating and cooling
The air conditioner automatically switches from heating to cooling (and vice versa), depending on the desired room temperature.
Blue Fin Blue Fin treatment (only for mono-split outdoor units). Automatic shut-off timer.
- Automatically stops operation after the set time has elapsed since the start of operation.
Weekly timer + setback timer
- On/off switching and temperature control can be freely set daily and weekly.
Automatic restart
- In the event of a temporary power outage, the air conditioner will automatically restart as soon as the power supply is restored.
Save energy
- In energy-saving mode, the air conditioner reduces energy consumption, resulting in significant savings.
Input/Output
Weekly timer + setback timer
- On/off switching and temperature control can be freely set daily and weekly.
Filter status display
- Allows you to check the cleanliness of the filters.

Technical data sheets

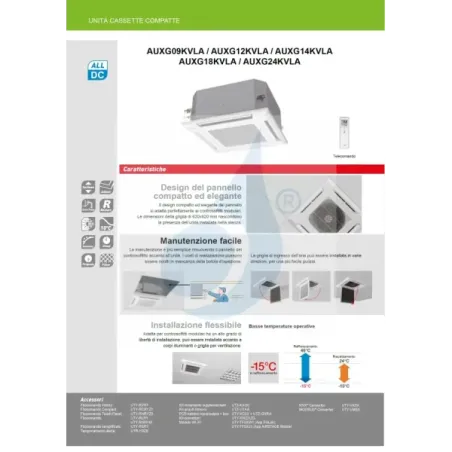

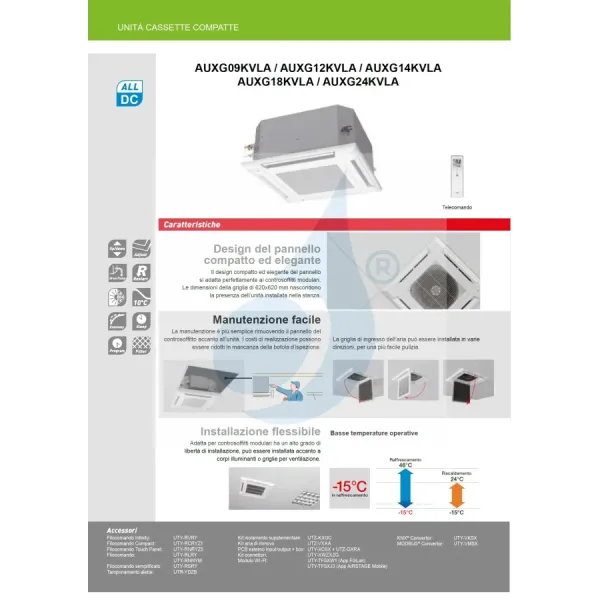

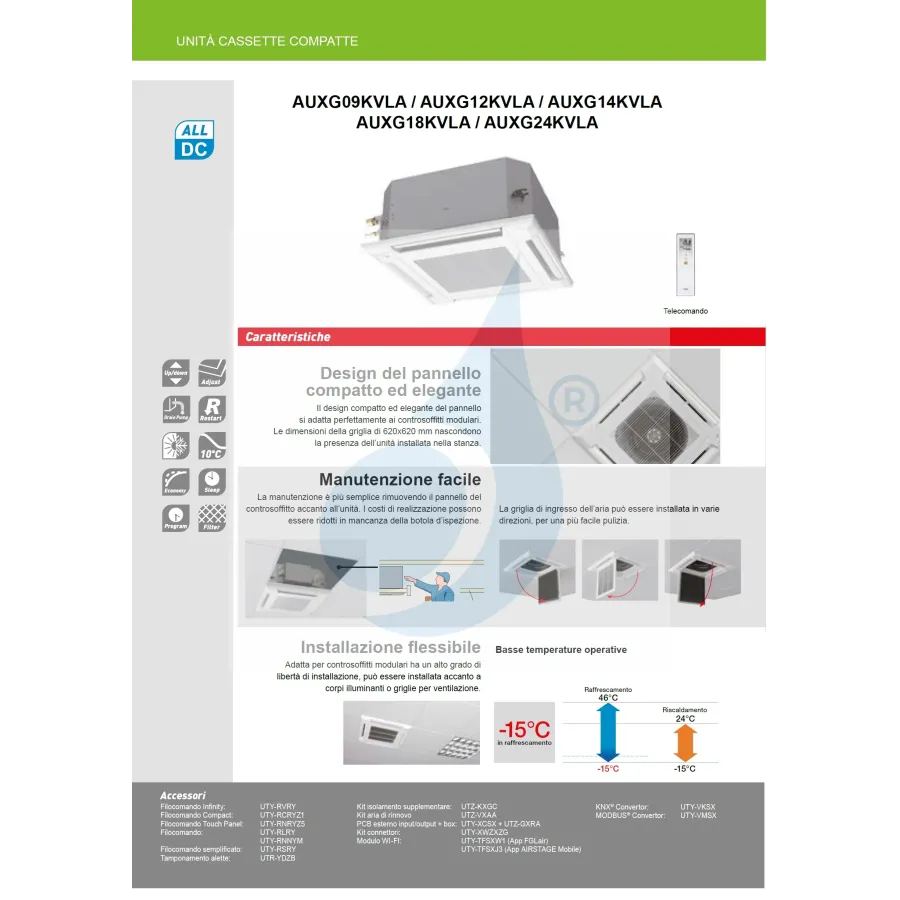

Download map of the Compact Cassette Series KV 60x60 (IT)

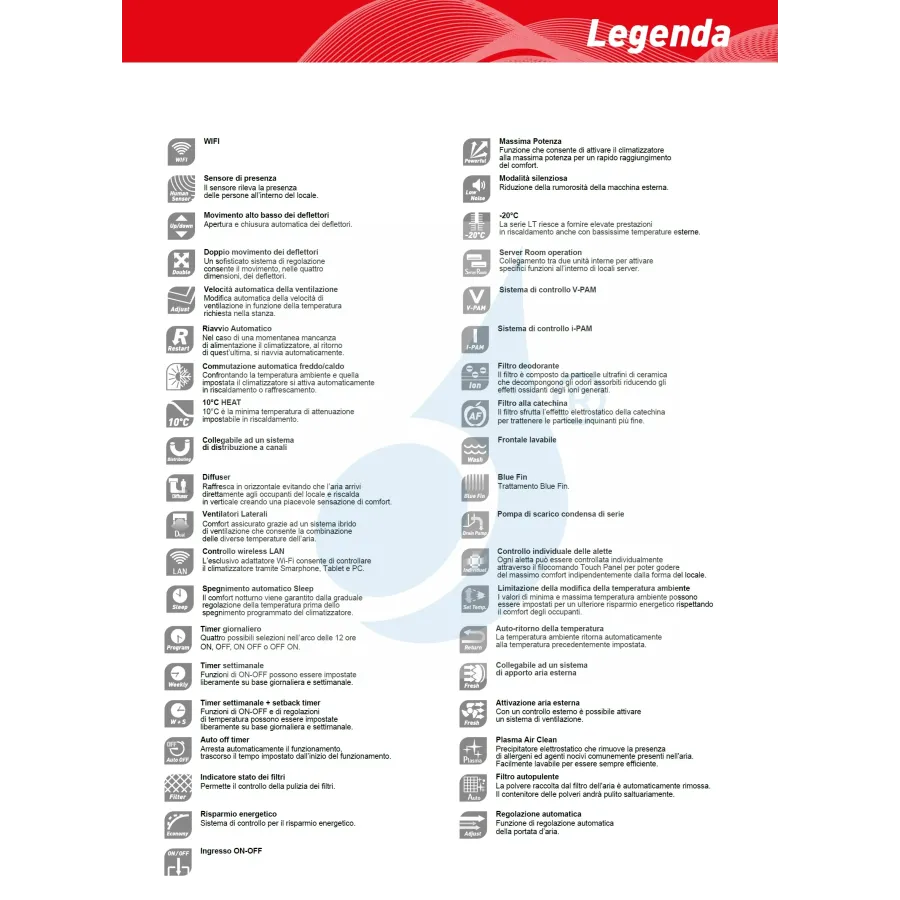

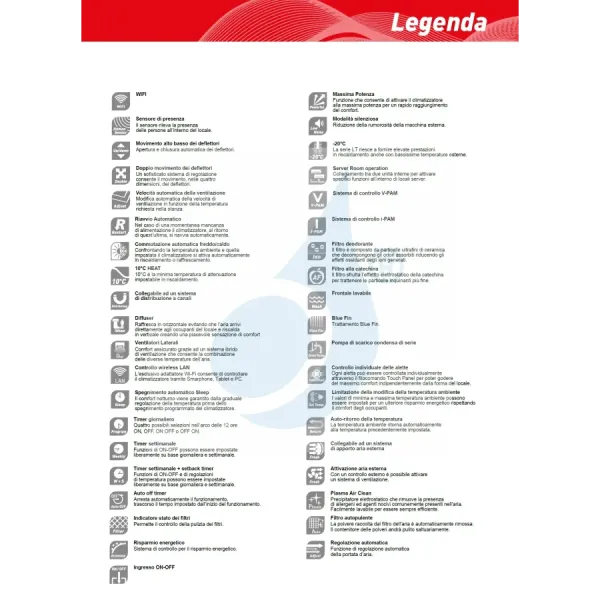

Download Legend Fujitsu Airstage Symbols (IT)
