Fujitsu air conditioner indoor unit compact-KV AUXG07KVLA cassette unit 7000 Btu 2.0 kW R-32

Fujitsu air conditioner indoor unit compact-KV AUXG07KVLA cassette unit 7000 Btu 2.0 kW R-32

Fujitsu air conditioner indoor unit, Compact-KV series, WiFi optional, 7000 Btu. Internal unit only; an external motor is required for operation.

Kit consisting of the following elements:

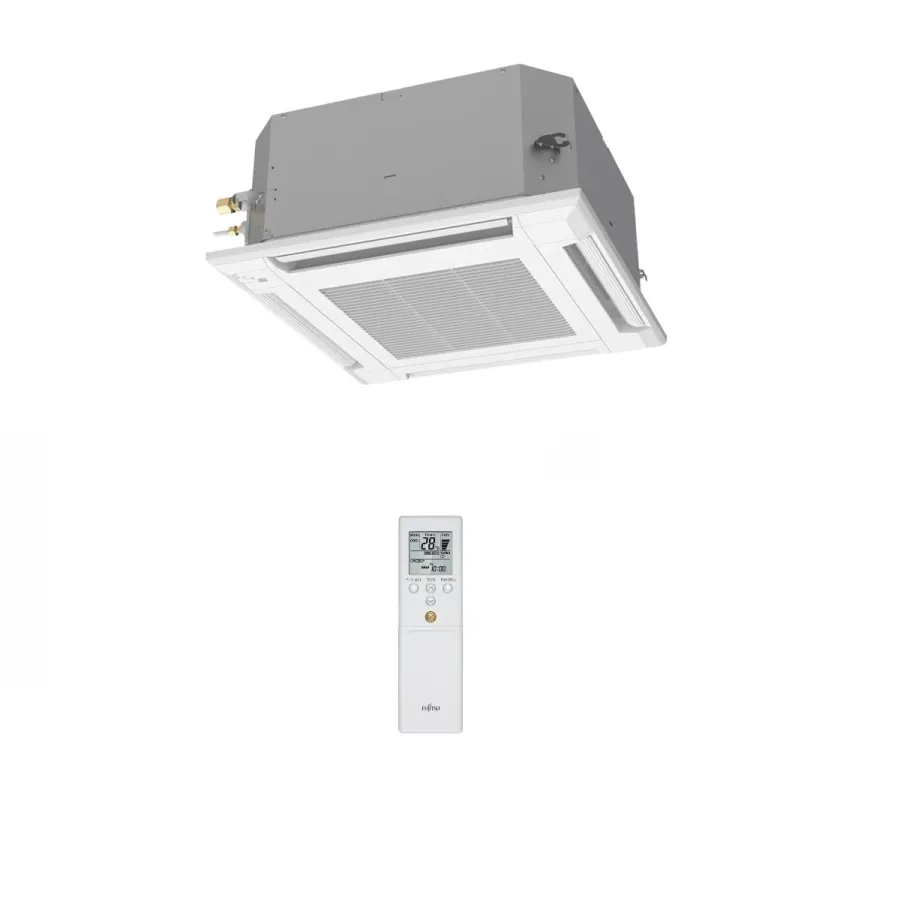

Internal cassette unit AUXG07KVLA 7,000 BTU 2.0 kW Compact KV series
Ideal for rooms of 17 to 22 square meters with an average ceiling height of approximately 2.7 meters.
Dimensions: Length: 570 mm, Height: 245 mm, Depth: 570 mm.
Grid dimensions: Length: 620 mm, Height: 620 mm, Depth: 49 mm.
Standard accessories: Remote control.
Included accessories: Grill UTG-UFYF-W.
Optional accessories: UTY-TFSXW1 or UTY-TFSXJ3 WLAN interface

KV Compact Series

Up-and-down movement of the deflectors
- Automatic opening and closing of the deflectors.
Condensate pump included as standard
Automatic switching between cold and heating
- The air conditioner automatically switches from heating to cooling (and vice versa), depending on the desired room temperature.
Save energy
- In economy mode, the air conditioner reduces energy consumption, resulting in significant savings.
Daily timer
- Four options over 12 hours: ON, OFF, ON OFF or OFF ON.
Automatic ventilation speed
- Automatic adjustment of the ventilation speed to the desired room temperature.
Automatic restart
- In the event of a temporary power outage, the air conditioner will automatically restart as soon as the power supply is restored.
Heating to 10°C
The 10°C temperature maintenance mode prevents the temperature in unused rooms from dropping too low.
Automatic sleep shutdown
Nighttime comfort is ensured by gradually adjusting the temperature before switching off the air conditioning.
Filter status display
Allows for checking the filter cleanliness.

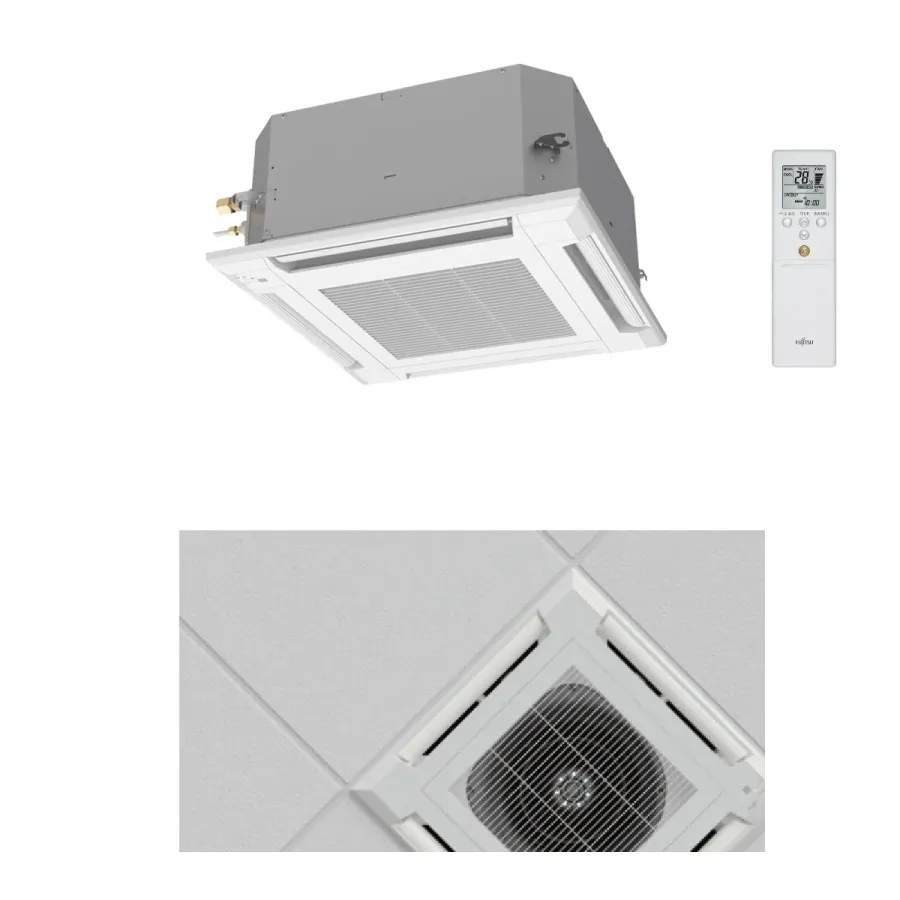

Compact and elegant panel design
The panel's compact and elegant design is a perfect fit for modular suspended ceilings. The dimensions of the 620 x 620 mm grid conceal the presence of the installed device in the room.

90x90 KR Circular Flow Cassette Unit Series

Up-and-down movement of the air guide vanes
- Automatic opening and closing of the air deflectors.
Automatic restart
- In the event of a temporary power outage, the air conditioner will automatically restart as soon as the power supply is restored.
Connection to a duct distribution system possible
Energy saving
- In economy mode, the air conditioner reduces energy consumption, resulting in significant savings.
Limiting room temperature fluctuations
- The minimum and maximum room temperature values can be adjusted for further energy savings without affecting the comfort of the residents.
Automatic temperature feedback
The room temperature will automatically be reset to the previously set temperature.
Weekly timer
On/off functions can be freely set daily and weekly.
Input/Output
Automatic ventilation speed
Automatic adjustment of the ventilation speed to the desired room temperature.
Automatic switching between heating and cooling
The air conditioner automatically switches from heating to cooling (and vice versa), depending on the desired room temperature.
Connectable to an external air supply system
Blue Fin
Blue Fin treatment (only for mono-split outdoor units). (only 30/36/45/54)
Individual control of the louvers
Each slat can be individually controlled via the wired touch panel control to enjoy maximum comfort regardless of the room shape.
Condensate pump included as standard
Filter status display
Allows for checking the filter cleanliness.
Automatic shut-off
Automatically stops operation after the set time has elapsed since the start of operation.

Technical data sheets

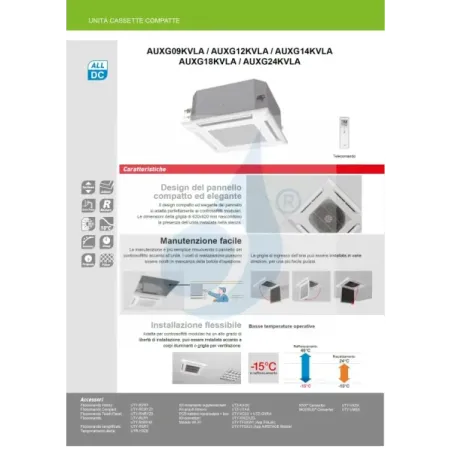

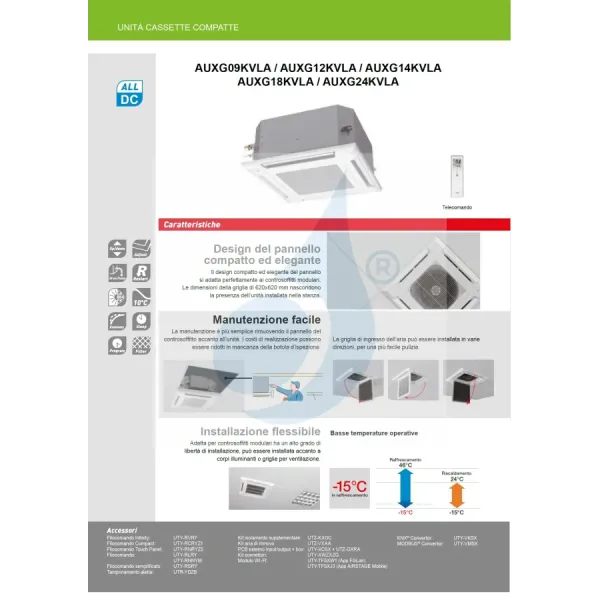

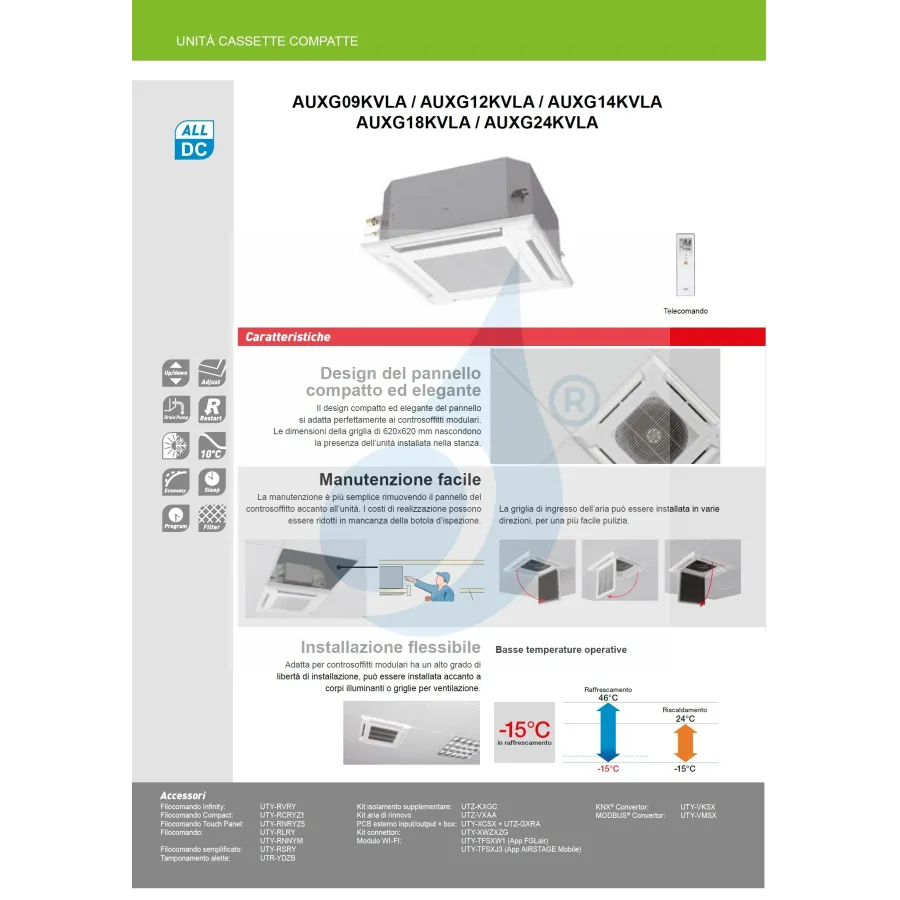

Download map of the Compact Cassette Series KV 60x60 (IT)

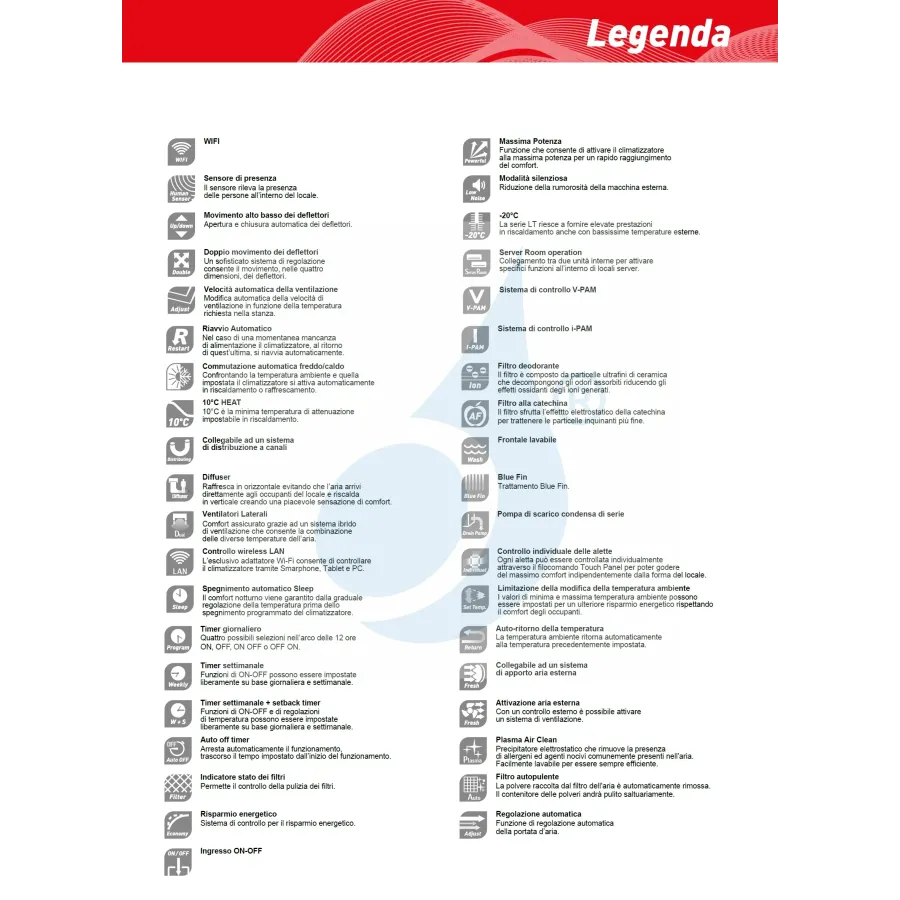

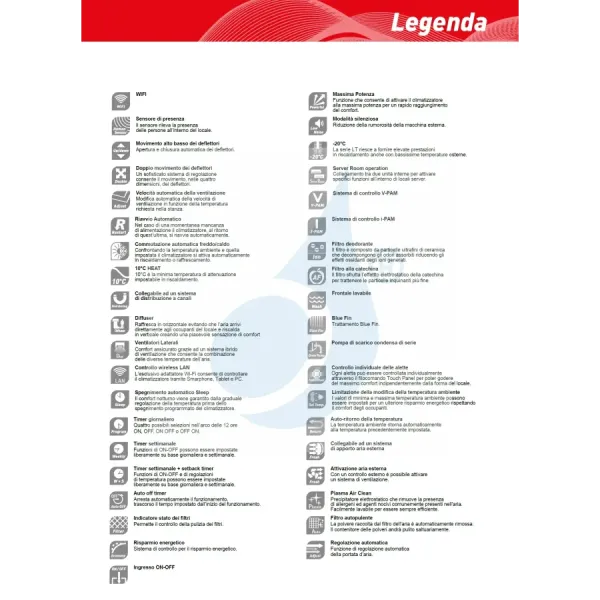

Download Legend Fujitsu Airstage Symbols (IT)
