Fujitsu air conditioner indoor unit KM LARGE ASEG24KMTE wall mount 24000 Btu 7.2 kW R-32

Fujitsu air conditioner indoor unit KM LARGE ASEG24KMTE wall mount 24000 Btu 7.2 kW R-32

Fujitsu KM LARGE Series Indoor Air Conditioner, WiFi Optional, 24000 Btu. Internal unit only; an external motor is required for operation.

Kit consisting of the following elements:

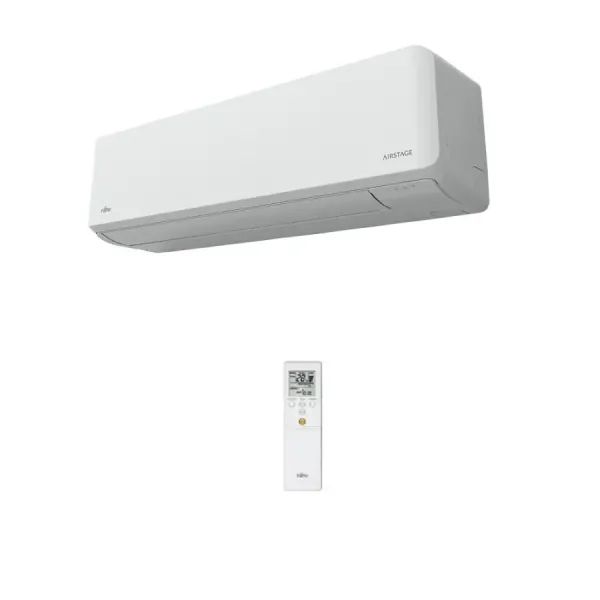

Indoor wall unit ASYG24KMTE 24,000 BTU 7.0 kW KM LARGE series
Ideal for rooms of 50 to 65 square meters with an average ceiling height of approximately 2.7 meters.
Length: 980 mm, Height: 280 mm, Depth: 240 mm.
Standard accessories: Remote control with weekly timer.
Optional accessory: UTY-TFSXH3 WIFI interface

KM Mass Production

Automatic ventilation speed
Automatically adjusts the ventilation speed to the desired room temperature.
Automatic switching between heating and cooling
The air conditioner automatically switches from heating to cooling (and vice versa), depending on the desired room temperature.
Maximum performance
In this mode, the air conditioner runs at maximum power for a maximum of 20 minutes to quickly achieve the desired comfort in the room.
Save energy
In economy mode, the air conditioner reduces energy consumption, resulting in significant savings.
Automatic sleep shutdown
Nighttime comfort is ensured by gradually adjusting the temperature before the programmed shutdown of the air conditioning system.
Filter status display
- Allows verification of filter cleanliness.
Deodorizing filter
- The filter consists of ultra-fine ceramic particles that decompose absorbed odors and reduce the oxidizing effect of the generated ions.
Washable front panel
- The front panel is completely removable and easy to clean.
Automatic restart
- In the event of a temporary power outage, the air conditioner will automatically restart as soon as the power supply is restored.
Heating to 10°C
- The 10°C temperature maintenance mode prevents the temperature from dropping too much in unoccupied rooms.
Silent mode
- Reduces the external noise of the device.
Double movement of the deflectors
An ingenious adjustment system allows the deflectors to be moved in four dimensions.
Daily timer
Four options for the 12 hours: ON, OFF, ON OFF or OFF ON.
Weekly timer
The ON/OFF functions can be freely set daily and weekly.
Catechin filter
The filter uses the electrostatic effect of catechin to filter out the finest particles and dust in the air.

KR Ceiling Series

Save energy
In economy mode, the air conditioner reduces energy consumption, resulting in significant savings.
Automatic switching between heating and cooling
The air conditioner automatically switches from heating to cooling (and vice versa), depending on the desired room temperature.
Automatic ventilation speed
Automatically adjusts the ventilation speed to the desired room temperature.
Connection to an external air supply system is possible.
Filter status display
Allows for checking the filter cleanliness.
Automatic shut-off function
Stops operation automatically after the set time has elapsed.
The air conditioning system can be programmed (on/off) to activate multiple times over a 24-hour period, based on the desired comfort level.
Automatic temperature reset
By activating the automatic temperature reset, the air conditioner, which was set to a different temperature for a certain period of time, will automatically restore the previous temperature.
Up and down movement of the deflectors
Automatic opening and closing of the deflectors.
Automatic restart
In the event of a temporary power outage, the air conditioner will automatically restart as soon as the power supply is restored.
Weekly timer
The on/off functions can be freely set daily and weekly.
Attractive design
Lightness and elegance are the result of a three-dimensional design that combines rounded surfaces, comfort and well-being.

Technical data sheets

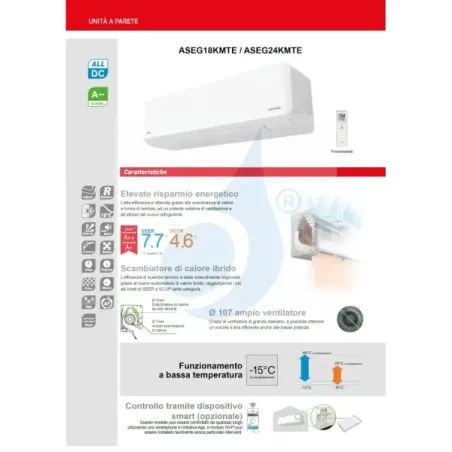

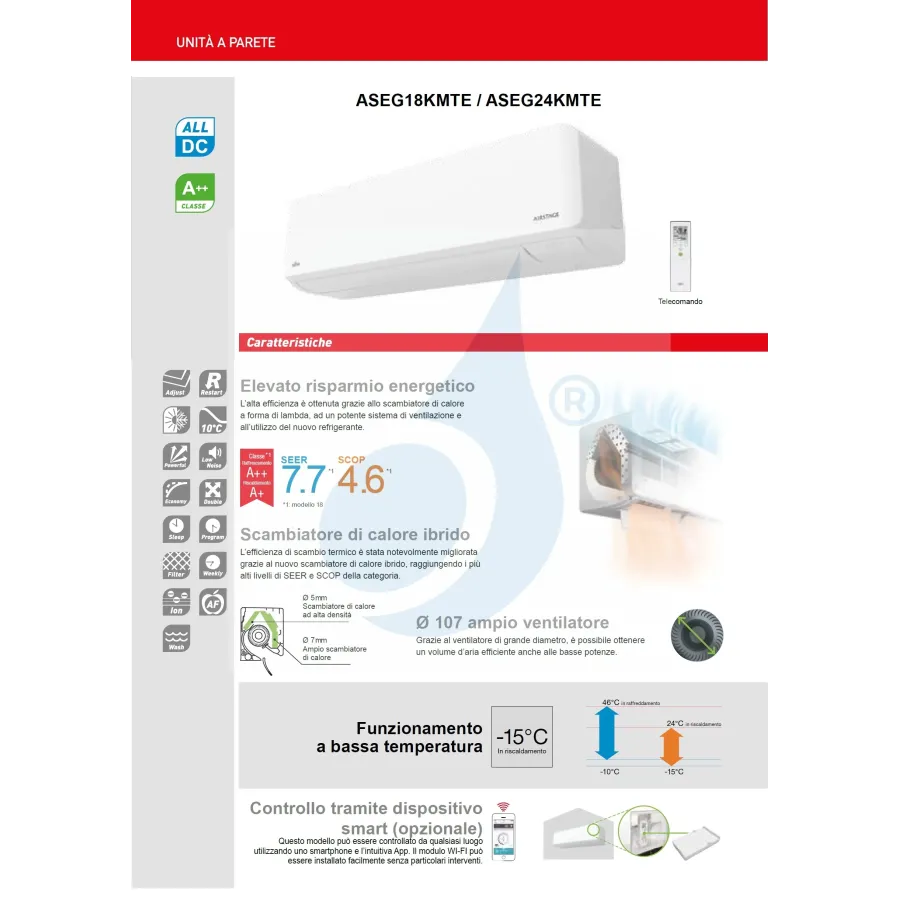

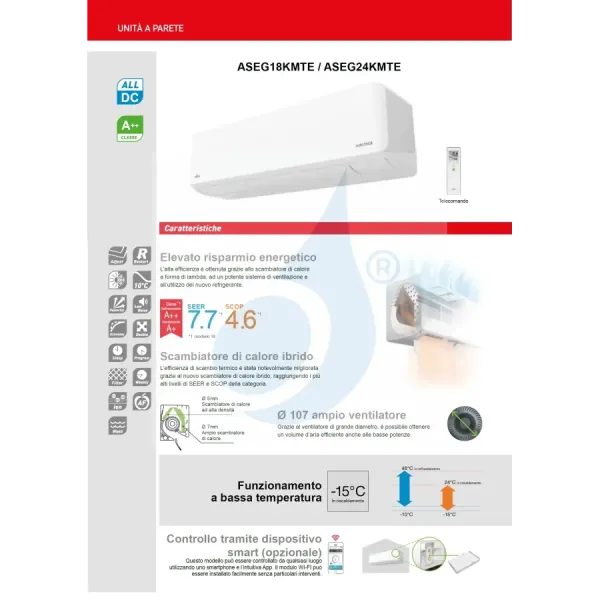

Download wall series card KM Large (IT)

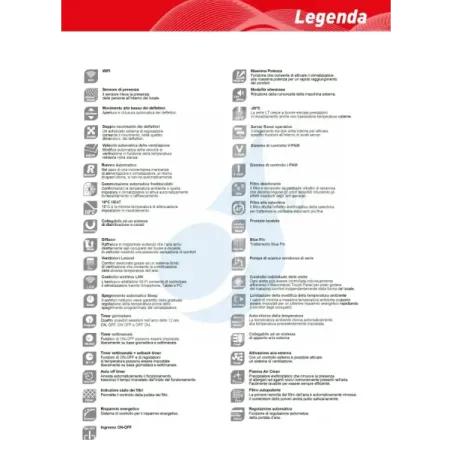

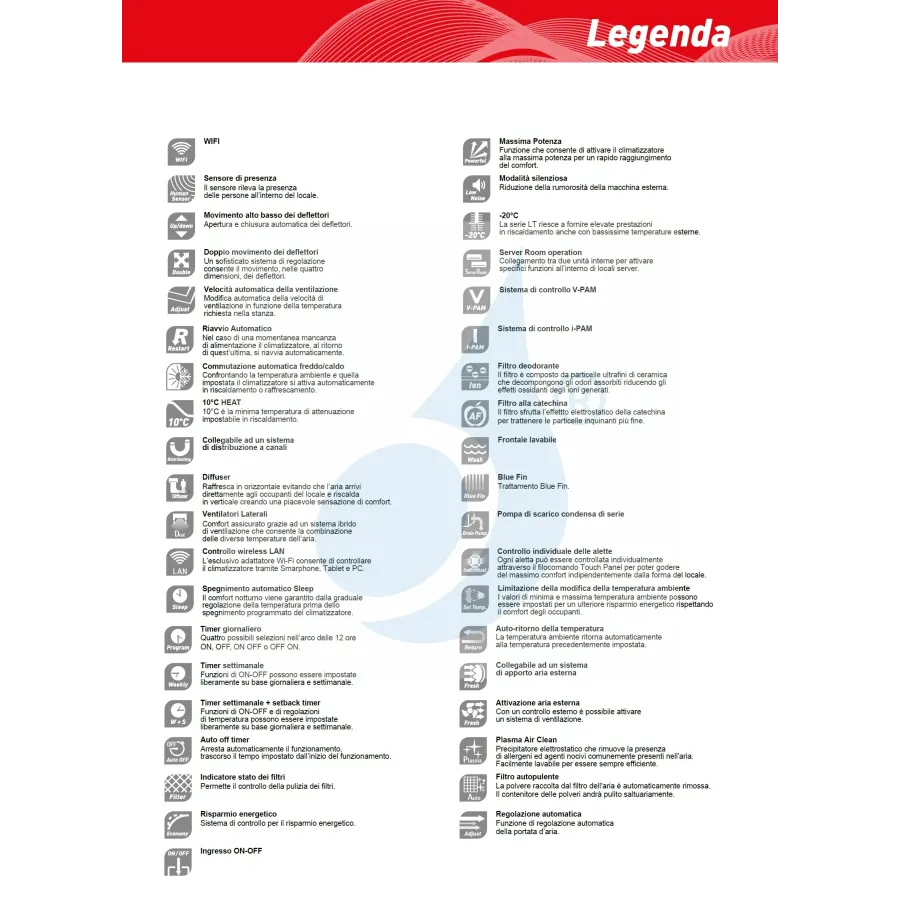

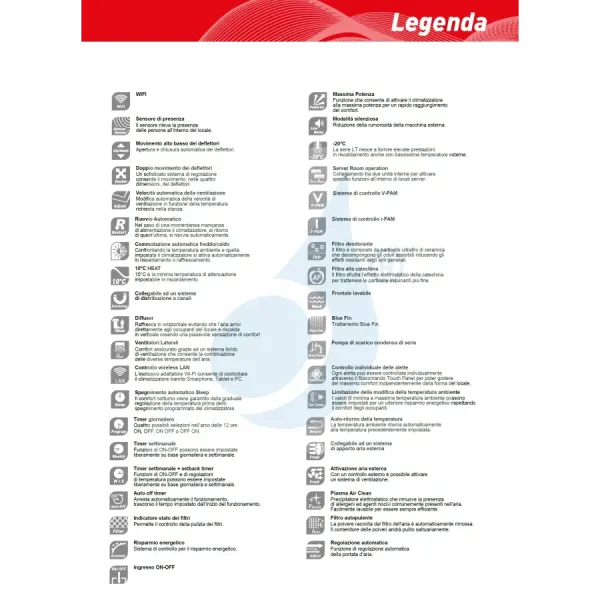

Download Legend Fujitsu Airstage Symbols (IT)
