Fujitsu Mono Split Cassette Unit 9000 Btu AUXG09KVLA AOEG09KBTB Air Conditioner Compact-KV R-32 Series Single-Phase 220V

Fujitsu Mono Split Cassette Unit 9000 Btu AUXG09KVLA AOEG09KBTB Air Conditioner Compact-KV R-32 Series Single-Phase 220V

Fujitsu Mono Split Series Compact Air Conditioner - KV 9000 Btu Heating with Heat Pump with Low Energy Consumption Inverter Technology

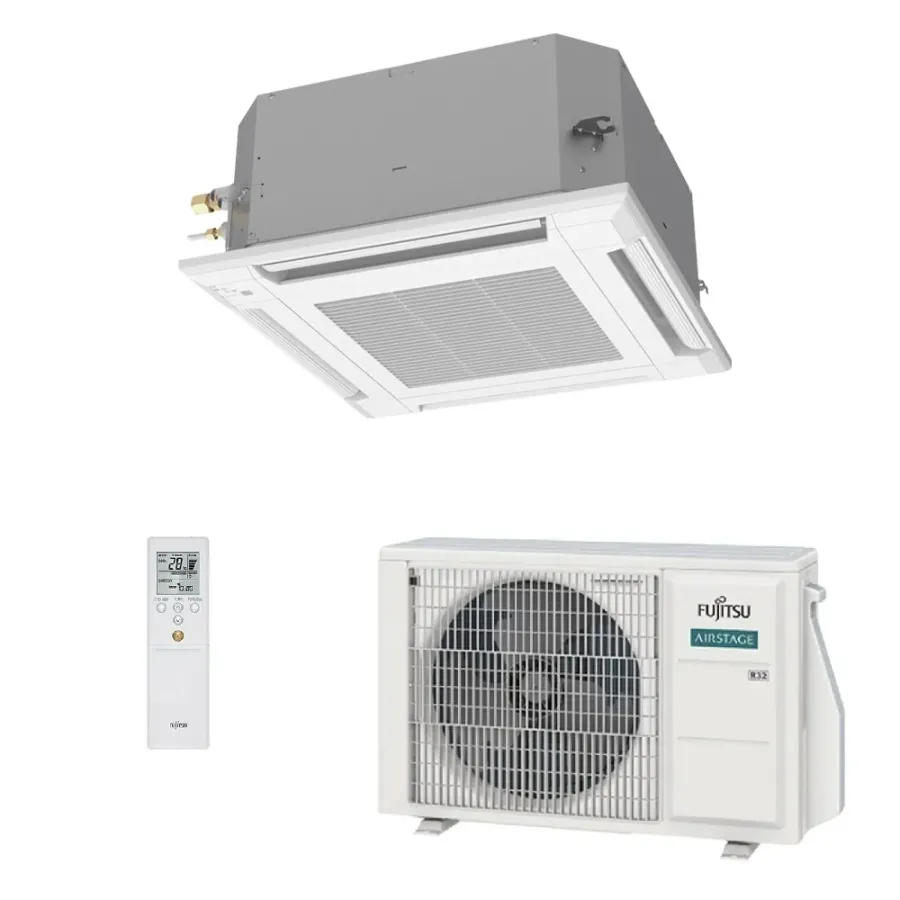

Kit consisting of the following elements:

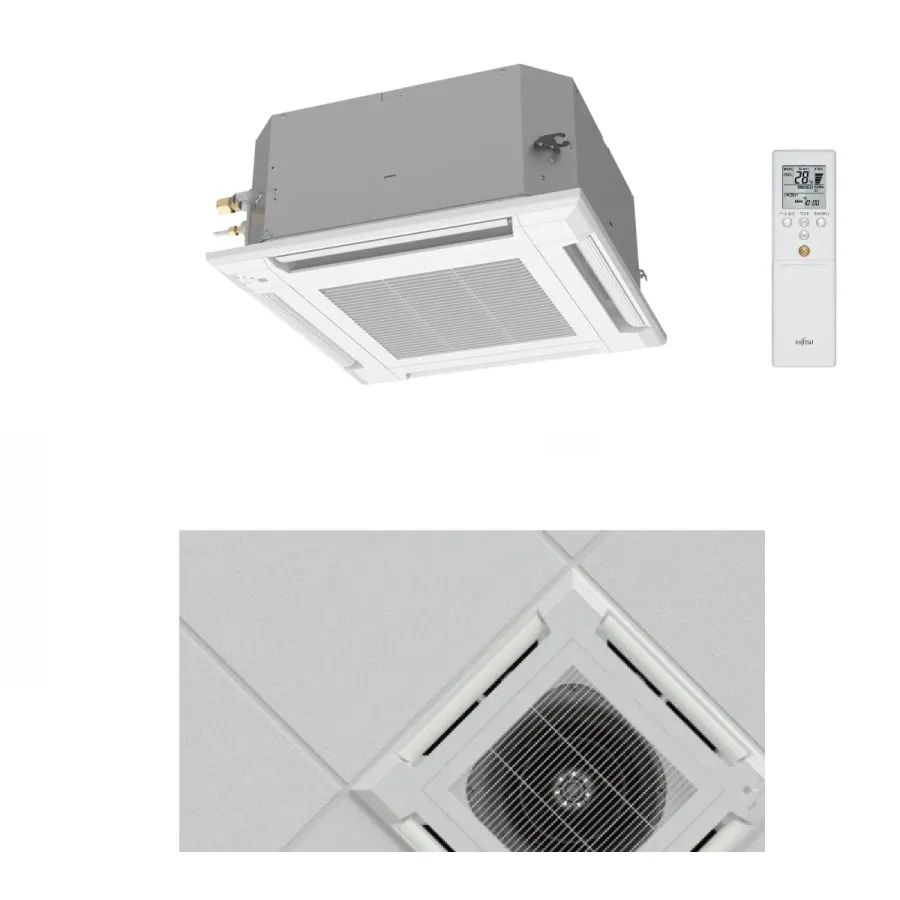

Internal cassette unit AUXG09KVLA 9,000 BTU 2.6 kW Compact KV series
Ideal for rooms of 22 to 27 square meters with an average ceiling height of approximately 2.7 meters.
Dimensions: Length: 570 mm, Height: 245 mm, Depth: 570 mm.
Grid dimensions: Length: 620 mm, Height: 620 mm, Depth: 49 mm.
Standard accessories: Remote control.
Included accessories: Grill UTG-UFYF-W.
Optional accessories: UTY-TFSXW1 or UTY-TFSXJ3 WLAN interface
External unit Fujitsu AOEG09KBTB 9,000 Btu 2.5 kW Single-phase 220 V
Operation with refrigerant gas: R-32
Length: 799 mm - Height: 542 mm - Depth: 290 mm

KV Compact Series

Up-and-down movement of the deflectors
- Automatic opening and closing of the deflectors.
Condensate pump included as standard
Automatic switching between cold and heating
- The air conditioner automatically switches from heating to cooling (and vice versa), depending on the desired room temperature.
Save energy
- In economy mode, the air conditioner reduces energy consumption, resulting in significant savings.
Daily timer
- Four options over 12 hours: ON, OFF, ON OFF or OFF ON.
Automatic ventilation speed
- Automatic adjustment of the ventilation speed to the desired room temperature.
Automatic restart
- In the event of a temporary power outage, the air conditioner will automatically restart as soon as the power supply is restored.
Heating to 10°C
The 10°C temperature maintenance mode prevents the temperature in unused rooms from dropping too low.
Automatic sleep shutdown
Nighttime comfort is ensured by gradually adjusting the temperature before switching off the air conditioning.
Filter status display
Allows for checking the filter cleanliness.
Compact and elegant panel design
The panel's compact and elegant design is a perfect fit for modular suspended ceilings. The dimensions of the 620 x 620 mm grid conceal the presence of the installed device in the room.

Technical data sheets

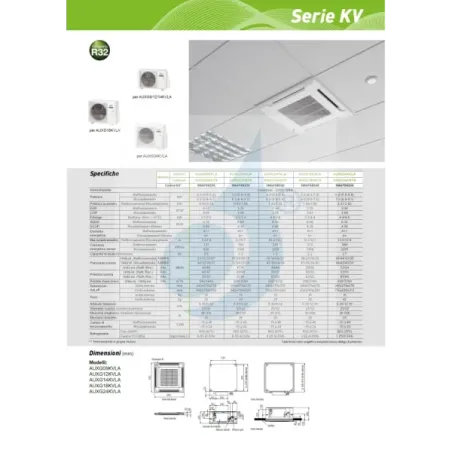

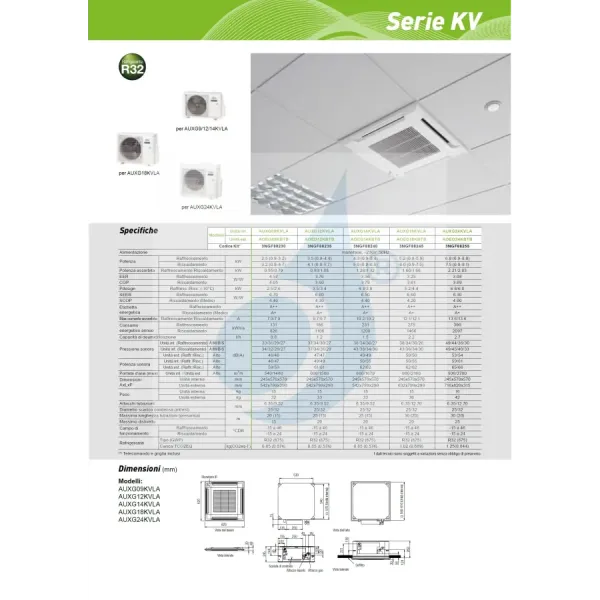

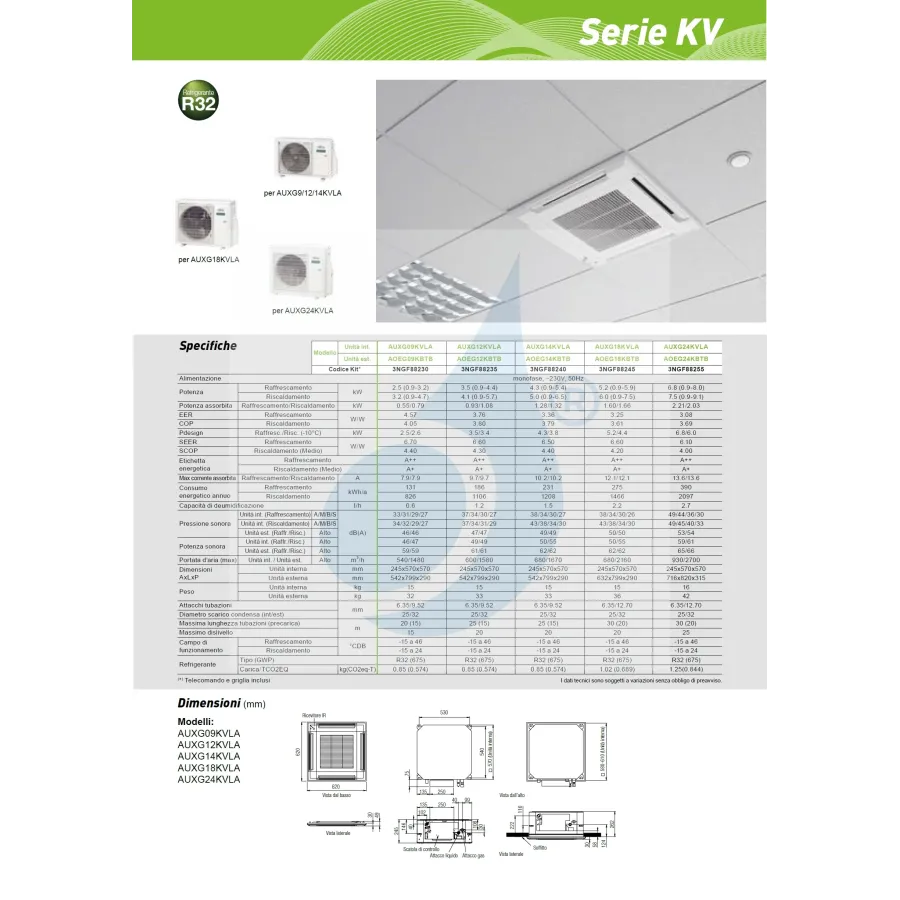

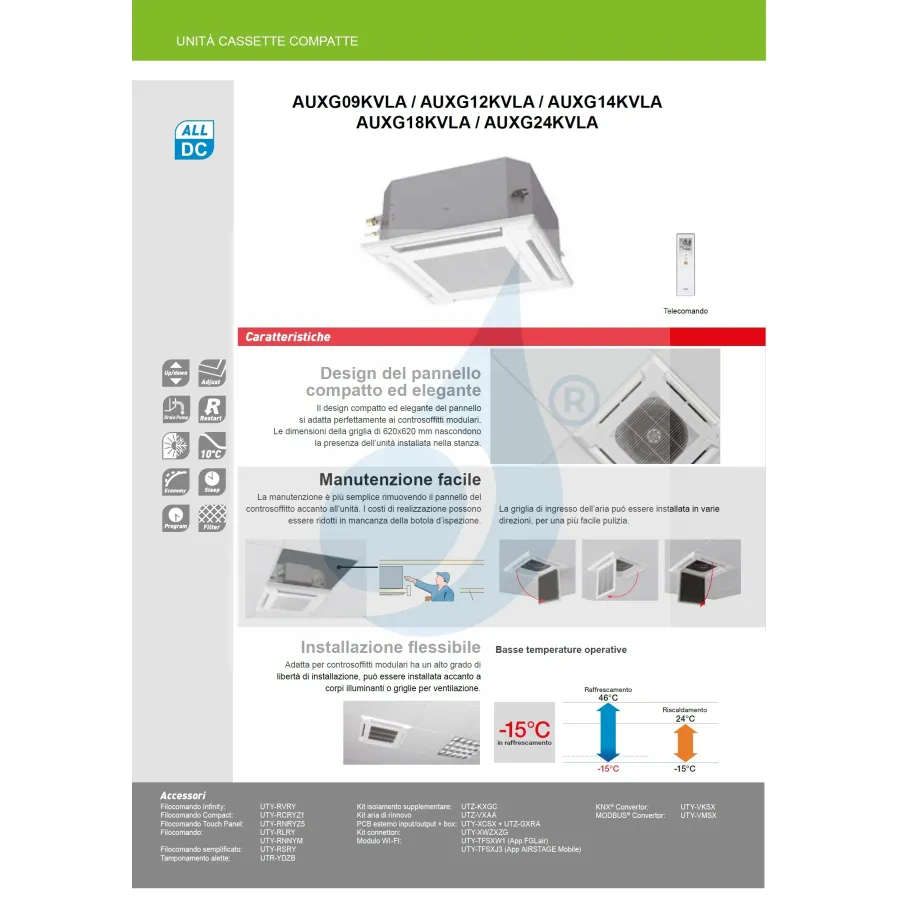

Download map of the Compact Cassette Series KV 60x60 (IT)

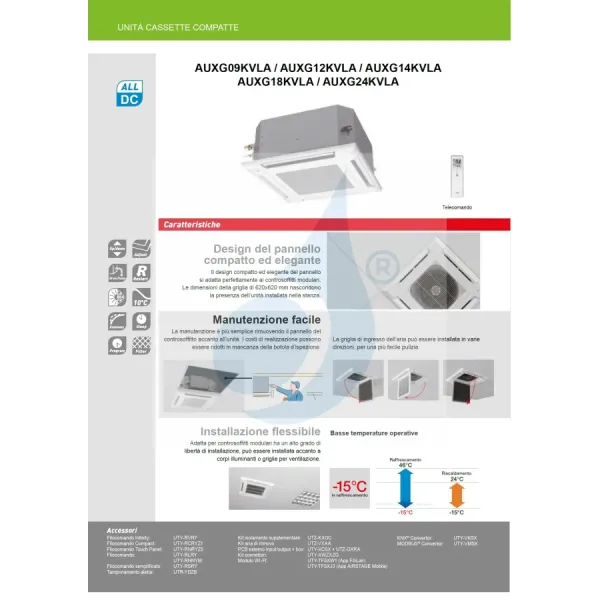

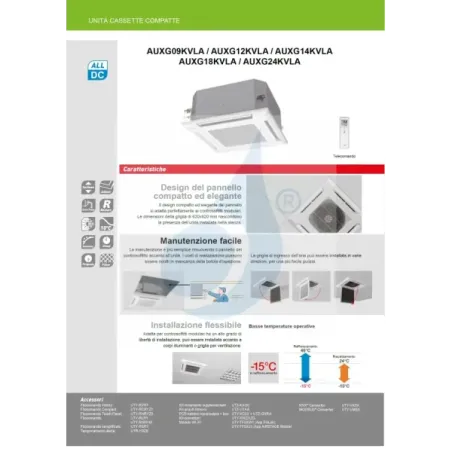

Download Compact MonoSplit cassette card KV 60x60 (IT)

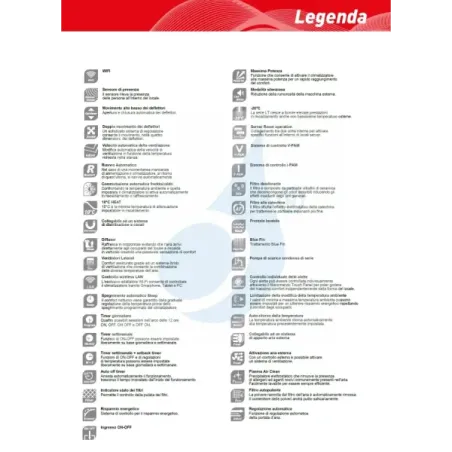

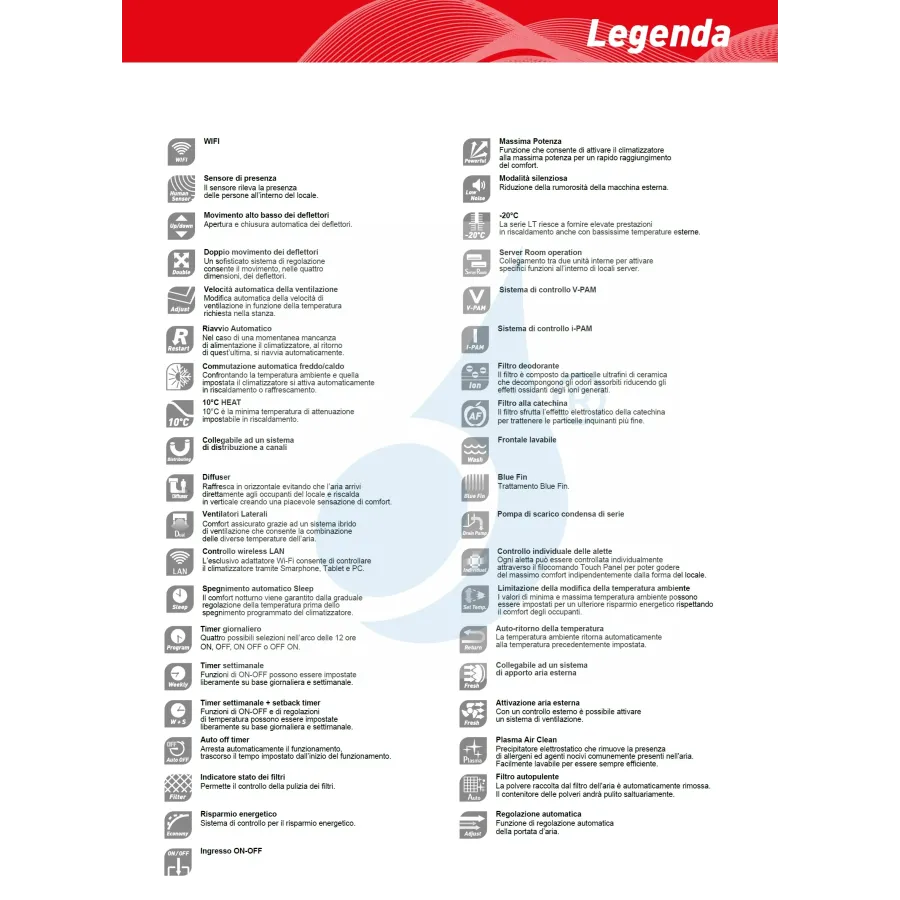

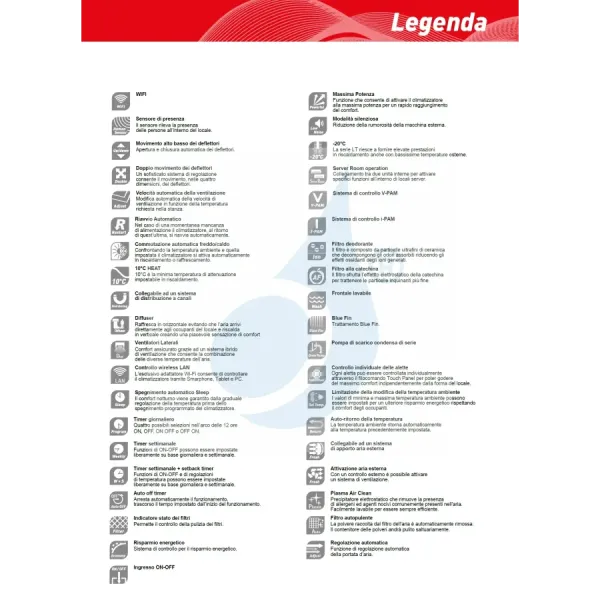

Download Legend Fujitsu Airstage Symbols (IT)
