Fujitsu Mono Split Cassette Unit 30000 Btu AUXG30KRLB AOEG30KBTB Air Conditioner Series KR Circular Flow White R-32 Single Phase

Fujitsu Mono Split Cassette Unit 30000 Btu AUXG30KRLB AOEG30KBTB Air Conditioner Series KR Circular Flow White R-32 Single Phase 220v

Fujitsu Mono Split KR Series Circular Flow White 30000 Btu Air Conditioner with Heat Pump, Low Energy Consumption, Inverter Technology

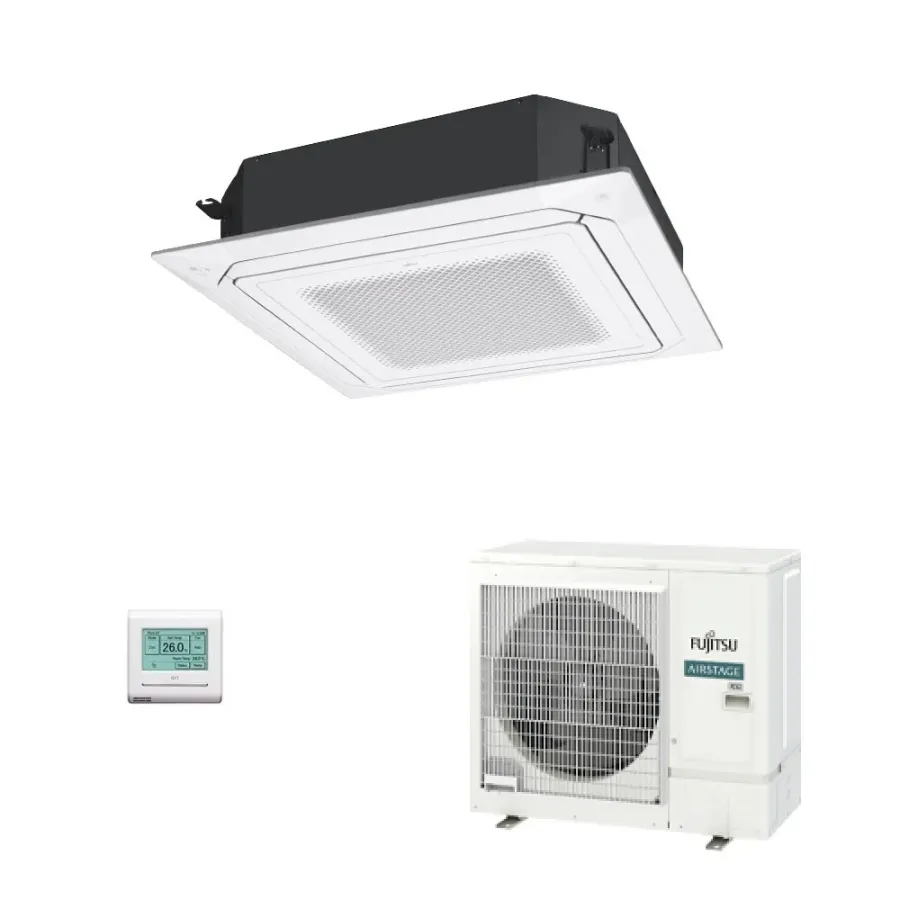

Kit consisting of the following elements:
Internal cassette unit Fujitsu AUXG30KRLB 30,000 Btu series KRLB 9.0 kW
Indicative for environments up to 90 sq m. We recommend expert technical advice.
Length: 840 mm - Height: 288 mm - Depth: 840 mm
Included accessories: Control cable
Included accessories: Grill
Optional accessories: UTY-TFSXW1 or UTY-TFSXJ3 WLAN interface
External unit Fujitsu AOEG30KBTB 30,000 Btu 9.0 kW Single-phase 220 V
Operation with refrigerant gas: R-32
Length: 940 mm - Height: 788 mm - Depth: 320 mm.

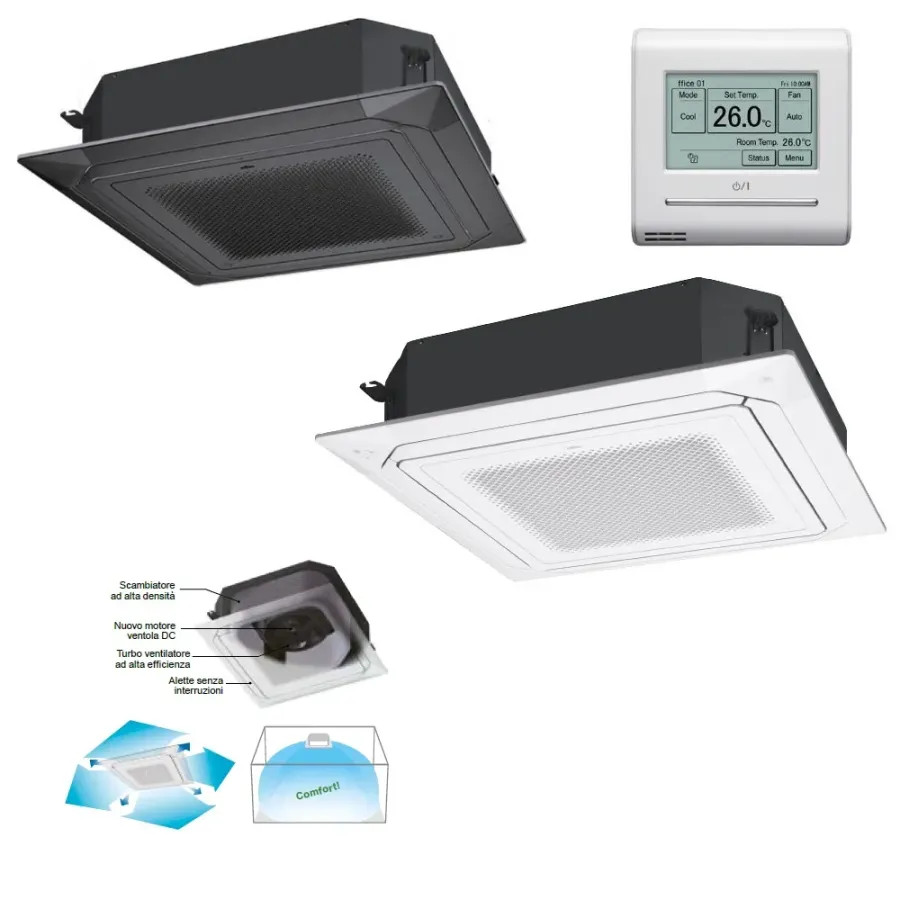

90x90 KR Circular Flow Cassette Unit Series

Up-and-down movement of the air guide vanes
- Automatic opening and closing of the air deflectors.
Automatic restart
- In the event of a temporary power outage, the air conditioner will automatically restart as soon as the power supply is restored.
Connection to a duct distribution system possible
Energy saving
- In economy mode, the air conditioner reduces energy consumption, resulting in significant savings.
Limiting room temperature fluctuations
- The minimum and maximum room temperature values can be adjusted for further energy savings without affecting the comfort of the residents.
Automatic temperature feedback
The room temperature will automatically be reset to the previously set temperature.
Weekly timer
On/off functions can be freely set daily and weekly.
Input/Output
Automatic ventilation speed
Automatic adjustment of the ventilation speed to the desired room temperature.
Automatic switching between heating and cooling
The air conditioner automatically switches from heating to cooling (and vice versa), depending on the desired room temperature.
Connectable to an external air supply system
Blue Fin
Blue Fin treatment (only for mono-split outdoor units). (only 30/36/45/54)
Individual control of the louvers
Each slat can be individually controlled via the wired touch panel control to enjoy maximum comfort regardless of the room shape.
Condensate pump included as standard
Filter status display
Allows for checking the filter cleanliness.
Automatic shut-off
Automatically stops operation after the set time has elapsed since the start of operation.

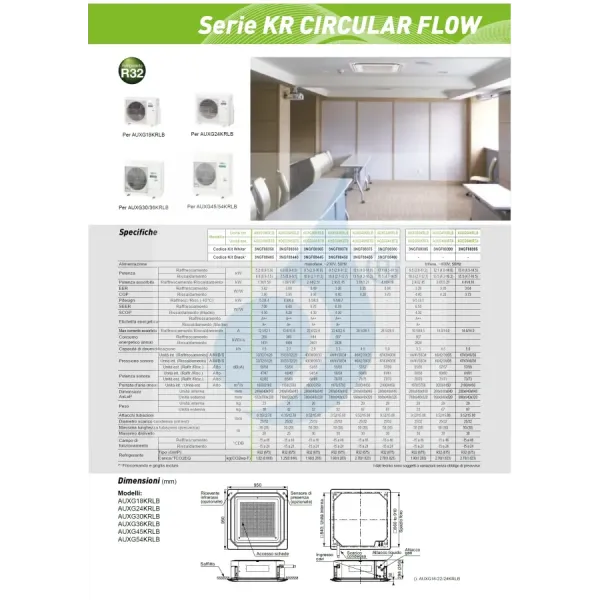

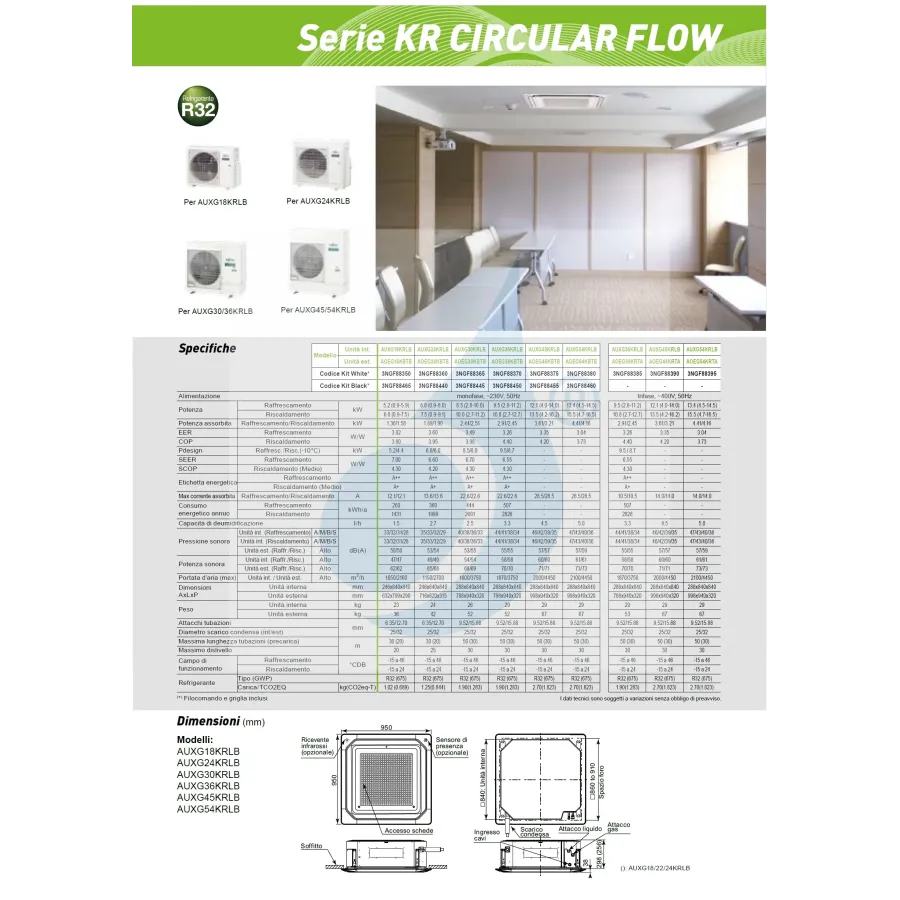

Technical data sheets

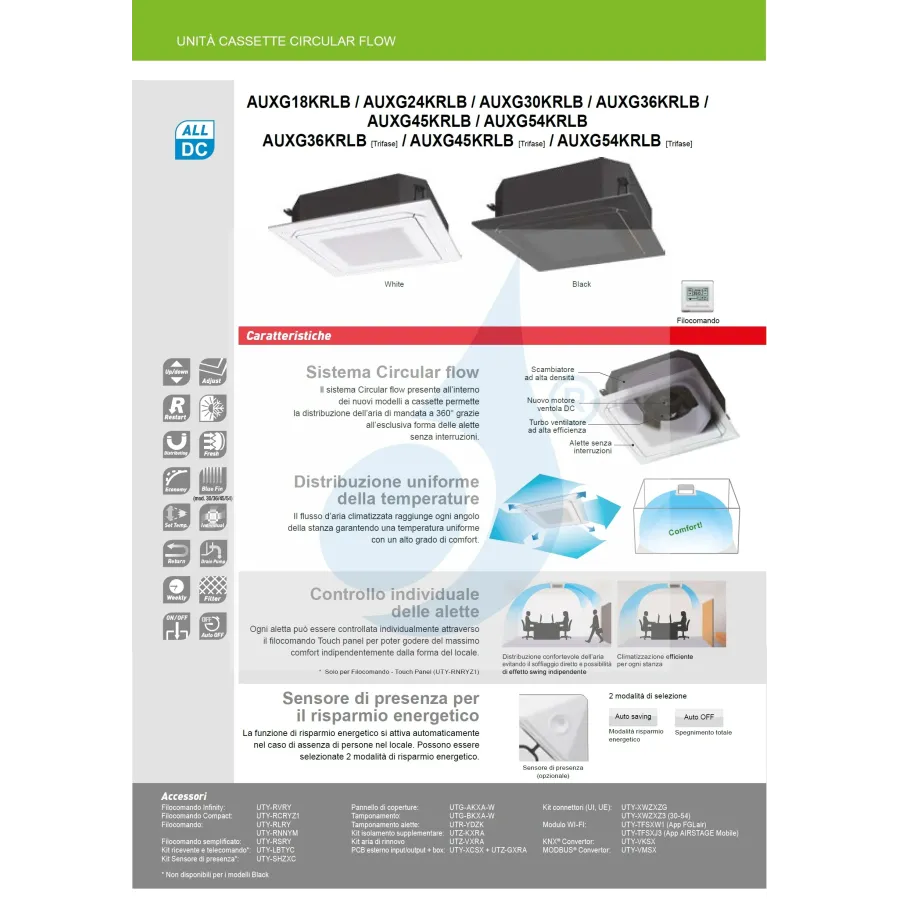

Download cassette series card KR Circular Flow 90x90 (IT)

Download MonoSplit cassette card KR Circular Flow 90x90 (IT)

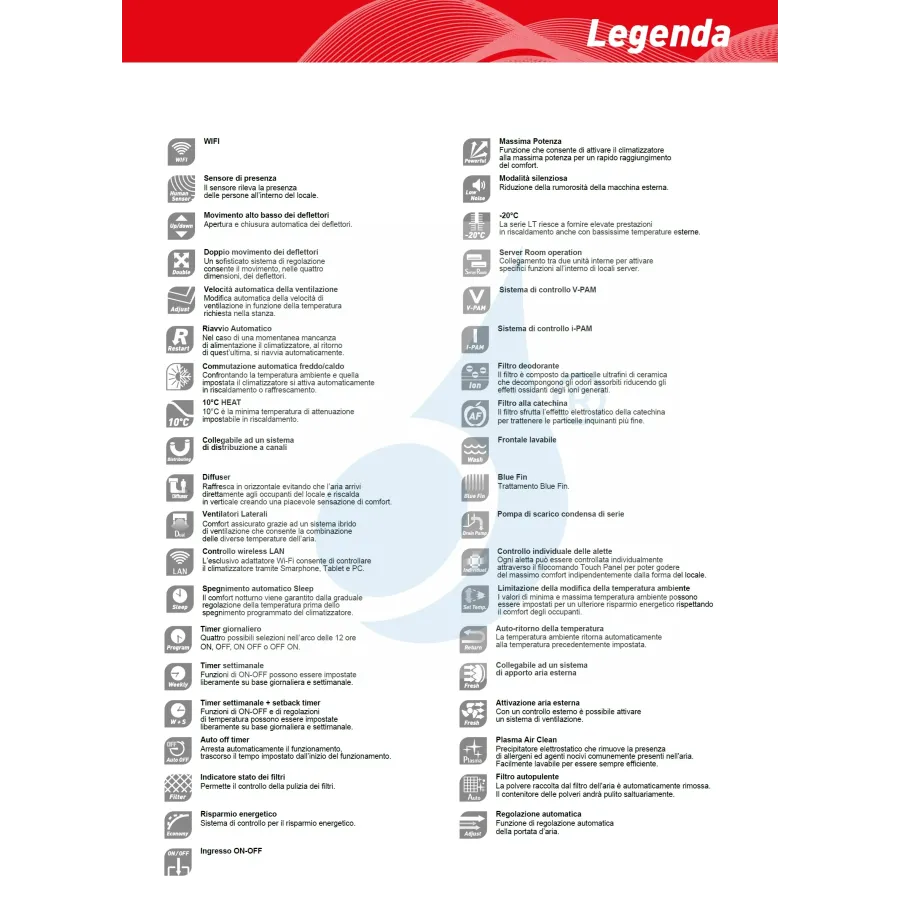

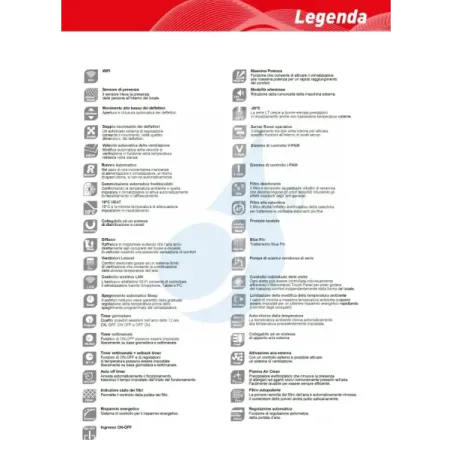

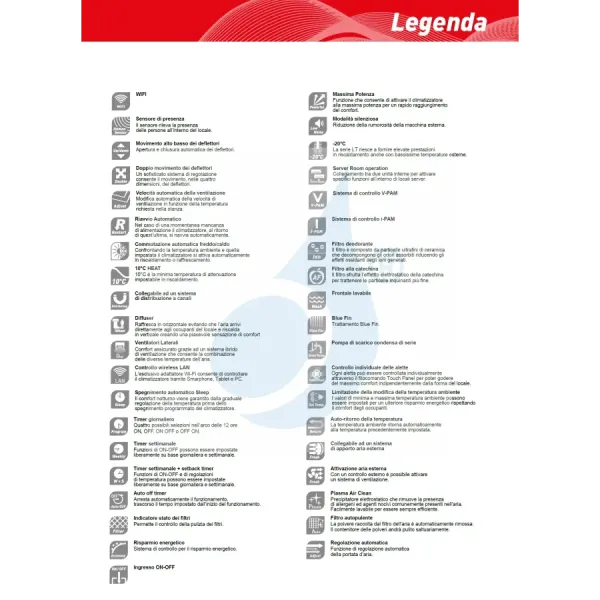

Download Legend Fujitsu Airstage Symbols (IT)
