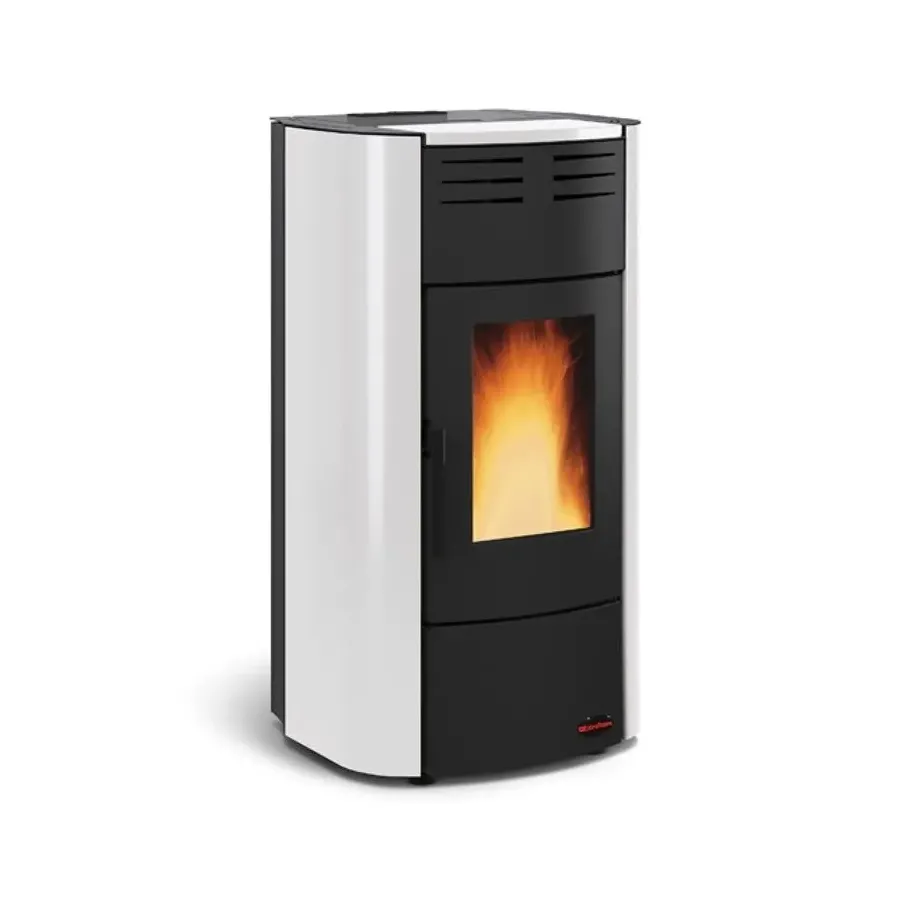

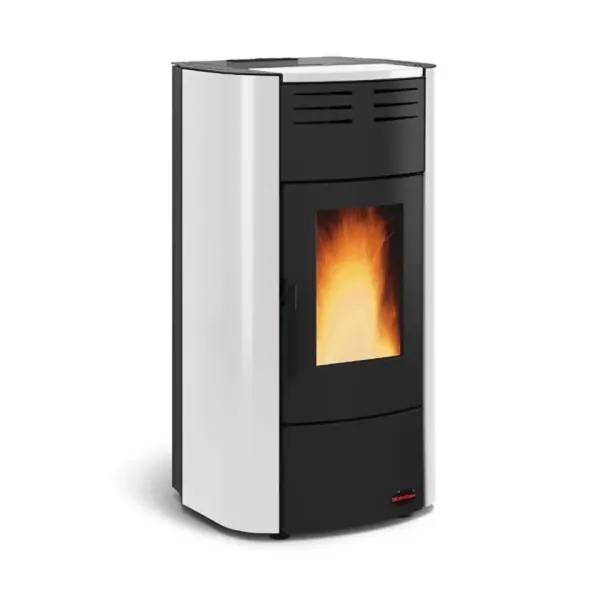

Extraflame Raffaella Idro H15 5.0, 18.1 kW output, steel, white, pellet-fired thermal stove, ventilated, 1289501

Extraflame Raffaella Idro H15 5.0, 18.1 kW output, steel, white, pellet-fired thermal stove, ventilated, 1289501

Product type: Pellet thermal stove
Manufacturer name: Extraflame
Oven type: ventilated
Series: Raffaella Idro H15 5.0
Color: White
Coating type: steel
Rated power: 18.1 kW
Product code: 1289501

Characteristics:
- Combustion chamber made of thick steel
- Cast iron fire holder and brazier
- Tube bundle heat exchanger (manual cleaning)
- Waterproof tank
- Removable ash drawer
- Front compartment ventilation with its own motor, can be switched off
- Ceramic glow plug for fast ignition
- Circulator with PWM control
- Thermal and water pressure safety devices
- 3 bar safety valve
- Expansion vessel
- Ventilation
- Pressure converter with display
- Smoke vent exit point: rear
- FPC Plus function
- IR touch remote control with backlight
- Black LCD display

Product features

Tank safety thermostat
It ensures a consistently high safety standard by preventing the product from overheating in the event of an anomaly.
1. and 2. self-balancing air
Electronically balanced primary and secondary air for optimal combustion and thermal efficiency.
Input for external room thermostat
The product is connected to the house's temperature control devices (thermostats or contacts) to achieve the desired temperature in the rooms.
Safety pressure switches for chimneys??
Check that the smoke extraction is working correctly and stop loading with pellets if necessary to avoid problems with the generator.
Chronothermostat
Chronothermostat with temperature control divided into four daily zones for optimal room control.
Automatic restart after a power outage
After a power outage, the device automatically switches back on after the required test cycle has been performed.
Clean combustion
It increases combustion efficiency and the service life of wear parts while reducing routine cleaning of the combustion chamber.
cast iron doors
The doors of the products, made from high-quality cast iron, remain unchanged over time and guarantee a constant seal.
Glass cleaning system
It is a system that effectively prevents the formation of deposits on the glass of the fire door by means of a specially preheated air path.
Removable charcoal bowl for easy cleaning
The coal basin design system allows for easy removal for quick and complete cleaning.
Self-regulation of the smoke extraction system (encoder)
It keeps the speed of the flue gas engine constant to ensure proper combustion of the product.
Leakage test at 50 Pa (100% of products)
All hermetic products, or those that only have sealed components (such as the tank), are tested under high pressure at the end of the production line to ensure safety and optimal performance.

The data reported on this website was extrapolated from the official websites of Extraflame and La Nordica; changes may be made by the parent company without prior notice. We invite you to view the updated technical specifications on the official website.

Download product sheet
