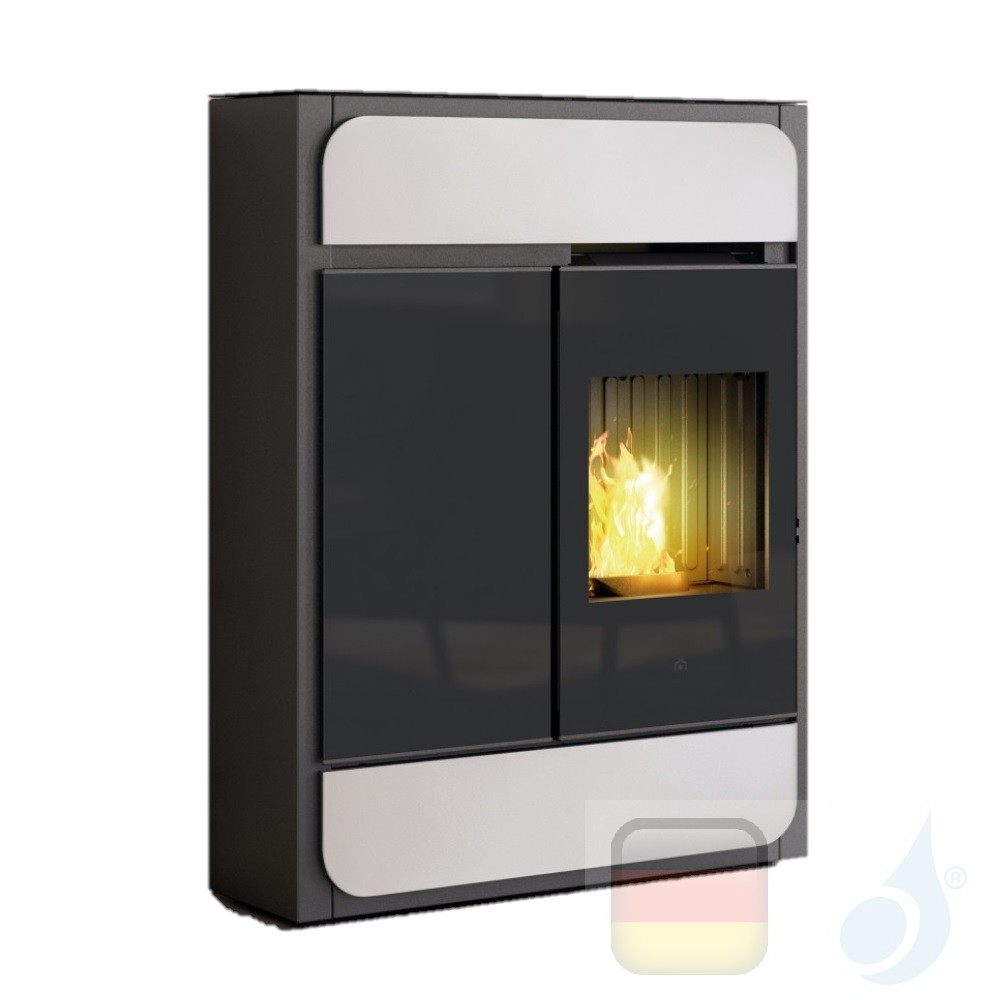

Edilkamin room air-independent pellet stoves, picture Air Tight C 9.1 kW, ductable white, ceramic coating type A+

Edilkamin room air-independent pellet stoves, picture Air Tight C 9.1 kW, ductable white, ceramic coating type A+

GLASS / CERAMICS
Also suitable for passive houses
Reduced depth (30 cm).
- Cast iron stove
- Ceramic glow plug
- upper smoke outlet Ø 8/13 cm coaxial, female
- 1 rear conductive hot air outlet Ø 8 cm (Kit 12/12 to optional)
- daily / weekly programming
- NIGHT
Function - RELAX function (deactivation of ventilation)
- Remote control with display

Room air-independent pellet stoves
Room air independent* pellet stoves, minimal depth, only 30 cm.
Independent of room air
Smoke outlets at the top Ø 13 cm parallel
Cast iron firebox
Leonardo system
Daily/weekly time programming
1 Warm air duct on the back Ø 8 cm
2 independent fans
Handle Fit (optional)
wireless remote control
RELAX function (switchable warm air blower)

Glass front with inserts made of:
Matte white ceramic
Black ceramic
Black glass
natural stone

OPTION
Wi-Fi Kit
GSM for switching the oven on and off via mobile phone.
Warm air distribution openings: Split, Bent, Sharp, Origami
front fan and ducting fan by installing the optional space probe

*according to EN draft standards
, Time programming: Programs the automatic switching on and off at the desired times.
Leonardo systems: Systems that automatically regulate pellet combustion. They constantly measure the key combustion parameters, which are influenced by: - characteristics of the flue (bends, length, shape, diameter) - environmental conditions (wind, air pressure, high-altitude installation) - pellet properties (wood type, density, moisture content) and intervene accordingly to ensure optimal operation and fuel savings.
Air Tight: Room air-independent stoves are designed to be completely hermetically sealed from the environment and are also suitable for modern passive houses.
Fire Control: Automatically changes the combustion to avoid fuel waste.
Climate Comfort: An extension of the automatic operation that ensures the oven switches off when the desired temperature is reached and switches back on when the temperature drops. (Only to be used in small, well-insulated rooms, as the function would otherwise be constantly activated.)
Auto check: Performed when the oven is cold. This function allows any potential problems to be detected immediately.
Relax function: The RELAX function allows you to switch off the warm air blower with a simple hand movement if you wish to enjoy the natural convection heat in peace and quiet.
Automatic cleaning of the combustion chamber: for many hours of continuous operation. Does not replace normal cleaning to be carried out when the furnace is cold (see technical data sheet).
Night function: The NIGHT function is equivalent to automatically switching off the oven at a certain time to enjoy maximum comfort while not wasting fuel.
:
:

TECHNICAL DATA:

Width 80 cm
Depth 30 cm
Height 110 cm
Net power output kW 4.4/9.1
Efficiency % 89
Fuel consumption (pellet) kg/h 1/2,1
Contents of storage container: 22 kg
Burning time without refilling: 10/22 h
Exhaust pipe diameter 8/13 cm
Ø Supply air duct cm 4
Total weight kg 130
Heatable volume (m³): 235
