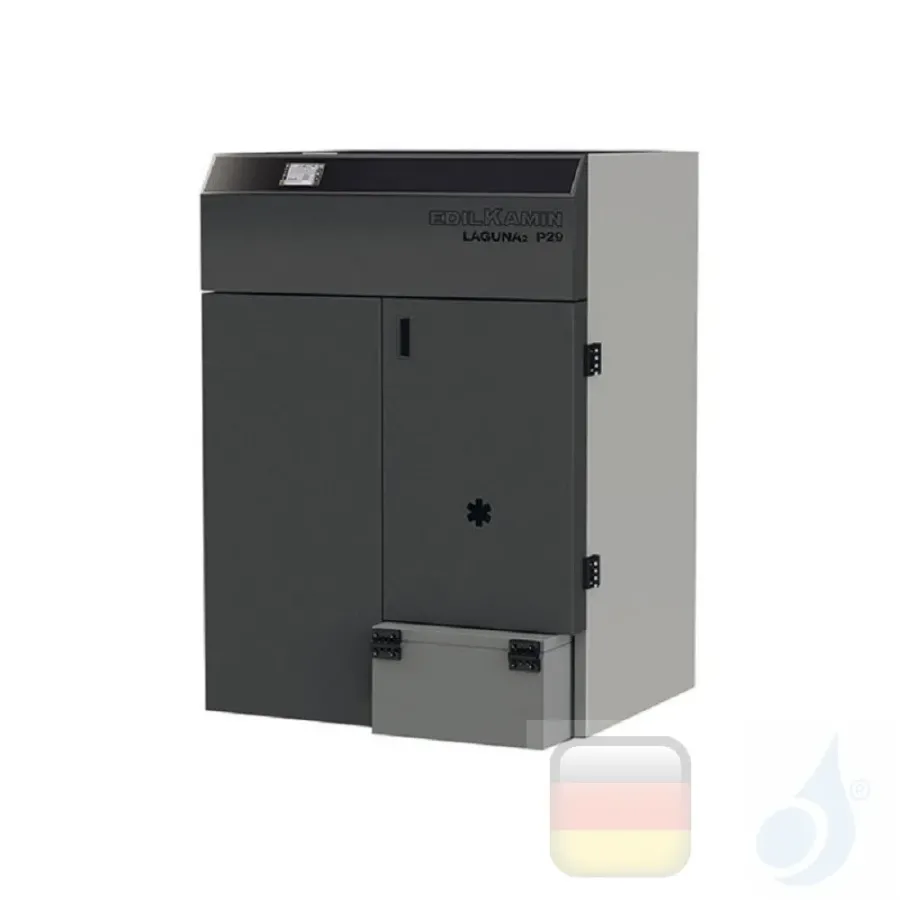

Edilkamin Pellet Boiler Laguna2 P29 28.2 kW A+

Edilkamin Pellet Boiler Laguna2 P29 28.2 kW A+

- Steel stove
- Ceramic glow plug
- rear smoke vent Ø 10 cm, male
- Ash container with compactor, removable with wheels
- automatic cleaning of the coal pan and the turbulators
- Side tank 60-100 kg (Laguna2 P18-Laguna2 P24-Laguna2 P29)
- Automatic cleaning of the turbulators, coal basins and automatic ash removal
- Color touchscreen display
- Daily / weekly hourly programming
Pellet boiler mod. 18/24/29
- Steel firebox
- Smoke vent Ø 10 cm
- Color touchscreen for overview
- Daily/weekly programming
- Side tank 60 kg (Laguna2 P 18)
- Side tank 100 kg (Laguna2 P 24/29)
- Automatic cleaning of the flue gas vortex, the coal pan and automatic ejection of the ash
- System diagrams configurable from the control panel with terminal strip for external probes

CLASS 5 ACCORDING TO EN STANDARD 303-5 2012

, Overview control panel: For controlling and monitoring all operating phases of the furnace and for setting the parameters
Time programming: Programs the automatic switching on and off at the desired times.
Leonardo systems: Systems that automatically regulate pellet combustion. They constantly measure the key combustion parameters, which are influenced by: - characteristics of the flue (bends, length, shape, diameter) - environmental conditions (wind, air pressure, high-altitude installation) - pellet properties (wood type, density, moisture content) and intervene accordingly to ensure optimal operation and fuel savings.
Fire Control: Automatically changes the combustion to avoid fuel waste.
Automatic cleaning of the combustion chamber: for many hours of continuous operation. Does not replace normal cleaning to be carried out when the furnace is cold (see technical data sheet).
Climate Comfort: An extension of the automatic operation that ensures the oven switches off when the desired temperature is reached and switches back on when the temperature drops. (Only to be used in small, well-insulated rooms, as the function would otherwise be constantly activated.)
Auto check: Performed when the oven is cold. This function allows any potential problems to be detected immediately.

TECHNICAL DATA:

Laguna2 P29
Width 91 cm
Depth 79 cm
Height 128 cm
Combustion chamber output kW 28.2
Power output delivered to water: kW 4.7/25.8
Efficiency % 91.4
Fuel consumption kg/h 1.1/5.9
Contents of storage container: 100 kg
Continuous operation h 17/91
Water content l 65
Exhaust pipe diameter: 10 cm
Ø Air supply duct cm 6
Total weight kg 364
Heatable volume (m³): 670
