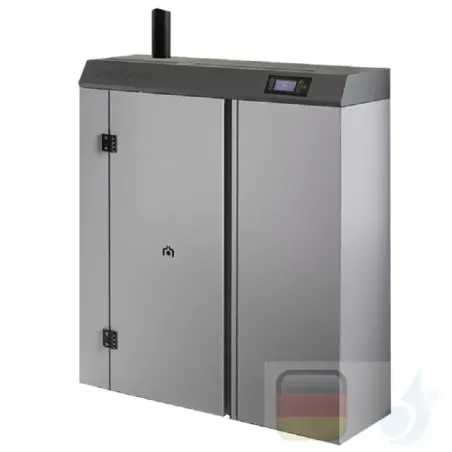

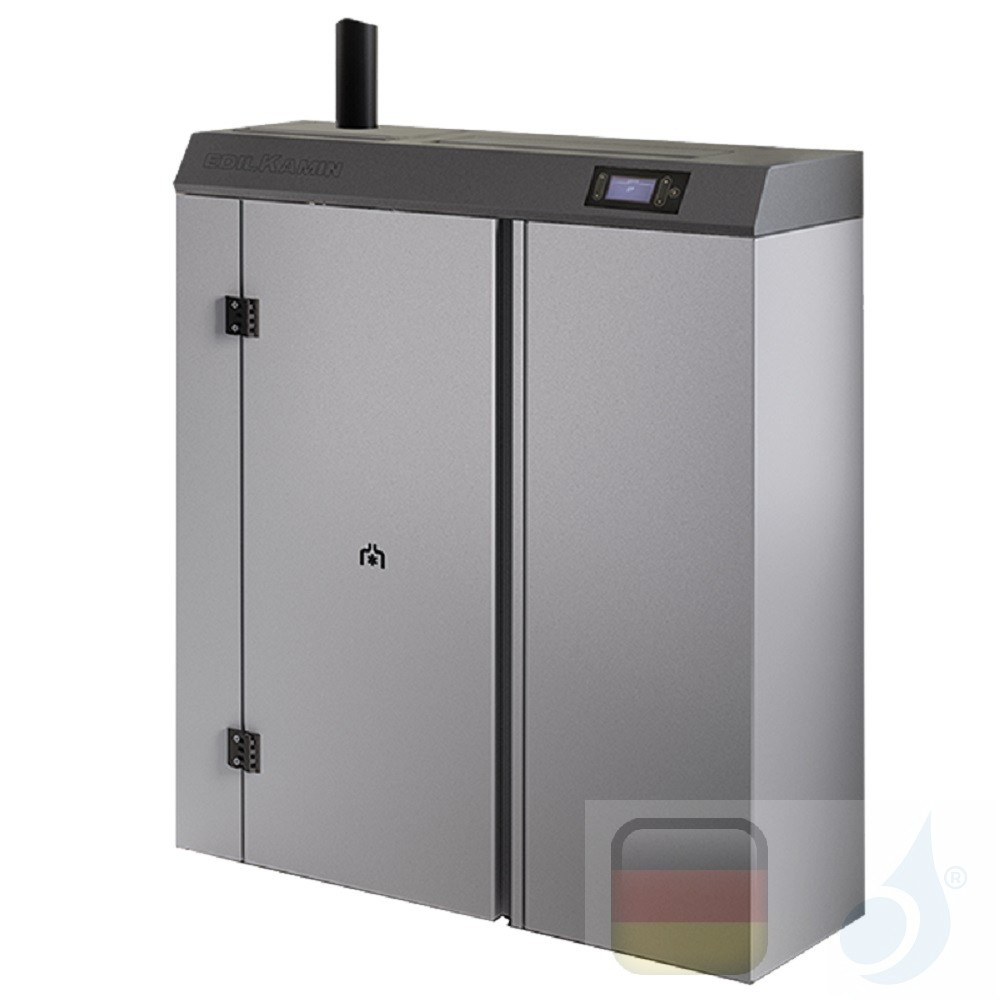

Edilkamin Pellet Boiler Gora Slim 21.5 kW A+ Closed expansion vessel included

Edilkamin Pellet Boiler Gora Slim 21.5 kW A+ Closed expansion vessel included

Gora Slim
- Steel stove
- Ceramic glow plug
- Smoke vent Ø 8 cm top, female
- 40 kg tank
- double insulated door
- closed expansion vessel
- Front display
- daily / weekly programming

PELLET BOILER
- Steel firebox
- Smoke outlet Ø 8 cm at the top, groove
- Tank 40 kg
- Double insulated door
- Control panel with front display
- Daily/weekly time programming
- Closed expansion vessel included
- System diagrams configurable from the control panel with terminal strip for external probes
- Double cleaning of the combustion bowl and turbulators (EKleaner)
- Leonardo System

Class 5 according to EN 303-5 standards

Optional:
- Kit WI-FI H
- Hydraulic kits: (mandatory for correct operation)
, Overview control panel: For controlling and monitoring all operating phases of the furnace and for setting the parameters
Time programming: Programs the automatic switching on and off at the desired times.
Leonardo systems: Systems that automatically regulate pellet combustion. They constantly measure the key combustion parameters, which are influenced by: - characteristics of the flue (bends, length, shape, diameter) - environmental conditions (wind, air pressure, high-altitude installation) - pellet properties (wood type, density, moisture content) and intervene accordingly to ensure optimal operation and fuel savings.
Fire Control: Automatically changes the combustion to avoid fuel waste.
Automatic cleaning of the combustion chamber: for many hours of continuous operation. Does not replace normal cleaning to be carried out when the furnace is cold (see technical data sheet).
Climate Comfort: An extension of the automatic operation that ensures the oven switches off when the desired temperature is reached and switches back on when the temperature drops. (Only to be used in small, well-insulated rooms, as the function would otherwise be constantly activated.)

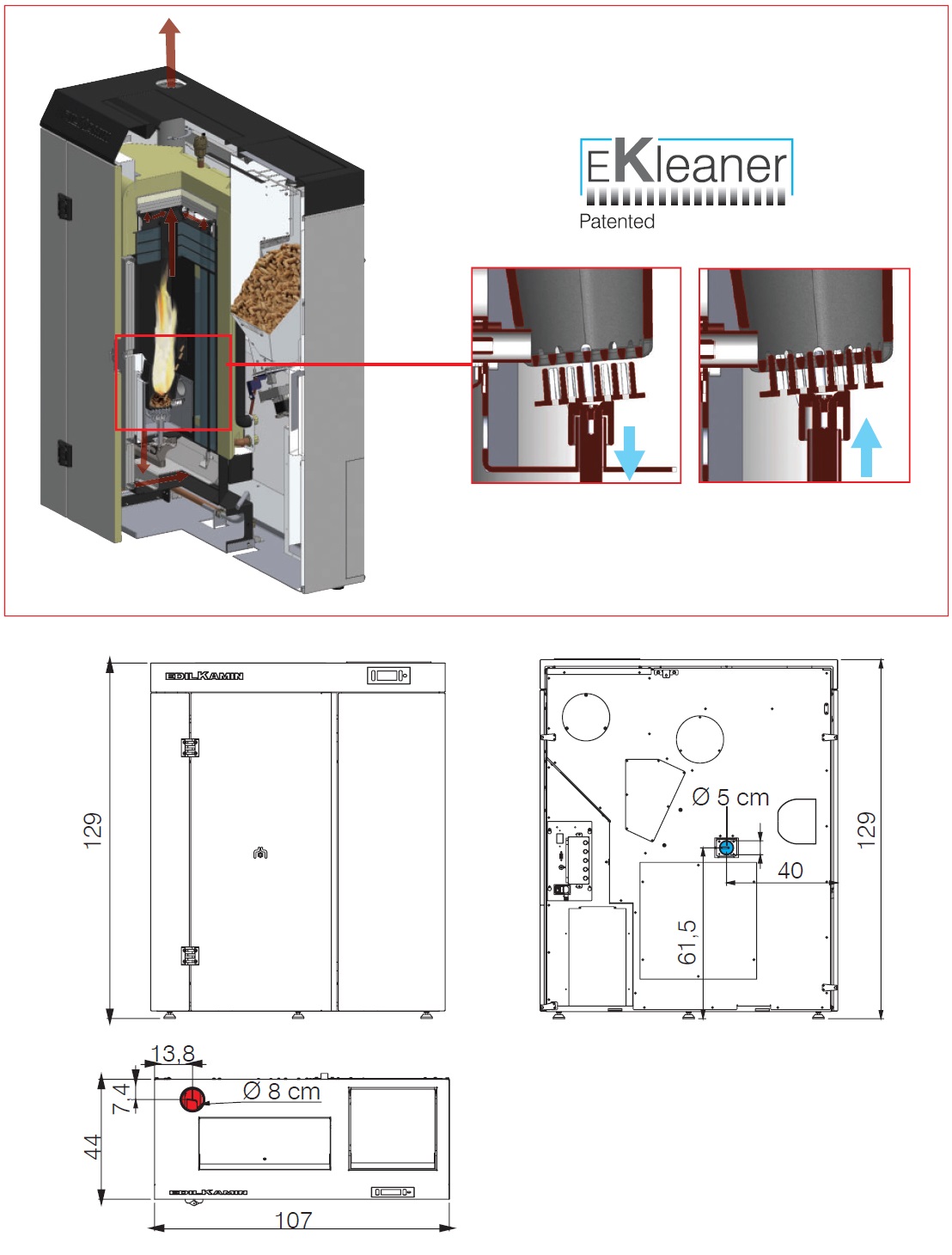

Ekleaner: The eKleaner system performs an automatic double cleaning process in the burner bowl and in the turbulators.

TECHNICAL DATA:

Width 107 cm
Depth 44 cm
Height 129 cm
Combustion chamber output kW 5.7/20.1
Power output delivered to water: kW 5.7/20.1
Efficiency % 93.4
Fuel consumption kg/h 1.3/4.5
Contents of storage container: 40 kg
Continuous operation h 9/31
Water content l 20
Exhaust pipe diameter cm 8
Ø Air supply duct cm 5
Total weight kg 233
Heatable volume (m³): 525
