Midea Duo Split Series air conditioner, ducted, BTU heating with highly efficient heat pump with low energy consumption, dehumidifier

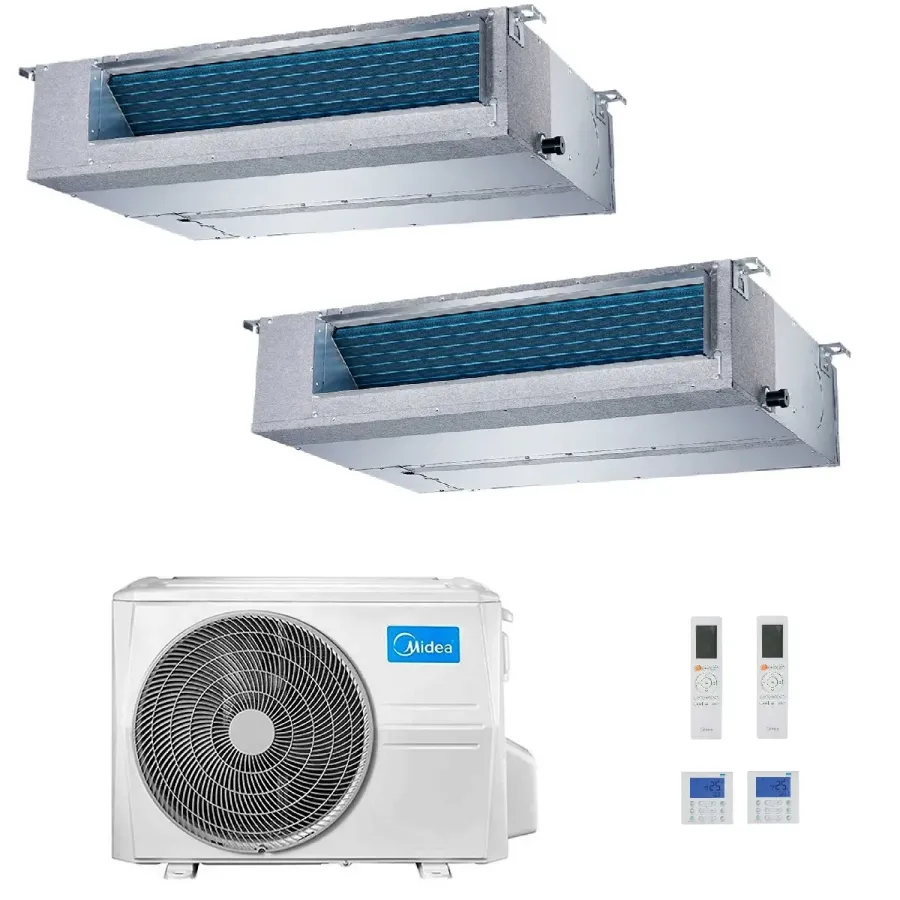

Kit consisting of the following elements:

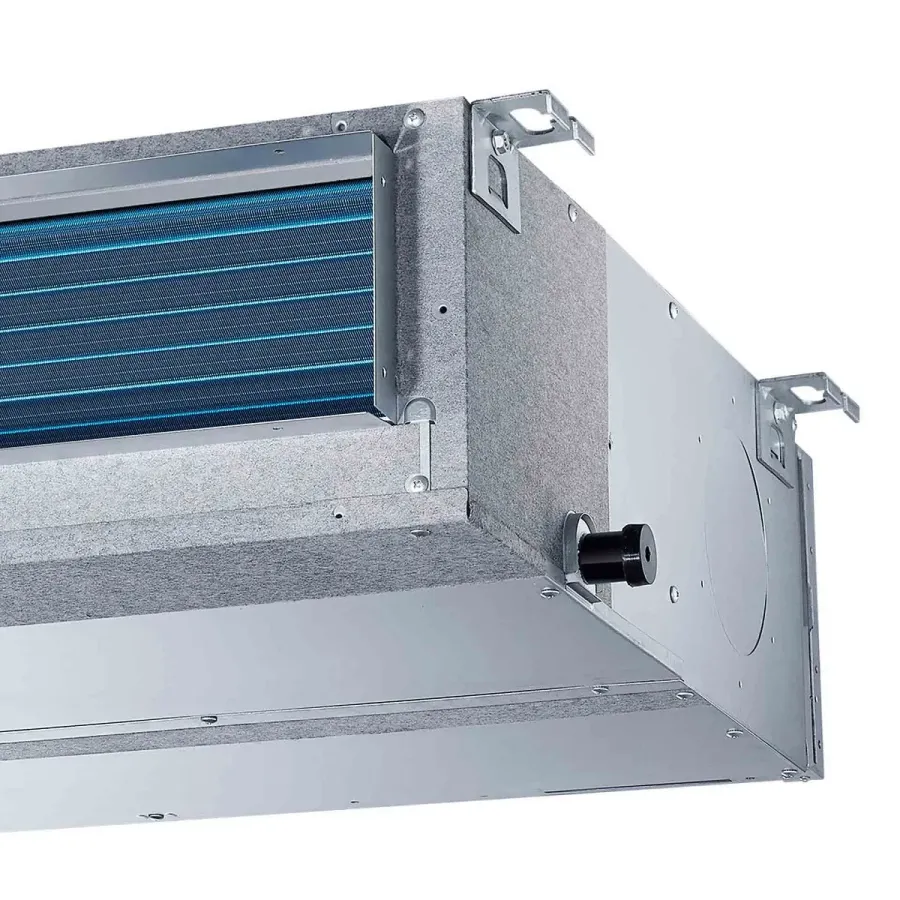

MTI-09HWFNX(GA) 9,000 BTU 2.5 kW Series Ducted
Ideal for environments of 22 to 27 square meters with an average height of approximately 2.7 meters.
Width: 794 mm, Height: 621 mm, Depth: 200 mm.
Standard accessories: Infrared remote control and wired control.
Optional accessory: WLAN interface code WF-60B1-C.
MTIU-12HWFNX(GA) 12,000 BTU 3.5 kW Series Ducted
Ideal for environments of 27 to 35 square meters with an average height of approximately 2.7 meters.
Width: 794 mm, Height: 621 mm, Depth: 200 mm.
Standard accessories: Infrared remote control and wired control.
Optional accessory: WLAN interface code WF-60B1-C.
M2OH-14HFN8-Q 14,000 BTU 4.2 kW
Operation with refrigerant gas: R-32
Width: 805 mm, Height: 554 mm, Depth: 330 mm.
Minimum number of internal units that can be connected: 2.
Maximum number of connectable indoor units: 2.

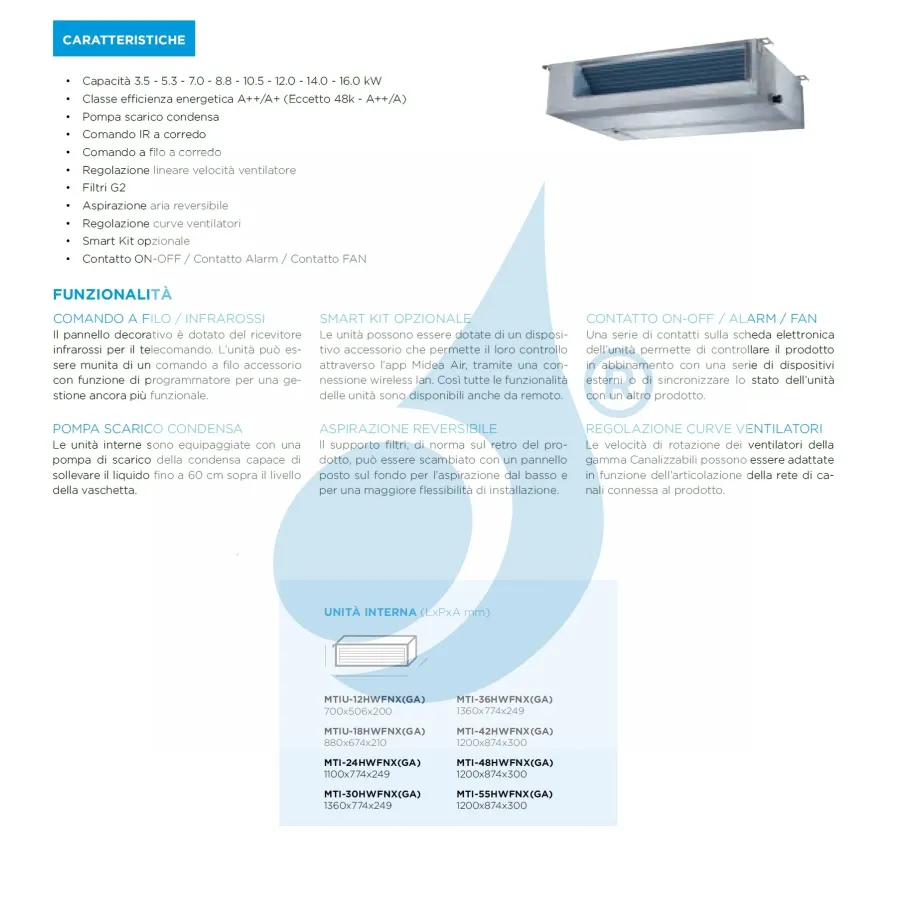

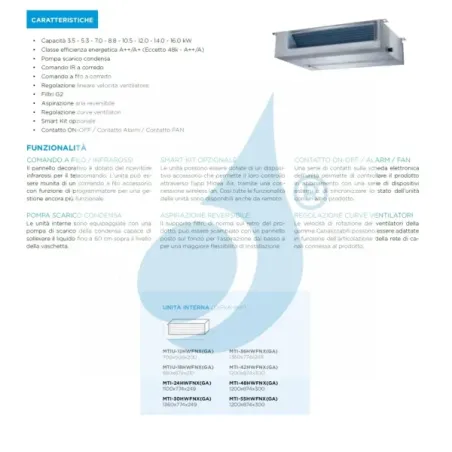

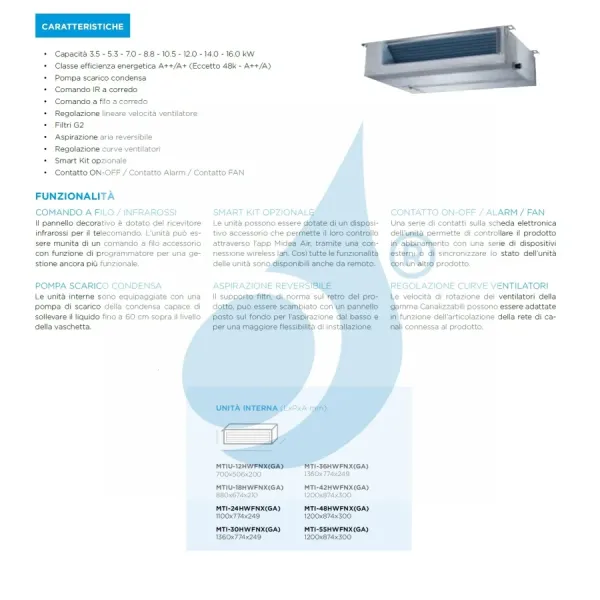

Ductable series

Shared power 2.5 - 3.5 - 5.3 kW
Linear fan speed adjustment
G2 filter
WIRE CONTROL / INFRARED
The decorative panel is equipped with an infrared receiver for remote control. For even more advanced control options, the unit can be equipped with an additional wired remote control with programmable functionality. OPTIONAL SMART KIT (Kit code WF-60B1-C)
The devices can be equipped with an additional unit that enables control via the Midea Air app using a Wi-Fi connection. This makes all device functions available remotely. ON/OFF / ALARM / FAN CONTACT
A series of contacts on the device's circuit board allow you to control the product in combination with various external devices or to synchronize the device's status with another product. CONDENSATE DRAIN PUMP
The indoor units are equipped with a condensate drain pump that can lift the liquid up to 60 cm above the level of the tray. REVERSIBLE SUCTION
The filter holder, normally located on the back of the product, can be replaced with a plate mounted on the underside to allow for bottom extraction and greater installation flexibility. FAN CURVE ADJUSTMENT
The speeds of the fans in the duct area can be adjusted depending on the structure of the duct network connected to the product.

Datasheet
