Hisense Duo Split Cassette Unit 18000+18000 Btu 4AMW105U4RAA ACT52UR4RCC8 ACT52UR4RCC8 Air Conditioners 60x60 R-32 WiFi Opz

Hisense Duo Split Cassette Unit 18000+18000 Btu 4AMW105U4RAA ACT52UR4RCC8 ACT52UR4RCC8 Air Conditioners 60x60 R-32 WiFi Opz

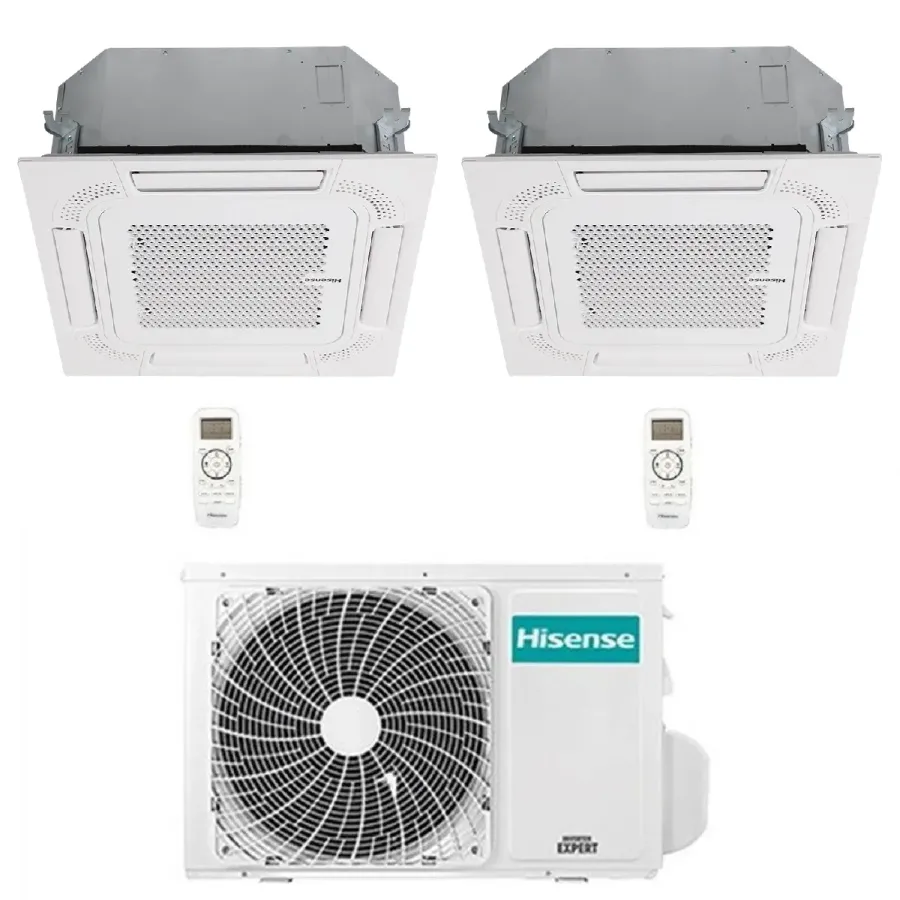

Hisense Duo Split Series 60x60 air conditioner with optional WiFi, 18000+18000 Btu heating with highly efficient, low-energy heat pump, dehumidifier, grille and infrared remote control included

Kit compost based on the following elements:

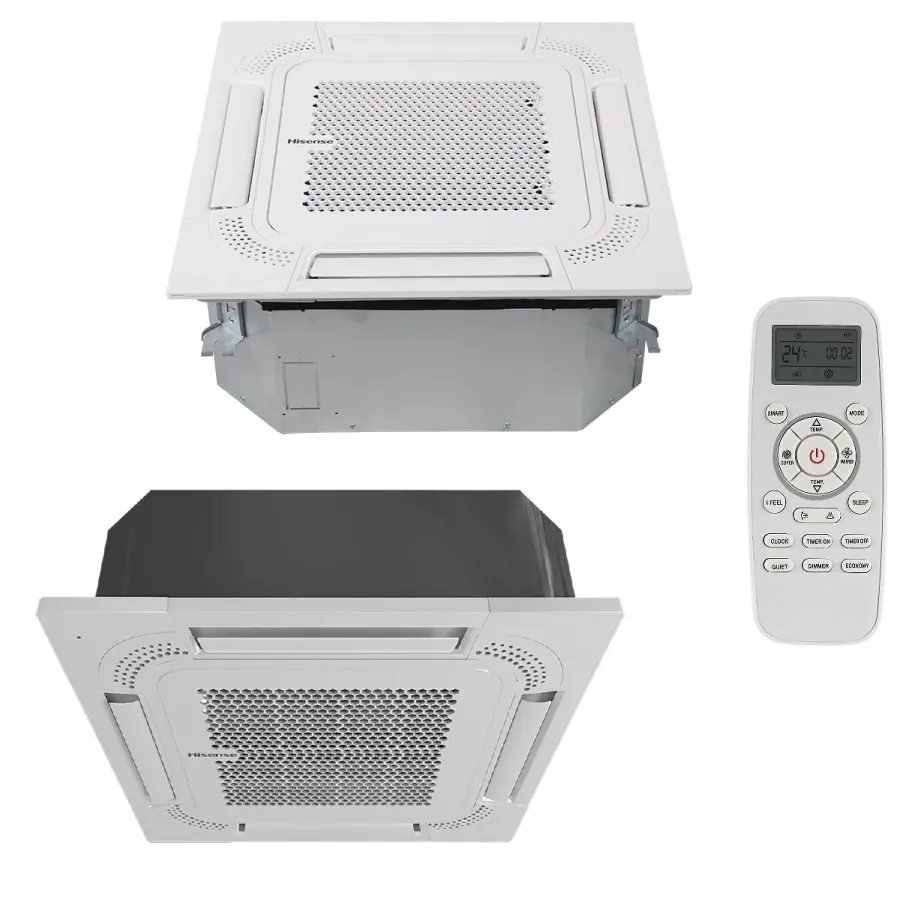

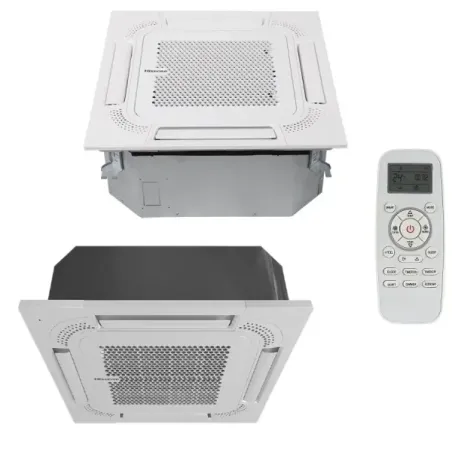

ACT52UR4RCC8 18,000 BTU 5.0 kW Series 60x60
Ideal for environments of 42 to 54 square meters with a height of approximately 2.7 meters.
Dimensions: Width: 570 mm, Height: 570 mm, Depth: 215 mm.
Grill dimensions: Width: 620 mm, Height: 620 mm, Depth: 40 mm.
Standard accessories: Infrared remote control.
Included accessories: Grill PE-QEA-LD.
ACT52UR4RCC8 18,000 BTU 5.0 kW Series 60x60
Ideal for environments of 42 to 54 square meters with a height of approximately 2.7 meters.
Dimensions: Width: 570 mm, Height: 570 mm, Depth: 215 mm.
Grill dimensions: Width: 620 mm, Height: 620 mm, Depth: 40 mm.
Standard accessories: Infrared remote control.
Included accessories: Grill PE-QEA-LD.
4AMW105U4RAA 36,000 BTU 10.5 kW
Operation with refrigerant gas: R-32
Width: 950 mm; Height: 840 mm; Depth: 340 mm.

60x60 series

COMPACT DESIGN
- The 60x60 cassettes have a height of only 21.5 cm and can easily be installed in any suspended ceiling.
INDIVIDUAL FLIP MANAGEMENT
- With the Round Flow cassette units, each fin can be individually controlled via the included remote control (RCH-RVD01) or via the wired controller YXE-E01U(E). Thanks to the independent movements of the deflectors, the airflow can be controlled as needed.
AIR FLOW ADJUSTMENT
- For installations at heights above 3 meters, it is possible to change the parameters for controlling the airflow via a wired control system.
HUMIDITY CONTROL
- Thanks to the humidity sensor installed in the indoor units, it is possible to check the relative humidity in the room at any time, visible on the display of the wired control YXE-E01U(E).
Fresh air intake
- Thanks to the air exchange device, it is possible to introduce fresh air supplied from outside into the environment.

Schede Tecniche

Download Technical Data Sheet Multi Split (2024)
