Samsung Mono Split Windfree Avant S2 24000 Btu AR70F24C1AWNEW AR70F24C1AWXEU Air Conditioners White WiFi 7.0 kW R-32
Kit consisting of the following elements:
Indoor unit AR70F24C1AWNEU 24000 Btu Outdoor unit AR70F24C1AWXEU 24000 Btu The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.Technical data sheets

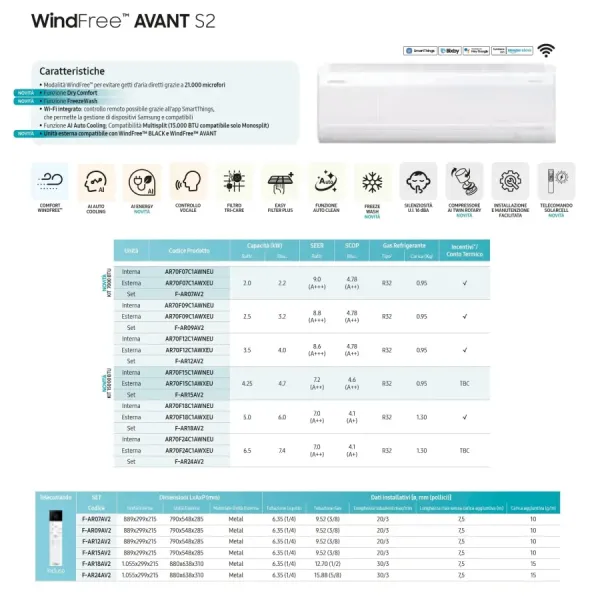

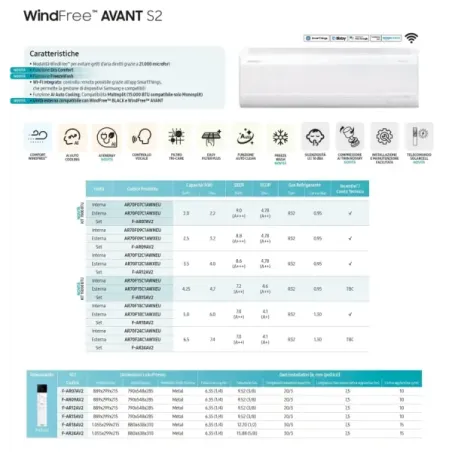

Download Mono Split Windfree Avant S2 Technical Data Sheet (IT)

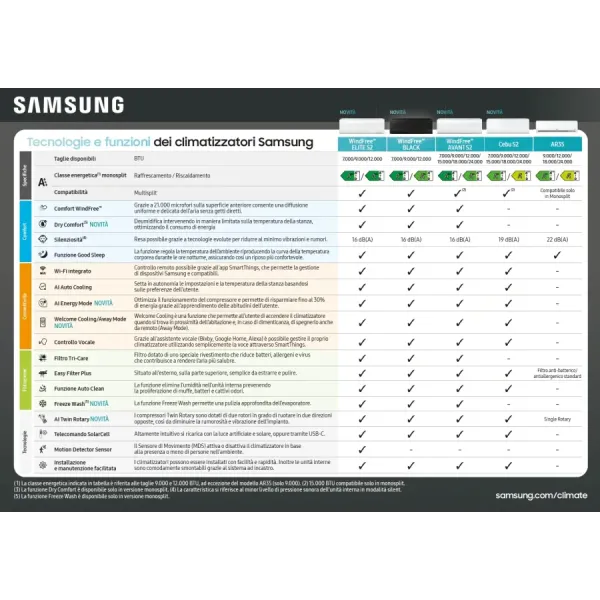

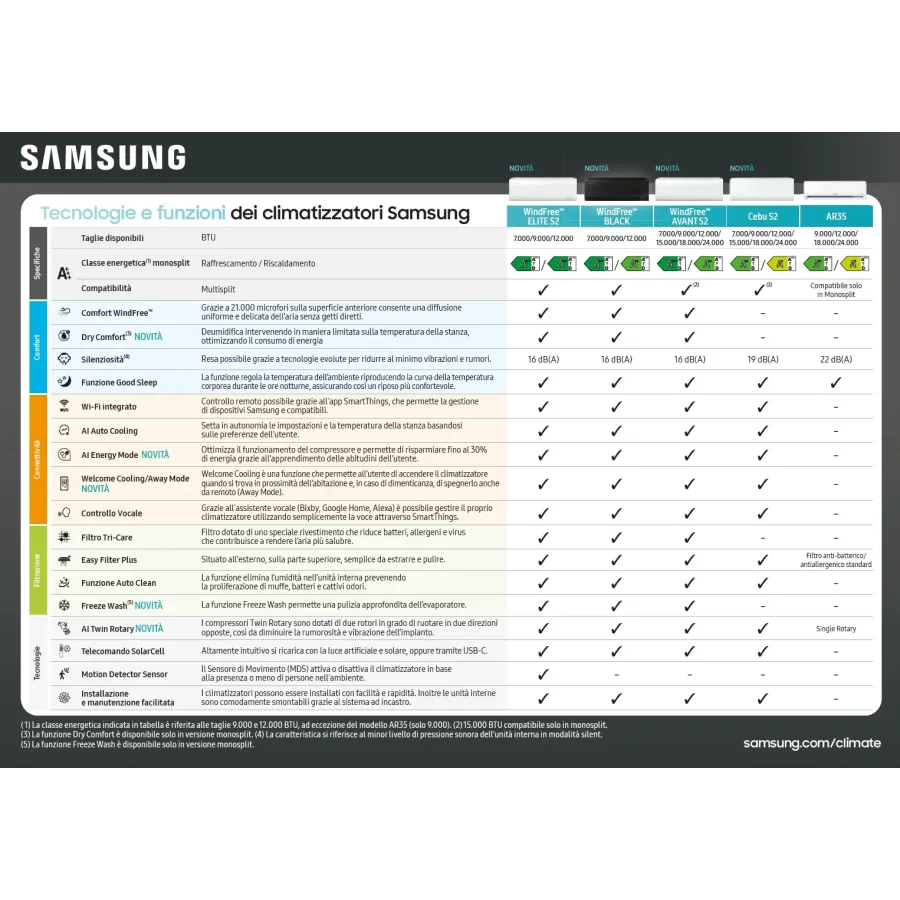

Download comparison of Samsung wall-mounted wall chargers (IT)
Samsung Mono Split Windfree Avant S2 24000 Btu AR70F24C1AWNEW AR70F24C1AWXEU Air Conditioners White WiFi 7.0 kW R-32
Samsung Mono Split Windfree Avant S2 WiFi 24000 Btu Air Conditioner with Heat Pump, Low Energy Consumption, Inverter Technology
Kit consisting of the following elements:

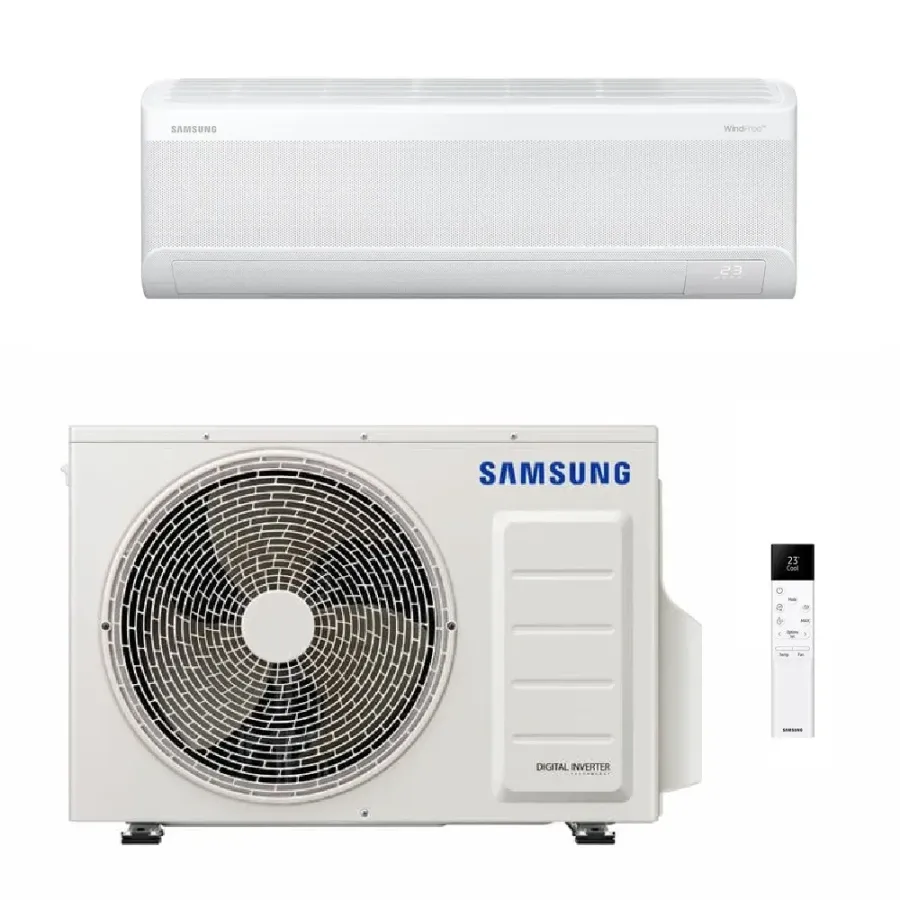

Indoor unit wall-mounted Windfree Avant S2 AR70F24C1AWNEU 24,000 BTU 7.1 kW color white
Ideal for rooms of 60 to 72 square meters with an average ceiling height of approximately 2.7 meters.
Length: 1055 mm; Height: 299 mm; Depth: 215 mm.
Standard accessories: SolarCell remote control and Wi-Fi card.
External unit AR70F24C1AWXEU 24,000 BTU 7.1 kW
Operation with refrigerant gas: R-32
Length: 880 mm; Height: 638 mm; Depth: 310 mm.
Wall-mounted indoor units WindFree AVANT S2 series
- Multi-split compatibility- Comfort WindFree: Thanks to 21,000 micro holes on the front, it allows for even and gentle air distribution without direct air jets.
- Dry Comfort - Dehumidifies by limiting changes to the room temperature, thus optimizing energy consumption
- Low noise - Enabled by advanced technologies to reduce vibrations and noise to a minimum: 16 dB(A)
- Good Sleep function: This function regulates the room temperature by mimicking the body temperature curve during the night hours, thus ensuring a more comfortable rest.
- Integrated Wi-Fi - Remote control possible thanks to the SmartThings app, which allows management of Samsung and compatible devices.
- AI Auto Cooling automatically sets the room settings and temperature based on user preferences.
- AI Energy Mode: Optimizes compressor operation and saves up to 30% energy by learning the user's habits.
- Voice control Thanks to the voice assistant (Bixby, Google Home, Alexa) you can easily control your air conditioner via voice using SmartThings.
- Tri-Care filter: Filter with a special coating that reduces bacteria, allergens and viruses, thus contributing to healthier air.
- Easy Filter Plus is located on the outside at the top and can be easily removed and cleaned.
- Auto-Clean function: This function eliminates moisture in the indoor unit, thus preventing the spread of mold, bacteria and bad odors.
- Freeze Wash The Freeze Wash function allows for a thorough cleaning of the evaporator.
- Refrigerant R32: R32 gas, a less environmentally harmful refrigerant than previous generations.
- AI Twin Rotary - Twin Rotary compressors are equipped with two rotors that can rotate in two opposite directions, reducing noise and vibration of the system.
- Automatic horizontal/vertical airflow regulation - Simply press the corresponding button and the special louvers will distribute the airflow evenly and quickly in the desired direction.
- Easy installation and maintenance: Air conditioners can be installed quickly and easily. Furthermore, the indoor units can be easily disassembled thanks to the locking system.
- SolarCell remote control: Very intuitive, it is charged with artificial and sunlight or via USB-C.
Technical data sheets
Download Mono Split Windfree Avant S2 Technical Data Sheet (IT)
Download comparison of Samsung wall-mounted wall chargers (IT)
- Rated power BTU
- 24000
BTU 24000 - series
- WindFree AVANT
Windfree Avant S2 - Color
- White
- Rated power kW
- 7.0
7.1 - Type of facility
- Wall
Wall screen - Energy class cooling
- A++
- Energy class heating
- A+
- Refrigerant gas
- R-32
- System type
- Mono Split
- Wi-Fi connection
- WiFi
- Declaration of commitment
- 1
- Manufacturer
- Samsung
- Installation site
- Mono Split
