Daikin Trio Split Channel 9000+9000+9000 3MXM52A9 FDXM25F9 FDXM25F9 FDXM25F9 Air conditioners with Madoka wire control
Daikin Trio Split air conditioner series FDXM-F9 WiFi Optional 9000+9000+9000 Btu Heating with low-voltage absorption heat pump in high energy class Compact flush-mounted unit with a height of only 200 mm Ideal for environments with one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m BRC1H52-WKS
Indoor Units Ducted Series FDXM-F9
- Compact ceiling duct unit with a height of only 200 mm.
- Self-cleaning filter.
- The Silent option on the remote control allows you to reduce the noise level by 3 dB(A).
The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.

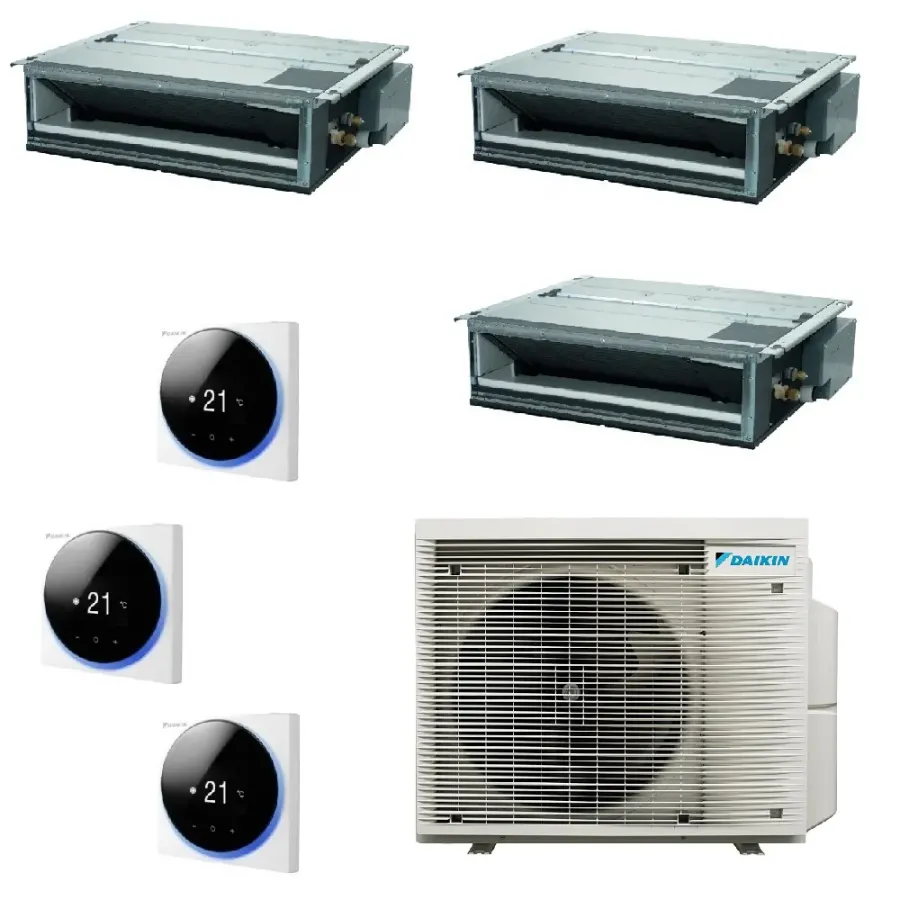

Kit consisting of the following elements:
Indoor unit FDXM25F9 9000 Btu Indoor unit FDXM25F9 9000 Btu Indoor unit FDXM25F9 9000 Btu External unit 3MXM52A9 18000 Btu The definitive solution for air conditioning your home: up to three rooms with many variations and solutions.Indoor Units Ducted Series FDXM-F9
- Compact ceiling duct unit with a height of only 200 mm.
- Self-cleaning filter.
- The Silent option on the remote control allows you to reduce the noise level by 3 dB(A).
The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Available, delivery time 4-5 working days
Daikin Trio Split Channel 9000+9000+9000 3MXM52A9 FDXM25F9 FDXM25F9 FDXM25F9 Air conditioners with Madoka wire control
Daikin Trio Split air conditioner series FDXM-F9 WiFi Optional 9000+9000+9000 Btu Heating with low-voltage absorption heat pump in high energy class Compact flush-mounted unit with a height of only 200 mm
Kit consisting of the following elements:

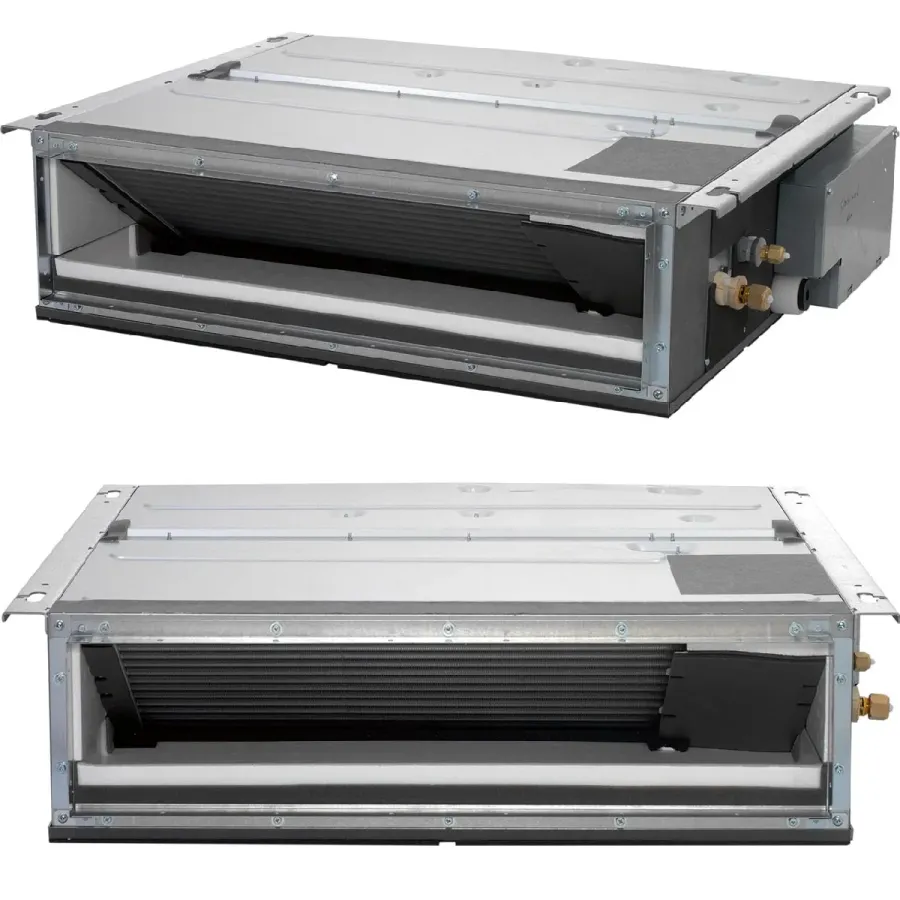

Ducted indoor unit with low head FDXM25F9 9,000 BTU 2.5 kW
Ideal for rooms of 21 to 27 square meters with an average height of approximately 2.7 meters.
Length: 750 mm; Height: 200 mm; Depth: 620 mm.
Optional accessory: Wi-Fi interface BRP069A81.
Ducted indoor unit with low head FDXM25F9 9,000 BTU 2.5 kW
Ideal for rooms of 21 to 27 square meters with an average height of approximately 2.7 meters.
Length: 750 mm; Height: 200 mm; Depth: 620 mm.
Optional accessory: Wi-Fi interface BRP069A81.
Ducted indoor unit with low head FDXM25F9 9,000 BTU 2.5 kW
Ideal for rooms of 21 to 27 square meters with an average height of approximately 2.7 meters.
Length: 750 mm; Height: 200 mm; Depth: 620 mm.
Optional accessory: Wi-Fi interface BRP069A81.
3MXM52A9 Rated power 18,000 BTU 5.2 kW
Operation with refrigerant gas: R-32
Length: 974 mm; Height: 734 mm; Depth: 408 mm.
Minimum number of connectable indoor units: 2.
Maximum number of connectable indoor units: 3.

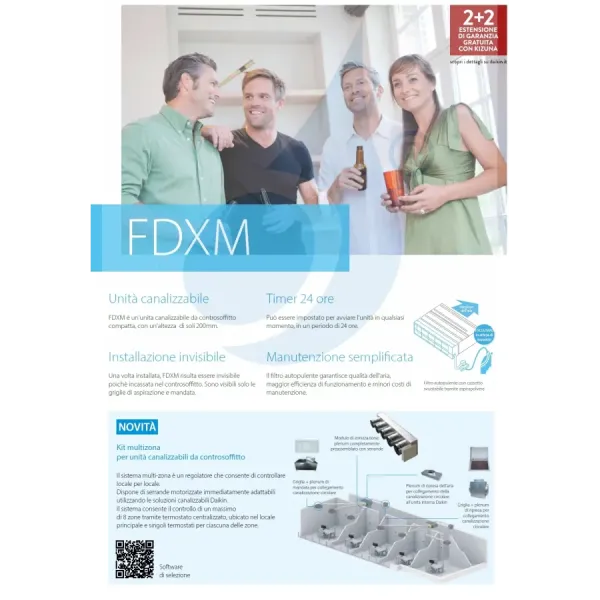

Ducted indoor units FDXM-F9 series
Design
FDXM-F3 is a compact unit for concealed ceilings with a height of only 200 mm.Once installed, the FDXM-F3 is invisible because it is embedded in the suspended ceiling. Only the intake and pressure grilles are visible.
comfort
It can be set to start the device at any time within a 24-hour period.The self-cleaning filter guarantees air quality, higher operating efficiency and lower maintenance costs.
The silent button on the remote control reduces the noise emitted by the indoor unit during operation by 3 dB(A). The same can also be done for the indoor unit itself to maintain the peace and quiet of the neighbors.

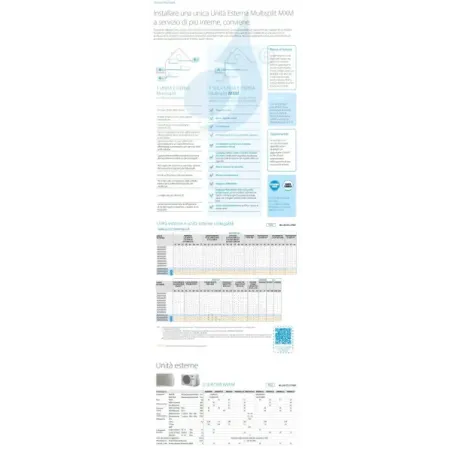

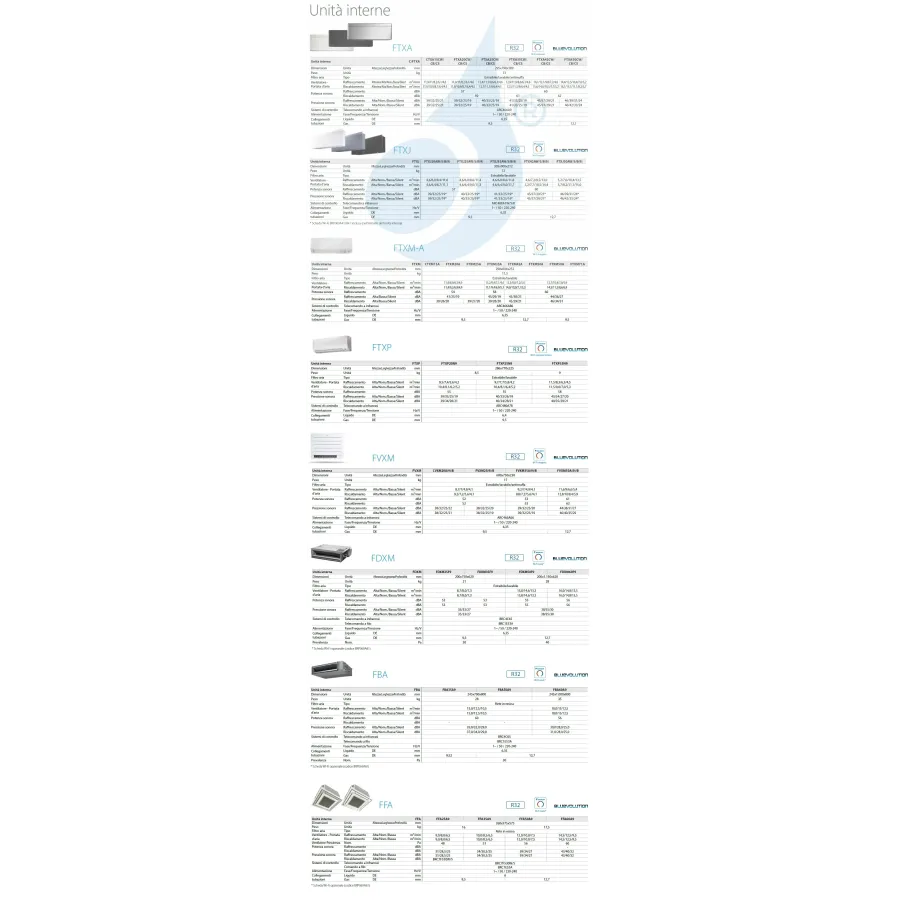

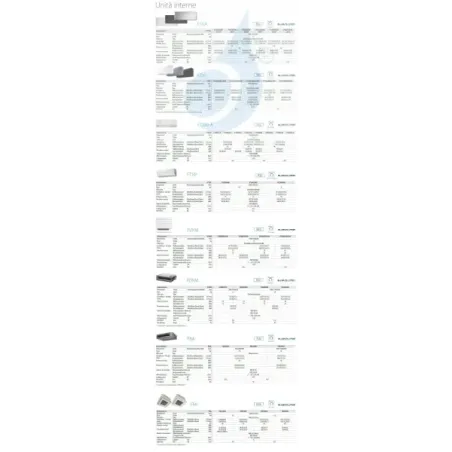

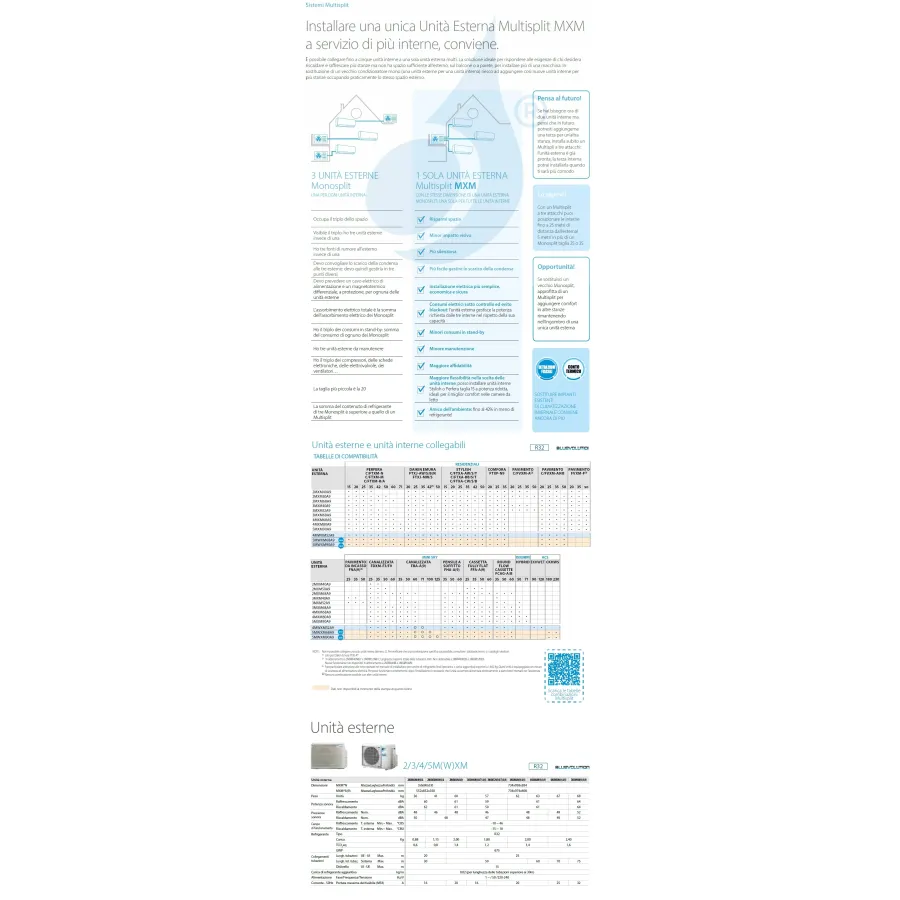

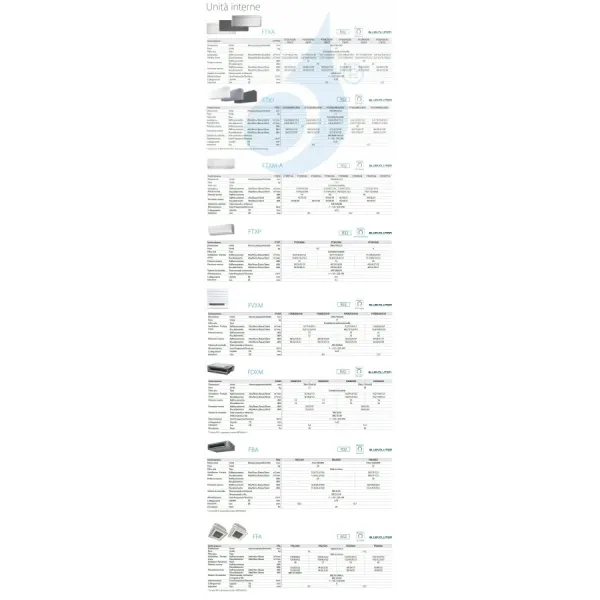

Technical data sheets

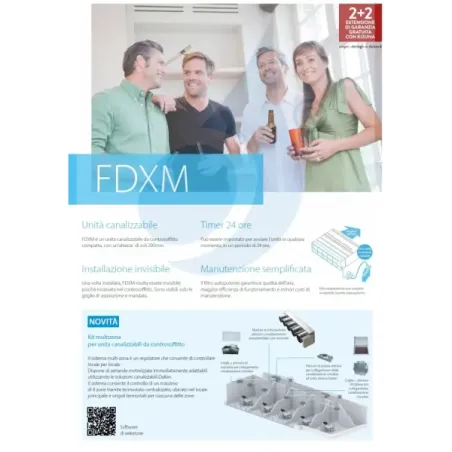

Download series card channel FDXM-F9
- Rated power BTU
- BTU 9000+9000+9000
- series
- FDXM-F9
- Rated power kW
- 2.5+2.5+2.5
- Type of facility
- channel
- Energy class cooling
- A+++
- Energy class heating
- A++
- Refrigerant gas
- R-32
- System type
- Trio Split
- Wi-Fi connection
- WiFi Optional
- Declaration of commitment
- 1
