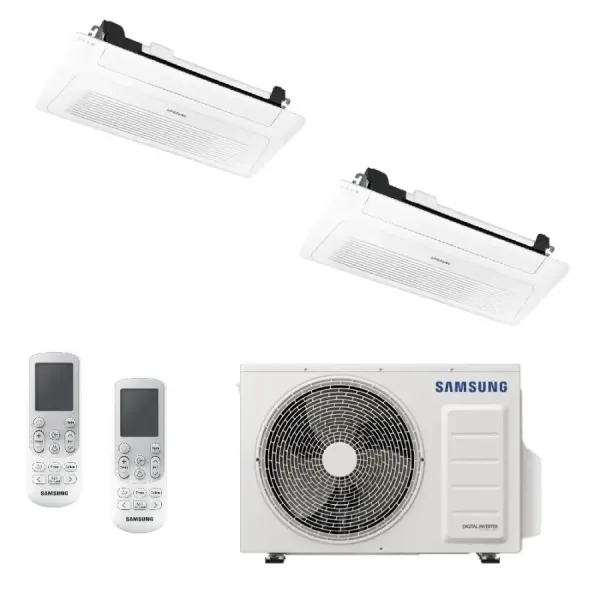

Samsung Duo Split Cassette 1 Via WindFree 9+12 Btu AJ050TXJ2KG AJ026TN1DKG AJ035TN1DKG Air Conditioners R-32
Samsung Duo Split Series 1 Air Conditioners with WindFree WiFi (Optional) 9000+12000 Btu Heating with Heat Pump and Low Energy Consumption Inverter Technology Ideal for environments with one indoor unit up to 27 sq m + one indoor unit up to 36 sq m + one indoor unit up to 36 sq m Excellent solution for air conditioning 2 rooms in your home or office, or a single very large room.

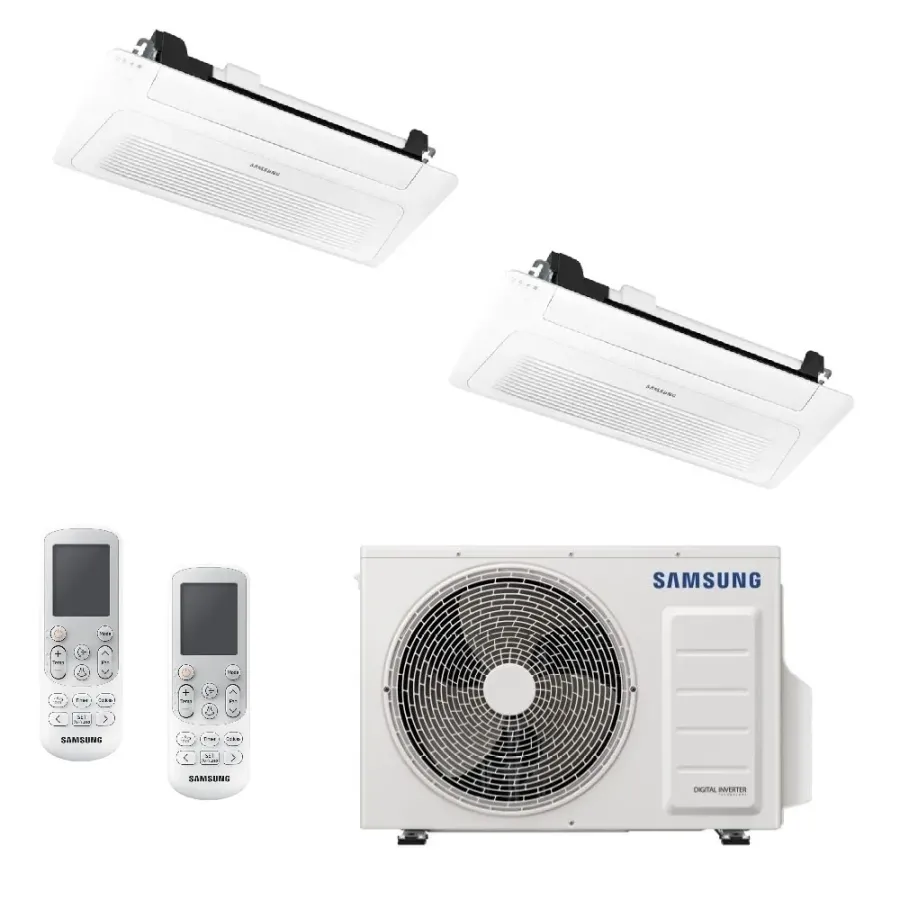

Kit consisting of the following elements:
Indoor unit AJ026TN1DKG/EU 9000 Btu Indoor unit AJ035TN1DKG/EU 12000 Btu Outdoor unit AJ050TXJ2KG/EU 18000 Btu The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.Technical data sheets
Download Technical Data Sheet Indoor Units (IT)

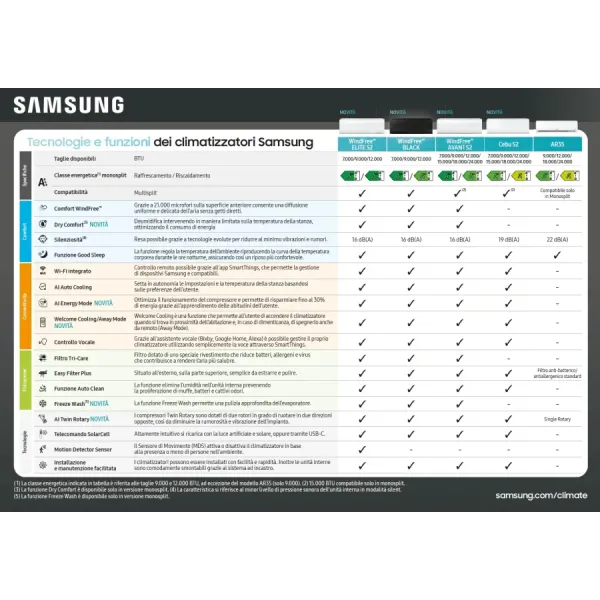

Download comparison of Samsung wall-mounted wall chargers (IT)
Out of stock, product available soon
Samsung Duo Split Cassette 1 Via WindFree 9+12 Btu AJ050TXJ2KG AJ026TN1DKG AJ035TN1DKG Air Conditioners R-32
Samsung Duo Split Series 1 Air Conditioners with WindFree WiFi (Optional) 9000+12000 Btu Heating with Heat Pump and Low Energy Consumption Inverter Technology
Kit consisting of the following elements:
Cassette indoor unit AJ026TN1DKG/EU 9,000 BTU 2.5 kW
Ideal for rooms of 21 to 27 square meters with an average ceiling height of approximately 2.7 meters.
Length: 575 mm; Height: 250 mm; Depth: 575 mm.
Included accessories: White radiator grille PC1NWFMAN and infrared remote control AR-EH03E.
Optional accessory: MIM-H04EN Wi-Fi interface.
Cassette indoor unit AJ035TN1DKG/EU 12,000 BTU 3.5 kW
Ideal for rooms of 27 to 36 square meters with an average ceiling height of approximately 2.7 meters.
Length: 575 mm; Height: 250 mm; Depth: 575 mm.
Included accessories: White radiator grille PC1NWFMAN and infrared remote control AR-EH03E.
Optional accessory: MIM-H04EN Wi-Fi interface.

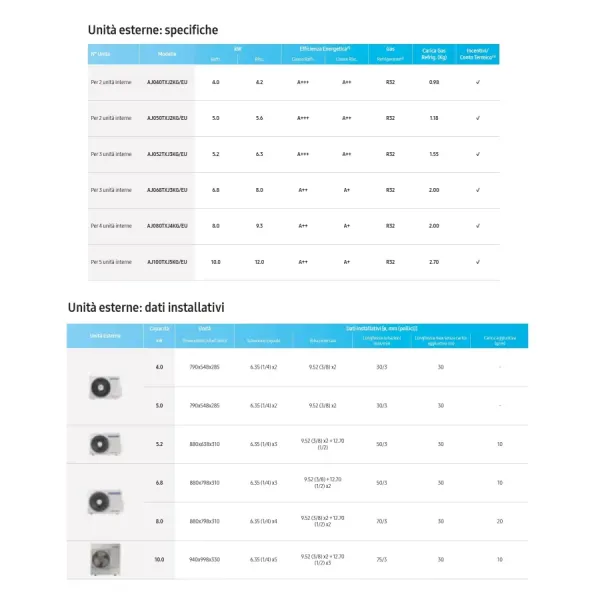

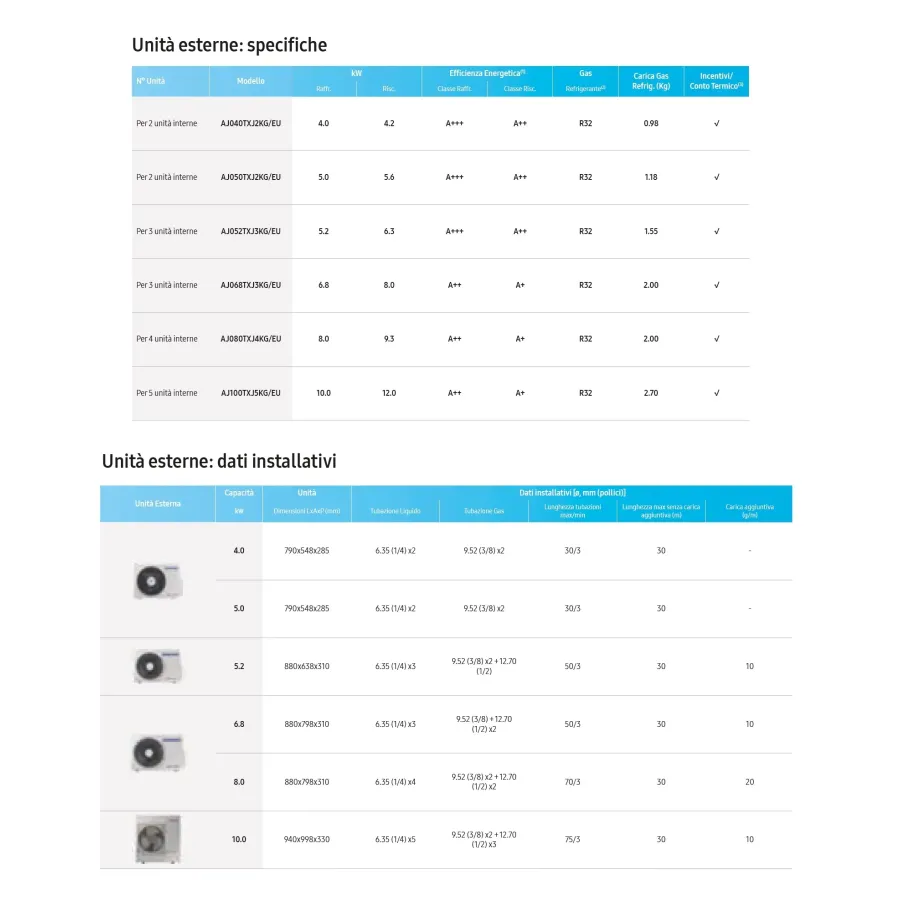

Multi-split outdoor unit AJ050TXJ2KG/EU 18,000 BTU 5.0 kW
Operation with refrigerant gas: R-32
Length: 790 mm; Height: 548 mm; Depth: 285 mm.
Minimum number of connectable indoor units: 2.
Maximum number of connected indoor units: 2.

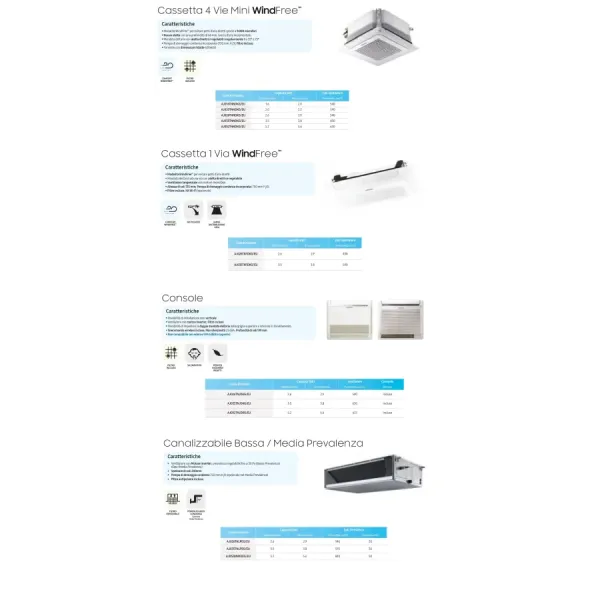

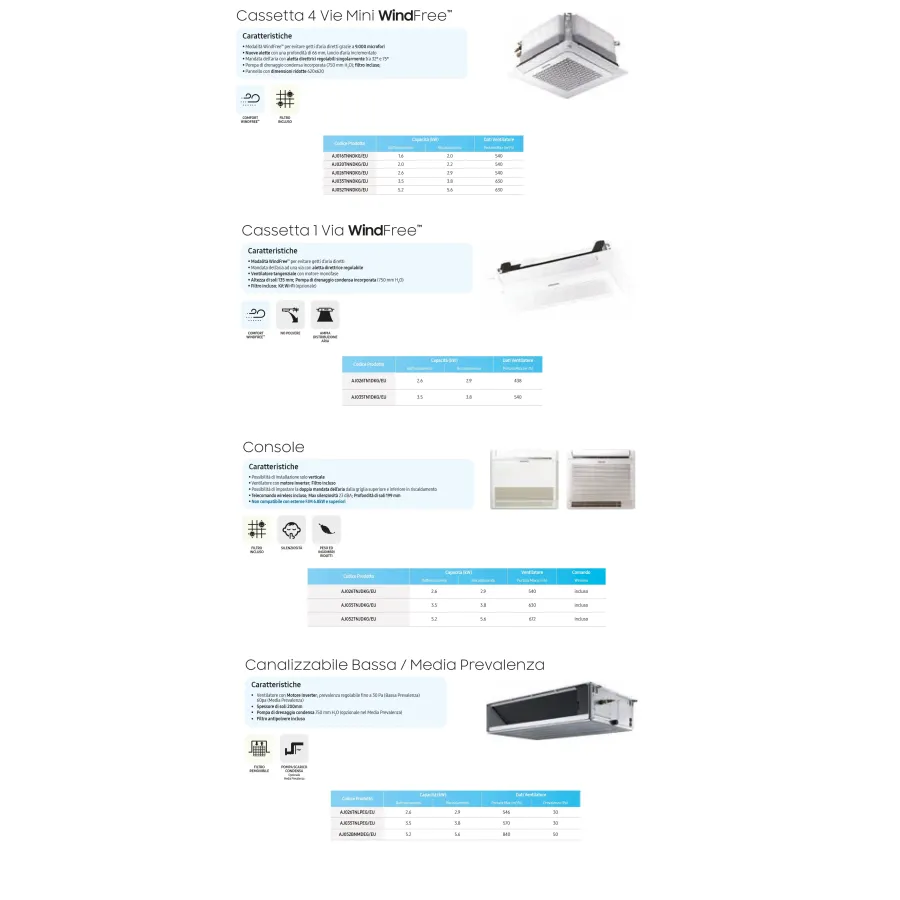

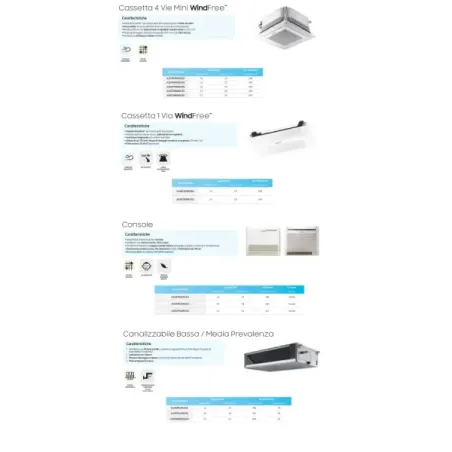

Indoor units cassette series 1 via Mini WindFree
- WindFree mode to avoid direct air jets- One-way air supply with adjustable guide vane
- Tangential fan with single-phase motor; height of only 135 mm
- Built-in condensate drain pump (750 mm H2O); filter included
- Communication using the NASA protocol; Wi-Fi kit (optional)
- Single-phase power supply 220 V 50 Hz; Inverter single-rotary outdoor unit compressor
Technical data sheets
Download Technical Data Sheet Indoor Units (IT)
Download comparison of Samsung wall-mounted wall chargers (IT)
- Rated power BTU
- BTU 9000+12000
- series
- 1 Via WindFree
1 WindFree air outlet - Color
- White
- Rated power kW
- 2.5+3.5
2.6+3.5 - Type of facility
- Cassette player
cassette - Energy class cooling
- A+++
- Energy class heating
- A++
- Refrigerant gas
- R-32
- System type
- Duo Split
- Wi-Fi connection
- WiFi Optional
- Declaration of commitment
- 1
Cassetta-1-9+12-AJ050TXJ2KG/EU
