Samsung Mono Split Cassette 360 47600 Btu 380v AC140RN4PKG/EU AC140RXADNG/EU-T Air Conditioner Round Plate Black R-32
Samsung Mono Split Series Cassette Air Conditioner 360 WiFi Optional 47600 BTU Heat Pump with Low Energy Consumption Inverter Technology Ideal for environments with an indoor unit up to 143 sq m An excellent solution for comfort in all areas of your home or office.
Three phases 380v The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Kit consisting of the following elements:
Indoor unit AC140RN4PKG/EU 47600 Btu Outdoor unit AC140RXADNG/EU-T 47600 BtuThree phases 380v The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Technical data sheets
Out of stock, product available soon

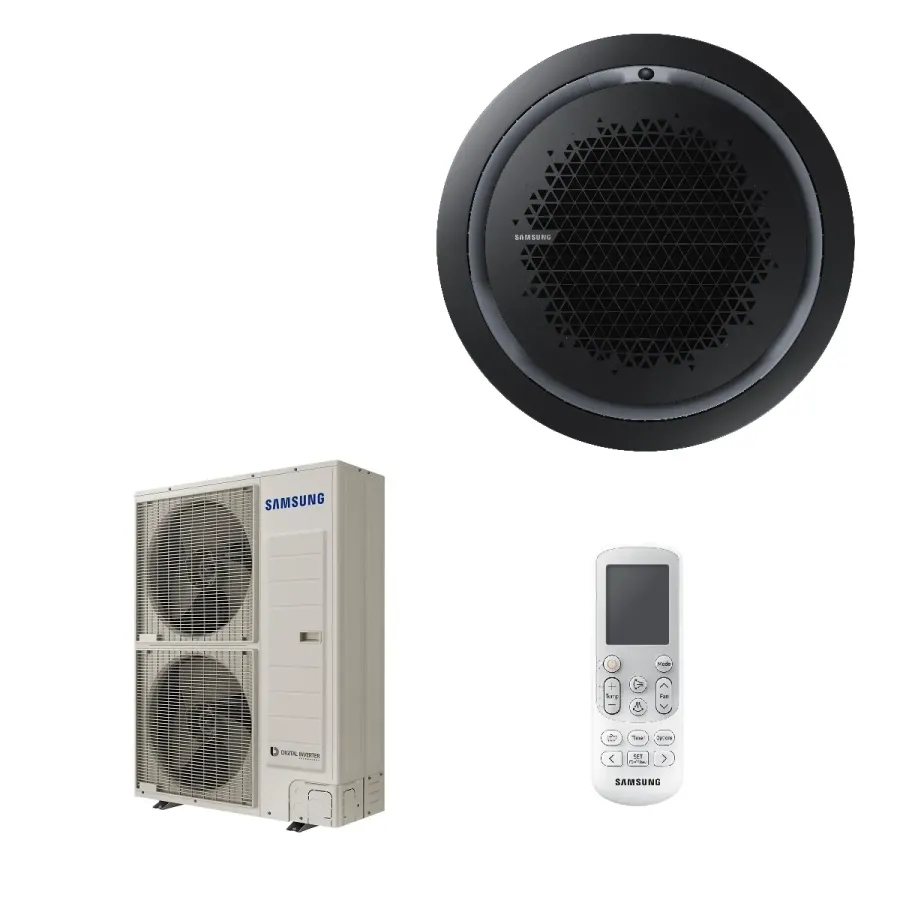

Samsung Mono Split Cassette 360 47600 Btu 380v AC140RN4PKG/EU AC140RXADNG/EU-T Air Conditioner Round Plate Black R-32
Samsung Mono Split Series Cassette Air Conditioner 360 WiFi Optional 47600 BTU Heat Pump with Low Energy Consumption Inverter Technology
Kit consisting of the following elements:
Cassette indoor unit 360 AC140RN4PKG/EU 47,600 BTU 14.0 kW
Indicative for environments up to 140 sq m. We recommend expert technical advice.
Dimensions:
Round grill: PC4NUNMAN (White) - PC4NBNMAN (Black)
Length: 947 mm, Height: 281 mm, Depth: 947 mm.
Square grid: PC4NUDMAN (White) - PC4NBDMAN (Black)
Length: 1050 mm; Height: 281 mm; Depth: 1050 mm.
Included accessories: Infrared remote control AR-EH03E.
Optional accessory: MIM-H04EN Wi-Fi interface.
External Unit AC140RXADKG/EU Trifase 47,600 BTU 14.0 kW
Operation with refrigerant gas: R-32
Length: 940 mm; Height: 1210 mm; Depth: 330 mm.

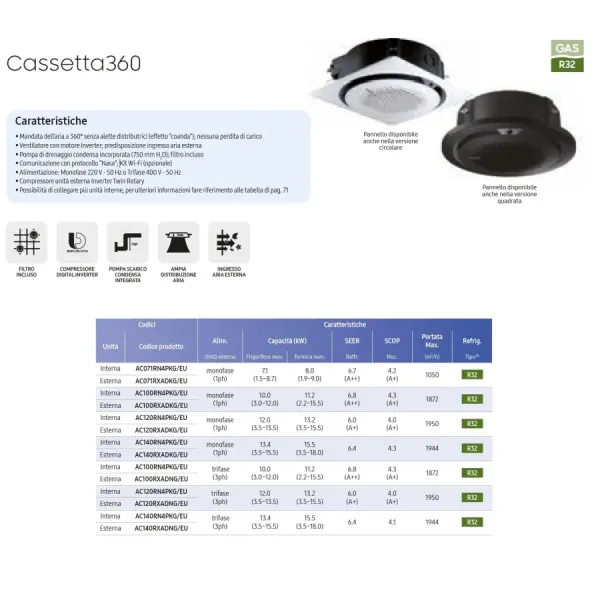

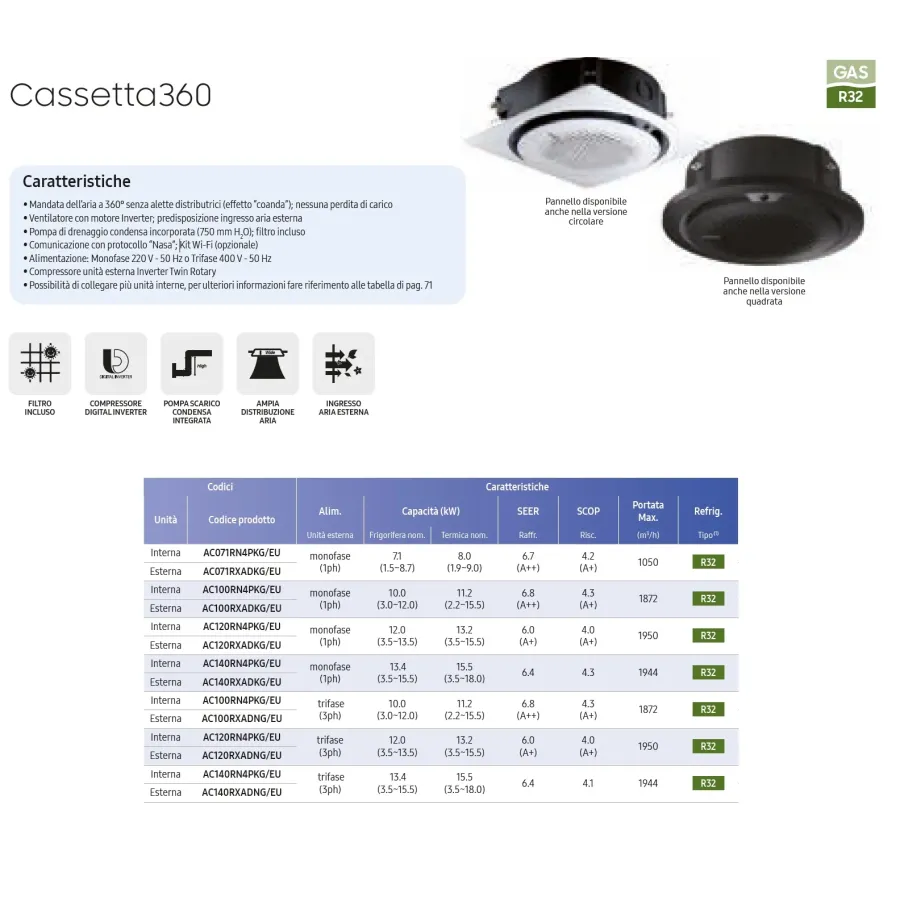

Cassette indoor units of the 360 series ??
- 360° airflow without distribution ribs (Coanda effect); no pressure drop- Fan with inverter motor; external air intake
- Built-in condensate drain pump (750 mm H2O); filter included
- Communication using the NASA protocol; controllable via app on smartphone and tablet
- Wi-Fi kit (optional)
- Single-phase power supply 220 V 50 Hz or three-phase power supply 400 V 50 Hz; Inverter twin rotary outdoor unit compressor
Technical data sheets
- Rated power BTU
- 54000
BTU 47600 - series
- Cassette 360
- Color
- Black
- Rated power kW
- 14.0
16.0 - Type of facility
- Cassette player
cassette - Refrigerant gas
- R-32
- System type
- Mono Split
- Wi-Fi connection
- WiFi Optional
- Declaration of commitment
- 1
- Manufacturer
- Samsung
- Installation site
- Mono Split
CN-AC140RN4PKG+AC140RXADNG-T
