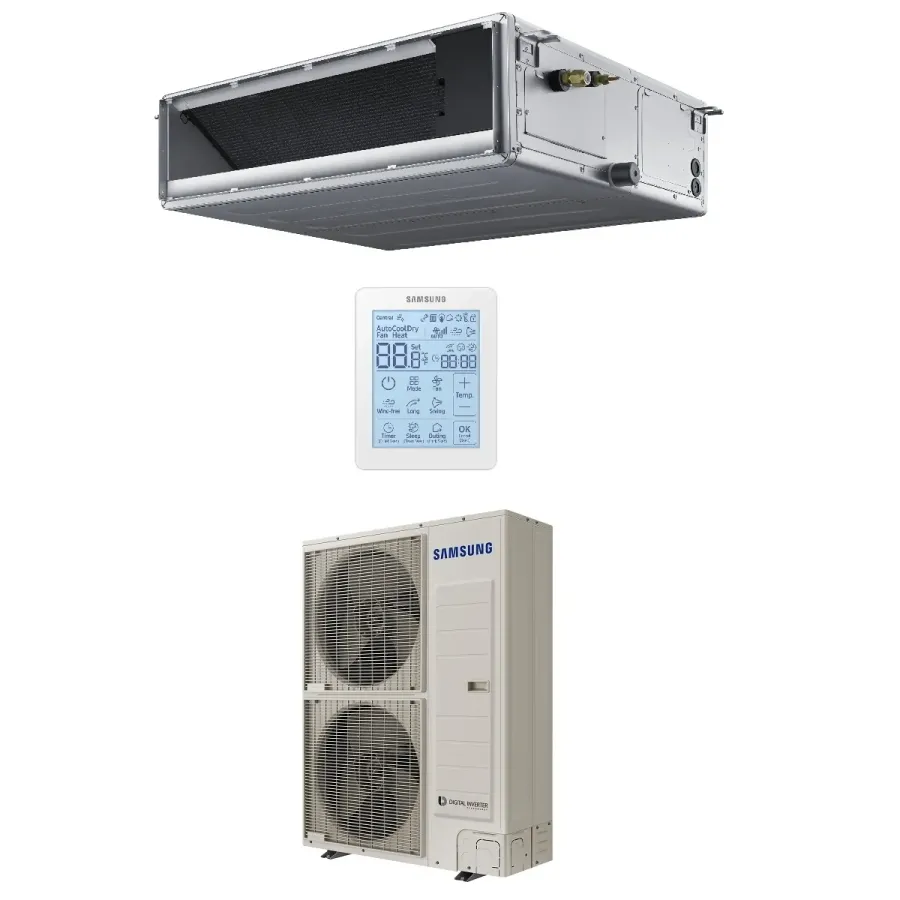

Samsung Mono Split Channel Medium Prevalence 40800 Btu 380v AC120RNMDKG/EU AC120RXADNG/EU-T Air Conditioners R-32
Samsung Mono Split Series Air Conditioners, Medium Prevalence, WiFi Optional, 40800 BTU, Heat Pump with Low Energy Consumption, Inverter Technology Ideal for environments with an indoor unit up to 122 sq m An excellent solution for comfort in all areas of your home or office.
Three phases 380v The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Kit consisting of the following elements:
Indoor unit AC120RNMDKG/EU 40800 Btu Outdoor unit AC120RXADNG/EU-T 40800 BtuThree phases 380v The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Technical data sheets

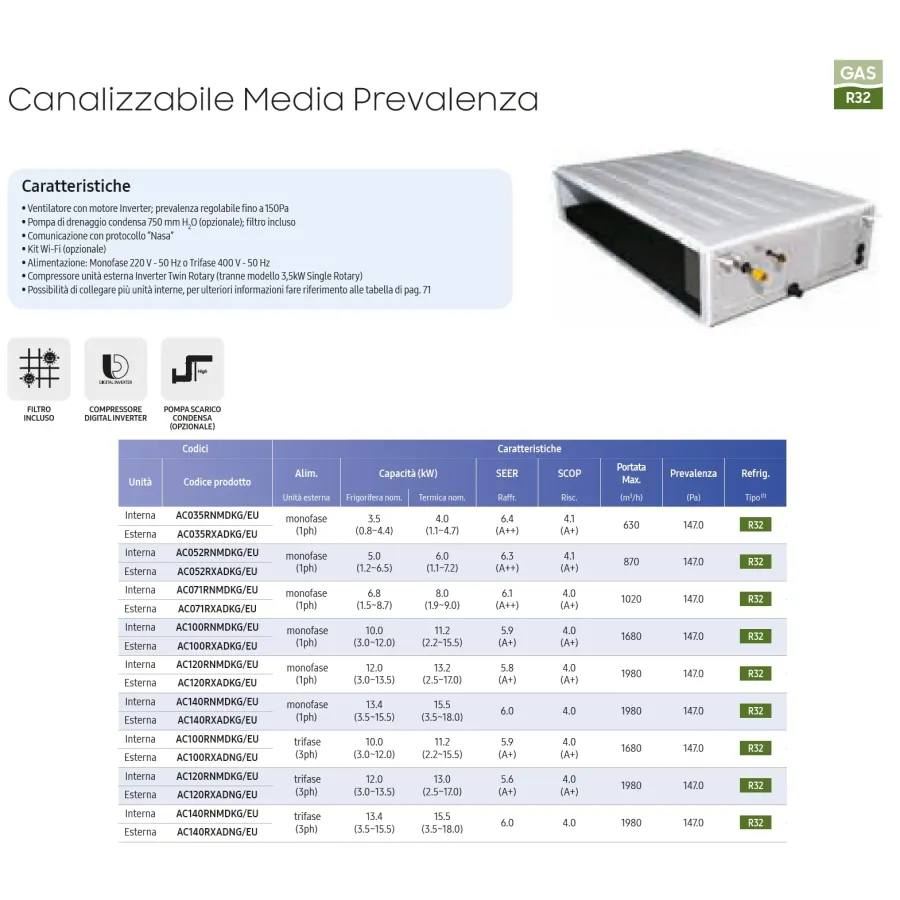

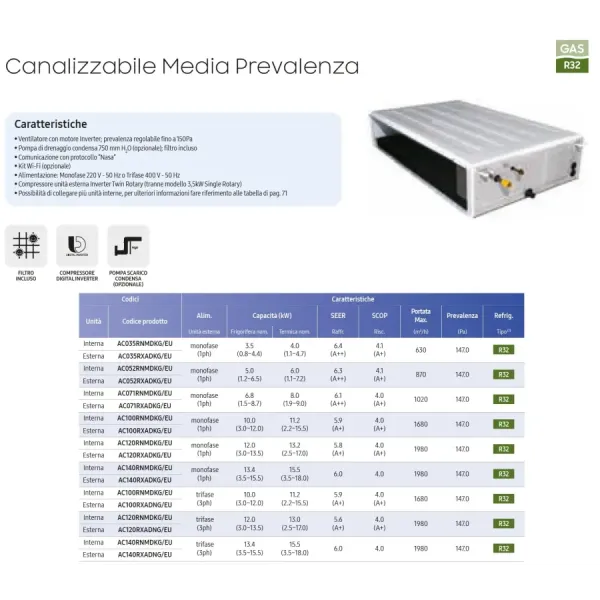

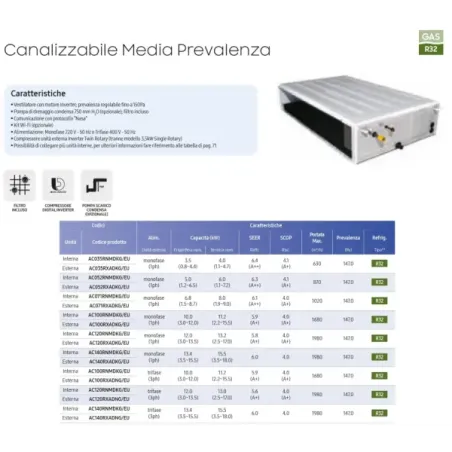

Download Technical Data Sheet Mono Split Ducted Medium Head (IT)
Out of stock, product available soon
Samsung Mono Split Channel Medium Prevalence 40800 Btu 380v AC120RNMDKG/EU AC120RXADNG/EU-T Air Conditioners R-32
Samsung Mono Split Series Air Conditioners, Medium Prevalence, WiFi Optional, 40800 BTU, Heat Pump with Low Energy Consumption, Inverter Technology
Kit consisting of the following elements:
Internal duct unit AC120RNMDKG/EU 40,800 BTU 12.0 kW
Indicative for environments up to 122 sq m. We recommend expert technical advice.
Length: 1300 mm; Height: 300 mm; Depth: 700 mm.
Included accessories: MWR-SH11N Touch Wired Control.
Optional accessory: MIM-H04EN Wi-Fi interface.
External Unit AC120RXADKG/EU Trifase 40,800 BTU 12.0 kW
Operation with refrigerant gas: R-32
Length: 940 mm; Height: 998 mm; Depth: 330 mm.
Indoor units with medium delivery head and ducting
- Fan with inverter motor; adjustable prevalence up to 150Pa- Condensate drain pump 750 mm H2O (optional); filter included
- Communication using the "NASA" protocol
- Wi-Fi kit (optional)
- Power supply: Single-phase 220 V - 50 Hz or three-phase 400 V - 50 Hz
- Inverter Twin Rotary outdoor unit compressor (except 3.5 kW Single Rotary)
Technical data sheets
Download Technical Data Sheet Mono Split Ducted Medium Head (IT)
- Rated power BTU
- 41000
BTU 40800 - series
- Medium prevalence
- Rated power kW
- 12.0
- Type of facility
- channel
- Energy class cooling
- A+
- Energy class heating
- A+
- Refrigerant gas
- R-32
- System type
- Mono Split
- Wi-Fi connection
- WiFi Optional
- Declaration of commitment
- 1
- Manufacturer
- Samsung
- Installation site
- Mono Split
AC120RNMDKG+AC120RXADNG-T
