Samsung Mono Split Channel Medium Prevalence 34000 Btu 380v AC100RNMDKG/EU AC100RXADNG/EU-T Air Conditioners R-32
Samsung Mono Split Series Air Conditioners, Medium Prevalence, WiFi Optional, 34000 BTU, Heat Pump with Low Energy Consumption, Inverter Technology Ideal for environments with one indoor unit up to 102 sq m An excellent solution for comfort in all areas of your home or office.
Three phases 380v The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.

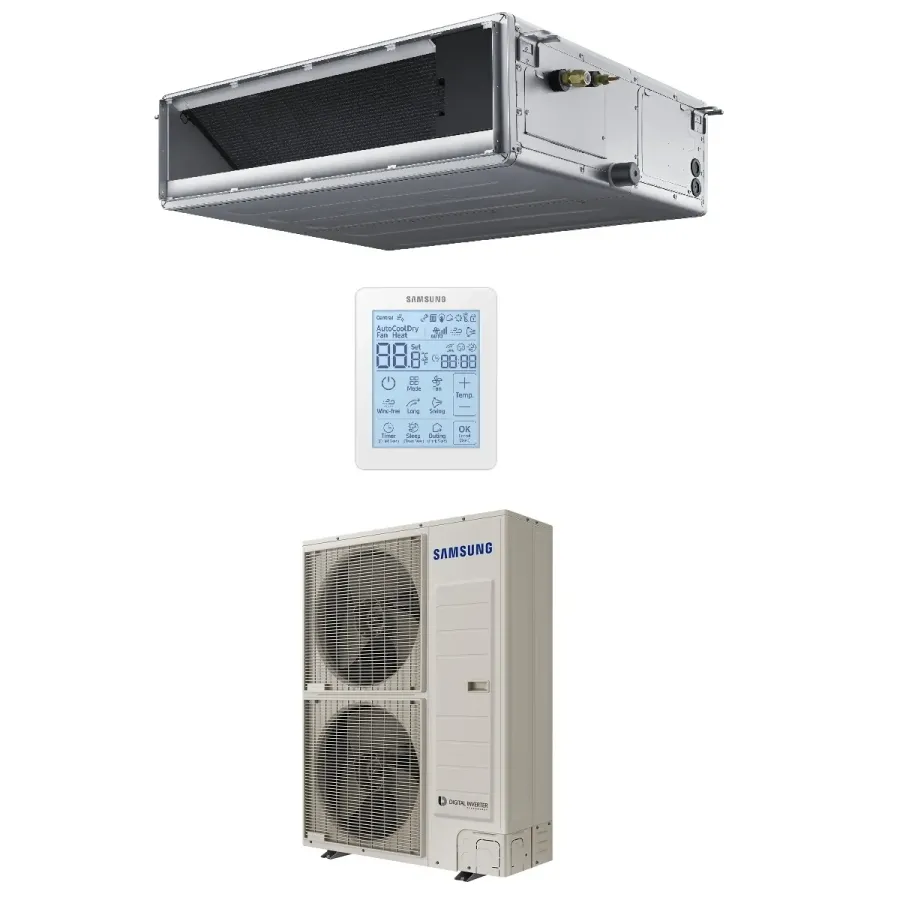

Kit consisting of the following elements:
Indoor unit AC100RNMDKG/EU 34000 Btu Outdoor unit AC100RXADNG/EU-T 34000 BtuThree phases 380v The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Technical data sheets

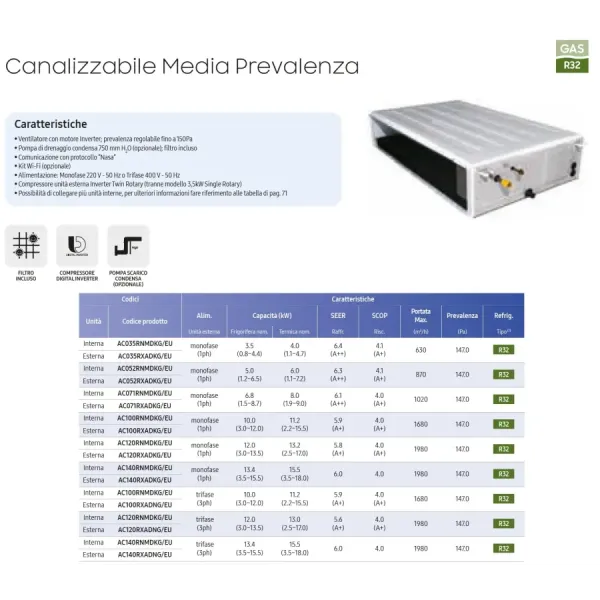

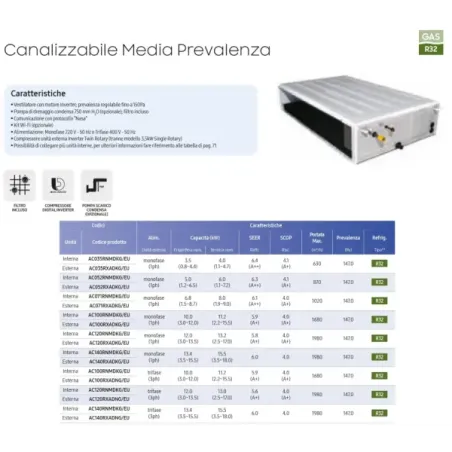

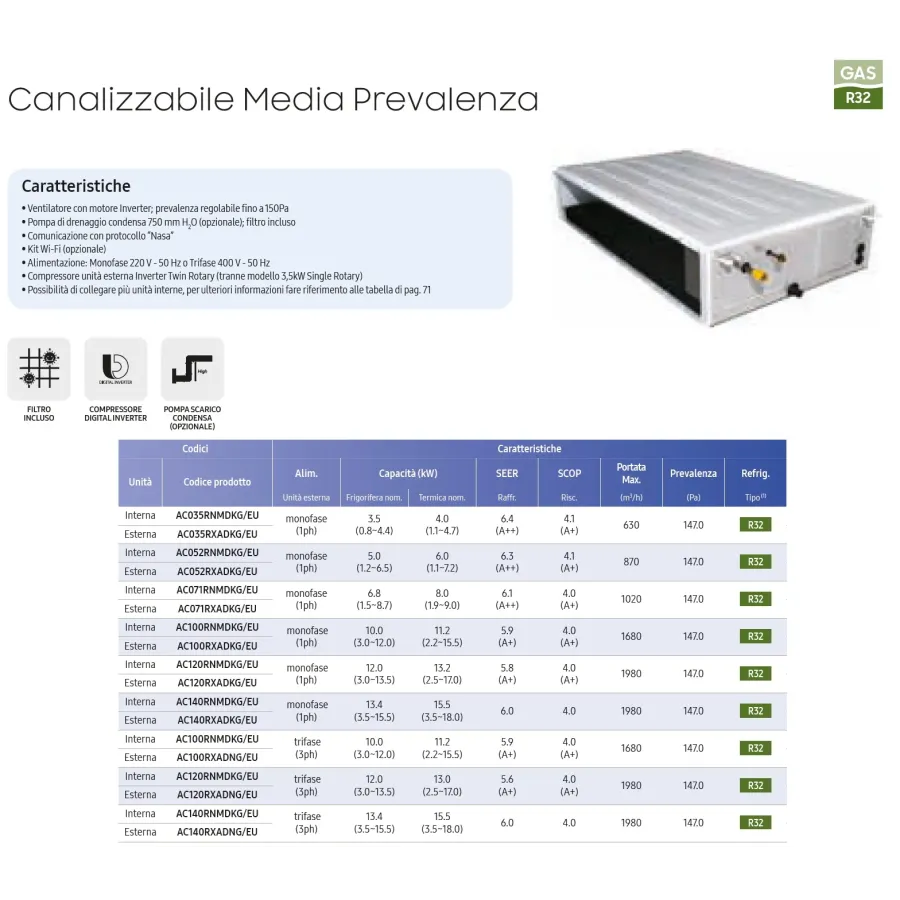

Download Technical Data Sheet Mono Split Ducted Medium Head (IT)
Out of stock, product available soon
Samsung Mono Split Channel Medium Prevalence 34000 Btu 380v AC100RNMDKG/EU AC100RXADNG/EU-T Air Conditioners R-32
Samsung Mono Split Series Air Conditioners, Medium Prevalence, WiFi Optional, 34000 BTU, Heat Pump with Low Energy Consumption, Inverter Technology
Kit consisting of the following elements:
Internal duct unit AC100RNMDKG/EU 34,000 BTU 10.0 kW
Indicative for environments up to 102 sq m. We recommend expert technical advice.
Length: 1200 mm; Height: 250 mm; Depth: 700 mm.
Included accessories: MWR-SH11N Touch Wired Control.
Optional accessory: MIM-H04EN Wi-Fi interface.
External Unit AC100RXADKG/EU Trifase 34,000 BTU 10.0 kW
Operation with refrigerant gas: R-32
Length: 940 mm; Height: 998 mm; Depth: 330 mm.
Indoor units with medium delivery head and ducting
- Fan with inverter motor; adjustable prevalence up to 150Pa- Condensate drain pump 750 mm H2O (optional); filter included
- Communication using the "NASA" protocol
- Wi-Fi kit (optional)
- Power supply: Single-phase 220 V - 50 Hz or three-phase 400 V - 50 Hz
- Inverter Twin Rotary outdoor unit compressor (except 3.5 kW Single Rotary)
Technical data sheets
Download Technical Data Sheet Mono Split Ducted Medium Head (IT)
- Rated power BTU
- 34000
BTU 34000 - series
- Medium prevalence
- Rated power kW
- 10.0
- Type of facility
- channel
- Energy class cooling
- A+
- Energy class heating
- A+
- Refrigerant gas
- R-32
- System type
- Mono Split
- Wi-Fi connection
- WiFi Optional
- Declaration of commitment
- 1
- Manufacturer
- Samsung
- Installation site
- Mono Split
AC100RNMDKG+AC100RXADNG-T
