Samsung Mono Split Channel Medium Prevalence 24000 Btu 220v AC071RNMDKG/EU AC071RXADKG/EU Air Conditioners R-32
Samsung Mono Split Series Air Conditioners, Medium Prevalence, WiFi Optional, 24000 BTU, Heat Pump with Low Energy Consumption, Inverter Technology Ideal for environments with one indoor unit up to 72 sq m. An excellent solution for comfort in all areas of your home or office.
Single phase 220v The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Kit consisting of the following elements:
Indoor unit AC071RNMDKG/EU 24000 Btu Outdoor unit AC071RXADKG/EU 24000 BtuSingle phase 220v The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Technical data sheets

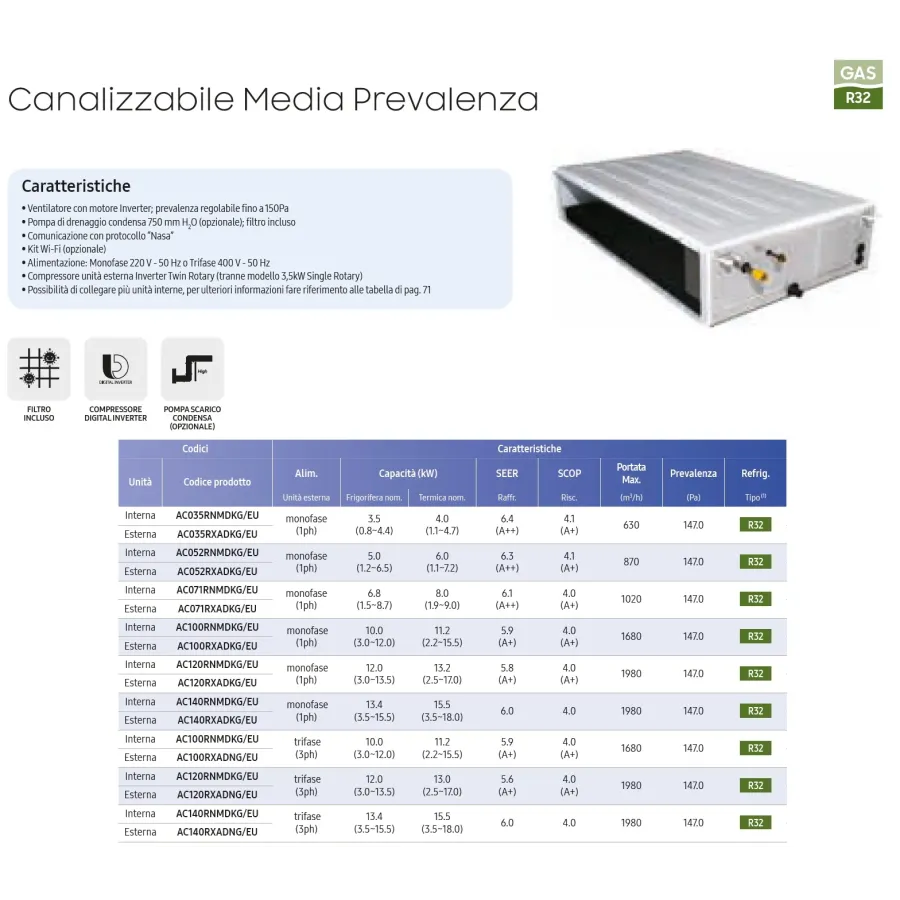

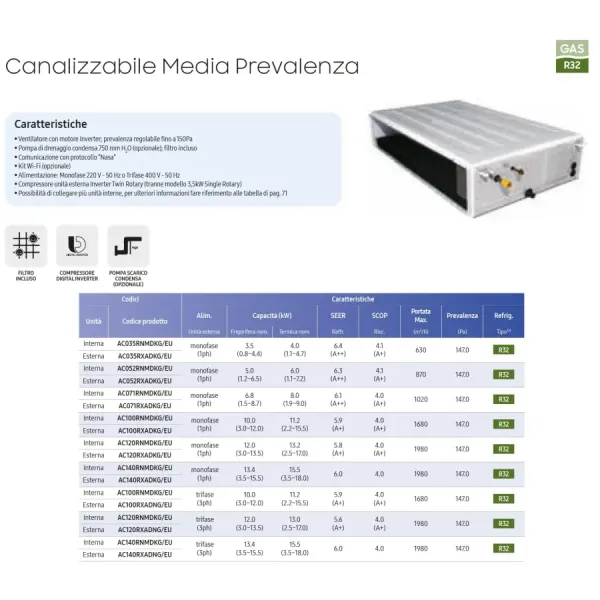

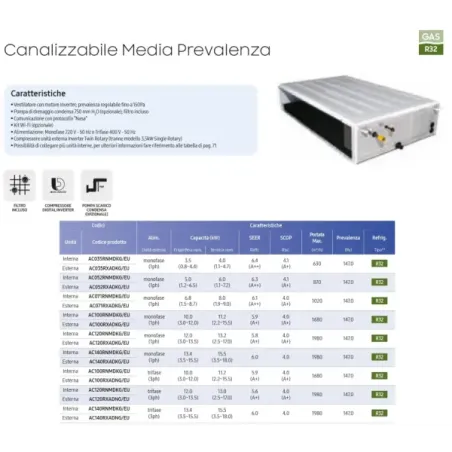

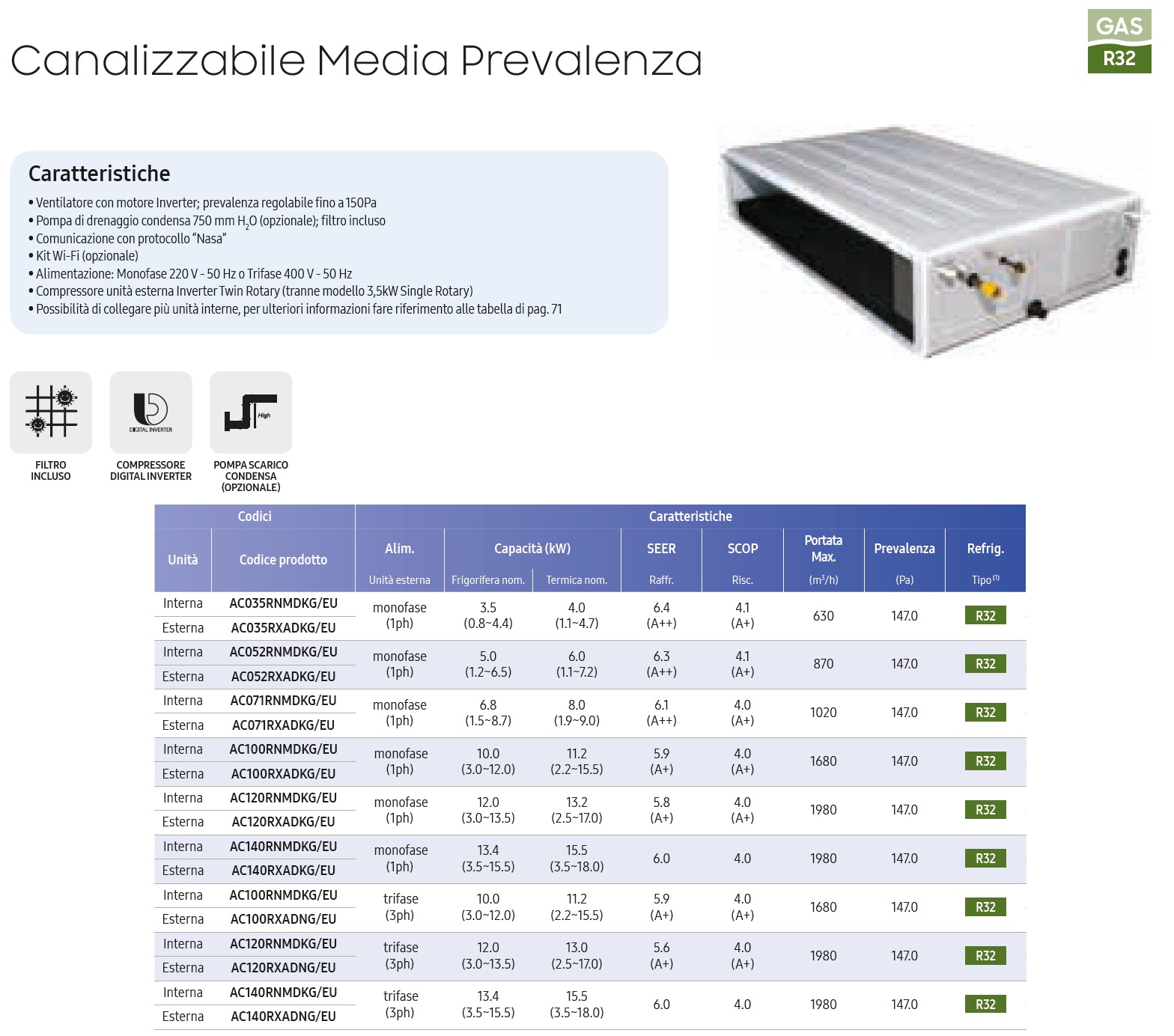

Download Technical Data Sheet Mono Split Ducted Medium Head (IT)
Out of stock, product available soon

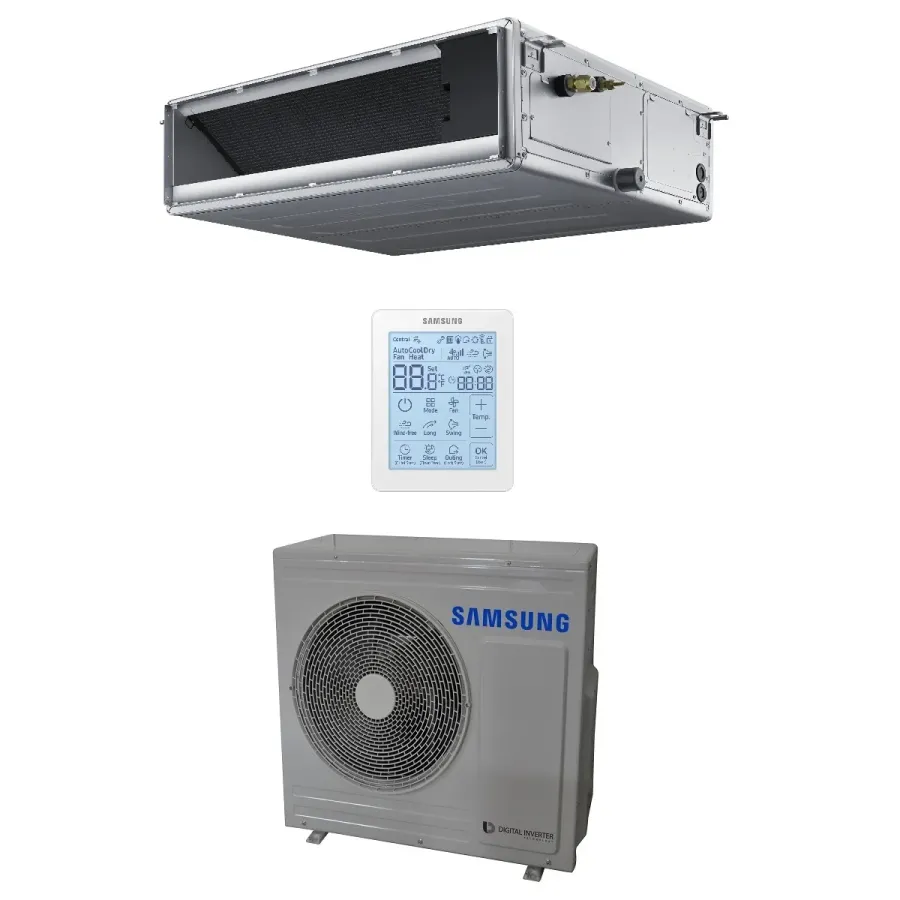

Samsung Mono Split Channel Medium Prevalence 24000 Btu 220v AC071RNMDKG/EU AC071RXADKG/EU Air Conditioners R-32
Samsung Mono Split Series Air Conditioners, Medium Prevalence, WiFi Optional, 24000 BTU, Heat Pump with Low Energy Consumption, Inverter Technology
Kit consisting of the following elements:
Internal channel unit AC071RNMDKG/EU 24,000 BTU 7.1 kW
Ideal for rooms of 60 to 72 square meters with an average ceiling height of approximately 2.7 meters.
Length: 850 mm; Height: 250 mm; Depth: 700 mm.
Included accessories: MWR-SH11N Touch Wired Control.
Optional accessory: MIM-H04EN Wi-Fi interface.
External unit AC071RXADKG/EU 24,000 BTU 7.1 kW
Operation with refrigerant gas: R-32
Length: 880 mm; Height: 798 mm; Depth: 310 mm.
Indoor units with medium delivery head and ducting
- Fan with inverter motor; adjustable prevalence up to 150Pa- Condensate drain pump 750 mm H2O (optional); filter included
- Communication using the "NASA" protocol
- Wi-Fi kit (optional)
- Power supply: Single-phase 220 V - 50 Hz or three-phase 400 V - 50 Hz
- Inverter Twin Rotary outdoor unit compressor (except 3.5 kW Single Rotary)
Technical data sheets
Download Technical Data Sheet Mono Split Ducted Medium Head (IT)
- Rated power BTU
- 24000
BTU 24000 - series
- Medium prevalence
- Rated power kW
- 7.0
7.1 - Type of facility
- channel
- Energy class cooling
- A++
- Energy class heating
- A+
- Refrigerant gas
- R-32
- System type
- Mono Split
- Wi-Fi connection
- WiFi Optional
- Declaration of commitment
- 1
- Manufacturer
- Samsung
- Installation site
- Mono Split
AC071RNMDKG+AC071RXADKG
