Samsung Quadri Split Channel LowMedium Prevalence 9+9+9+12 Btu AJ080TXJ4KG AJ026TNLPEG AJ026TNLPEG AJ026TNLPEG Air Conditioners
Samsung Quadri Split Series Air Conditioners, Low/Medium Prevalence, WiFi Optional, 9000+9000+9000+12000 BTU, Heat Pump with Low Energy Consumption, Inverter Technology Ideal for environments with one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 36 sq m The most comprehensive solution for air conditioning your home: up to four independent rooms with many variations and solutions.

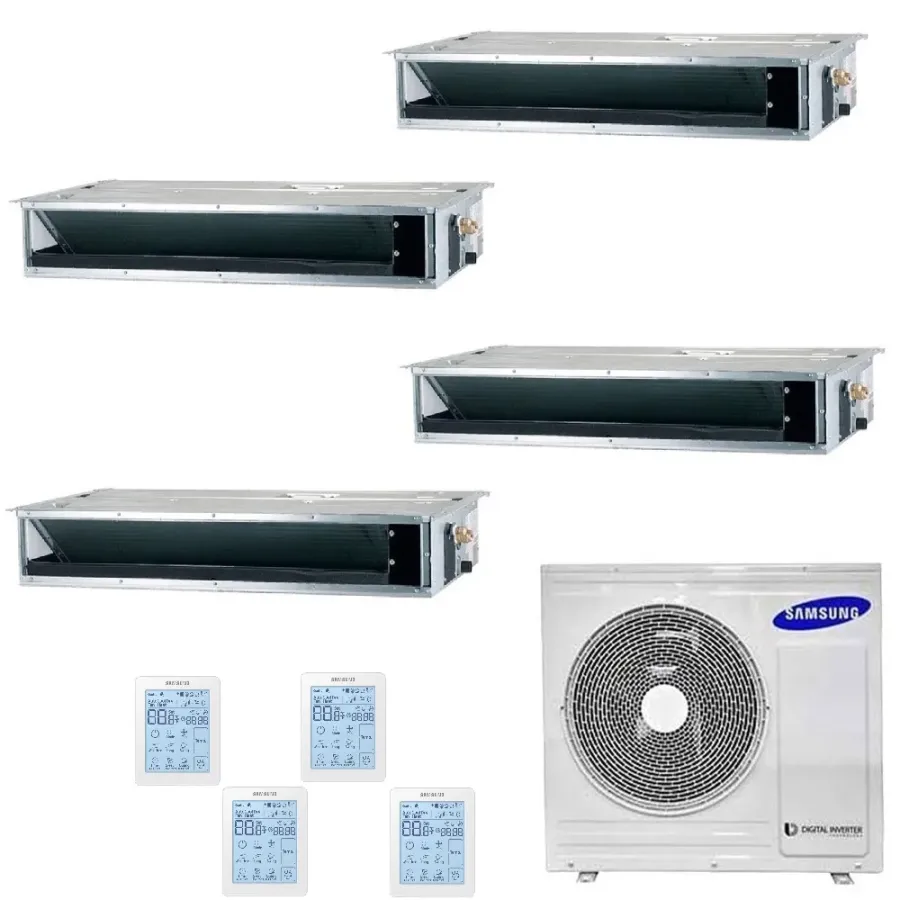

Kit consisting of the following elements:
Indoor unit AJ026TNLPEG/EU 9000 Btu Indoor unit AJ026TNLPEG/EU 9000 Btu Indoor unit AJ026TNLPEG/EU 9000 Btu Indoor unit AJ035TNLPEG/EU 12000 Btu Outdoor unit AJ080TXJ4KG/EU 27000 Btu The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.Technical data sheets
Download Technical Data Sheet Indoor Units (IT)

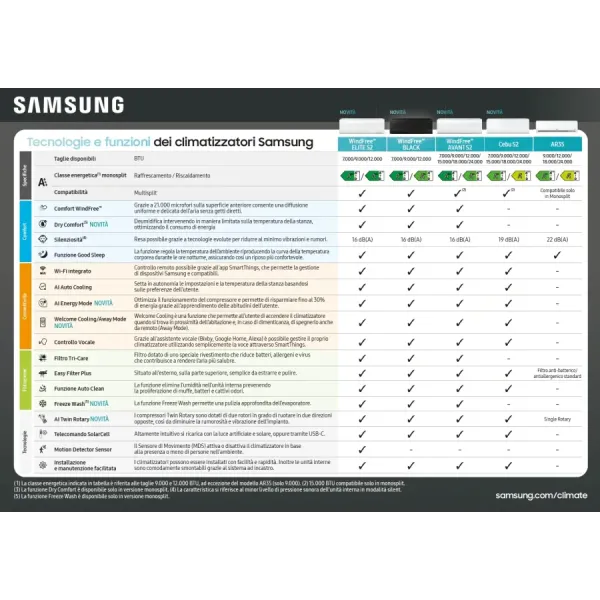

Download comparison of Samsung wall-mounted wall chargers (IT)
Out of stock, product available soon
Samsung Quadri Split Channel LowMedium Prevalence 9+9+9+12 Btu AJ080TXJ4KG AJ026TNLPEG AJ026TNLPEG AJ026TNLPEG Air Conditioners
Samsung Quadri Split Series Air Conditioners, Low/Medium Prevalence, WiFi Optional, 9000+9000+9000+12000 BTU, Heat Pump with Low Energy Consumption, Inverter Technology
Kit consisting of the following elements:
Internal duct unit AJ026TNLPEG/EU 9,000 BTU 2.5 kW
Ideal for rooms of 21 to 27 square meters with an average ceiling height of approximately 2.7 meters.
Length: 700 mm; Height: 199 mm; Depth: 440 mm.
Included accessories: MWR-SH11N Touch Wired Control.
Optional accessory: MIM-H04EN Wi-Fi interface.
Internal duct unit AJ026TNLPEG/EU 9,000 BTU 2.5 kW
Ideal for rooms of 21 to 27 square meters with an average ceiling height of approximately 2.7 meters.
Length: 700 mm; Height: 199 mm; Depth: 440 mm.
Included accessories: MWR-SH11N Touch Wired Control.
Optional accessory: MIM-H04EN Wi-Fi interface.
Internal duct unit AJ026TNLPEG/EU 9,000 BTU 2.5 kW
Ideal for rooms of 21 to 27 square meters with an average ceiling height of approximately 2.7 meters.
Length: 700 mm; Height: 199 mm; Depth: 440 mm.
Included accessories: MWR-SH11N Touch Wired Control.
Optional accessory: MIM-H04EN Wi-Fi interface.
Internal duct unit AJ035TNLPEG/EU 12,000 BTU 3.5 kW
Ideal for rooms of 27 to 36 square meters with an average ceiling height of approximately 2.7 meters.
Length: 700 mm; Height: 199 mm; Depth: 440 mm.
Included accessories: MWR-SH11N Touch Wired Control.
Optional accessory: MIM-H04EN Wi-Fi interface.
Multi-split outdoor unit AJ080TXJ4KG/EU 28,000 BTU 8.0 kW
Operation with refrigerant gas: R-32
Length: 880 mm; Height: 798 mm; Depth: 310 mm.
Minimum number of connectable indoor units: 2.
Maximum number of connected indoor units: 4.
Indoor units with channels, low to medium distribution
- Fan with inverter motor; adjustable prevalence up to 30 Pa (low prevalence) 60 Pa (medium prevalence)- Thickness of only 200 mm
- Condensate drain pump 750 mm H2O (optional for medium delivery head)
- Dust filter included
Technical data sheets
Download Technical Data Sheet Indoor Units (IT)
Download comparison of Samsung wall-mounted wall chargers (IT)
- Rated power BTU
- BTU 9000+9000+9000+12000
- series
- Low/Medium prevalence
- Rated power kW
- 2.5+2.5+2.5+3.5
2.6+2.6+2.6+3.5 - Type of facility
- channel
- Energy class cooling
- A++
- Energy class heating
- A+
- Refrigerant gas
- R-32
- System type
- Quadri Split
- Wi-Fi connection
- WiFi Optional
- Declaration of commitment
- 1
