Samsung Penta Split 7+7+7+7+18 Btu Series Cassette 4 Vie Mini WindFree AJ100TXJ5KG/EU Air Conditioners White WiFi Optional R-32
Samsung Penta Split Series 4 Vie Mini Air Conditioner with WindFree WiFi (Optional) 7+7+7+7+18 Btu Heat Pump with Low Energy Consumption Inverter Technology Ideal for environments with one indoor unit up to 21 sq m + one indoor unit up to 21 sq m + one indoor unit up to 21 sq m + one indoor unit up to 21 sq m + one indoor unit up to 54 sq m The most comprehensive solution for air conditioning your home: up to five independent rooms with many variations and solutions.

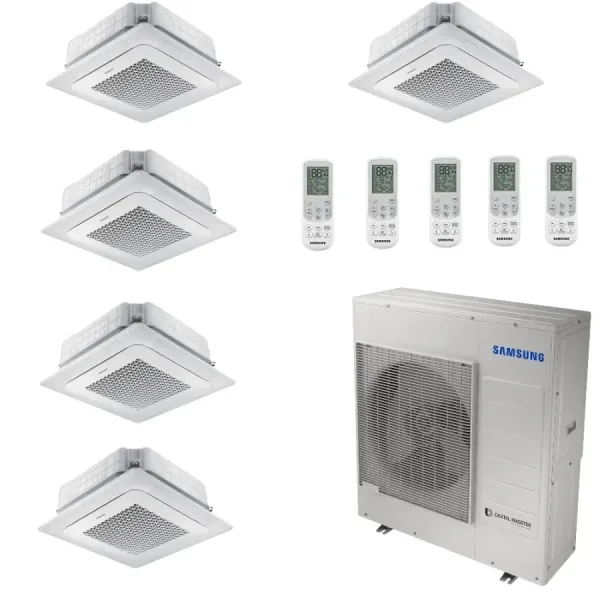

Kit consisting of the following elements:
Indoor unit AJ020TNNDKG/EU 7000 Btu Indoor unit AJ020TNNDKG/EU 7000 Btu Indoor unit AJ020TNNDKG/EU 7000 Btu Indoor unit AJ020TNNDKG/EU 7000 Btu Indoor unit AJ052TNNDKG/EU 18000 Btu Outdoor unit AJ100TXJ5KG/EU 34000 Btu The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.Technical data sheets
Download Technical Data Sheet Indoor Units (IT)
Download comparison of Samsung wall-mounted wall chargers (IT)
Out of stock, product available soon
Samsung Penta Split 7+7+7+7+18 Btu Series Cassette 4 Vie Mini WindFree AJ100TXJ5KG/EU Air Conditioners White WiFi Optional R-32
Samsung Penta Split Series 4 Vie Mini Air Conditioner with WindFree WiFi (Optional) 7+7+7+7+18 Btu Heat Pump with Low Energy Consumption Inverter Technology
Kit consisting of the following elements:
Cassette indoor unit AJ020TNNDKG/EU 7,000 BTU 2.0 kW
Ideal for rooms of 18 to 22 square meters with an average ceiling height of approximately 2.7 meters.
Length: 575 mm; Height: 250 mm; Depth: 575 mm.
Included accessories: White grill PC4SUFMAN and infrared remote control AR-EH03E.
Optional accessory: MIM-H04EN Wi-Fi interface.
Cassette indoor unit AJ020TNNDKG/EU 7,000 BTU 2.0 kW
Ideal for rooms of 18 to 22 square meters with an average ceiling height of approximately 2.7 meters.
Length: 575 mm; Height: 250 mm; Depth: 575 mm.
Included accessories: White grill PC4SUFMAN and infrared remote control AR-EH03E.
Optional accessory: MIM-H04EN Wi-Fi interface.
Cassette indoor unit AJ020TNNDKG/EU 7,000 BTU 2.0 kW
Ideal for rooms of 18 to 22 square meters with an average ceiling height of approximately 2.7 meters.
Length: 575 mm; Height: 250 mm; Depth: 575 mm.
Included accessories: White grill PC4SUFMAN and infrared remote control AR-EH03E.
Optional accessory: MIM-H04EN Wi-Fi interface.
Cassette indoor unit AJ020TNNDKG/EU 7,000 BTU 2.0 kW
Ideal for rooms of 18 to 22 square meters with an average ceiling height of approximately 2.7 meters.
Length: 575 mm; Height: 250 mm; Depth: 575 mm.
Included accessories: White grill PC4SUFMAN and infrared remote control AR-EH03E.
Optional accessory: MIM-H04EN Wi-Fi interface.
Cassette indoor unit AJ052TNNDKG/EU 18,000 BTU 5.0 kW
Ideal for rooms of 45 to 54 square meters with an average ceiling height of approximately 2.7 meters.
Length: 575 mm; Height: 250 mm; Depth: 575 mm.
Included accessories: White grill PC4SUFMAN and infrared remote control AR-EH03E.
Optional accessory: MIM-H04EN Wi-Fi interface.

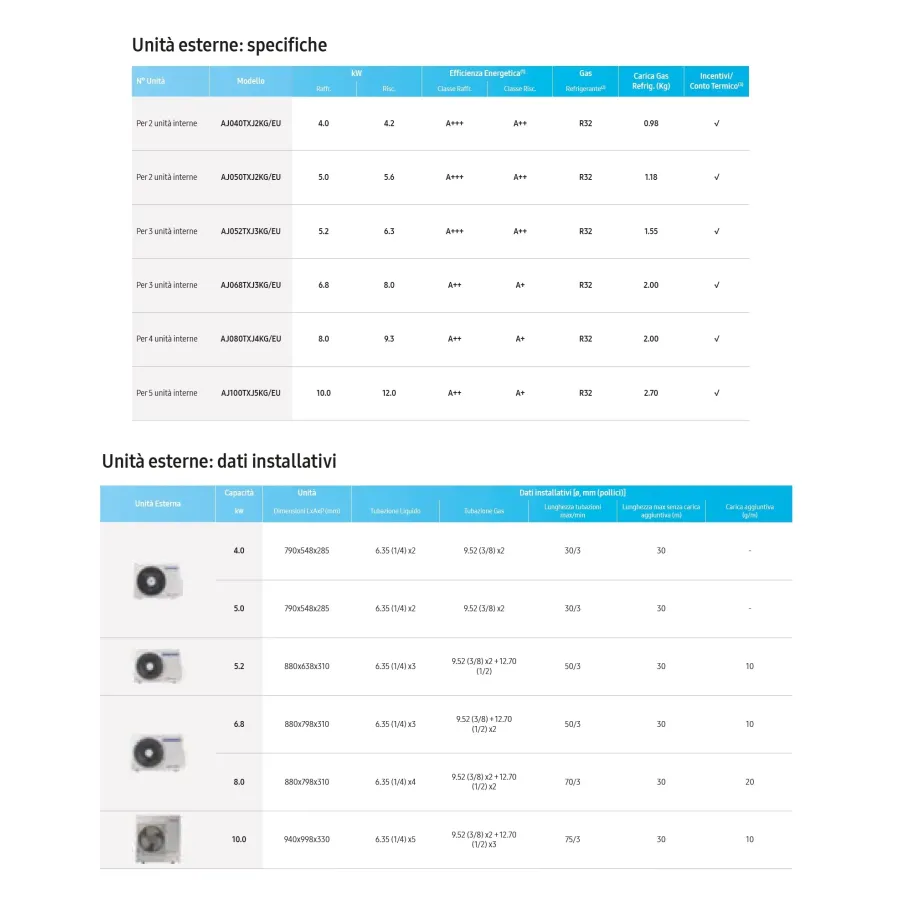

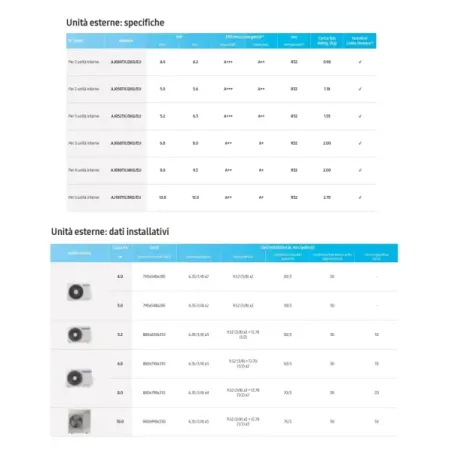

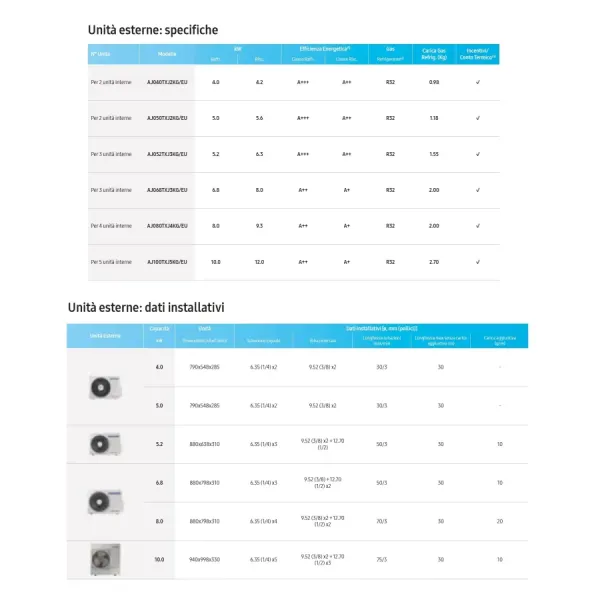

Multi-split outdoor unit AJ100TXJ5KG/EU 34,000 BTU 10.0 kW
Operation with refrigerant gas: R-32
Length: 940 mm; Height: 998 mm; Depth: 330 mm.
Minimum number of connectable indoor units: 2.
Maximum number of connectable indoor units: 5.

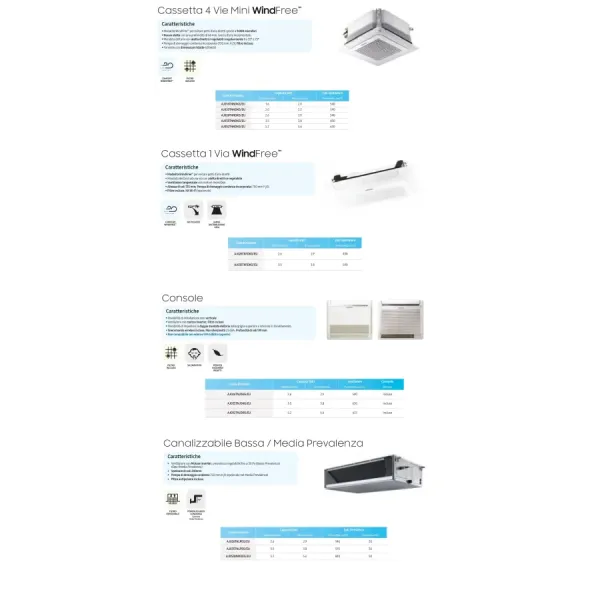

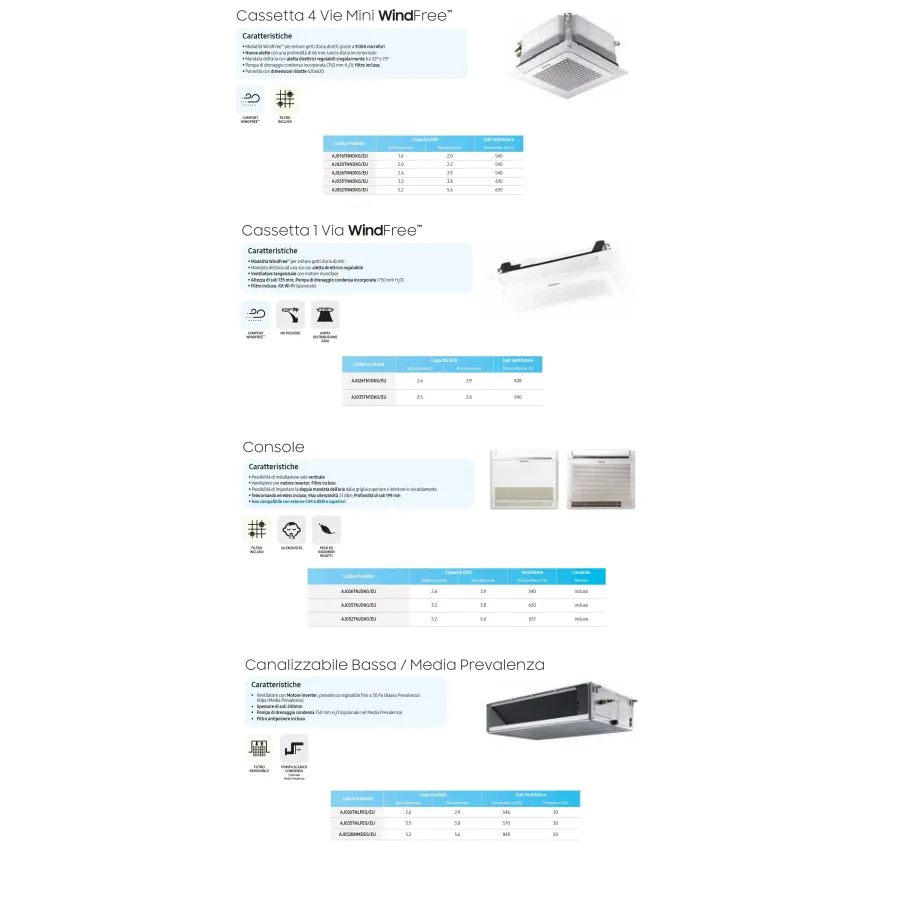

Indoor units cassette series 4-way Mini WindFree
- WindFree mode to prevent direct air jets thanks to 9,000 micro-holes; comfort guaranteed thanks to humidity sensor.- New louvers with a depth of 66 mm, increased air throw distance; fan with inverter motor
- Airflow with individually adjustable guide vanes between 32° and 75°; turbo mode available
- Pre-cut for external air intake; panel with reduced dimensions 620 x 620 mm; built-in condensate drain pump (750 mm H2O);
- Communication using the NASA protocol; controllable via app on smartphone and tablet
- Single-phase power supply 220 V 50 Hz; Inverter twin rotary compressor for outdoor units (except 2.6/3.5 single-rotary models)
Technical data sheets
Download Technical Data Sheet Indoor Units (IT)
Download comparison of Samsung wall-mounted wall chargers (IT)
- Rated power BTU
- BTU 7+7+7+7+18
BTU 7000+7000+7000+7000+18000 - series
- 4 Vie Mini WindFree
4 air outlets Mini WindFree - Color
- White
- Rated power kW
- 2.0+2.0+2.0+2.0+5.0
2.0+2.0+2.0+2.0+5.2 - Type of facility
- Cassette player
cassette - Energy class cooling
- A++
- Energy class heating
- A+
- Refrigerant gas
- R-32
- System type
- Penta Split
- Wi-Fi connection
- WiFi Optional
- Declaration of commitment
- 1
Cassetta-4-7+7+7+7+18-AJ100TXJ5K
