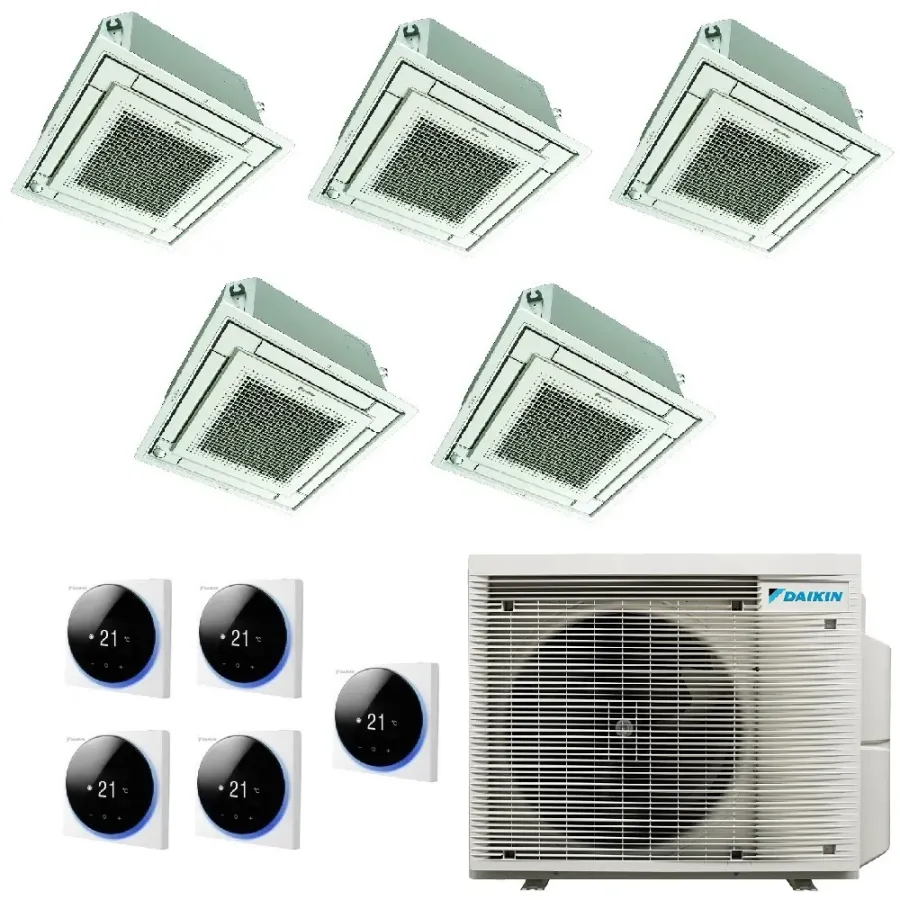

Daikin Penta Split Cassette Unit 9+9+9+9+9 5MXM90A9 FFA25A9 FFA25A9 FFA25A9 FFA25A9 FFA25A9 Air Conditioners + Cable Control
Daikin Penta Split Series 4 air conditioner with optional WiFi, 9+9+9+9+9 Btu heating with low-voltage absorption heat pump in high energy class. Unique design on the market with integration of the ultra-flat unit into the suspended ceiling. Ideal for environments with one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m + one indoor unit up to 27 sq m BRC1H52-WKS

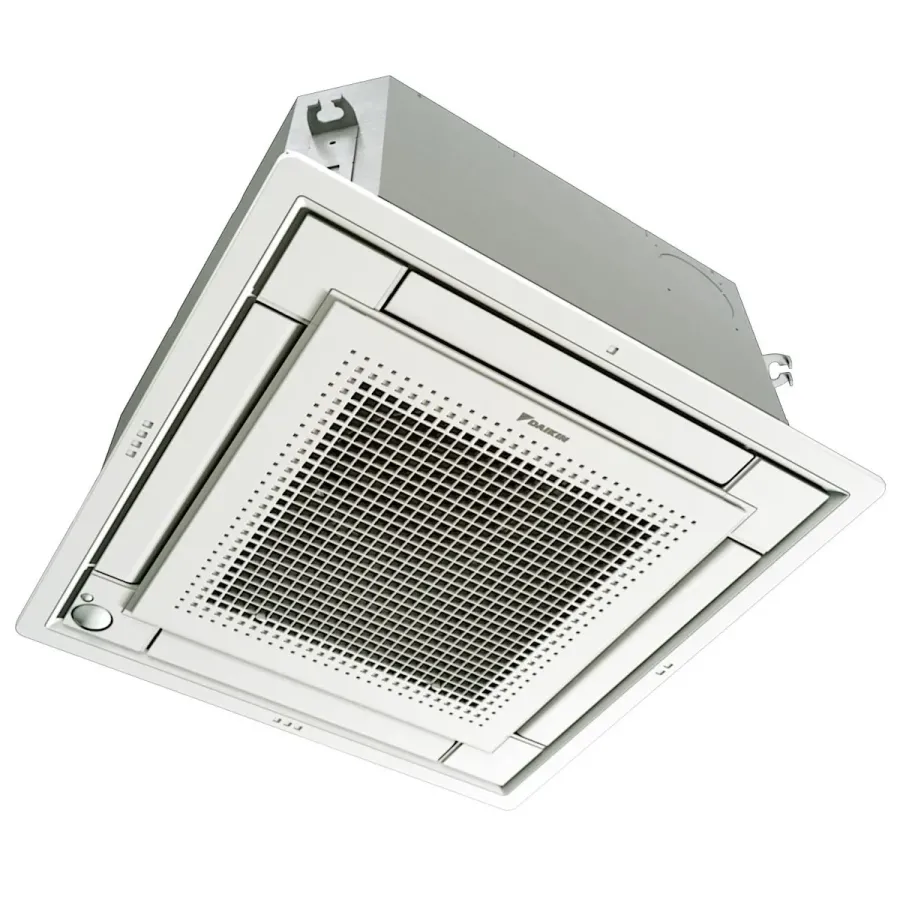

Daikin Ultra-Slim 4-Way Cassette Indoor Units FFA-A9 + RXM-N9
- Ultra-flat unit, requires only 8 mm of free space.
- Two optional smart sensors
- Checking the individual deflectors
- Channeling of the delivery
- Condensate drain pump included as standard
The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Kit consisting of the following elements:
Indoor unit FFA25A9 9000 Btu Indoor unit FFA25A9 9000 Btu Indoor unit FFA25A9 9000 Btu Indoor unit FFA25A9 9000 Btu Indoor unit FFA25A9 9000 Btu External unit 5MXM90A9 30000 Btu An excellent solution for comfort in all rooms of your home or office.Daikin Ultra-Slim 4-Way Cassette Indoor Units FFA-A9 + RXM-N9
- Ultra-flat unit, requires only 8 mm of free space.
- Two optional smart sensors
- Checking the individual deflectors
- Channeling of the delivery
- Condensate drain pump included as standard
The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.
Available, delivery time 4-5 working days
Daikin Penta Split Cassette Unit 9+9+9+9+9 5MXM90A9 FFA25A9 FFA25A9 FFA25A9 FFA25A9 FFA25A9 Air Conditioners + Cable Control
Daikin Penta Split Series 4 air conditioner with optional WiFi, 9+9+9+9+9 Btu heating with low-voltage absorption heat pump in high energy class. Unique design on the market with integration of the ultra-flat unit into the suspended ceiling.
Kit consisting of the following elements:
Internal cassette unit FFA25A9 9,000 BTU 2.5 kW
Ideal for rooms of 21 to 27 square meters with an average height of approximately 2.7 meters.
Length: 575 mm; Height: 260 mm; Depth: 575 mm.
Standard accessories: White decorative grille 62x62 BYFQ60CW
Optional accessory: Wi-Fi interface BRP069C81.
Internal cassette unit FFA25A9 9,000 BTU 2.5 kW
Ideal for rooms of 21 to 27 square meters with an average height of approximately 2.7 meters.
Length: 575 mm; Height: 260 mm; Depth: 575 mm.
Standard accessories: White decorative grille 62x62 BYFQ60CW
Optional accessory: Wi-Fi interface BRP069C81.
Internal cassette unit FFA25A9 9,000 BTU 2.5 kW
Ideal for rooms of 21 to 27 square meters with an average height of approximately 2.7 meters.
Length: 575 mm; Height: 260 mm; Depth: 575 mm.
Standard accessories: White decorative grille 62x62 BYFQ60CW
Optional accessory: Wi-Fi interface BRP069C81.
Internal cassette unit FFA25A9 9,000 BTU 2.5 kW
Ideal for rooms of 21 to 27 square meters with an average height of approximately 2.7 meters.
Length: 575 mm; Height: 260 mm; Depth: 575 mm.
Standard accessories: White decorative grille 62x62 BYFQ60CW
Optional accessory: Wi-Fi interface BRP069C81.
Internal cassette unit FFA25A9 9,000 BTU 2.5 kW
Ideal for rooms of 21 to 27 square meters with an average height of approximately 2.7 meters.
Length: 575 mm; Height: 260 mm; Depth: 575 mm.
Standard accessories: White decorative grille 62x62 BYFQ60CW
Optional accessory: Wi-Fi interface BRP069C81.
5MXM90A9 Rated power 30,000 BTU 9.0 kW
Operation with refrigerant gas: R-32
Length: 974 mm; Height: 734 mm; Depth: 408 mm.
Minimum number of connectable indoor units: 2.
Maximum number of connectable indoor units: 5.

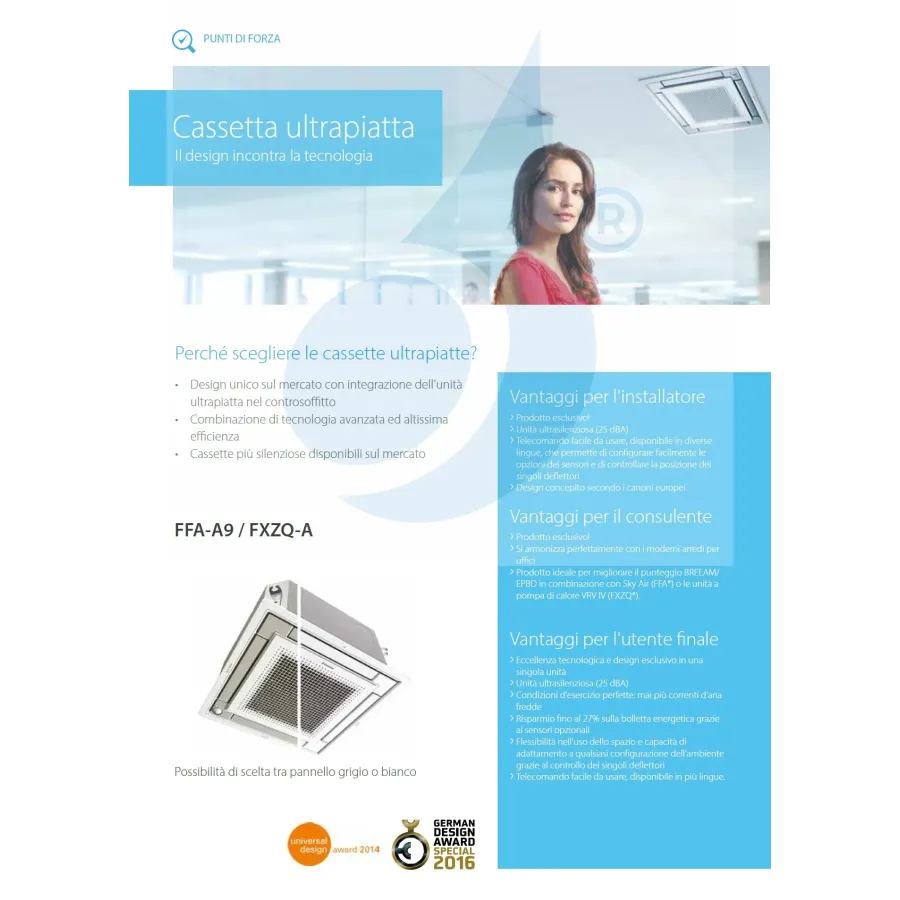

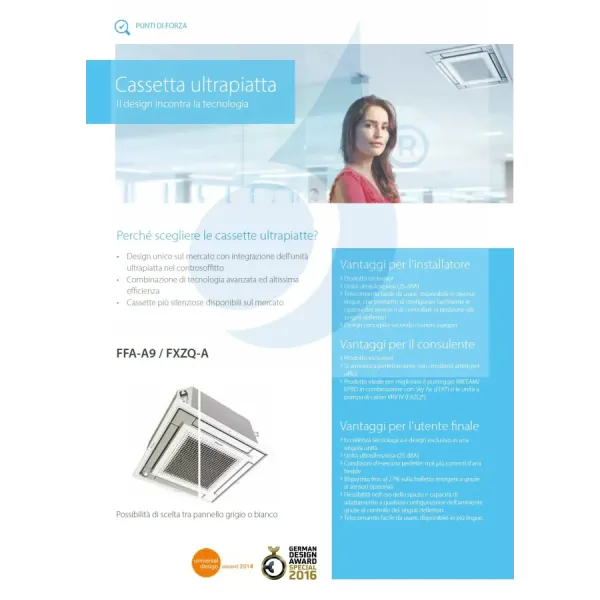

Indoor units Daikin Ultra-flat 4-way cassette FFA-A9 + RXM-N9
Unique design on the market with integration of the ultra-flat unit into the suspended ceiling.The ultra-flat unit, which can be installed in the suspended ceiling, requires a clearance of only 8 mm.
A unique combination of design and technology with elegant white surfaces.
Two optional smart sensors improve energy efficiency and comfort.
Individual deflector control: Flexibility to adapt to any room configuration without changing the position of the device!
Optional external air intake.
Ducted air supply that allows you to optimize air distribution in irregularly shaped rooms or to direct air into small adjacent rooms.
Standard condensate drain pump with a delivery head of 630 mm, which increases flexibility and installation speed.

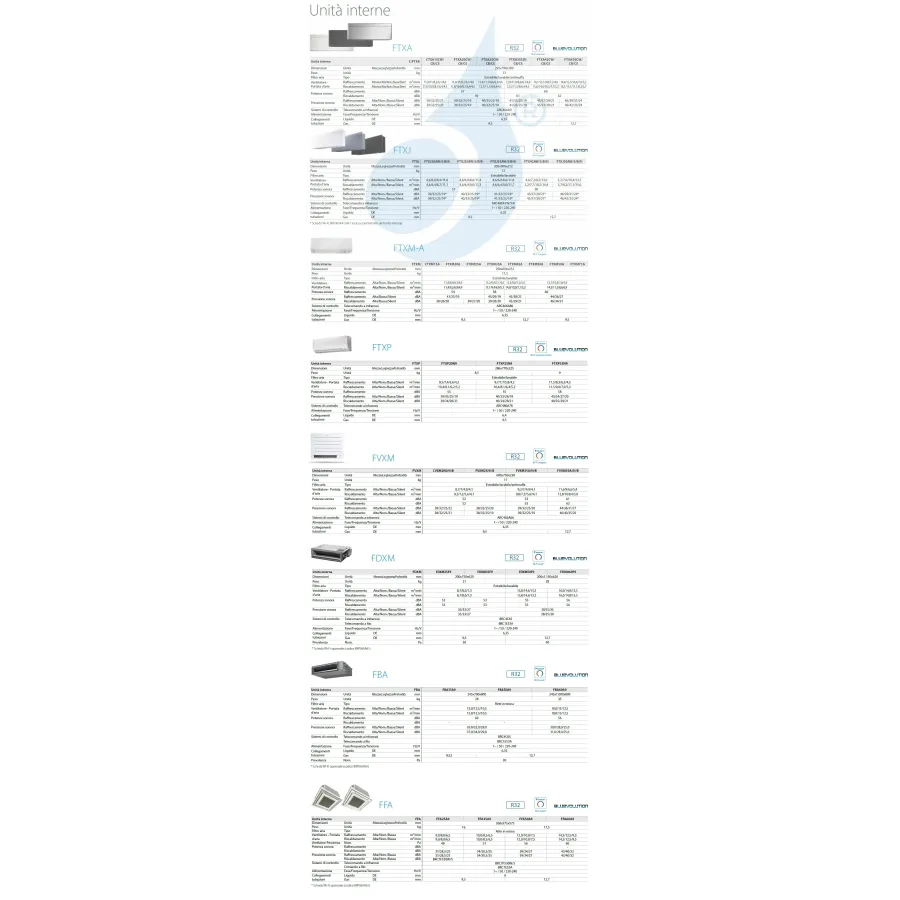

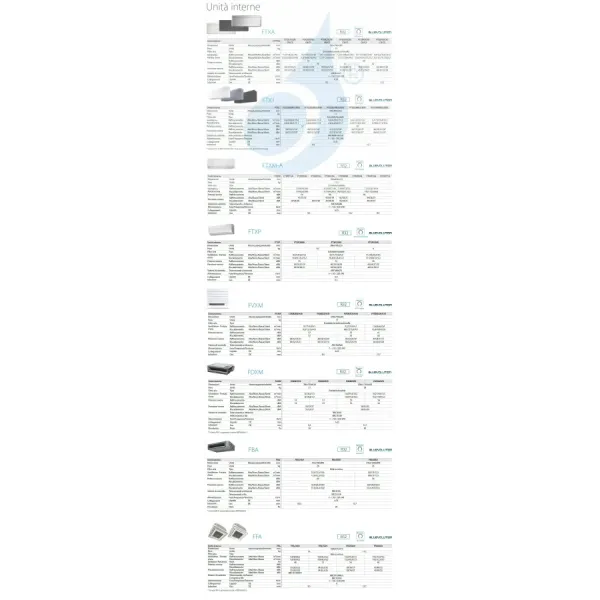

Technical data sheets
Download serial card cassette FFA
- Rated power BTU
- BTU 9+9+9+9+9
- series
- 4 vie FFA-A
- Color
- White
- Rated power kW
- 2.5+2.5+2.5+2.5+2.5
- Type of facility
- Cassette player
- Energy class cooling
- A++
- Energy class heating
- A+
- Refrigerant gas
- R-32
- System type
- Penta Split
- Wi-Fi connection
- WiFi Optional
- Declaration of commitment
- 1
FFA-A9-9+9+9+9+9-FILO-5MXM90A9
